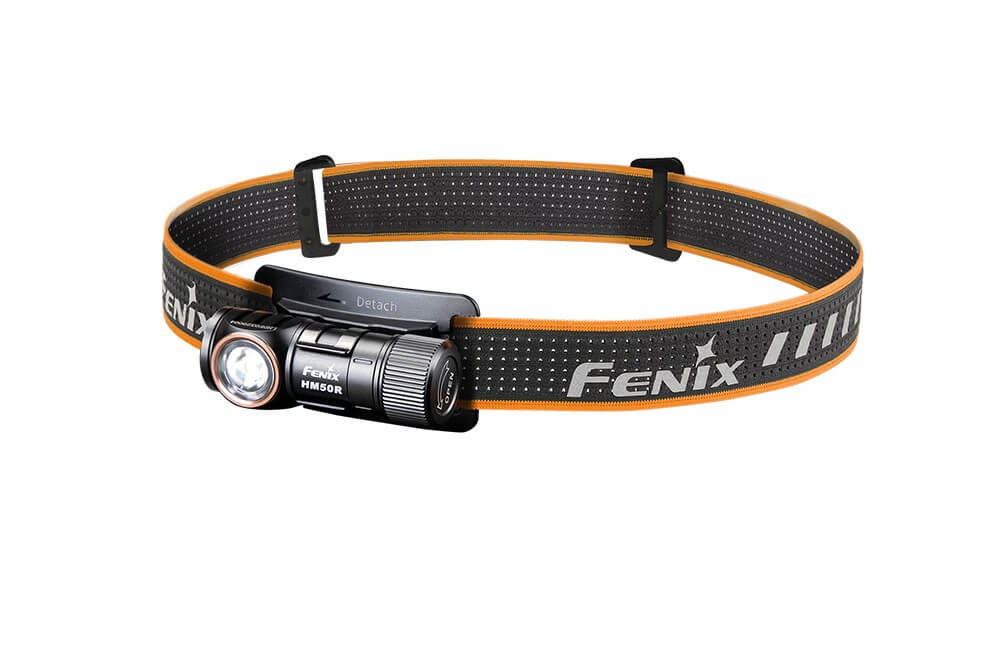

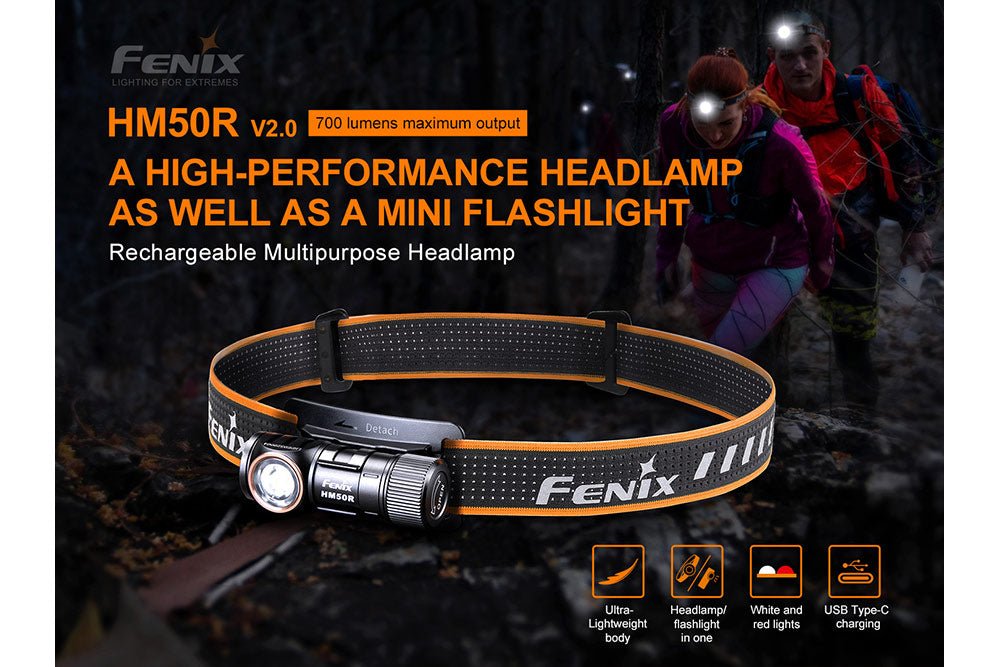

Fenix HM50R V2.0 LED Headlamp - 700 Lumens

Outputs

• Turbo: 700 Lumens, 1 hour, 377 ft
• High: 400 Lumens, 3 hours, 282 ft
• Med: 120 Lumens, 8 hours, 160 ft
• Low: 30 Lumens, 42 hours, 75 ft
• Red: 5 Lumens, 60 hours, 19 ft
• Red Flash: 5 Lumens, 120 hours, 19 ft

Details

• 700 Max Lumens
• Cree XP-G3 S4 White light LED
• 16340 Rechargeable battery included
• Detachable from headband - Can be used as a flashlight
• All metal body (A6061-T6 high-quality aluminum alloy)
• IP68 Waterproof Rated Protection: Fully submersible to 6.5 feet for up to 30 minutes
• USB Type-C Fast charging
• 180° lighting angle Multi-purpose use

Batteries

• Included: ARB-L16-800P rechargeable 800mAh 16340 battery
• Compatible: One rechargeable 16340 battery or one non-rechargeable CR123A

Size

• Body Length: 2.52 inches
• Body Width: 1.42 inches
• Body Height: 1.26 inches
• Weight: 2.75 oz including battery and headband

How long does it take to fully charge the HM50R V2?

It will take roughly 1.5 hours to charge the included ARB-L16-800P battery to full.

Does the HM50R V2 feature a lockout function?

Yes, the HM50R V2 does feature a lockout function. To activate the lockout function press and hold the button for 3 seconds. To deactivate the lockout mode press and hold for 3 seconds again.

What batteries can be used in the HM50R V2?

The HM50R V2 includes the Fenix ARB-L16-800 rechargeable 16340 battery. It is also compatible with a non-rechargeable CR123A battery.

Technical Parameters (ANSI/PLATO FL1)

• Turbo: 700 lm, 1h*, 115 m, 3350 cd
• High: 400 lm, 3h, 86 m, 1849 cd
• Med: 130 lm, 8h, 49 m, 596 cd
• Low: 30 lm, 42h, 23 m, 128 cd
• Red: 5 lm, 60h, 6 m, 9 cd
• Red Flash: 5 lm, 120h, 6 m, 9 cd

Impact Resistance: 2 meters. Submersible: IP68.

Note: according to the ANSI/PLATO FL1 standard, the above specifications are from the results produced by Fenix through its laboratory testing using one Fenix ARB-L16-700P Li-ion battery under the temperature of 21±3°C and humidity of 50% - 80%. The true performance of this product may vary according to different working environments and the actual battery used. *The Turbo output is measured in a total of runtime including output at reduced levels due to temperature or protection mechanism in the design.

Product Features

• 700 lumens maximum output, 115 meters maximum beam distance.
• Luminus SST20 white light LED with a lifespan of 50,000 hours.
• Included a 16340 rechargeable Li-ion battery.
• Detachable structure — can be used as a flashlight.
• White and red lights.
• USB Type-C charging port for easy and fast charging.
• Lockout function avoids accidental activation.

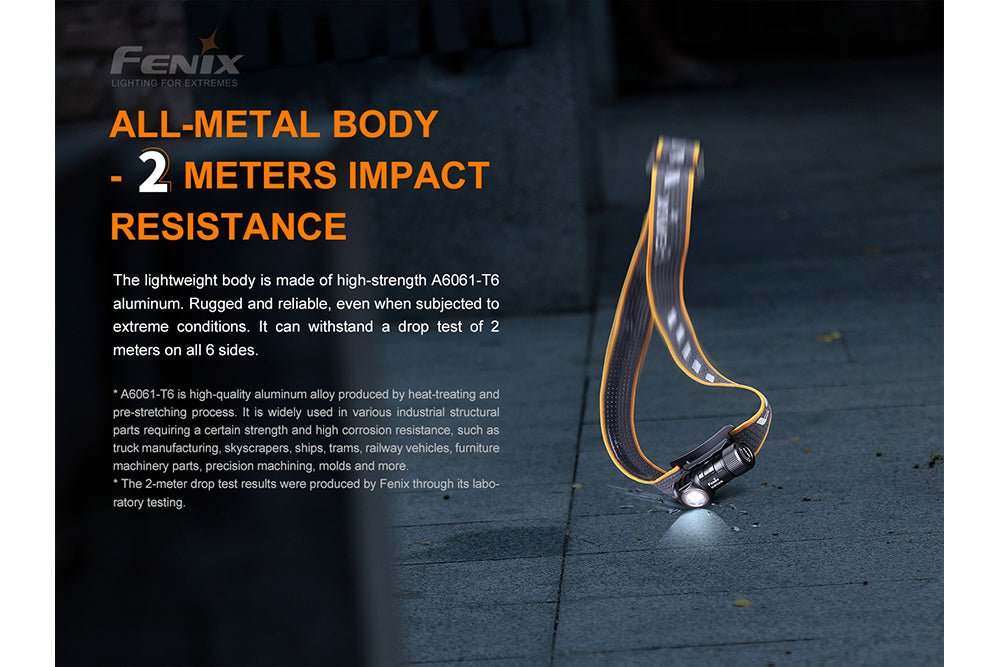

• Made of durable A6061-T6 aluminum.
• Premium type HAIII hard-anodized anti-abrasive finish.

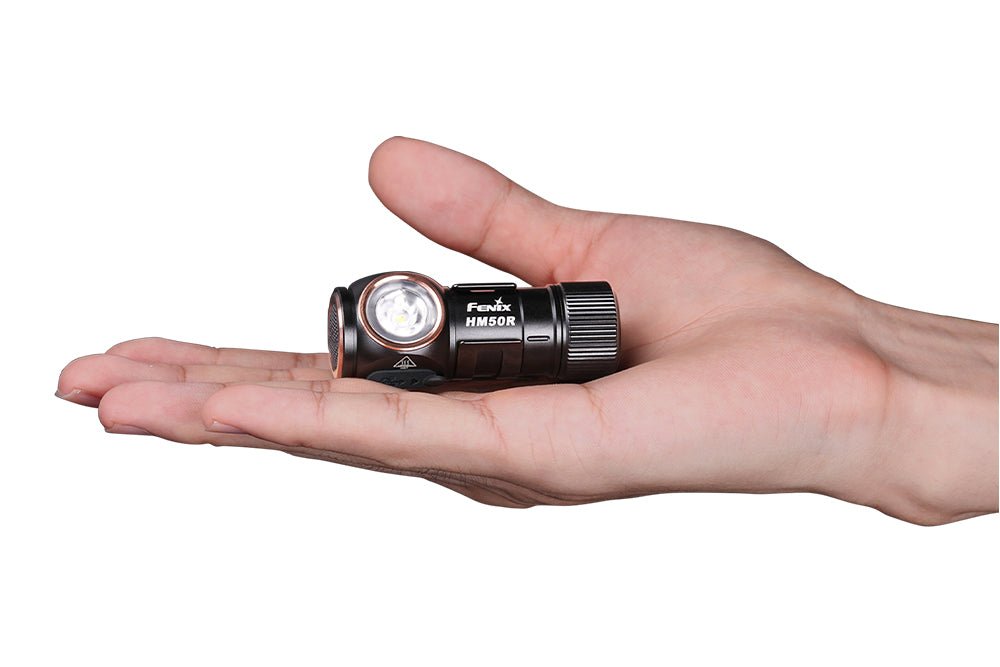

• Size: 2.52" x 1.42" x 1.26" / 64 x 36 x 32 mm.
• Weight: 2.75 oz / 78 g (including battery and headband).

Operating Instructions

On/off: with the lamp switched off, press and hold the switch for 0.5 seconds to enter white light mode. Double click the switch to enter red light mode. With the lamp switched on, press and hold the switch for 0.5 seconds to turn off the lamp.

White light mode: single click the switch to cycle through Low → Med → High → Turbo (with intelligent memory circuit).

Red light mode: single click the switch to cycle through Red light → Red flash (without intelligent memory circuit).

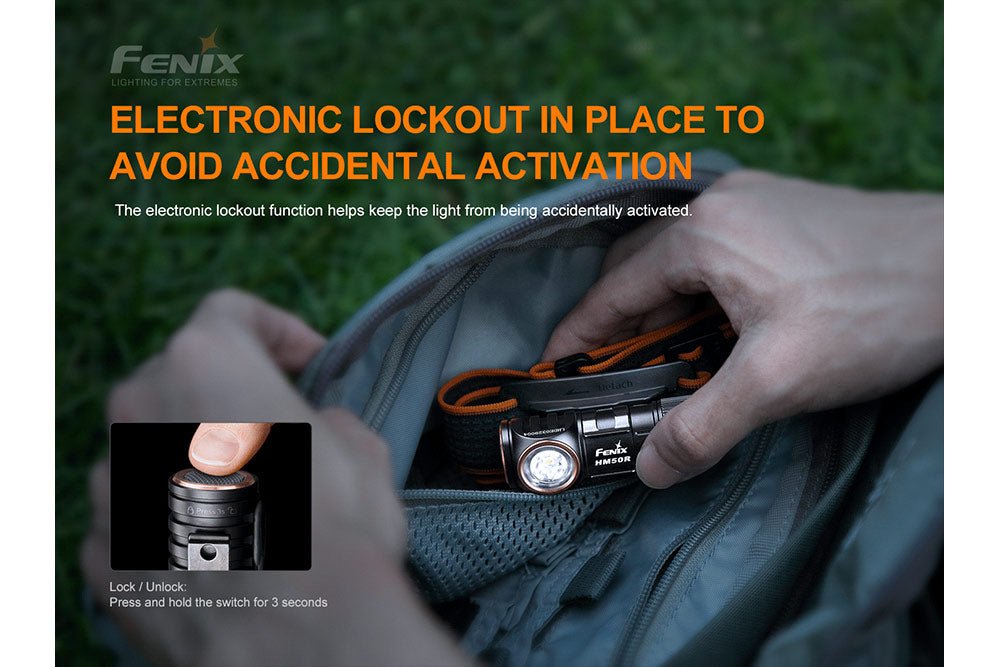

Lock: when the lamp is switched off, press and hold the switch for 3 seconds; the lamp will be switched on with white light and then blink red four times to indicate locked status.

Unlock: when the lamp is locked, press the switch for 3 seconds; the lamp will be activated with 4 one-second red blinks and activated on Red Light. In locked status, clicking or pressing the switch will activate 4 one-second red blinks to indicate locked status.

Battery Specifications

• Fenix ARB-L16 Series (16340, 3.6/3.7V): Recommended
• Rechargeable Battery, Li-ion (16340, 3.7V): Usable
• Non-rechargeable Battery, LiFePO4 (16340, 3.2V): Caution
• Non-rechargeable Battery, Lithium (CR123A, 3V): Caution

Warning: 16340 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only use quality batteries with circuit protection to reduce the potential for combustion or explosion; cell damage or short circuiting are potential risks the user assumes. High mode can't be entered when using the CR123A battery.

Battery Replacement

Unscrew the cap to insert the battery in accordance with the polarity marks, then screw the cap back on.

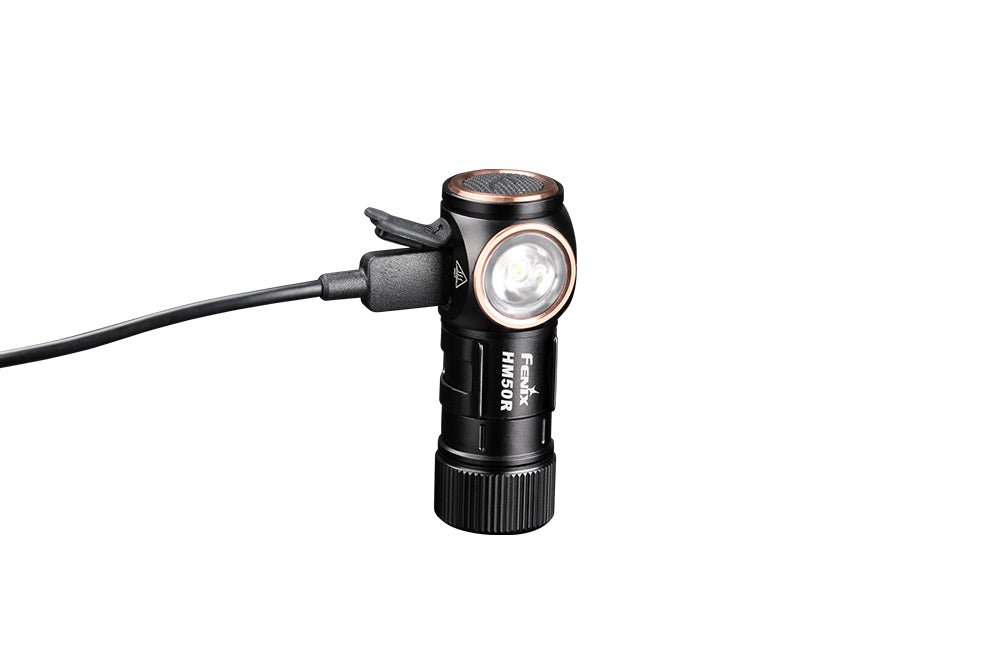

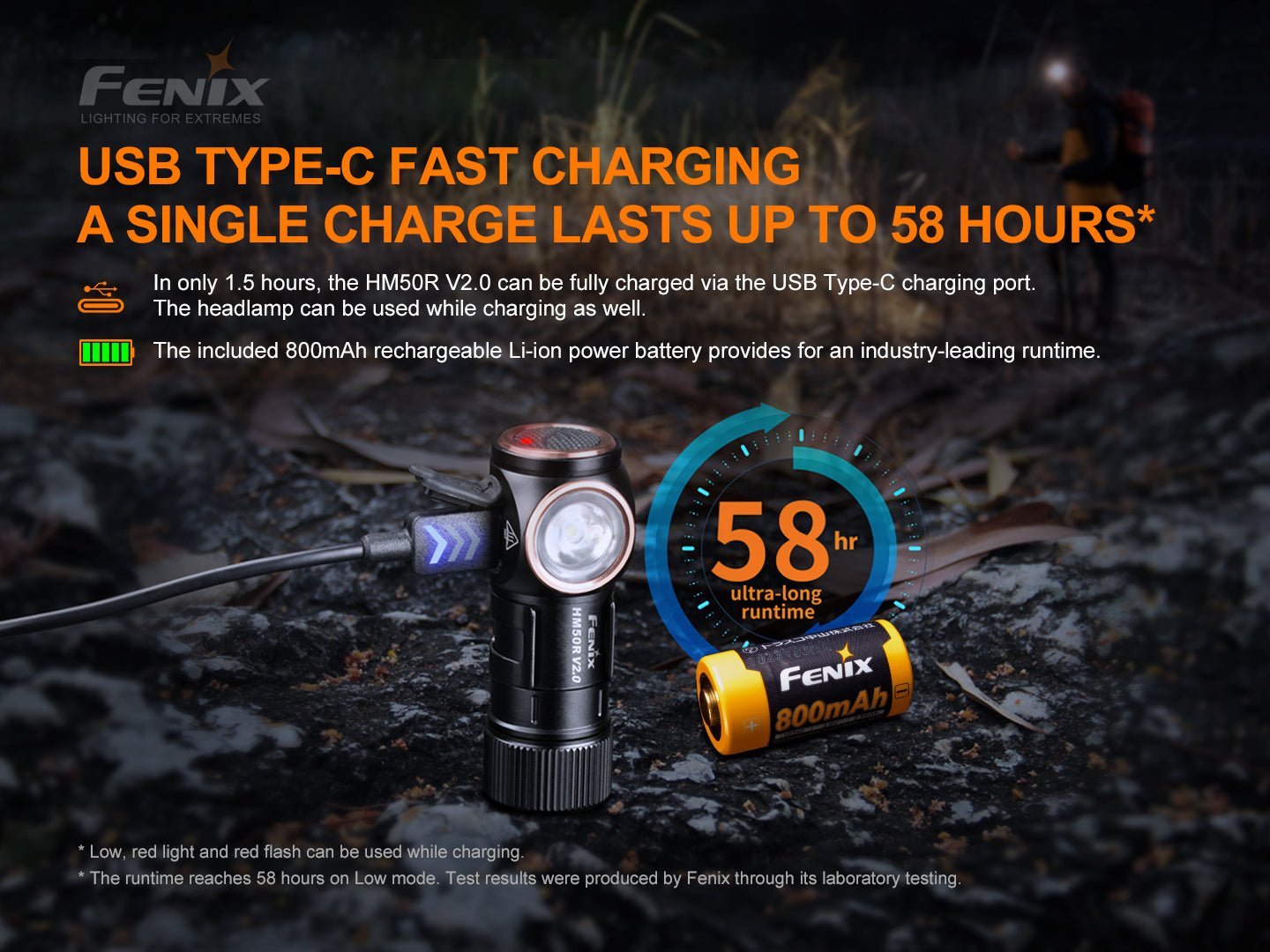

Charging

• Uncover the cap and plug the USB Type-C side of the charging cable into the charging port of the lamp.
• The indicator will display red while charging and will turn green when fully charged.
• The normal charging time of the included Fenix ARB-L16-700P 16340 rechargeable Li-ion battery is about 1.5 hours.
• When charging, the headlamp can be normally used on Low, Red, Red flash, but charging time will be prolonged.
• When charging is complete, replace the anti-dust cap to ensure waterproof and dustproof ability.
• Recharge a stored headlamp every four months to maintain optimal Li-ion battery performance.
• Charging protection: when charging, if the lamp reaches a temperature of 60°C or above, the lamp will automatically exit charging status and enter sleeping mode.

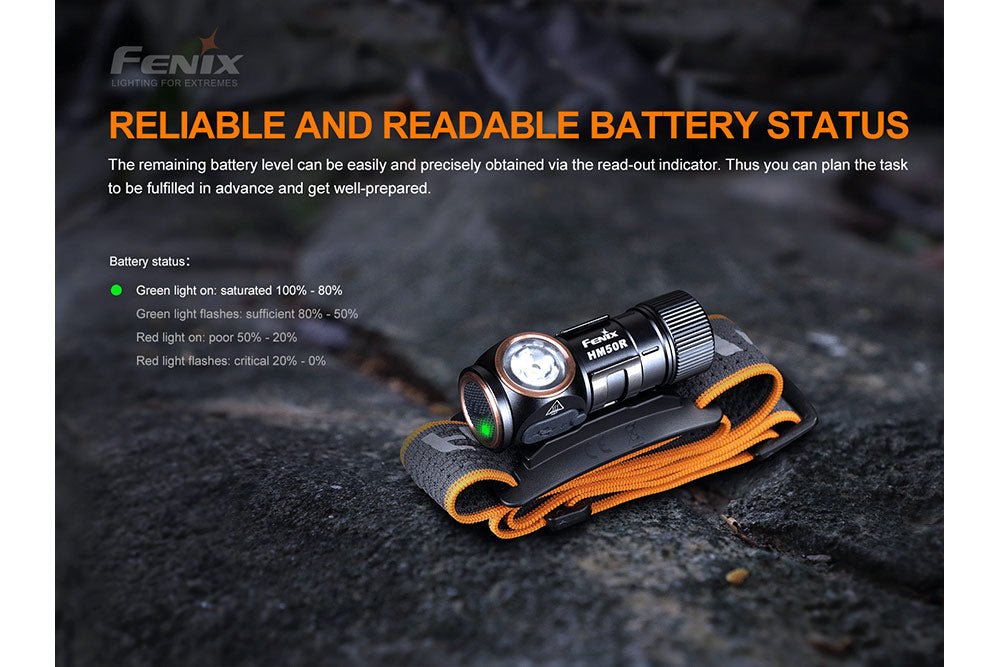

Battery Level Indication

With the lamp switched off, single click the switch to check the battery status; the indicator will last for 3 seconds.

• Green light on: saturated 100% - 80%
• Green light flashes: sufficient 80% - 50%
• Red light on: poor 50% - 20%
• Red light flashes: critical 20% - 0%

This only works with Fenix ARB-L16-700P battery.

Intelligent Overheat Protection

The lamp will accumulate a lot of heat when used at Turbo mode for extended periods. When the lamp reaches a temperature of 60°C or above, the lamp will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C, it will then allow the user for the resolution of Turbo mode.

Low-Voltage Warning

When the voltage level drops below the preset level, the headlamp is programmed to downshift to a lower brightness level until Low mode is reached. When this happens in Low mode, the battery level indicator blinks to remind you to timely recharge or replace the battery. This only works with Fenix ARB-L16-700P battery.

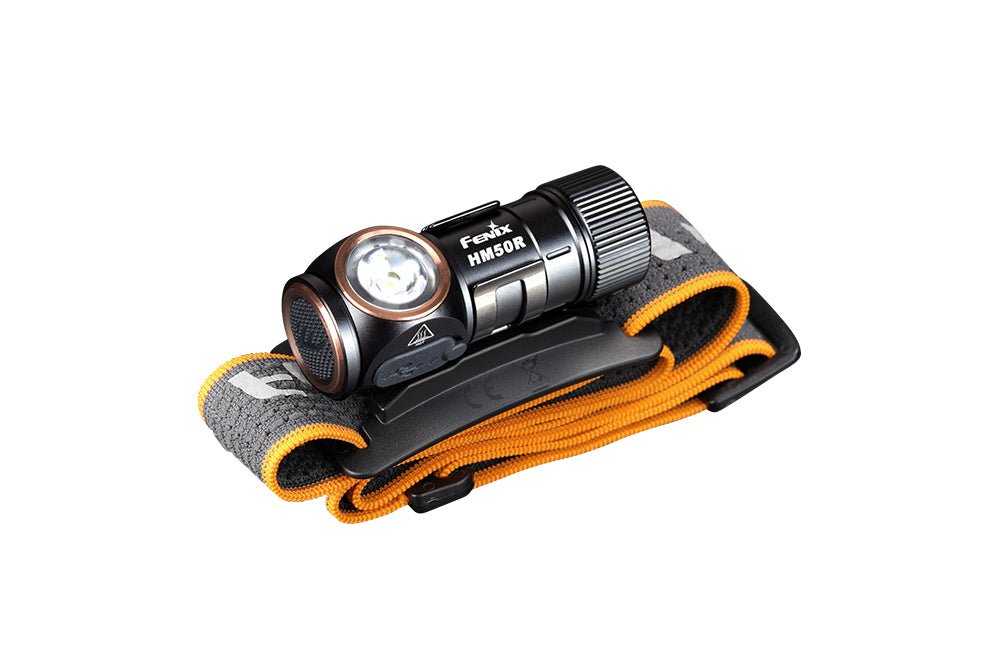

Headband Assembly

• The headband is factory assembled by default.
• The headlamp bracket is made of reinforced silicone material, which has good tear resistance and mechanical strength; it is resistant to low/high temperature, ultraviolet rays, acid and alkali corrosion; it is comfortable to the touch and will not cause corrosion allergy.
• If the headband is stained with sweat and mud, it can be washed directly.

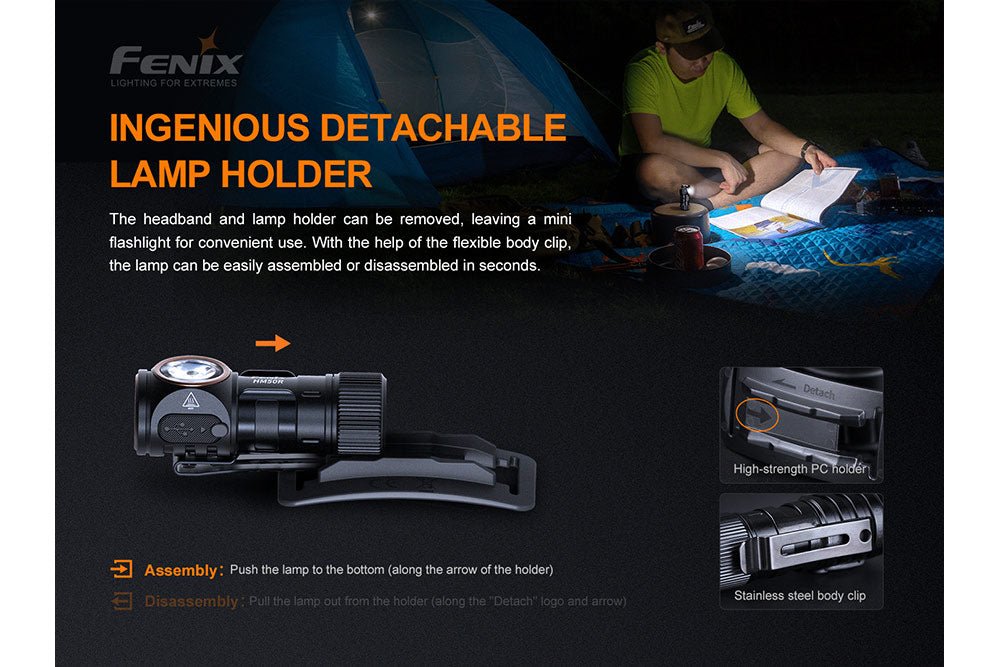

Other Purpose

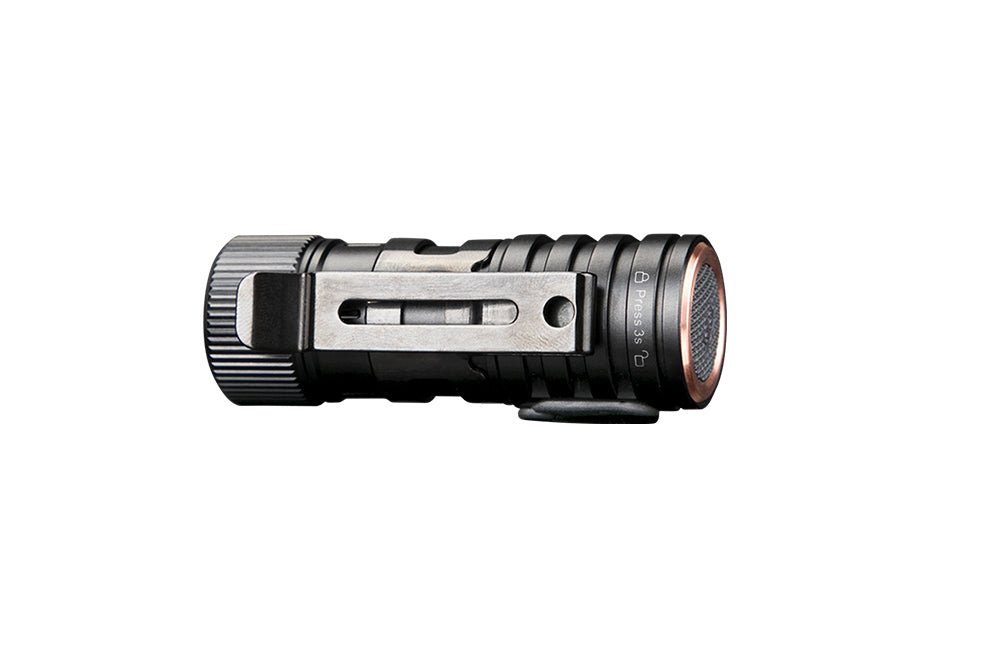

Detach the headlamp from the holder and it can be used as a work flashlight.

Usage and Maintenance

• Disassembling the sealed head can cause damage to the lamp and will void the warranty.
• Fenix recommends using an excellent quality Fenix battery.
• If the lamp will not be used for an extended period, remove the battery, or the lamp could be damaged by electrolyte leakage.
• Lock the lamp or take out the battery to prevent accidental activation during storage or transportation.
• Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
• Periodic cleaning of the battery contacts improves the lamp's performance as dirty contacts may cause the lamp to flicker, shine intermittently, or even fail to illuminate for the following reasons: A. The battery needs replacing. Solution: replace the battery (ensure the battery is inserted according to the manufacturer's specifications). B. The contact point or contact of the battery or headlamp is dirty. Solution: clean the contact points with a cotton swab soaked in rubbing alcohol. If the above methods don't work, please contact the distributor.

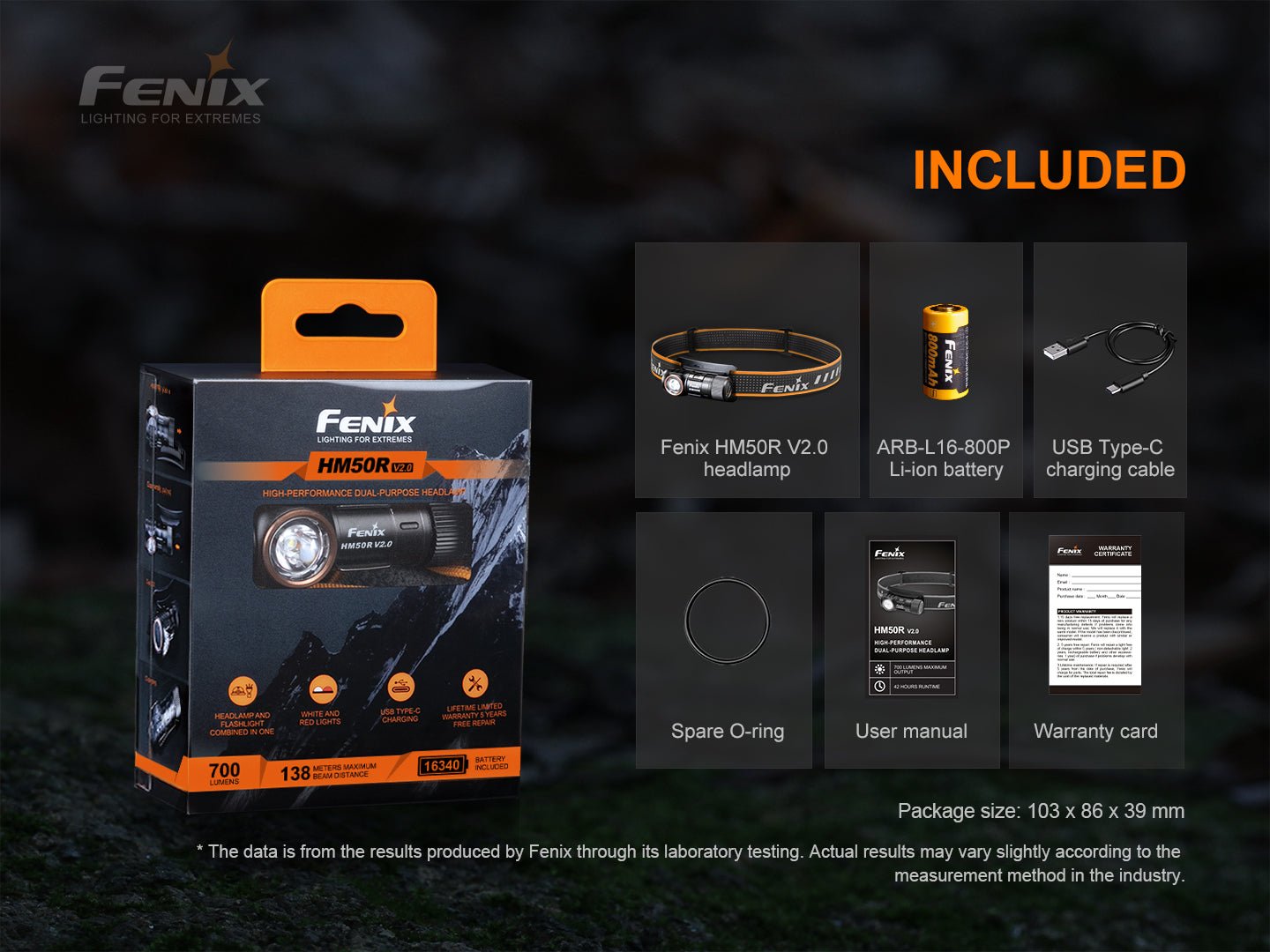

What's Included

Fenix HM50R V2.0 headlamp, ARB-L16-700P Li-ion battery, USB Type-C charging cable, Spare O-ring, User manual, Warranty card.
