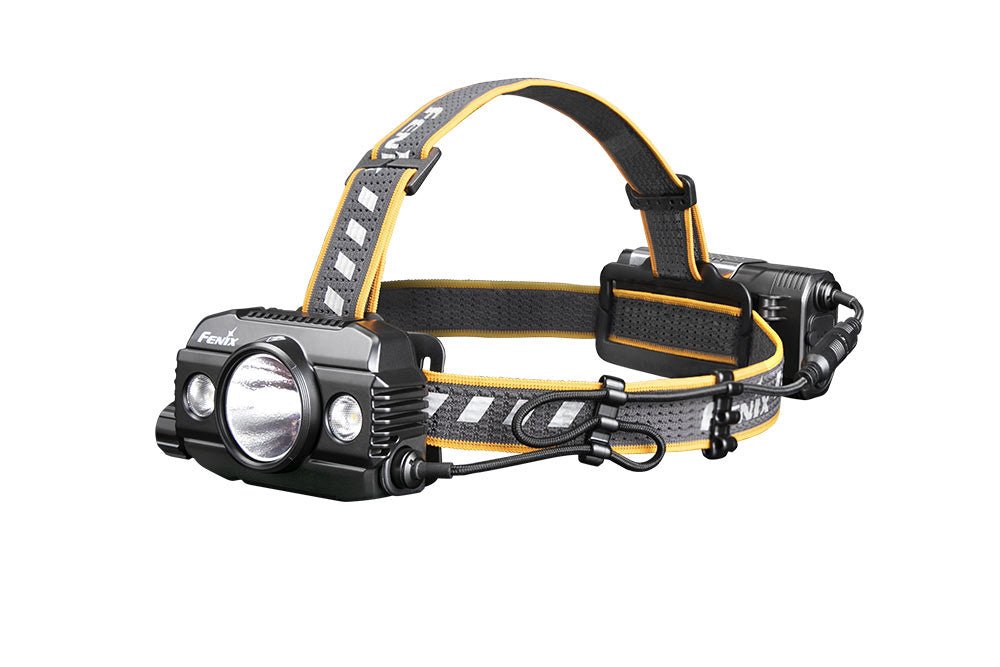

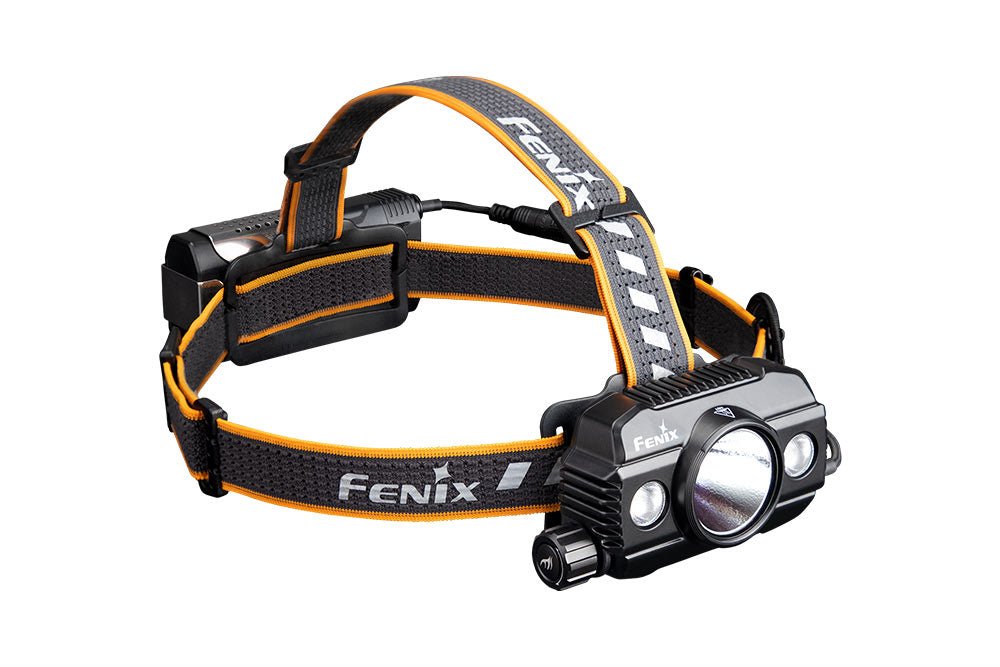

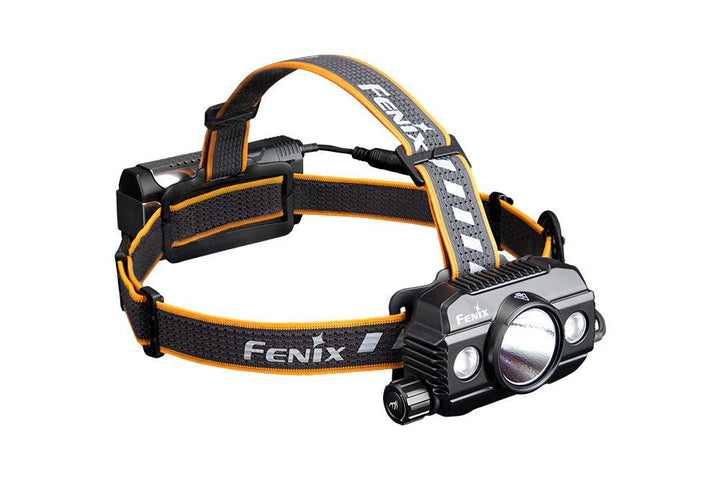

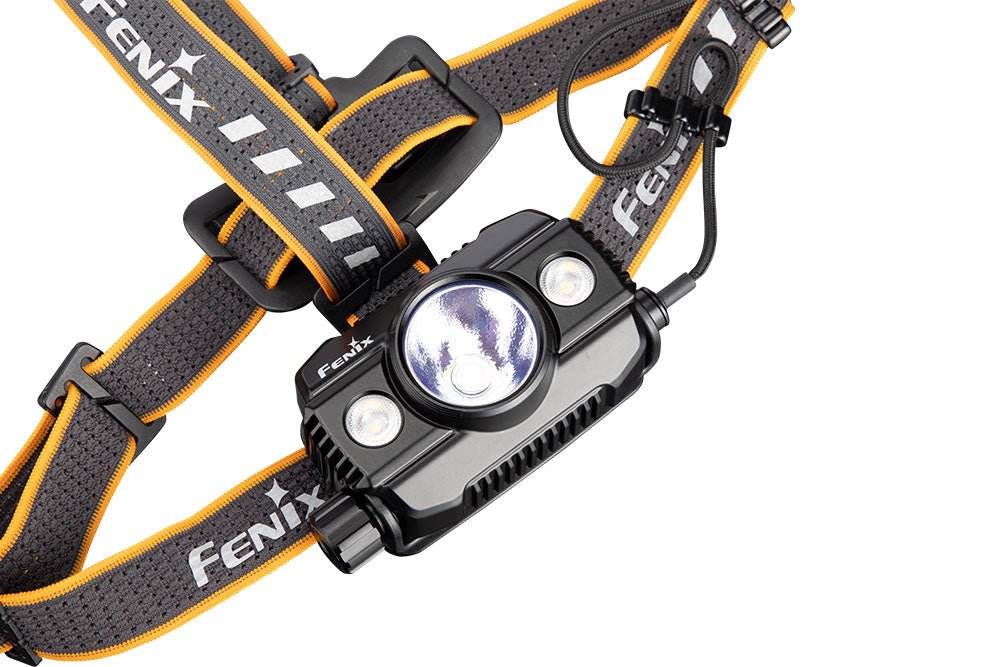

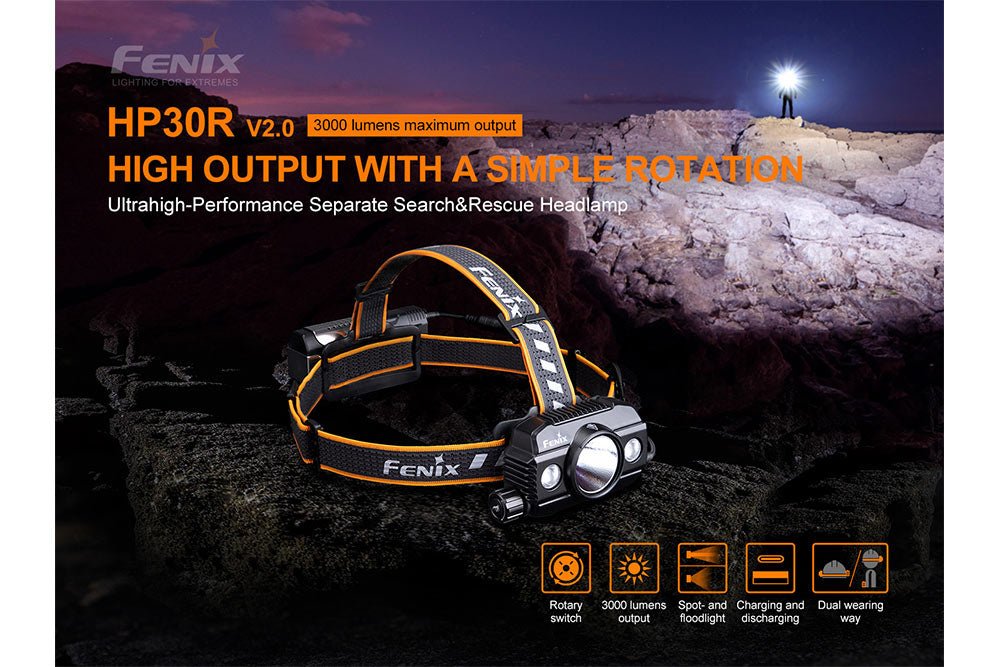

The Fenix HP30R V2.0 is an ultrahigh-performance separate search-and-rescue headlamp with a rotary switch that combines spotlight and floodlight. This summary is drawn from the manufacturer's official user manual — see the downloadable PDF reference manual on the product page for complete details.
Overview

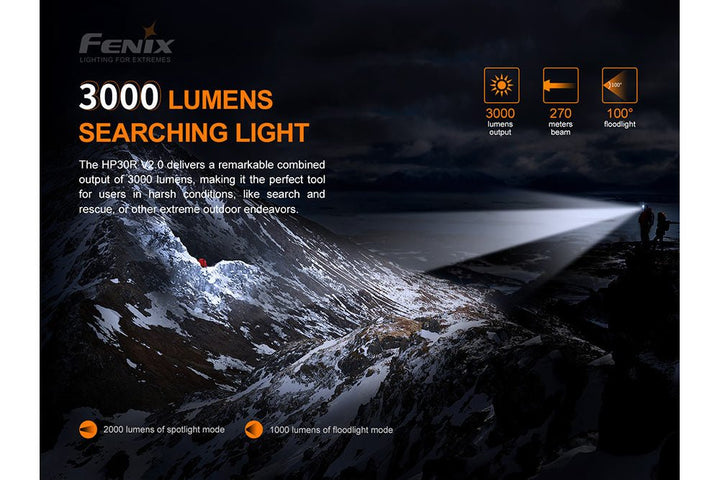

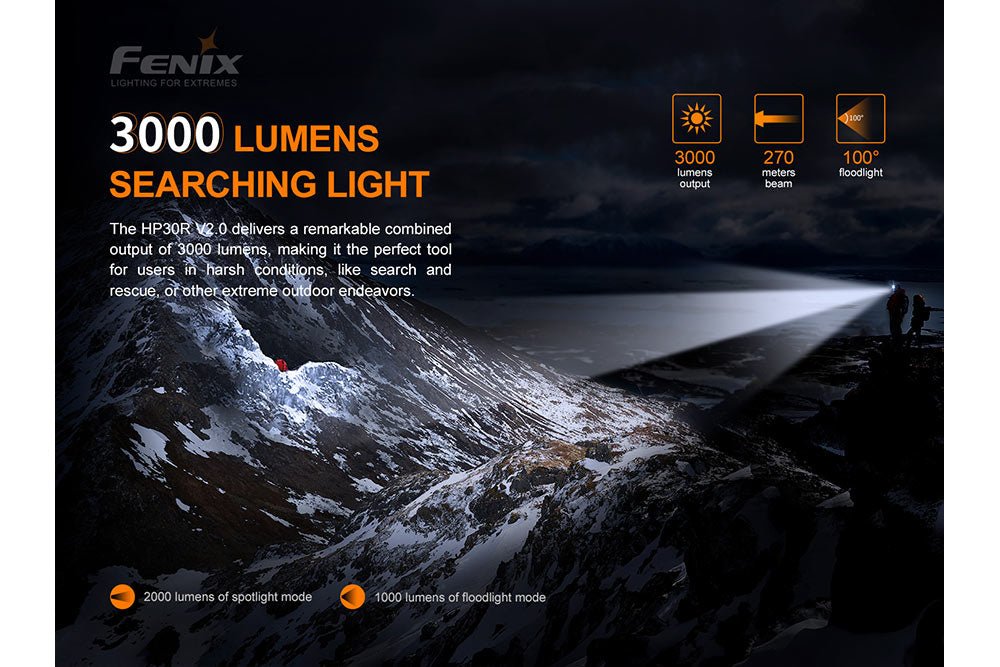

- 3000 lumens maximum output; 120 hours maximum runtime.

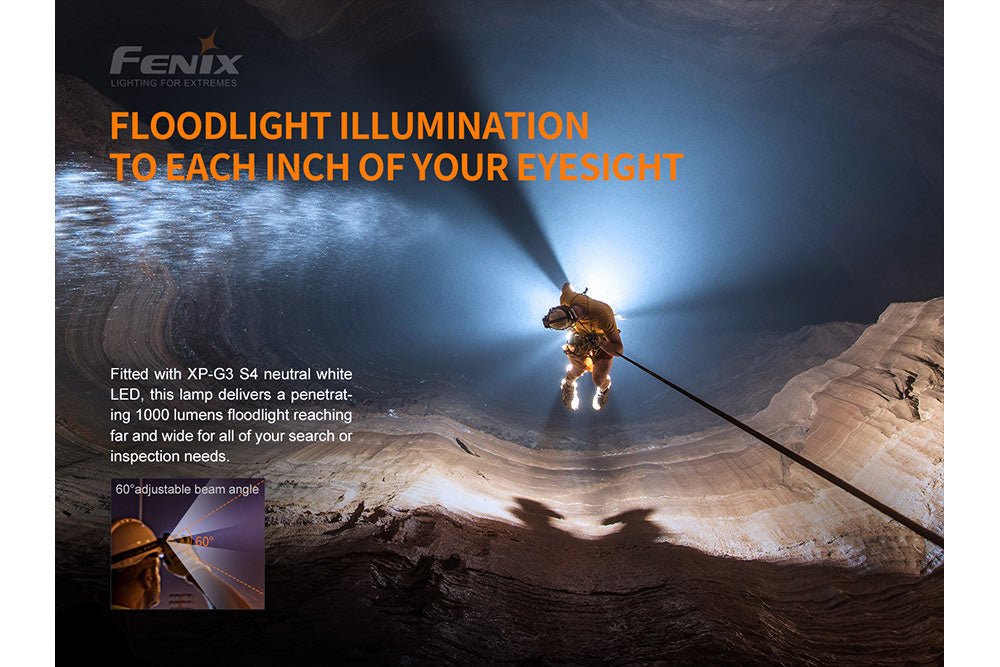

- One XHP50 white light LED, two XP-G3 S4 neutral white light LEDs; with a lifespan of 50,000 hours.

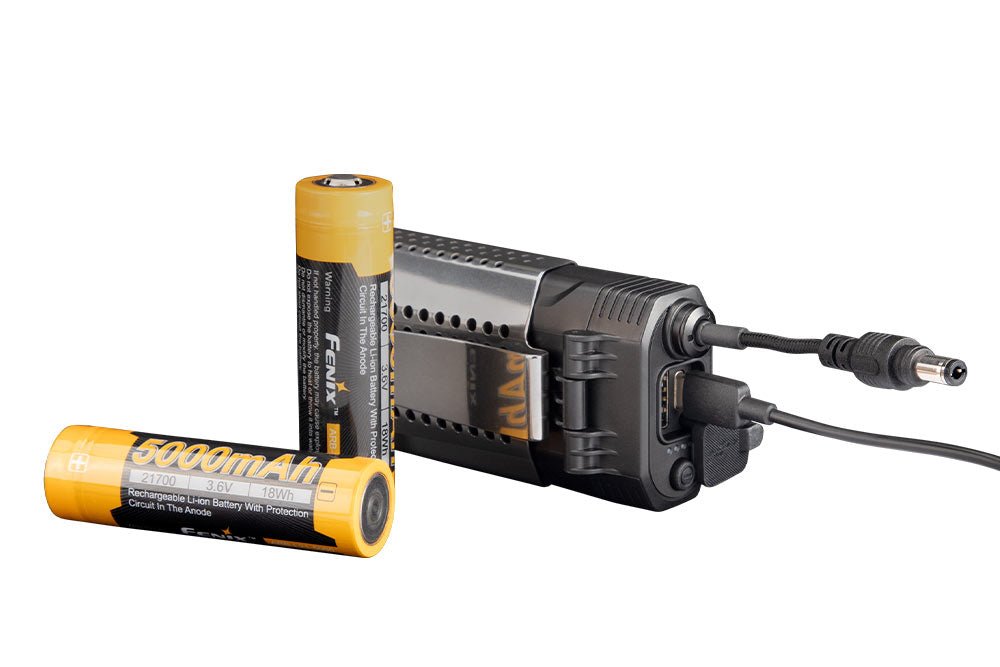

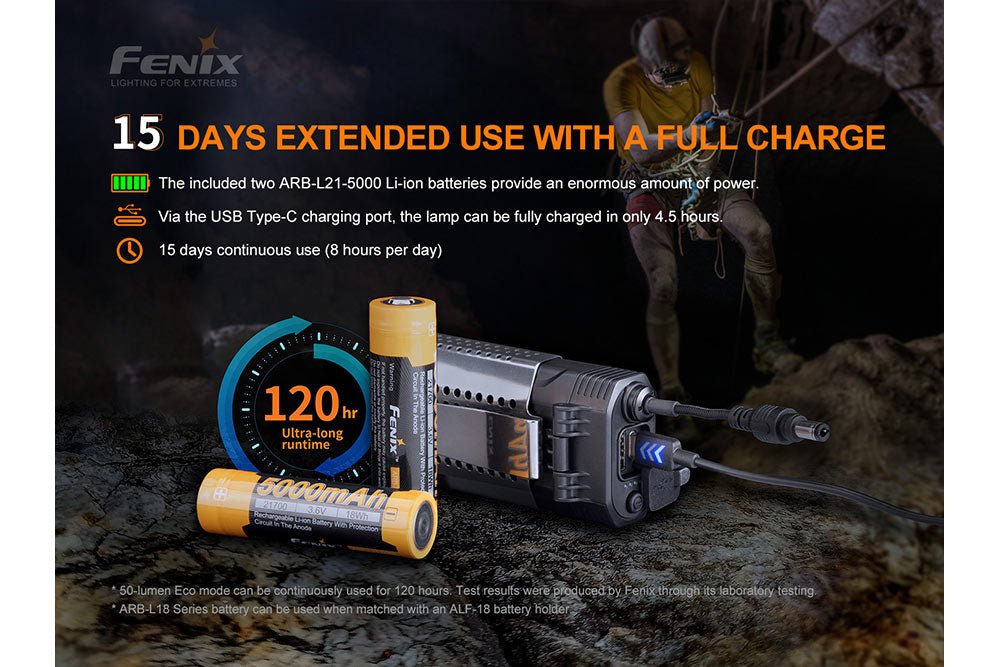

- Included 2 x 5000mAh Li-ion batteries.

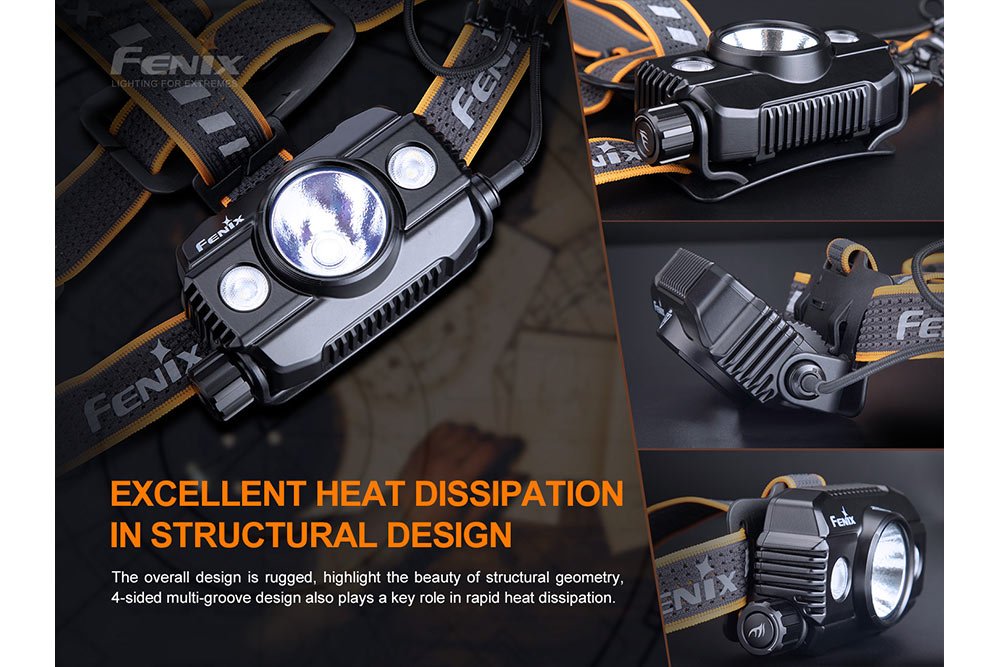

- Integrated die-casting ensures security and better heat dissipation.
- Rotary switch simultaneously activates spot- and floodlight modes.

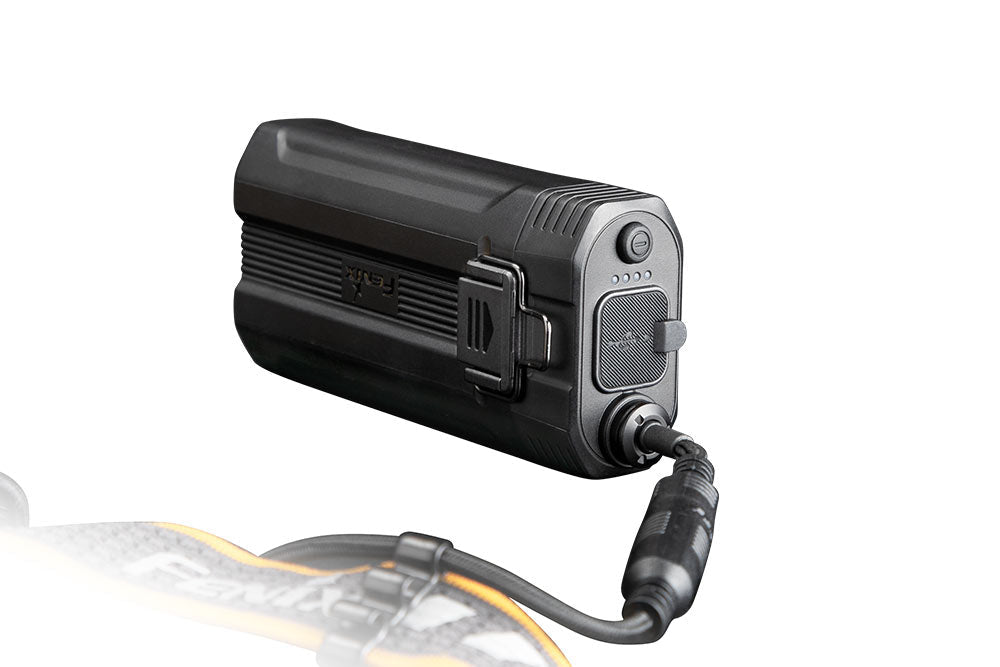

- Dual interface for charging and discharging capability.
- Dual wearing way of battery case: can be clipped on the headband or can be belt-worn.
- Made of durable A6061-T6 aluminum.
- Premium type HAIII hard-anodized anti-abrasive finish.
- Headlamp: 3.62" x 2.20" x 1.73" / 92 x 56 x 44 mm.
- Battery case: 4.21" x 1.97" x 1.61" / 107 x 50 x 41 mm.
- Weight: 15.41 oz / 437 g (including battery and headband).
Operating Instructions

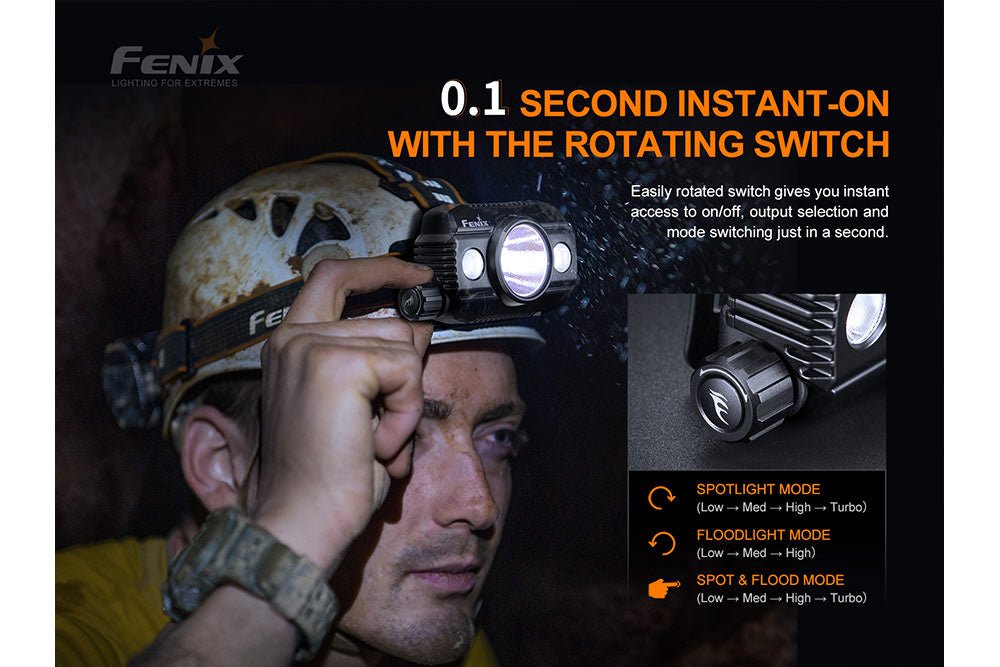

On/off: With the lamp switched off, rotate the switch clockwise, the lamp enters spotlight mode; with the lamp switched off, rotate the switch counterclockwise, the lamp enters floodlight mode. With the lamp switched on, rotate the switch to the off state to turn off the lamp.
Mode Switching: Spotlight mode — on floodlight mode, rotate the switch clockwise to the off state, continuously rotate to enter spotlight mode. Floodlight mode — on spotlight mode, rotate the switch counterclockwise to the off state, continuously rotate to enter floodlight mode. Spot&flood Mode — on spotlight or floodlight mode, single click the side switch to enter spot&flood mode, click again to exit.
Output Selection: Spotlight mode — rotate the switch to cycle through Low ↔ Med ↔ High ↔ Turbo. Floodlight mode — rotate the switch to cycle through Low ↔ Med ↔ High. Spot&Flood mode — 1) on spotlight mode, rotate the switch to cycle through Low ↔ Med ↔ High ↔ Turbo; 2) on floodlight mode, rotate the switch counterclockwise to cycle through Low ↔ Med ↔ High.
Note: the lamp does not have an intelligent memory circuit; each time it is turned on, Low of the spotlight or Low of the floodlight will be activated.
Battery Specifications
- ARB-L21 Series: 21700, 3.6V, Recommended.
- ARB-L18 Series: 18650, 3.6V, Usable (with ALF-18 battery holder).
- Non-rechargeable Battery (Lithium): CR123A, 3V, Banned.
- Rechargeable Battery (Li-ion): 16340, 3.6V, Banned.
- Rechargeable Battery (Li-ion): 18650, 3.6V, Banned.
Do not mix batteries of different brands, sizes, capacities or types. Doing so may cause damage to the headlamp or the batteries being used. Fenix ARB-L18 Series rechargeable Li-ion battery can also be used together with the ALF-18 battery holder. 21700 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only use quality batteries with circuit protection will reduce the potential for combustion or explosion; but cell damage or short circuiting are potential risks the user assumes.
Battery Replacement
Open the cap to insert the battery in accordance with the polarity marks, then replace the cap and fasten the latch.
Charging
Open the cap and plug the USB Type-C side of the charging cable into the charging port of the battery case.
- In charging process, one indicator flashes: below 20%; one constant-on and one flashes: 20%-50%; two constant-on and one flashes: 50%-80%; three constant-on and one flashes: 80% - 95%; four constant-on: charging complete.
- When charging is complete, replace the anti-dust cap to ensure the waterproof and dustproof ability.
- Note: the normal charging time of the Fenix ARB-L21-5000 battery is about 4 hours from depletion to full charging with the lamp being switched off. When charging, on/off and output selection can be used.
- Recharge a stored headlamp every four months to maintain optimal Li-ion battery performance.

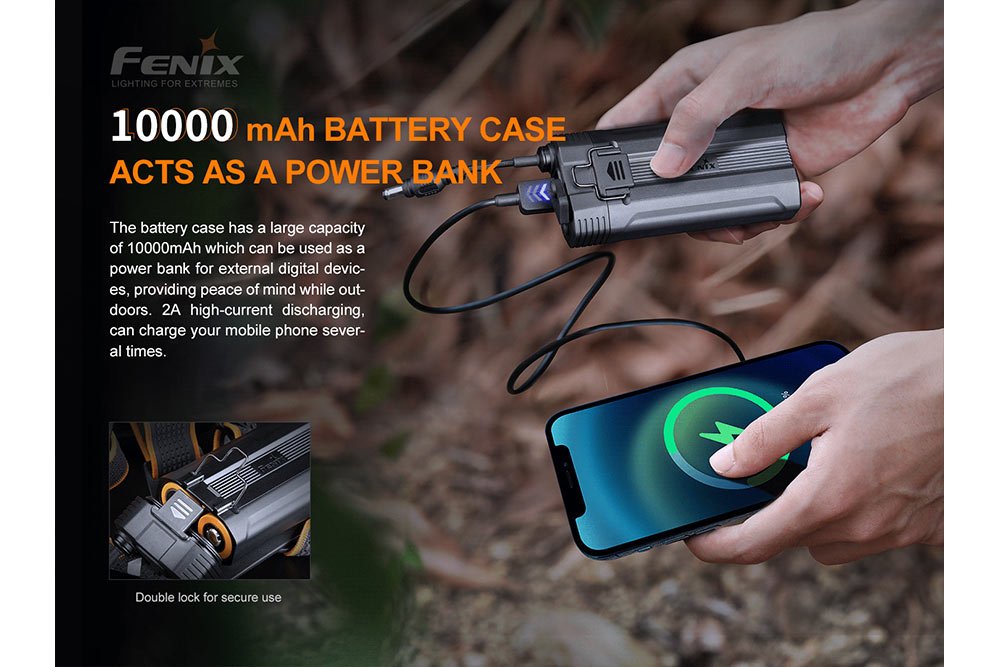

Power Bank Function
- Switch off the lamp, plug the USB A socket of the charging cable into the battery case, and then connect another socket of the charging cable to the digital device.
- Single click switch next to the indicators to begin discharging (discharging current is 2A).
- In discharging process, four indicators flash: over 80%; three flash: 50% - 80%; two flash: 20%-50%; one flashes: below 20%.
- When discharging complete, the indicators delay 30 seconds to go out to remind charging is complete. Be sure to close the anti-dust cover once charging is completed.

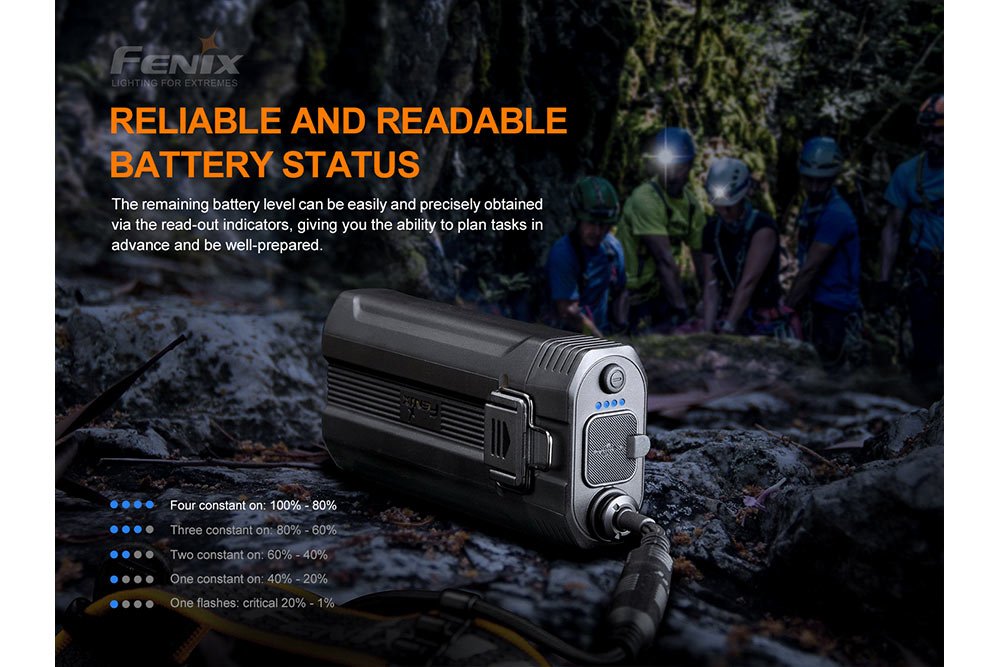

Battery Level Indication
With the lamp switched off, single click the switch to check the battery status; the indicators will last for 3 seconds.
- Four constant on: 100% - 80%
- Three constant on: 80% - 60%
- Two constant on: 60% - 40%
- One constant on: 40% - 20%
- One flashes: critical 20% - 1%
Note: this only works with Fenix ARB-L21-5000 battery.

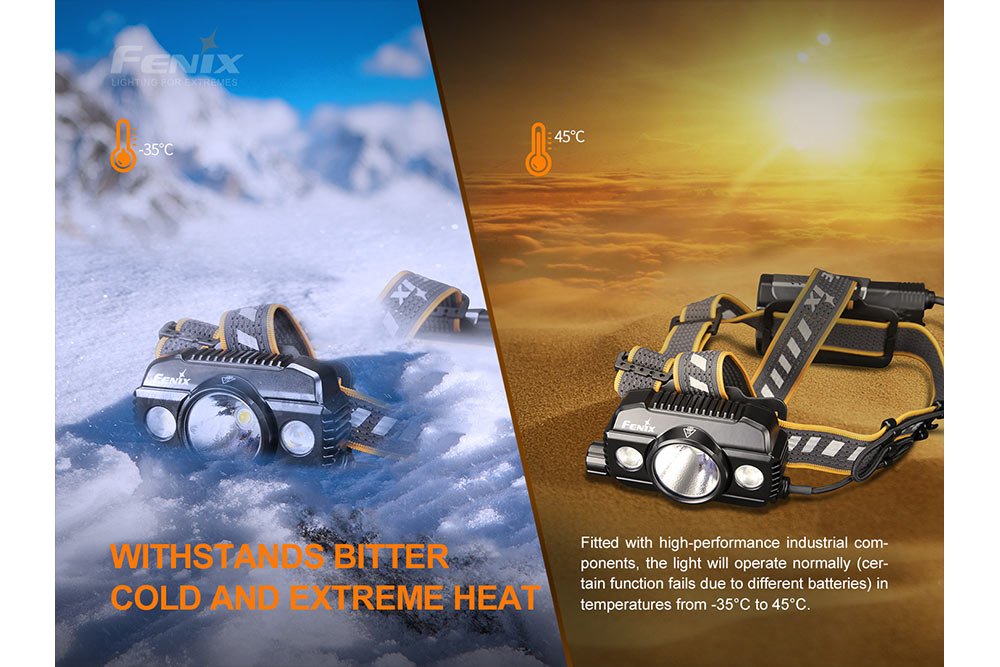

Intelligent Overheat Protection
The lamp will accumulate a lot of heat when used at relatively high modes for extended periods. When the lamp reaches a temperature of 60°C or above, the lamp will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C, it will then allow the user to reselect the modes.
Low-Voltage Warning
When the voltage level drops below the preset level, the headlamp is programmed to downshift to a lower brightness level until Low mode is reached. When this happens in Low mode, the lamp blinks 3 times every 5 minutes to remind you to timely recharge or replace the battery.
Note: this only works with Fenix ARB-L21-5000 battery.

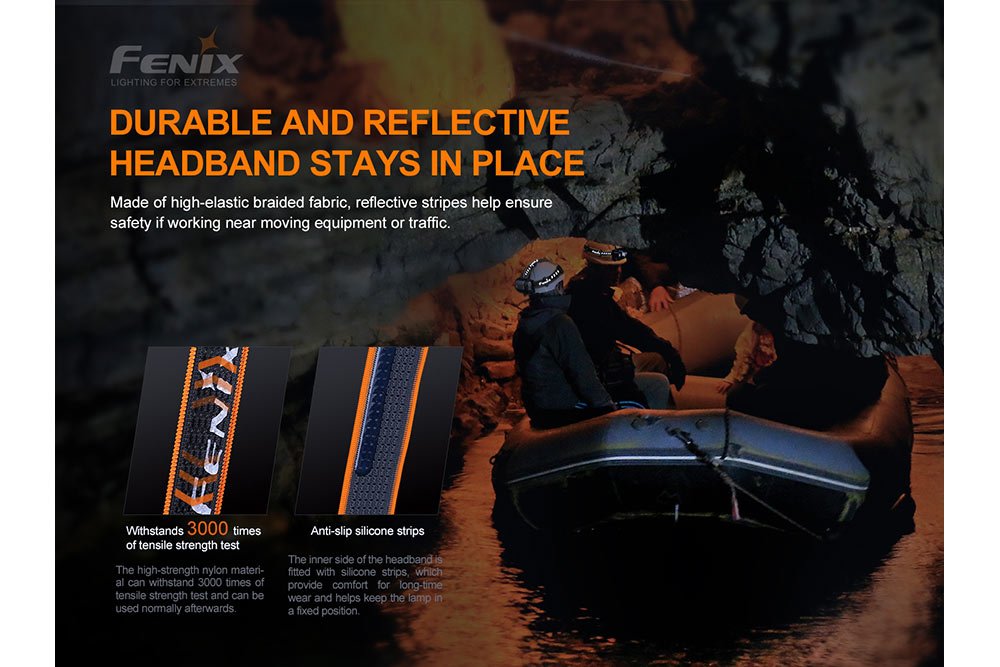

Headband Assembly
- The headband is factory assembled by default.
- Adjust the headband by sliding the buckle to the required length.
- If the headband is stained with sweat and mud, it can be washed directly.

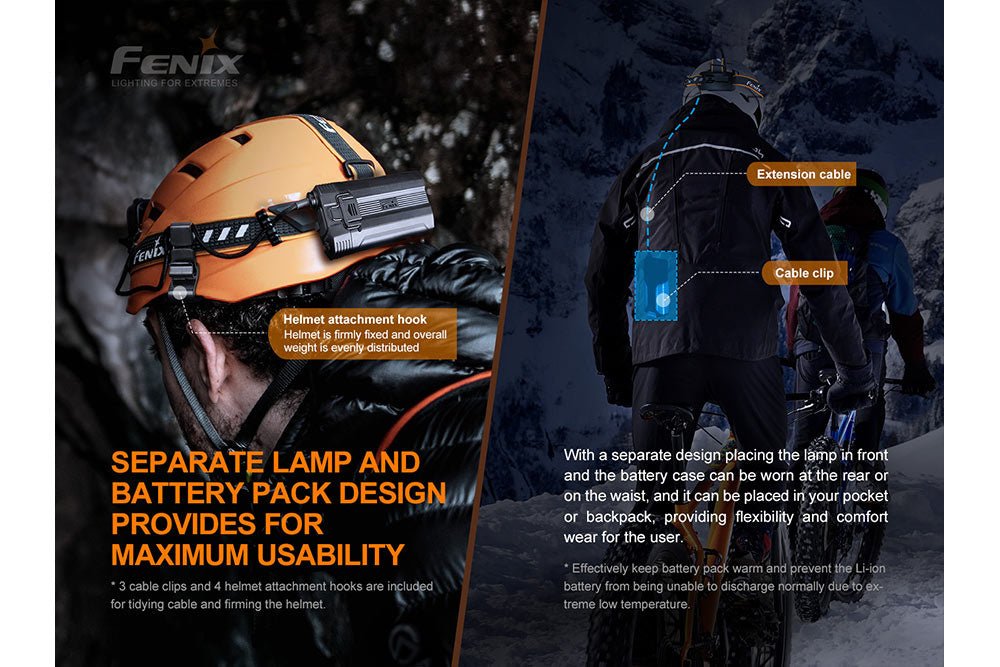

Wearing Ways
On head: clip the battery case on the holder, and it can be assembled on the helmet with the included helmet attachment hooks.
Belt-worn: clip the battery case on the included stainless steel belt clip, the lamp can be belt-worn together with the extension cable.
Usage and Maintenance
- Disassembling the sealed head can cause damage to the lamp and will void the warranty.
- Fenix recommends using an excellent quality Fenix battery.
- If the lamp will not be used for an extended period, remove the battery, or the lamp could be damaged by electrolyte leakage.
- Take out the battery to prevent accidental activation during storage or transportation.
- Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
- Periodic cleaning of the battery contacts improves the lamp's performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons: A) The battery needs replacing — replace battery (ensure battery is inserted according to the manufacturer's specifications). B) The contact point or contact of the battery or headlamp is dirty — clean the contact points with a cotton swab soaked in rubbing alcohol. If the above methods don't work, please contact the distributor.

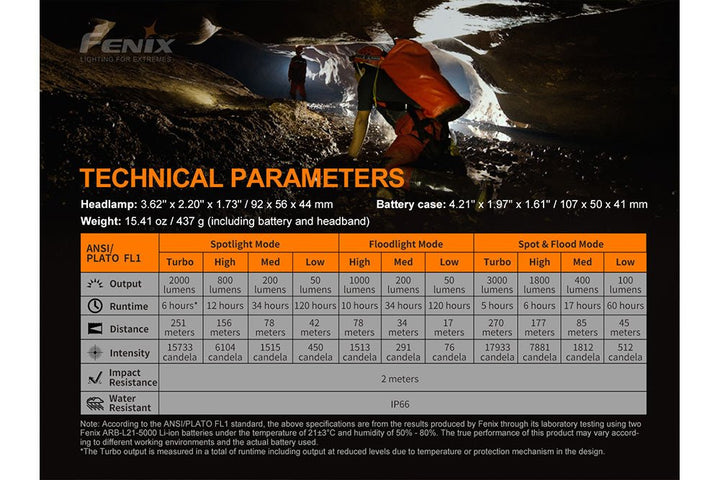

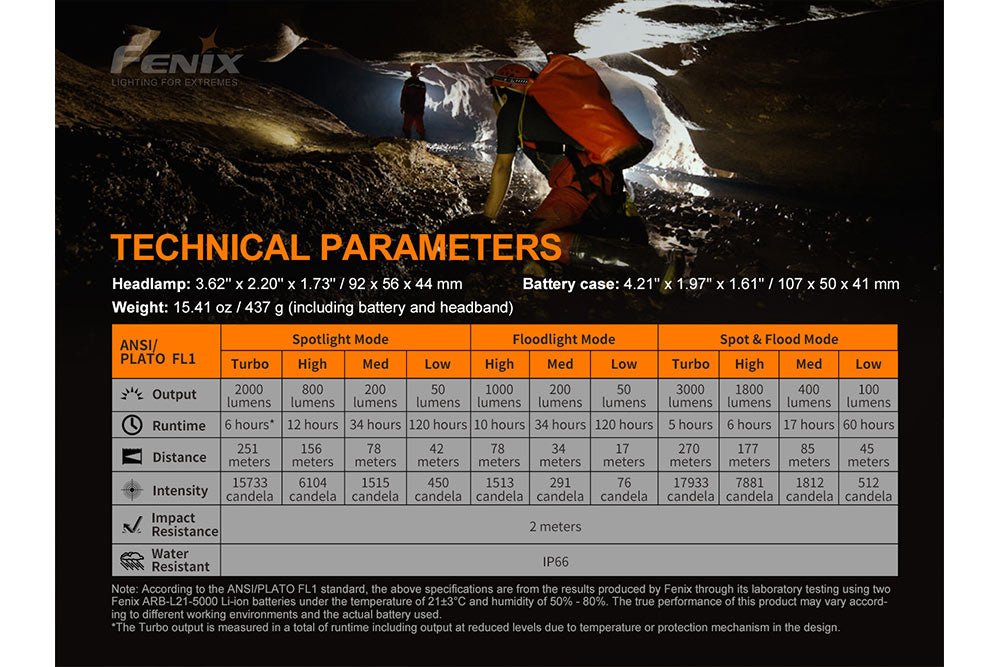

Technical Parameters — Spotlight Mode
- Turbo: Output 2000 lumens, Runtime 6 hours*, Distance 251 meters, Intensity 15733 candela
- High: Output 800 lumens, Runtime 12 hours, Distance 156 meters, Intensity 6104 candela
- Med: Output 200 lumens, Runtime 34 hours, Distance 78 meters, Intensity 1515 candela
- Low: Output 50 lumens, Runtime 120 hours, Distance 42 meters, Intensity 450 candela
Technical Parameters — Floodlight Mode
- High: Output 1000 lumens, Runtime 10 hours, Distance 78 meters, Intensity 1513 candela
- Med: Output 200 lumens, Runtime 34 hours, Distance 34 meters, Intensity 291 candela
- Low: Output 50 lumens, Runtime 120 hours, Distance 17 meters, Intensity 76 candela
Technical Parameters — Spot & Flood Mode
- Turbo: Output 3000 lumens, Runtime 5 hours*, Distance 270 meters, Intensity 17933 candela
- High: Output 1800 lumens, Runtime 6 hours, Distance 177 meters, Intensity 7881 candela
- Med: Output 400 lumens, Runtime 17 hours, Distance 85 meters, Intensity 1812 candela
- Low: Output 100 lumens, Runtime 60 hours, Distance 45 meters, Intensity 512 candela

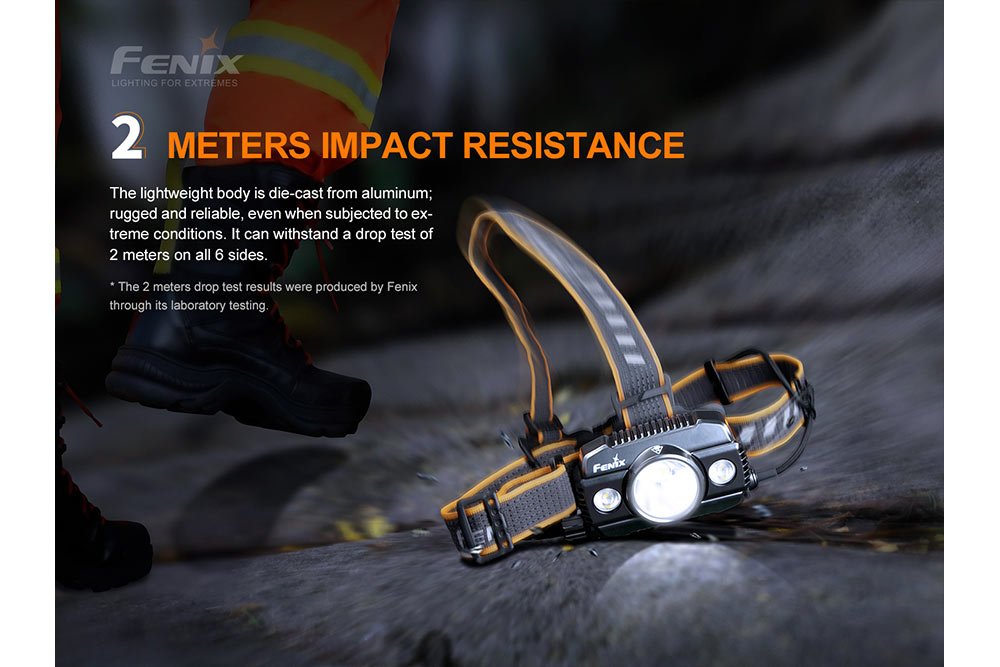

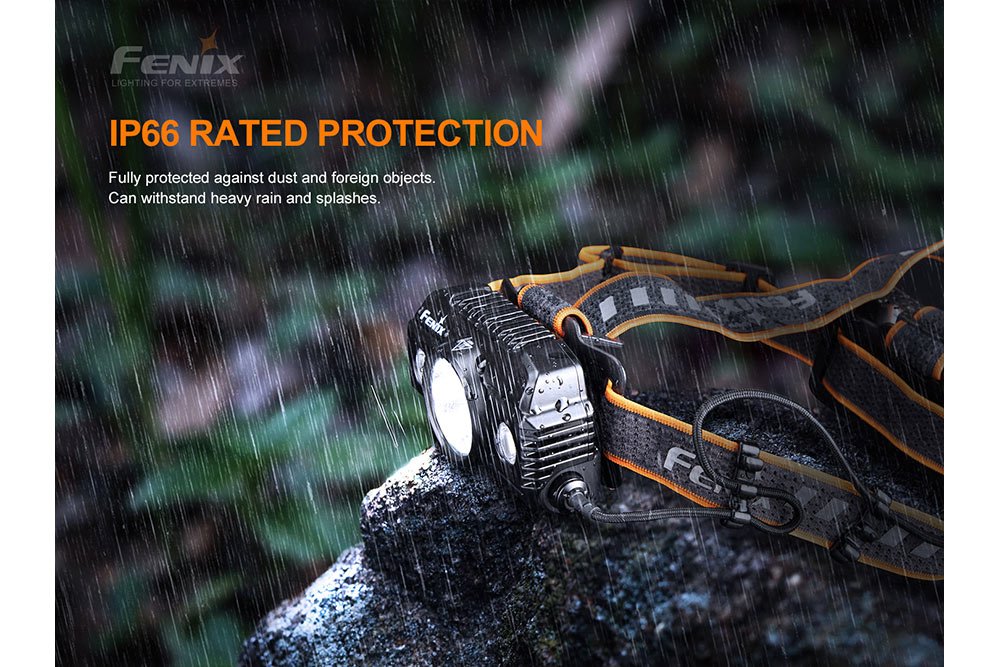

All modes: Impact Resistance 2 meters, Waterproof IP66. *The Turbo output is measured in a total of runtime including output at reduced levels due to temperature or protection mechanism in the design. Specifications are based on ANSI/PLATO FL1 standard testing using two Fenix ARB-L21-5000 Li-ion batteries at 21±3°C and 50%-80% humidity — actual performance may vary by environment and the battery used.

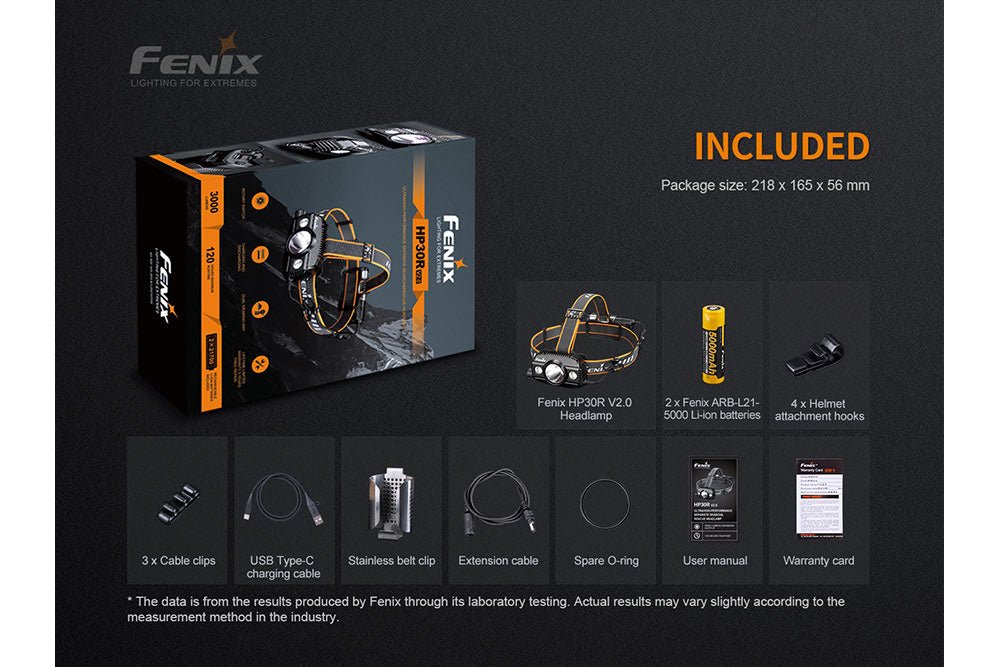

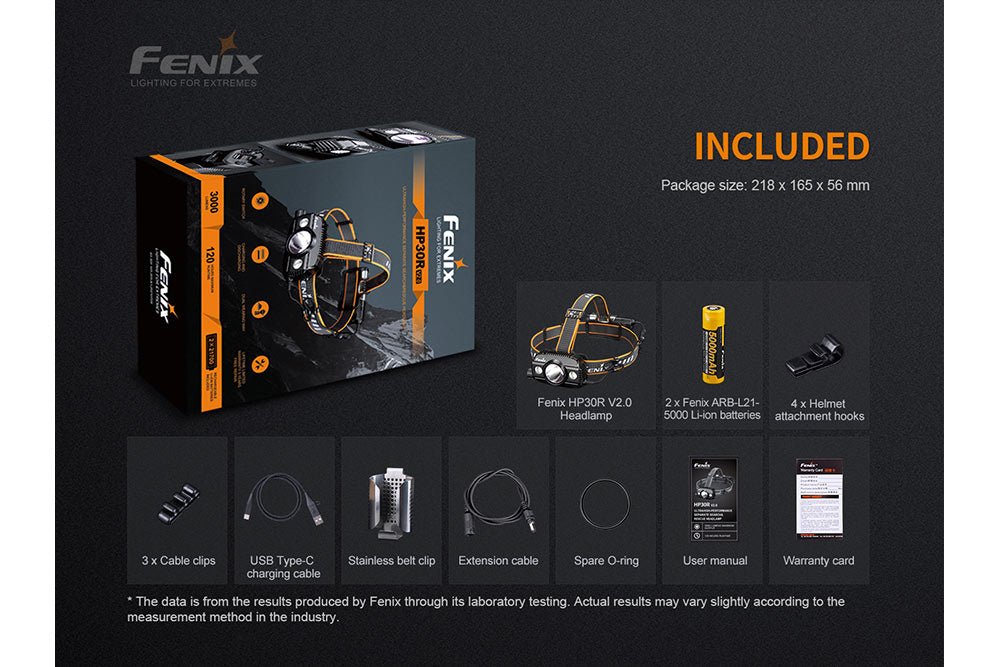

Included
Fenix HP30R V2.0 Headlamp, 2 x Fenix ARB-L21-5000 Li-ion battery, USB Type-C charging cable, 4 x Helmet attachment hooks, 3 x Cable clips, Stainless belt clip, Extension cable, Spare O-ring, User manual, Warranty card.
