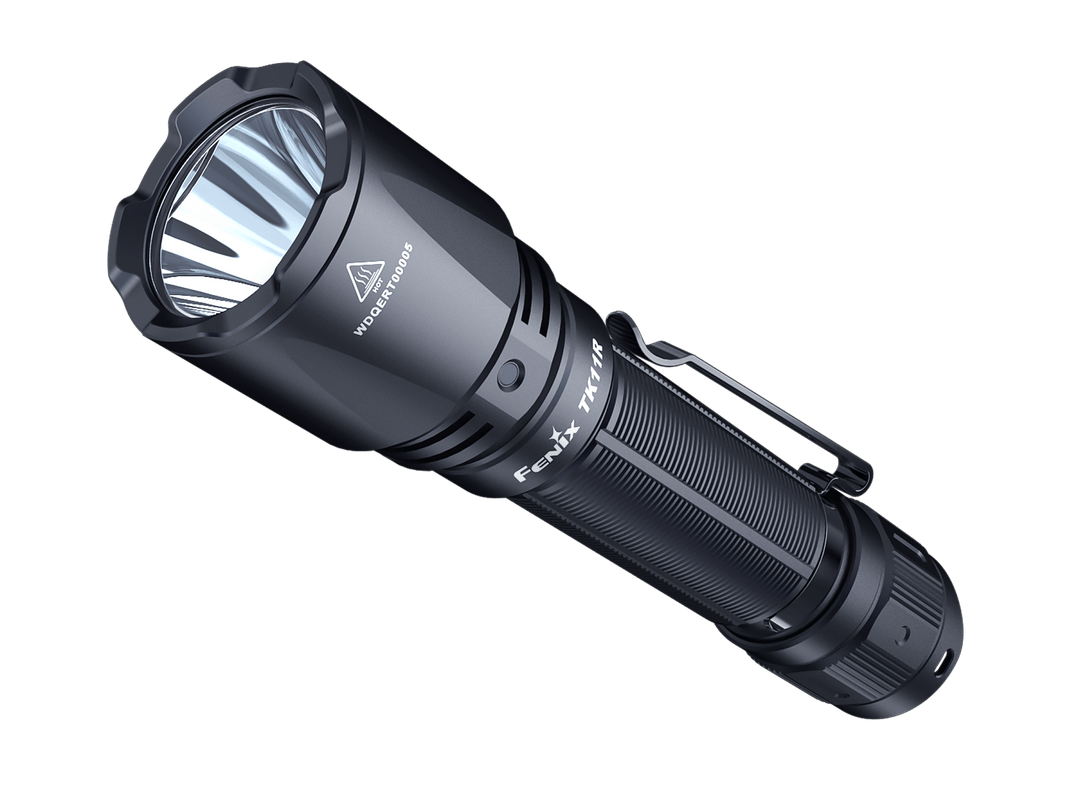

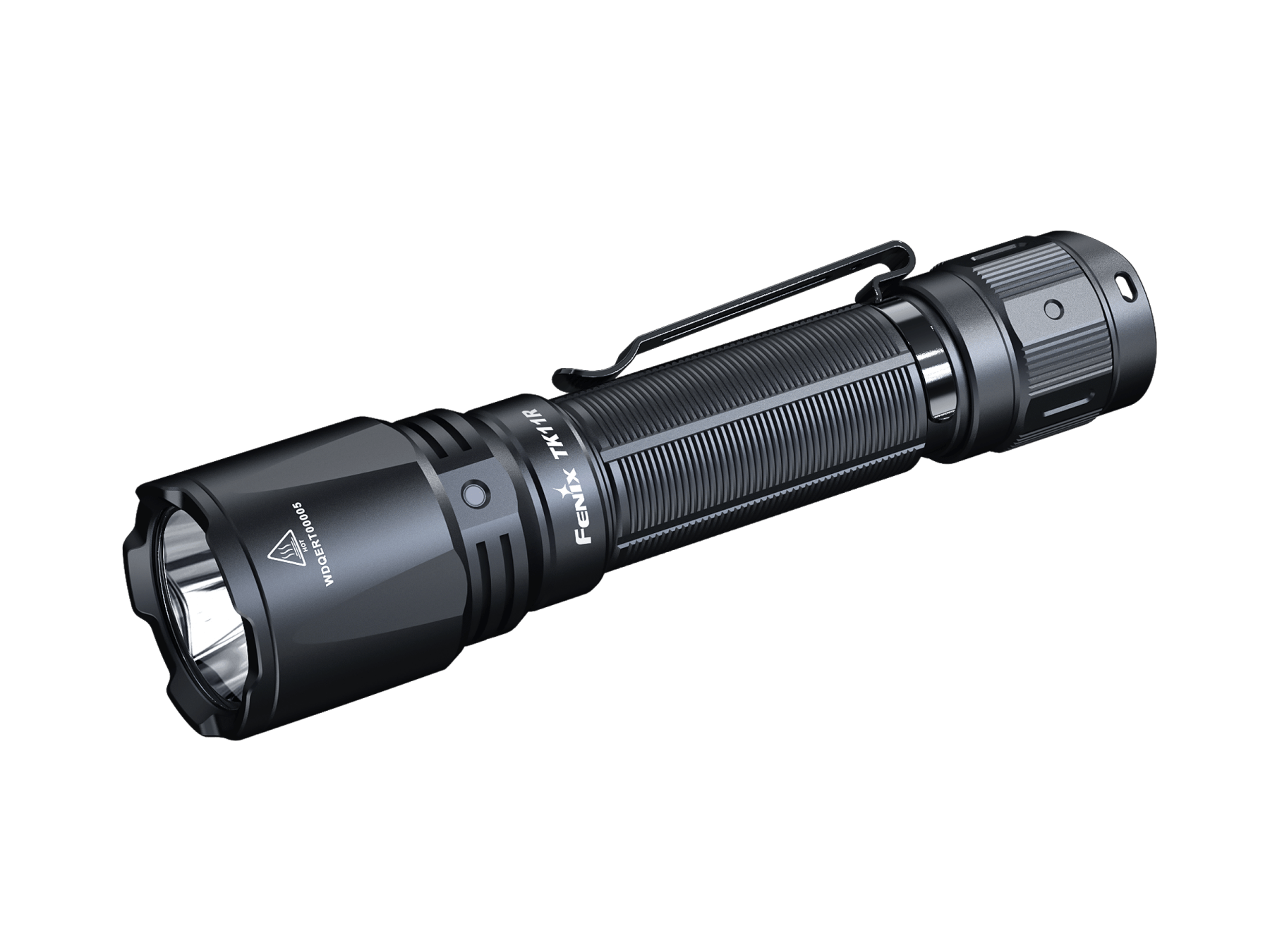

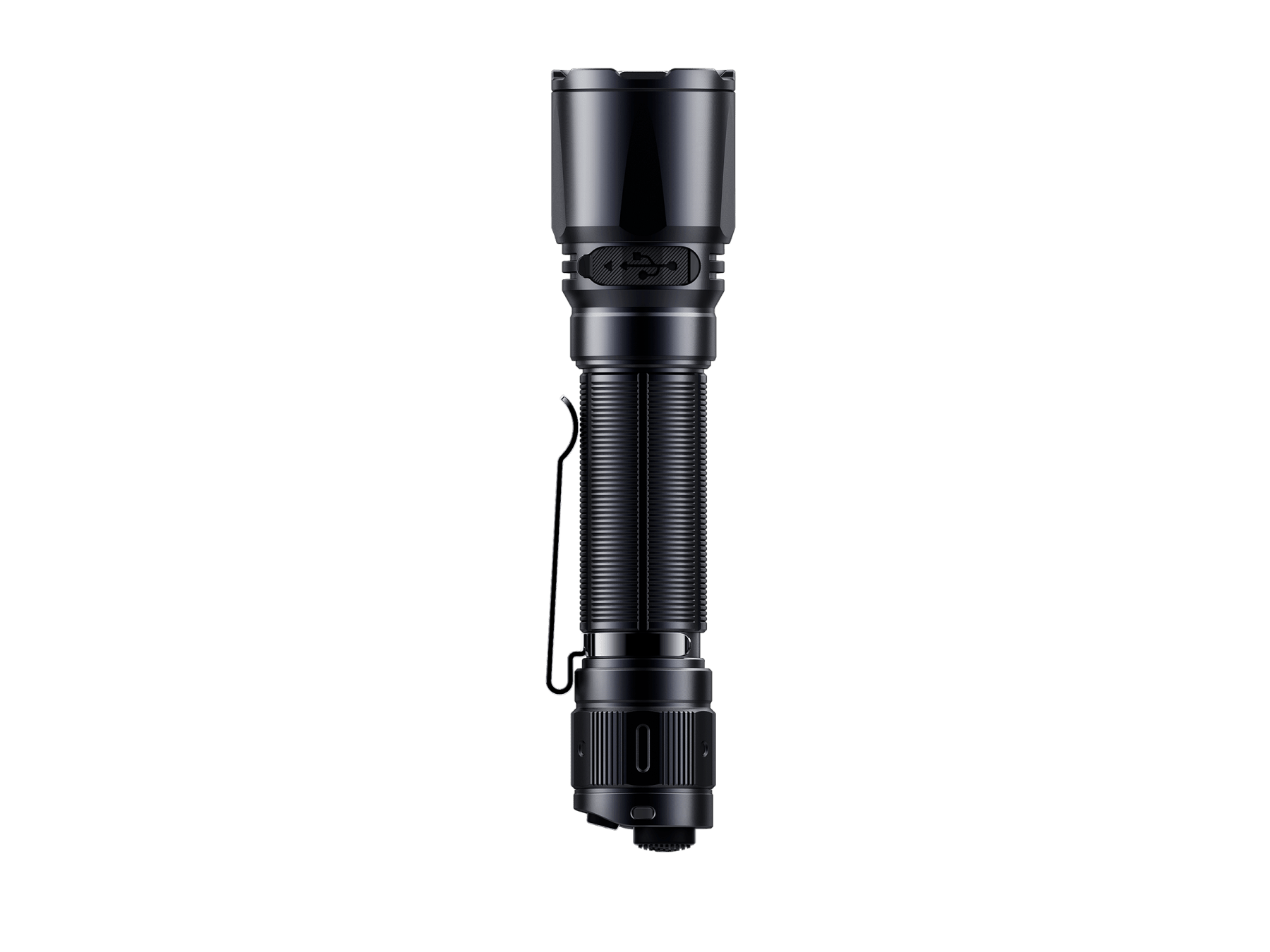

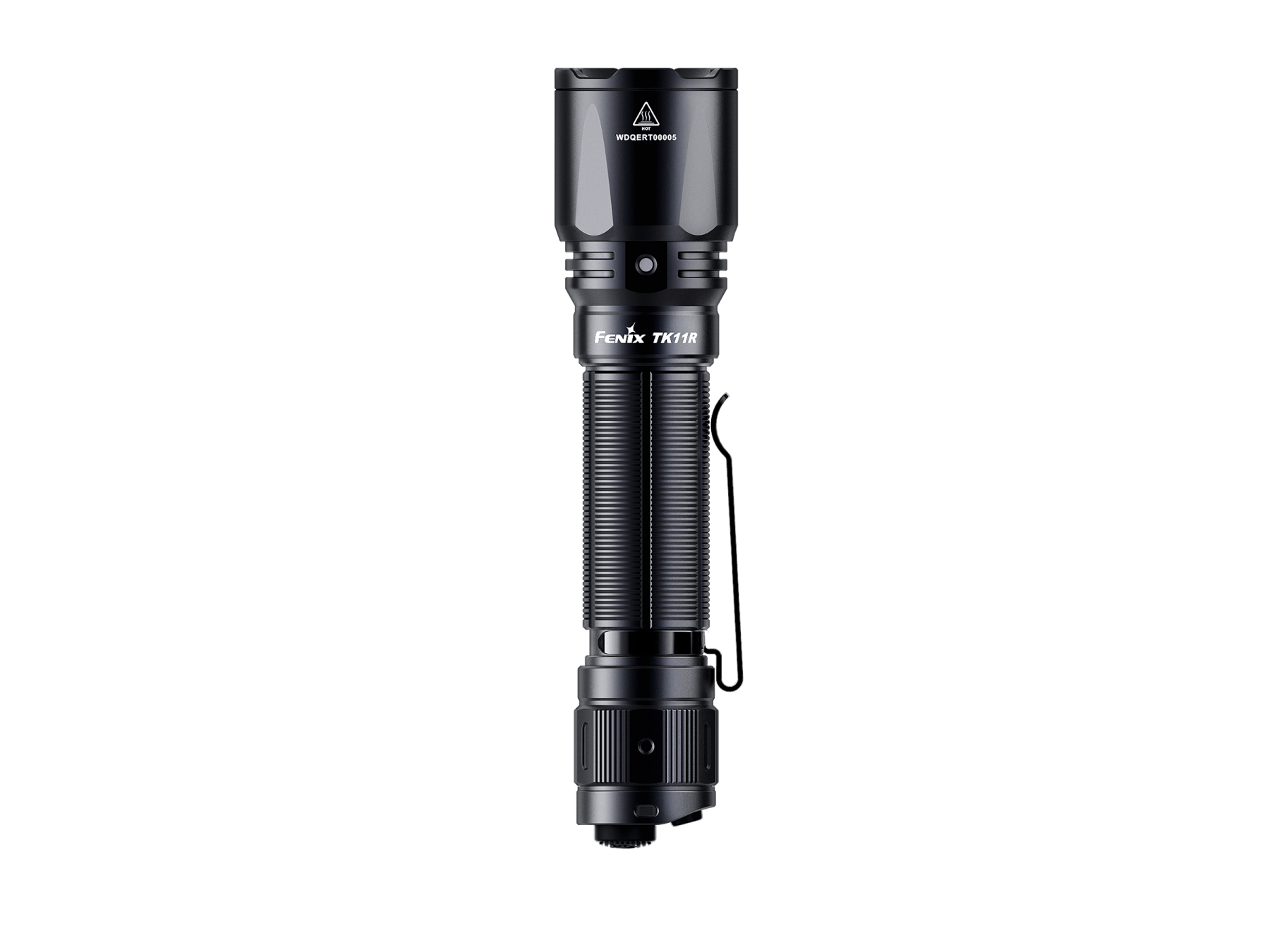

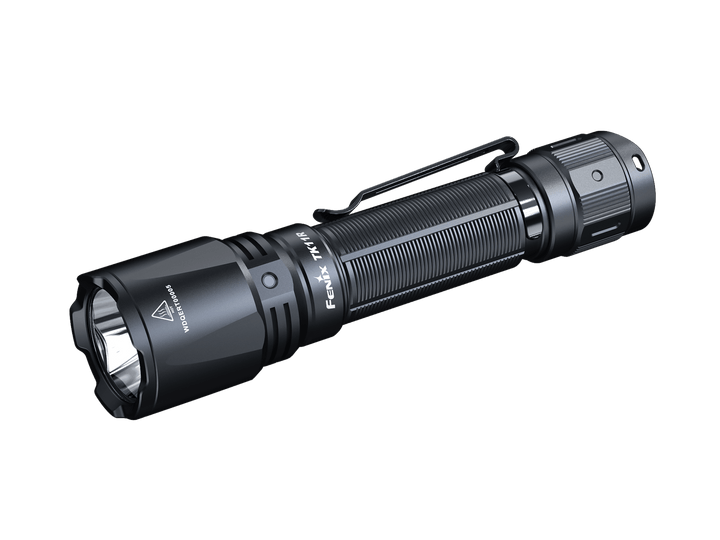

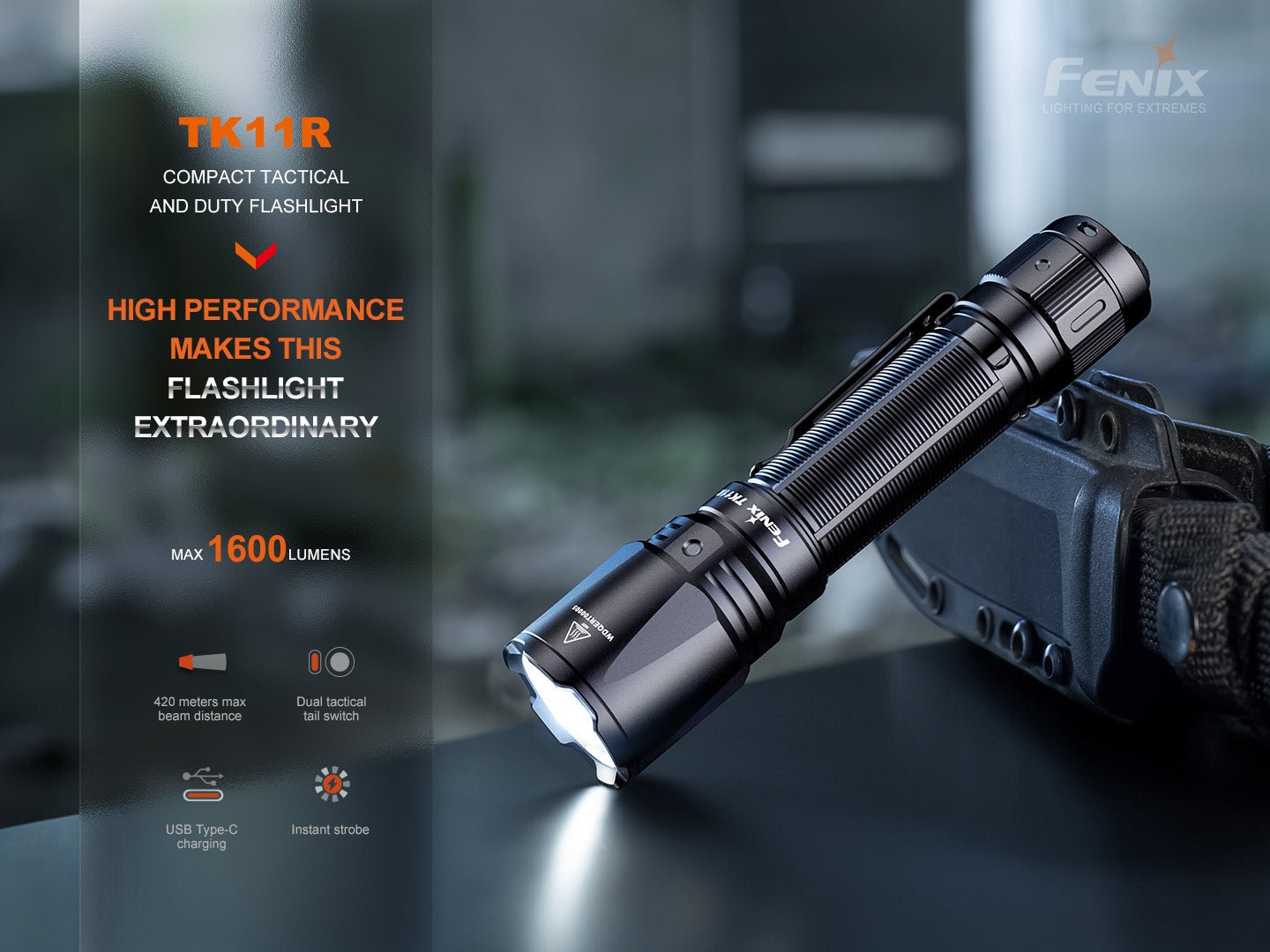

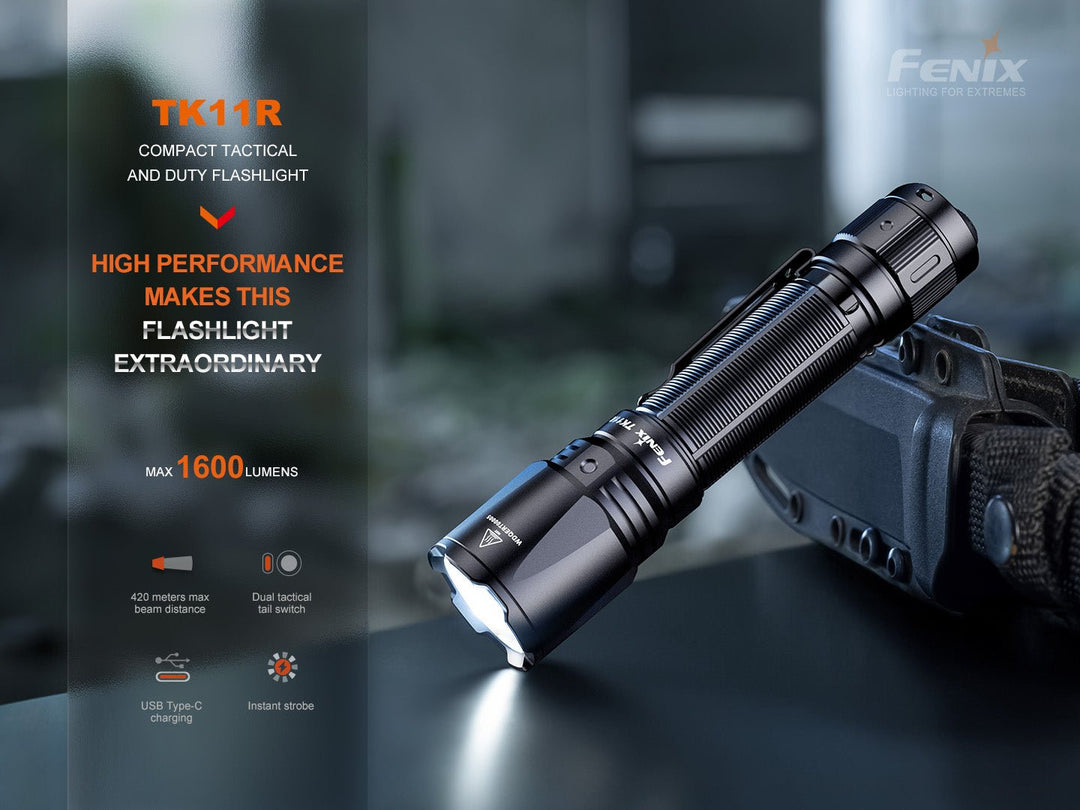

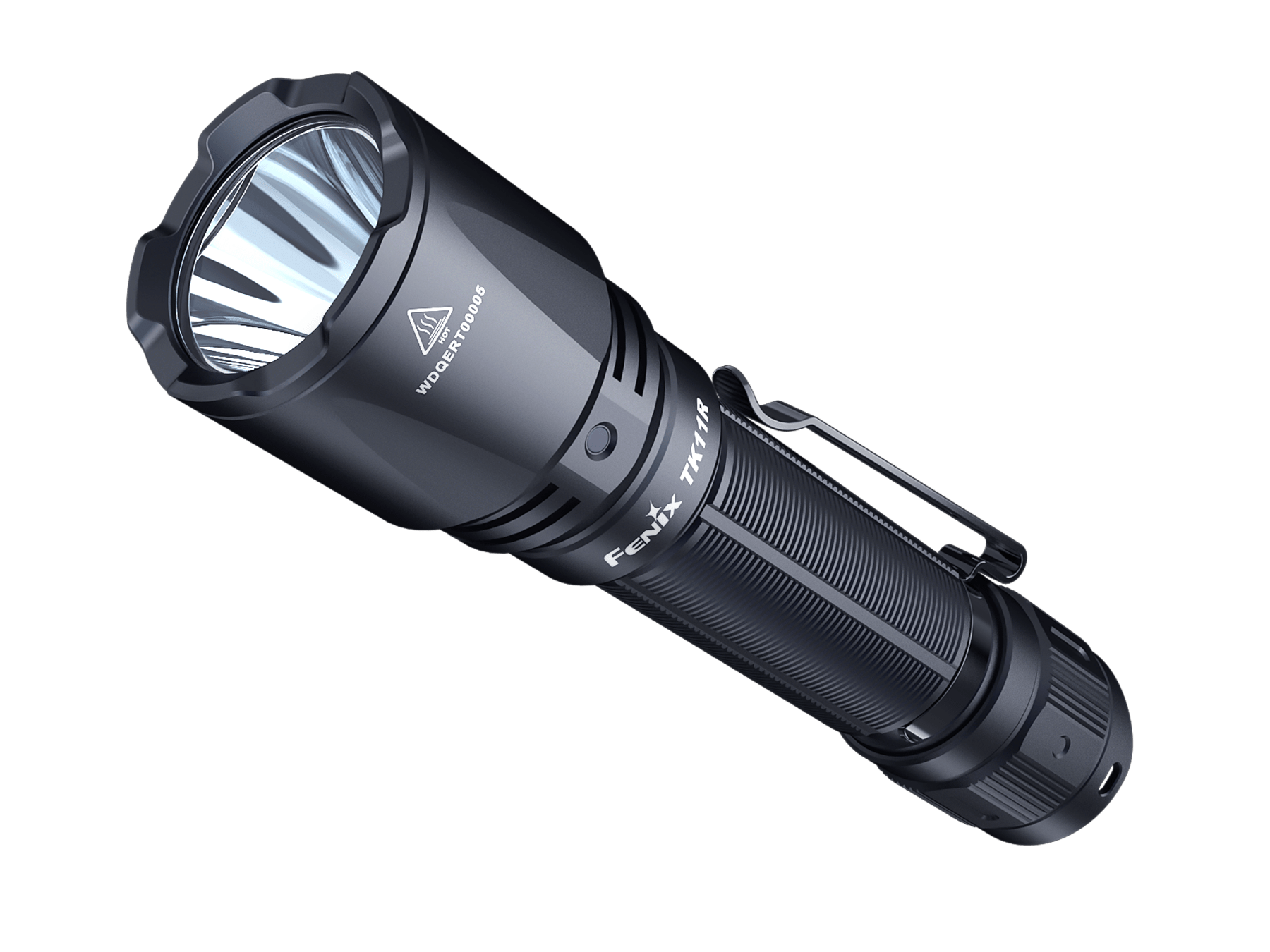

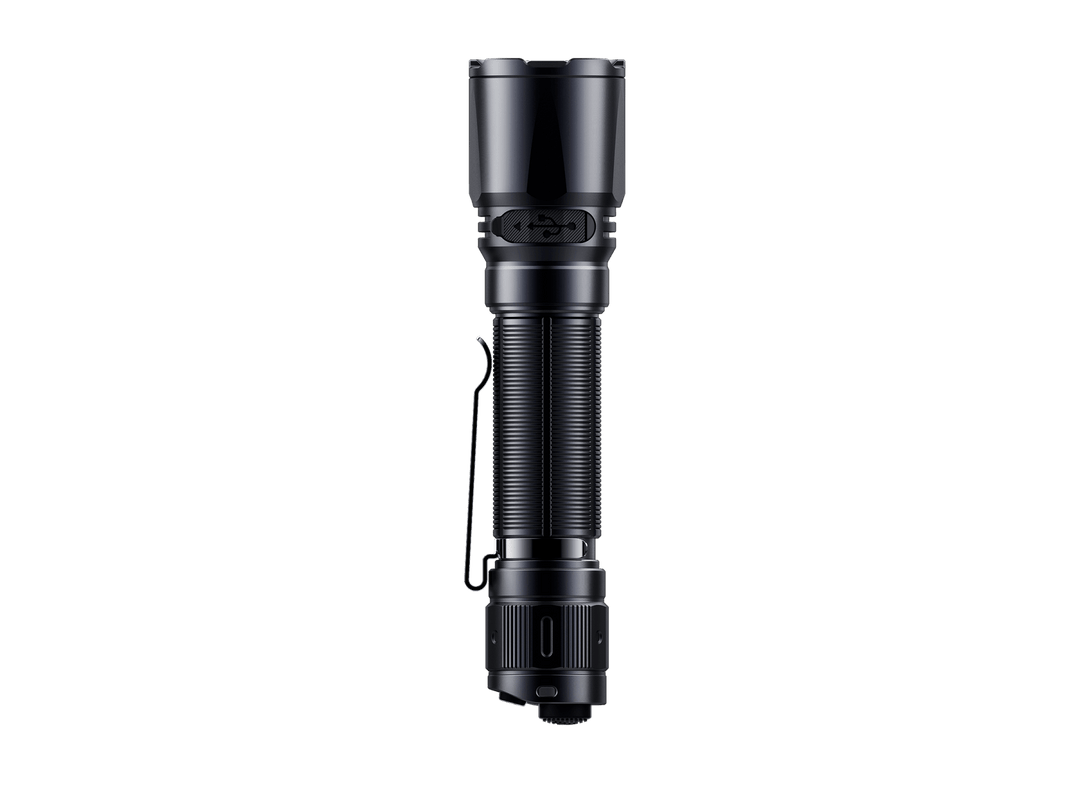

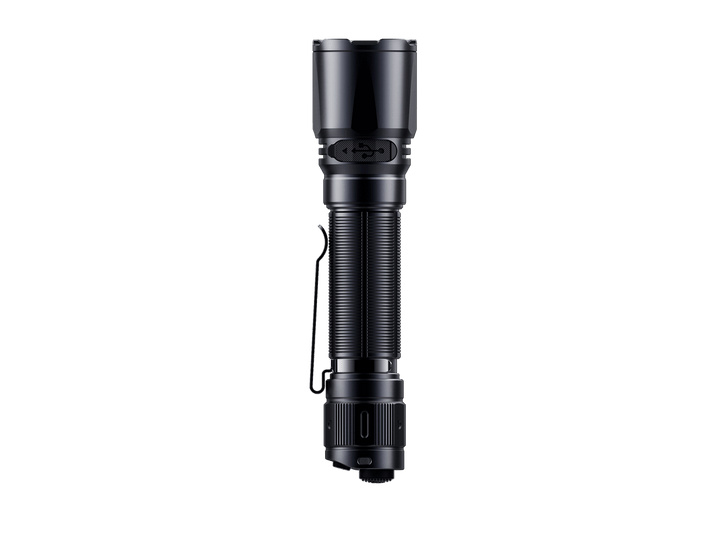

Fenix TK11R Compact Tactical Flashlight

Outputs

• High: 1600 Lumens, 1.83 hours, 1378 feet
• Med: 350 Lumens, 4.17 hours, 656 feet
• Low: 30 Lumens, 25.5 hours, 197 feet
• Strobe: 1600 Lumens

Details

• 420-meter beam distance

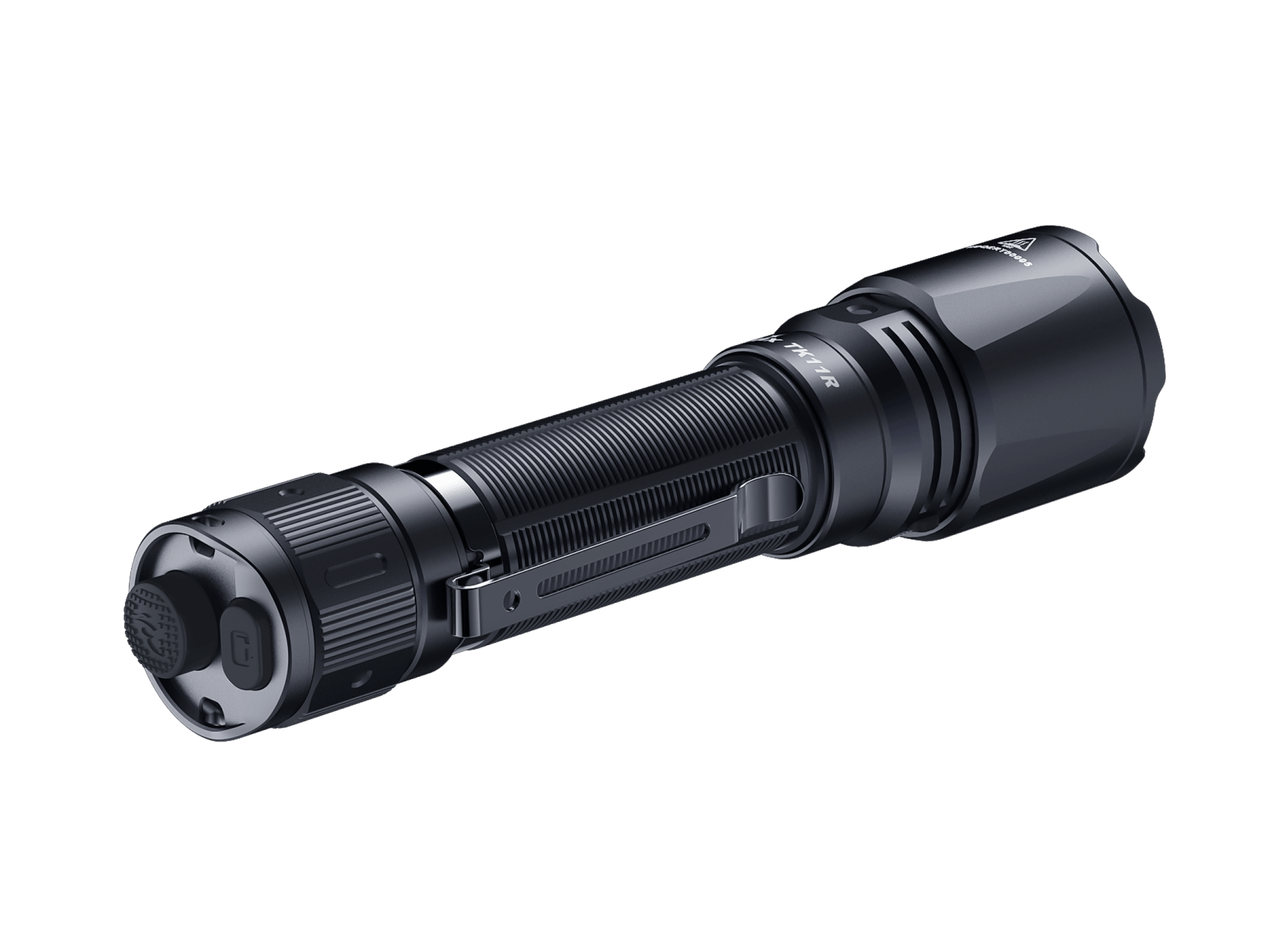

• Dual tail switch
• True-instant strobe from off
• Built-in USB-C charging port with battery level indicator
• Compact size; tactical function
• Smaller and lighter than a typical smartphone

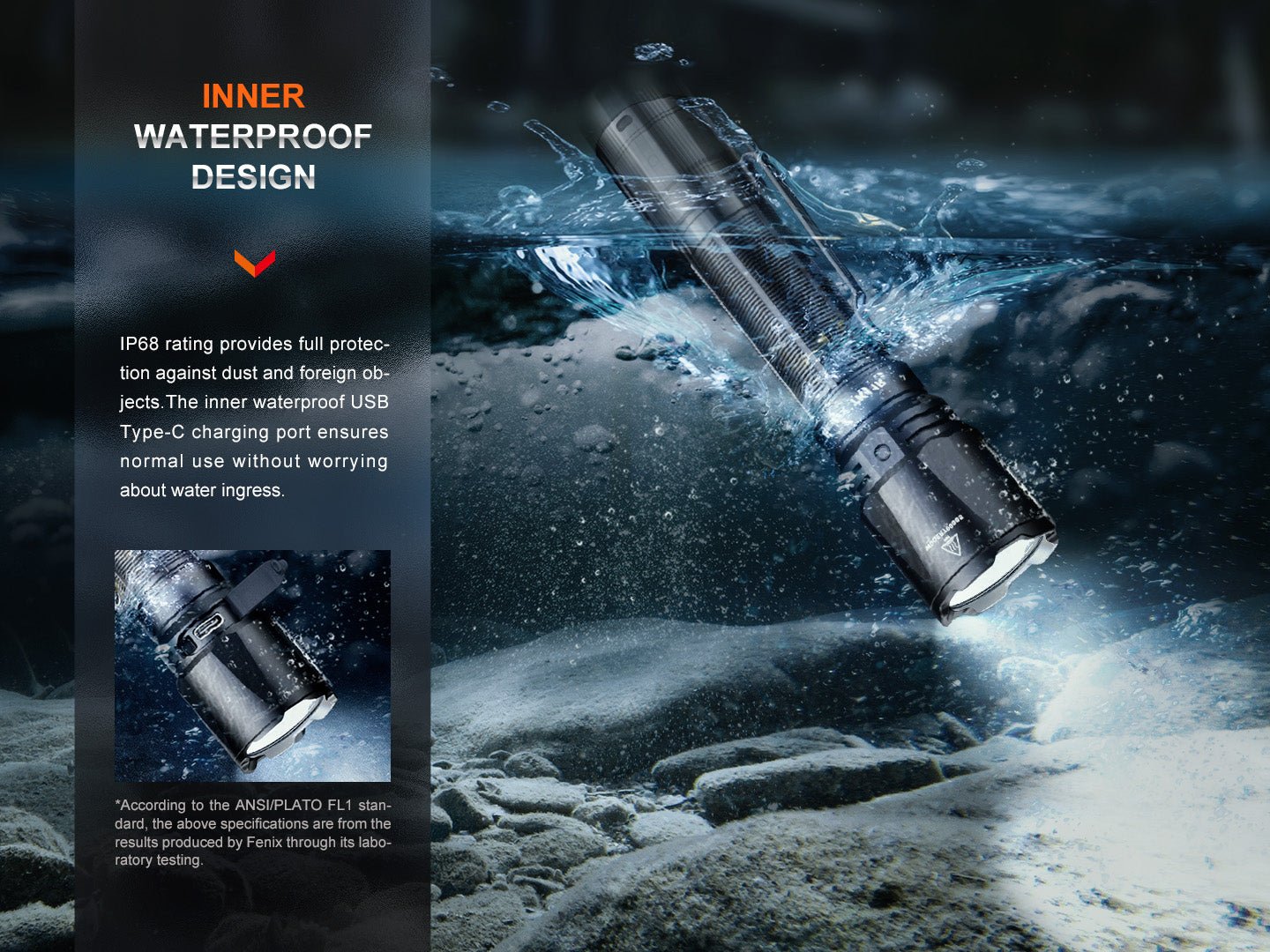

• Inner waterproofing to IP68 standard. Waterproof to at least 2 meters for 30 minutes, even with the dust cover open.
• 25.5 hour runtime
• Patented APF technology
• Intelligent overheat protection
• Impact resistant to 1 meter drop

Batteries

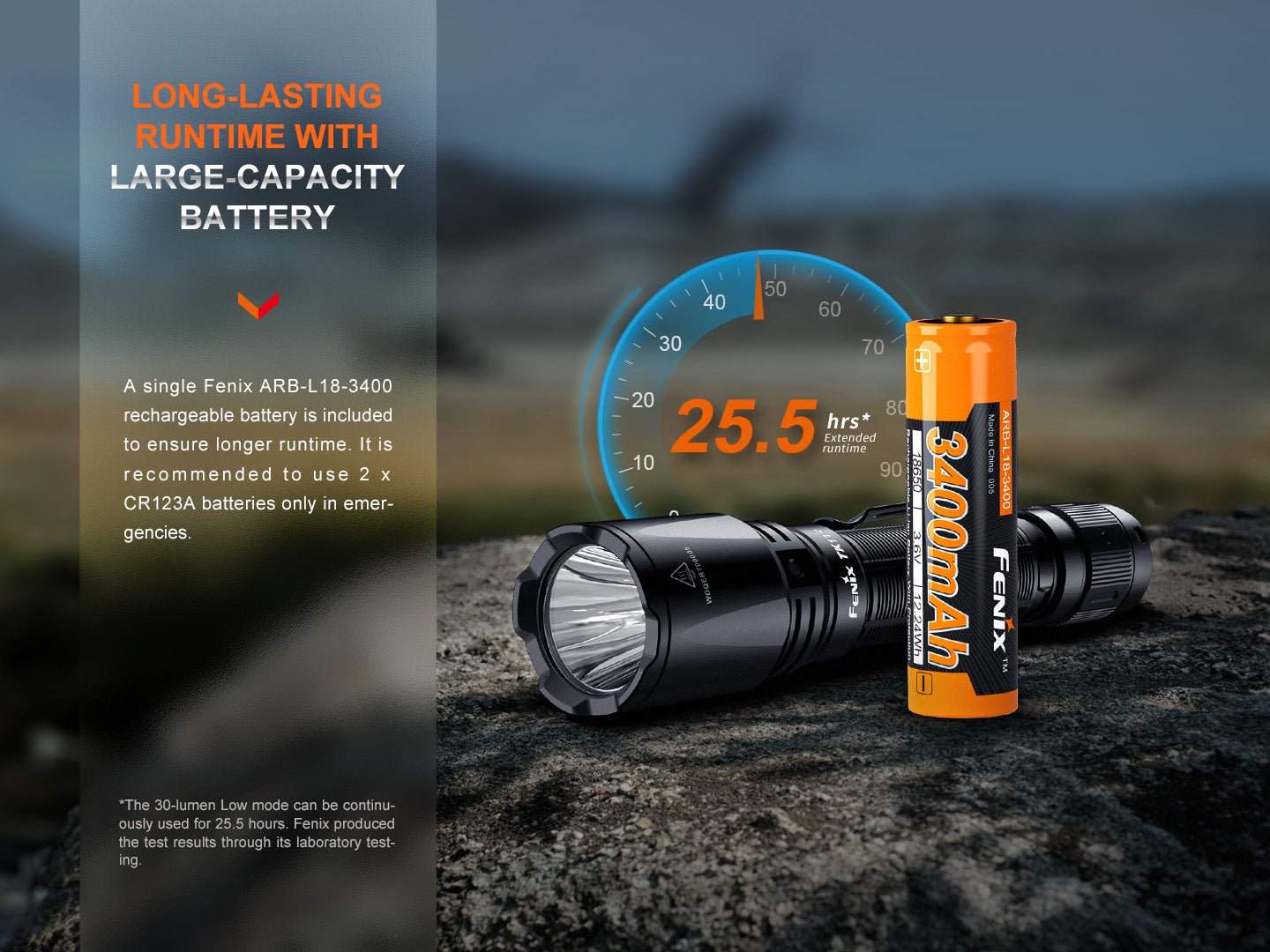

• Included: Fenix ARB-L18-3400 Rechargeable 3400mAh 18650 Battery
• Compatible: One 18650 battery (ARB-L18- Series) or two non-rechargeable CR123A batteries.

Size

• Length: 5.73 inches
• Head Diameter: 1.34 inches
• Body Diameter: 0.93 inches
• Weight: 4.14 ounces

Q: What are the key features of TK11R?

A:

• Simple and rapid output selection.
• High performance and impressive output.
• USB Type-C charging.
• This flashlight comes with a Fenix ARB-L18-3400 battery.

Q: What kind of LED is used in TK11R?

A: One Luminus SFT40 cold white LED with a lifespan of 50,000 hours.

Q: What is the working voltage of TK11R?

A: The operating voltage is 3.0 V-8.4 V.

Q: What kind of battery can be used in TK11R?

A: It is recommended to use a Fenix 18650 Li-ion battery. Other Li-ion batteries are
not recommended but are safe to use if they are quality brands. The TK11R also can use two CR123A batteries as backup.

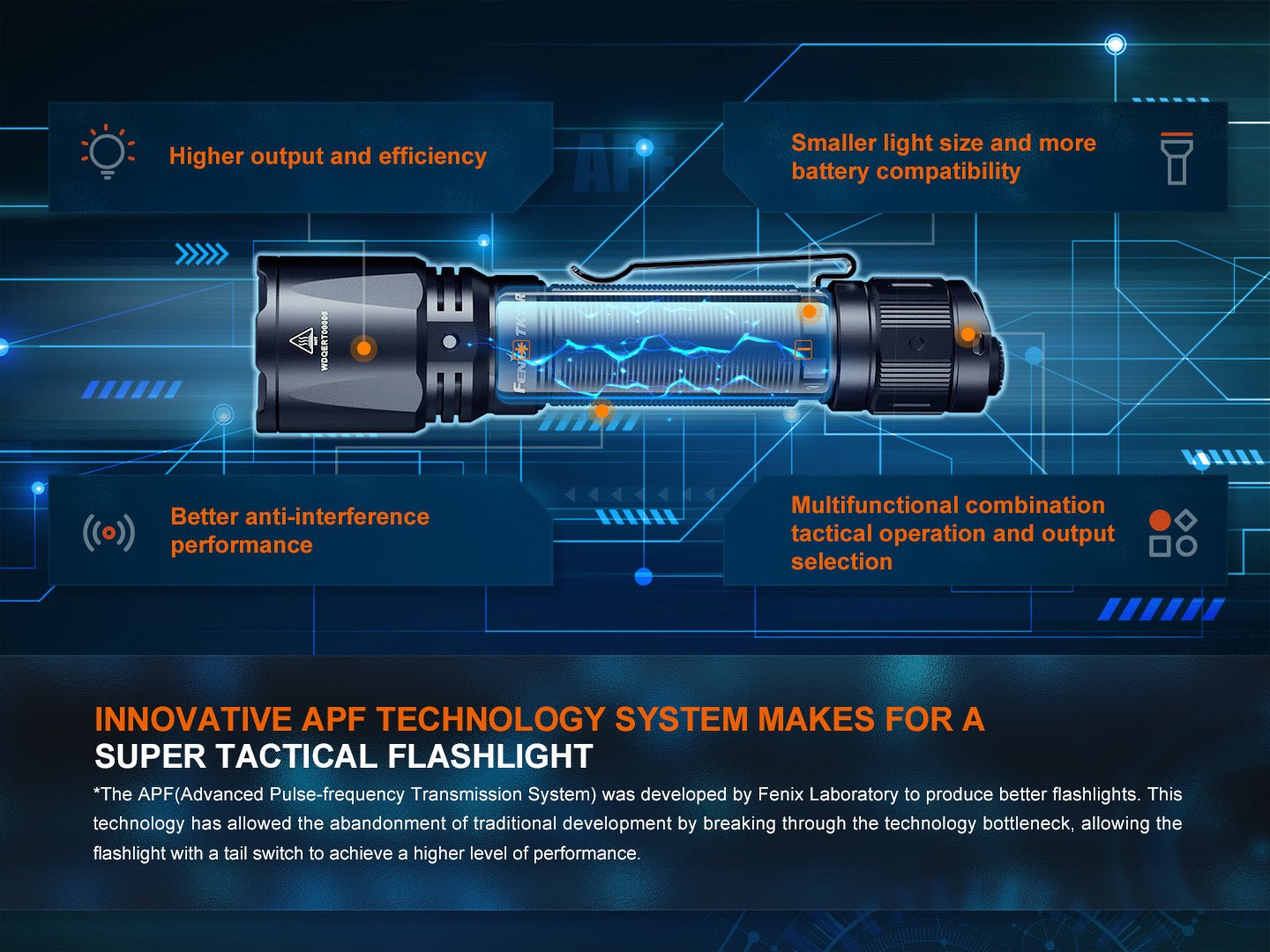

Q: What is APF？

A: The APF (Advanced Pulse-Frequency Transmission System) was developed by
Fenix laboratory and is a major technology breakthrough of flashlight industry. Allowing
the tactical flashlight to achieve a higher level of performance in the following ways:

• Traditional forward switches are limited by
  current, and it is difficult to achieve brightness above 1000 Lumens with 18650 batteries and 2000 even with 21700 batteries. APF technology allows these limits to be surpassed
• Make the functional tail cap simpler. Traditional multi-function tail cap needs a
  double-layer body or additional channels to work. APF technology offers a more simple approach to meet these goals.
• Better anti-interference performance. Complex external environments such
  as strong magnetic fields are easily ignored because of stronger anti-interference ability.

The Fenix TK11R is a compact tactical flashlight. This summary is drawn from the manufacturer's official user manual — see the downloadable PDF reference manual on the product page for complete details.

Warning

• Place this flashlight out of the reach of children.
• Do not shine the flashlight directly into the eyes of anyone.
• Do not place the light head near flammable objects, as high temperatures can cause objects to overheat and become flammable/ignite.
• Do not use the flashlight in inappropriate ways such as holding the unit in your mouth — if the battery were to fail while doing so, death or serious injury could result.
• This flashlight will accumulate a lot of heat while operating, resulting in a high temperature of the flashlight's outer case. Pay close attention to the thermal condition of the flashlight to avoid burns.
• Remove the battery from the flashlight to prevent accidental activation when the flashlight is placed in a closed-in, flammable environment such as pockets and backpacks.
• The LED of this flashlight is not replaceable; the whole flashlight will need to be replaced when the LED reaches the end of its lifespan.

Product Features

• 1600 lumens maximum output, 420 meters maximum beam distance
• Uses one Luminus SFT40 LED with a lifespan of 50,000 hours
• Powered by one Fenix ARB-L18-3400 battery
• Inner waterproof USB Type-C charging port
• Instant strobe
• Dual tail switches for fast, single-handed operation

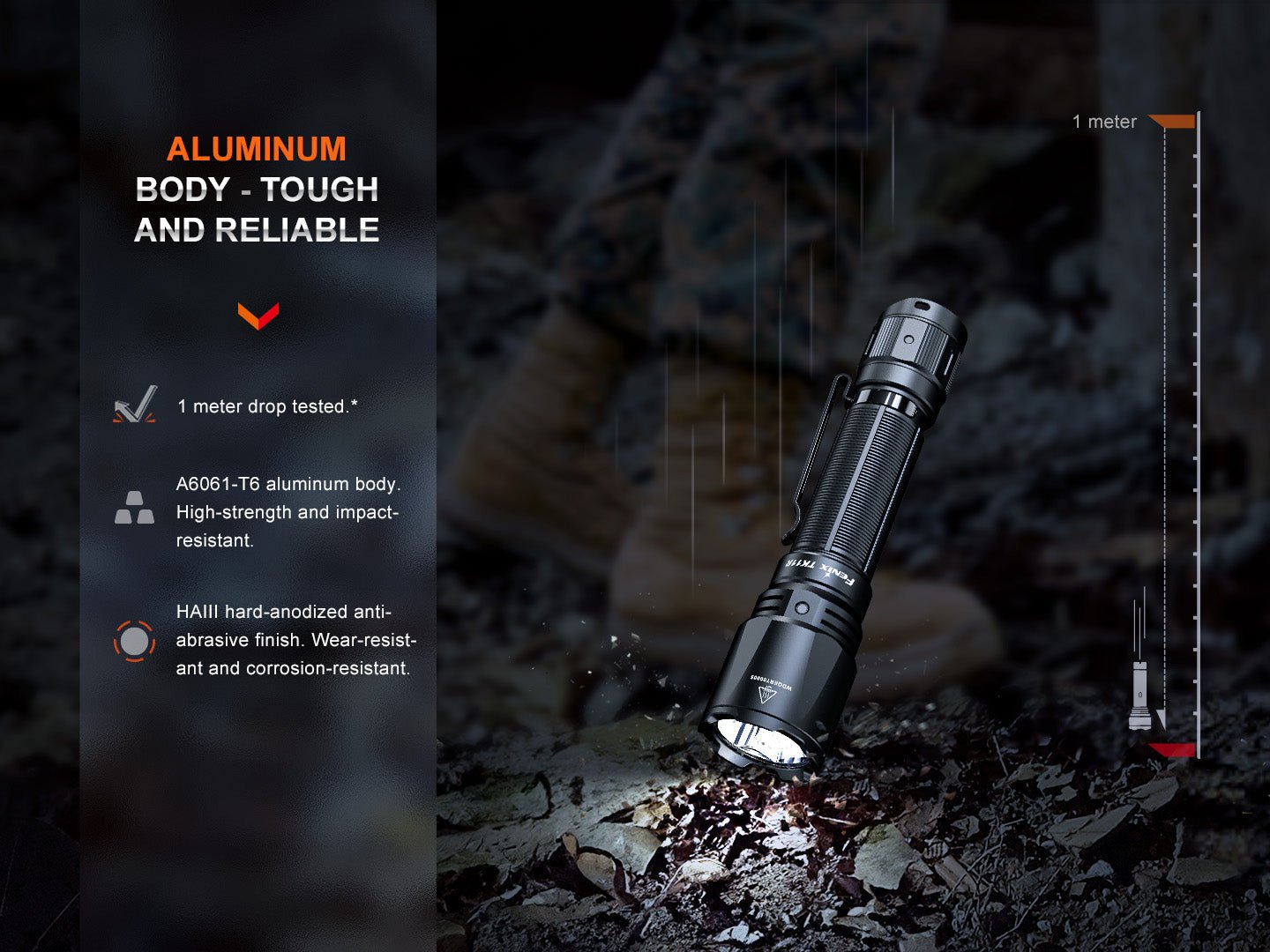

• Made of durable A6061-T6 aluminum with a premium type HAIII hard-anodized anti-abrasive finish

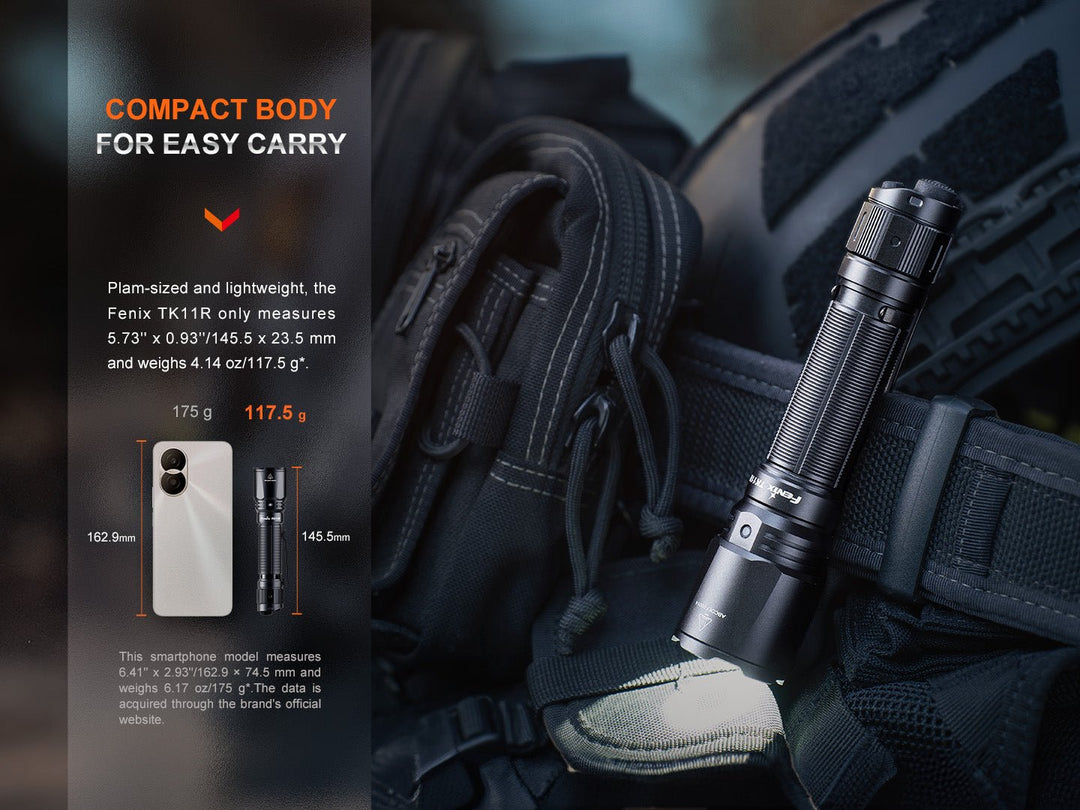

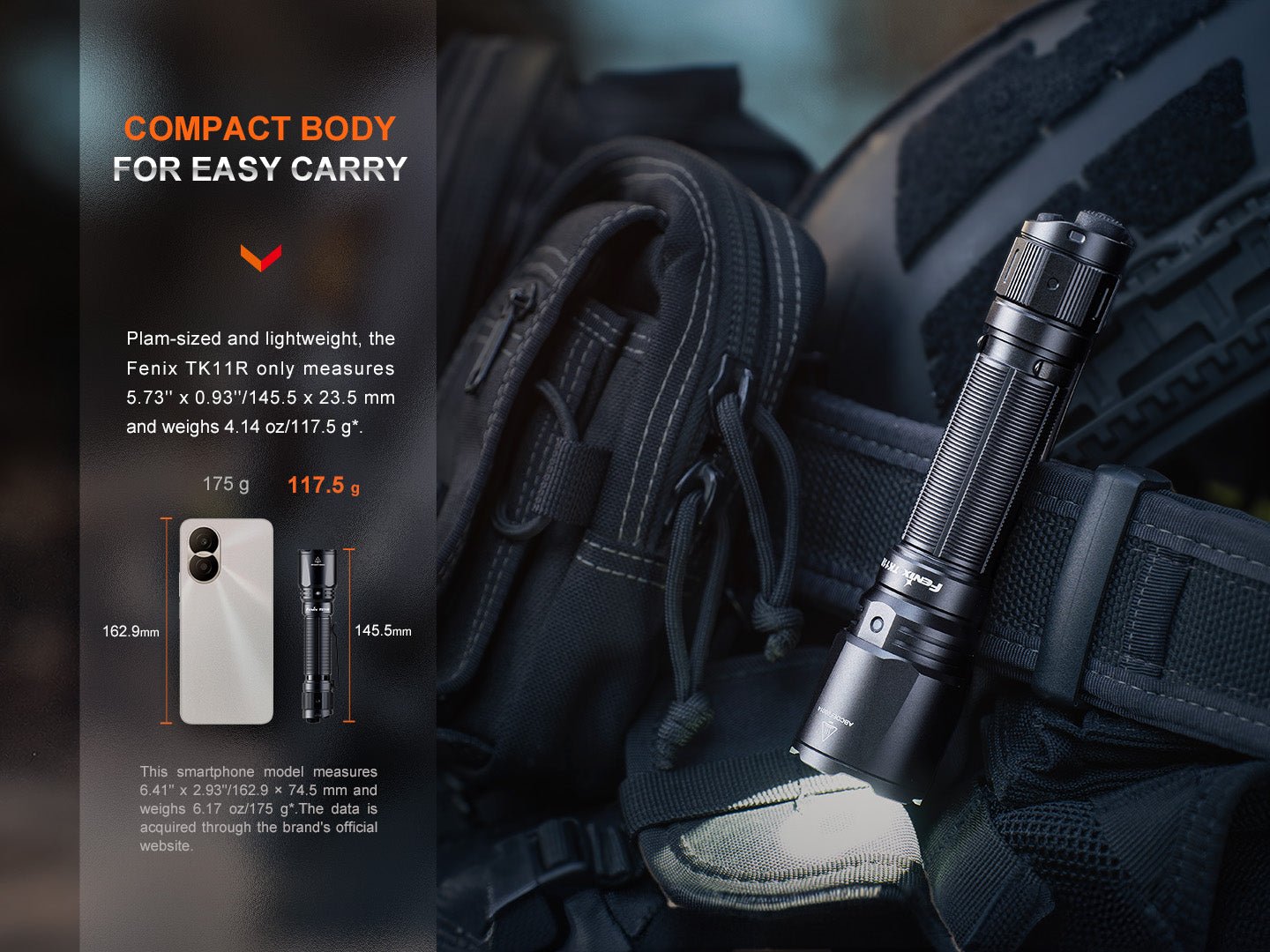

• Size: 5.73'' x 1.34'' x 0.93'' / 145.5 x 34 x 23.5 mm. Weight: 4.14 oz / 117.5 g (excluding battery)

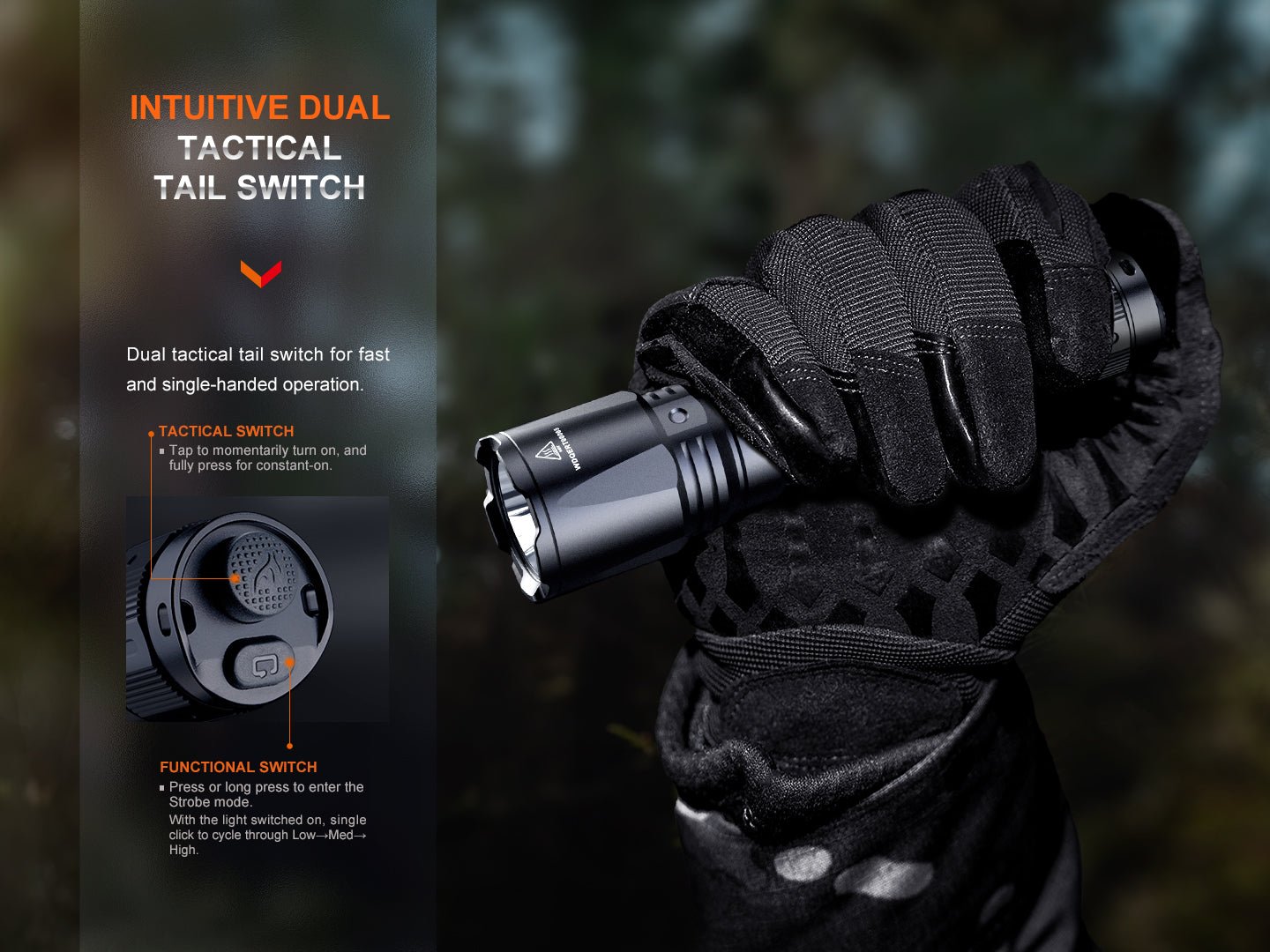

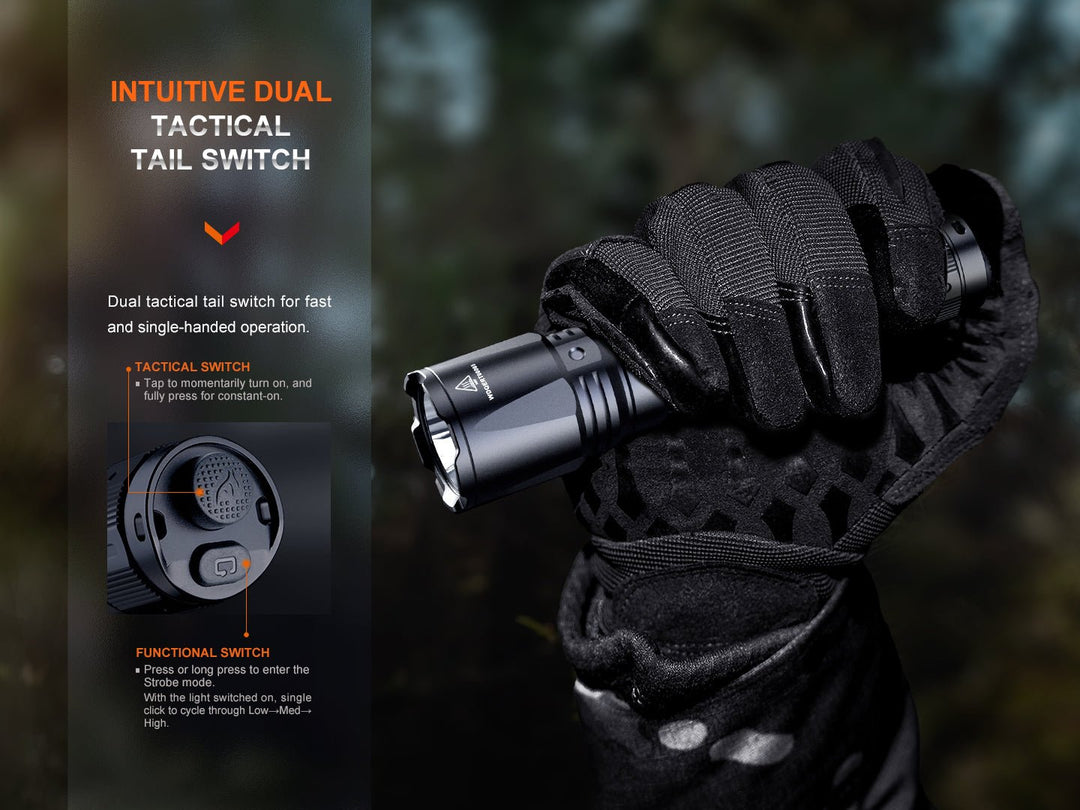

Operating Instructions

On/Off: tap the tactical switch to instantly turn on the light; release it and the light will go out. Fully press the tactical switch to constantly turn on the light; fully press again to turn off the flashlight.

Output Selection: with the light switched on, single click the functional switch to cycle through Low, Med, and High.

Strobe: with the light switched off, press the functional switch to enter Strobe; release it and the light will go out. With the light switched on, press and hold the functional switch for 0.5 seconds to enter Strobe; click the functional switch once again to turn back to the previously used output, or fully press the tactical switch to turn the flashlight off.

Intelligent Memory Circuit: the light memorizes the last selected output, excluding Strobe. When turned on again the previously used output will be recalled.

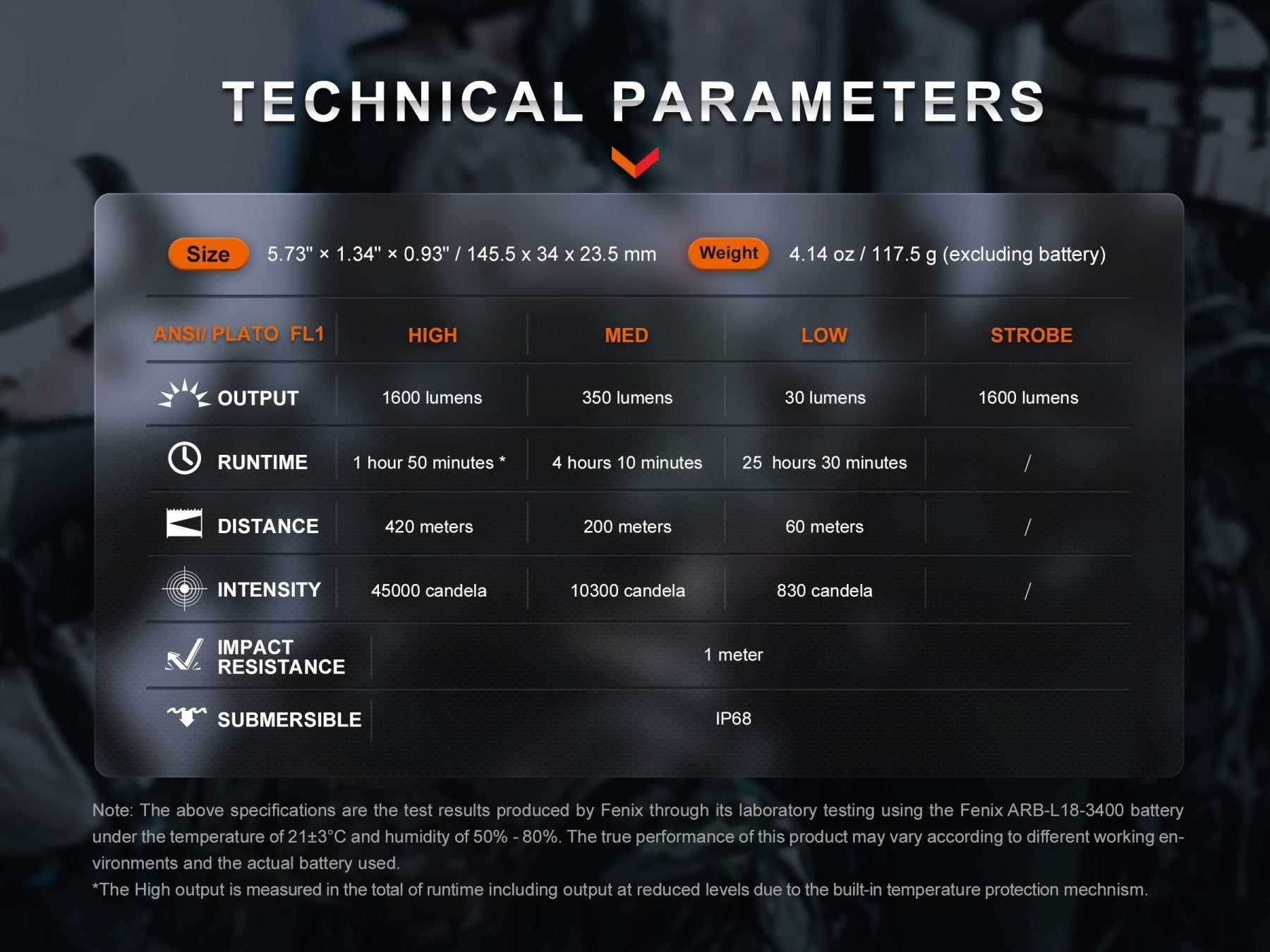

Technical Parameters (ANSI/PLATO FL1)

• High: Output 1600 lumens, Runtime 1 h 50 min*, Distance 420 meters, Intensity 45,000 cd.
• Med: Output 350 lumens, Runtime 4 h 10 min, Distance 200 meters, Intensity 10,300 cd.
• Low: Output 30 lumens, Runtime 25 h 30 min, Distance 60 meters, Intensity 830 cd.
• Strobe: Output 1600 lumens.

Impact Resistance: 1 meter | Water Resistant: IP68

Note: the above specifications are from the results produced by Fenix through its laboratory testing using the Fenix ARB-L18-3400 battery, under the temperature of 21±3°C and humidity of 50%-80%; the true performance of this product may vary according to different working environments and the actual battery used. *The High output is measured in total of runtime including output at reduced levels due to the built-in temperature protection mechanism.

Battery Specifications

• Fenix ARB-L18 (18650, 3.6V): Recommended.
• Non-rechargeable Lithium (CR123A, 3.0V): Emergency use.
• Other Li-ion battery (18650, 3.6V): Caution.

Note: 18650 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only using quality batteries with circuit protection will reduce the potential for combustion or explosion. Cell abuse or short circuiting are considered user-induced damage and are not covered by any Fenix warranty or liability.

Battery Replacement: unscrew the tail cap and insert the battery with the anode side (+) towards the light head, then screw the tail cap back on.

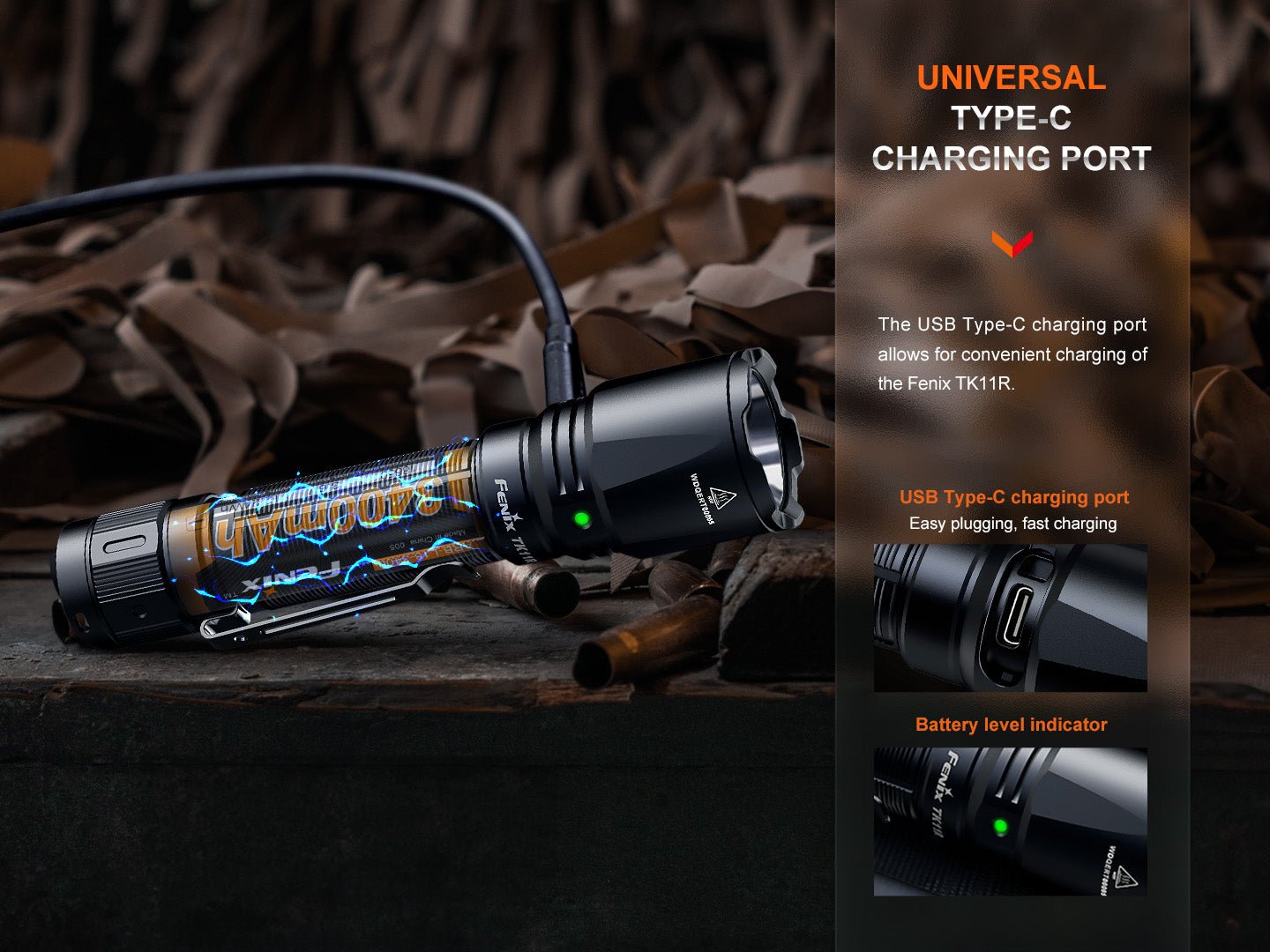

Charging

• First switch off the light and plug the USB A socket of the charging cable into an appropriate A/C powered USB plug/outlet, then connect the USB Type-C socket of the charging cable to the light.
• The indicator will display red while charging, and will turn green when fully charged.
• Once charging is completed, be sure to unplug the charging cable and close the anti-dust cover.

Note: when charging fails or the battery is inserted backwards, the battery indicator will flash red or stop working to notify the user to check the battery condition. The normal charging time is approximately 3.5 hours from depletion to fully charged. Recharge a stored light every four months to maintain optimum battery performance. It is strictly prohibited to charge a CR123A or a 16340 battery. These features (and battery level indication below) only work with a Fenix ARB-L18 battery.

Battery Level Indication

Each time the light is turned on, the indicator will indicate the battery level and will last for 3 seconds.

• Green light on: saturated, 100% - 85%.
• Green light flashes: sufficient, 85% - 50%.
• Red light on: poor, 50% - 25%.
• Red light flashes: critical, 25% - 1%.

Intelligent Overheat Protection

The lamp will accumulate a lot of heat when used at high output levels for extended periods. When the light reaches a temperature of 65°C/149°F or above, it will automatically step down a few lumens to reduce the temperature. When the temperature drops below 65°C/149°F, it will then allow the user to select these heat-intensive modes again.

Low-Voltage Warning

When the voltage level drops below the preset level, the lamp is programmed to downshift to a lower brightness level until Low output is reached. When this happens in Low output, the battery level indicator blinks red to remind you to replace or recharge the battery.

Usage and Maintenance

• Disassembling the sealed head can cause damage to the light and will void the warranty.
• Fenix recommends using an excellent-quality battery.
• If the light will not be used for an extended period, remove the battery, or the light could be damaged by electrolyte leakage or battery explosion.
• Remove the battery to prevent accidental activation during storage or transportation.
• Long-term use can result in O-ring wear; to maintain a proper water seal, replace the ring with an approved spare.
• Periodic cleaning of the battery contacts improves the lamp's performance, since dirty contacts may cause flickering, intermittent operation, or failure to illuminate.

What's Included

Fenix TK11R flashlight, ARB-L18-3400 battery, USB Type-C charging cable, Lanyard, Holster, Spare O-ring, User manual, Warranty card.
