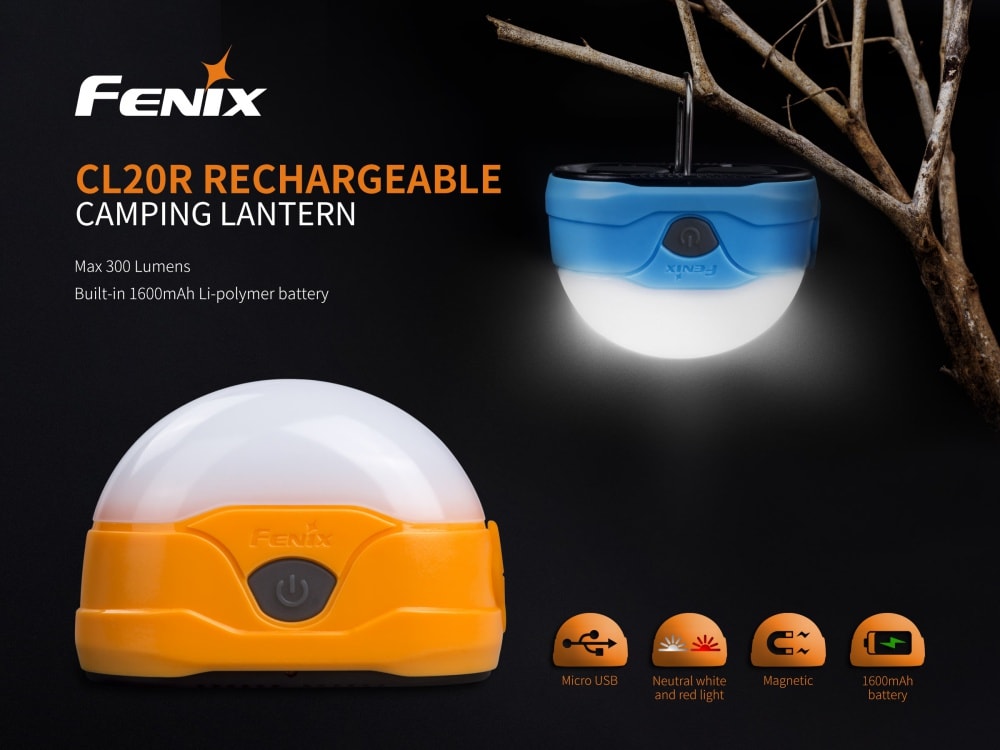

Fenix CL20R LED Rechargeable Camping Lantern - discontinued

Outputs

• White light
• Turbo: 300 Lumens, 6 hours, 49 ft
• High: 130 Lumens, 12 hours
• Med: 40 Lumens, 20 hours
• Low: 1 Lumen, 200 hours

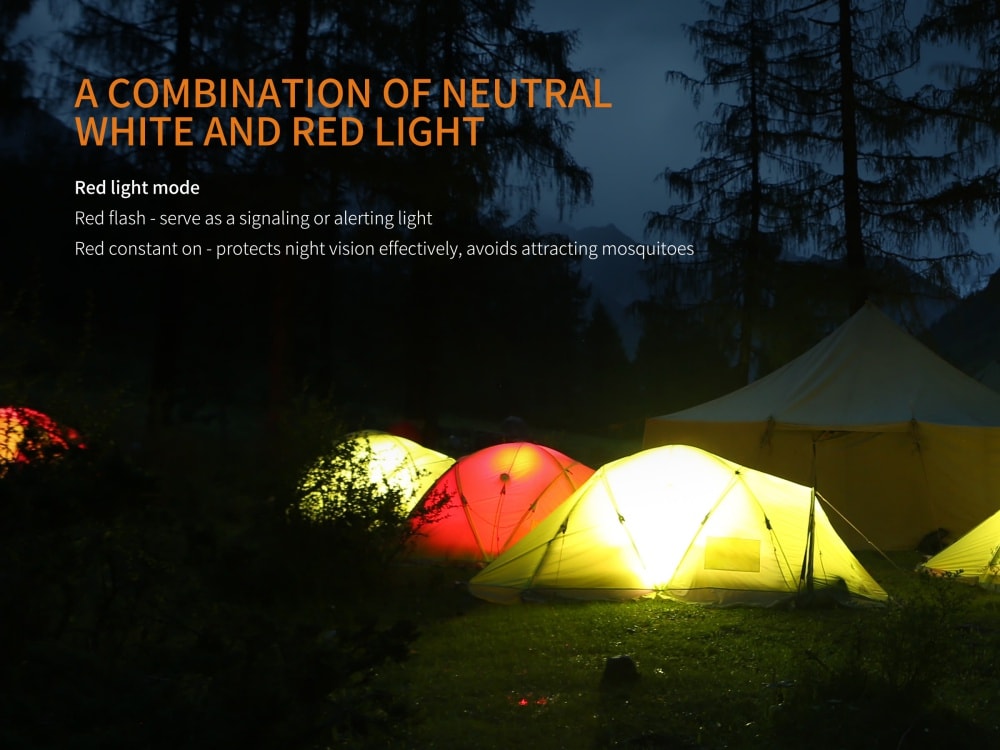

• Red light
• Solid: 1.5 Lumens, 100 hours
• Flashing: 1.5 Lumens

Details

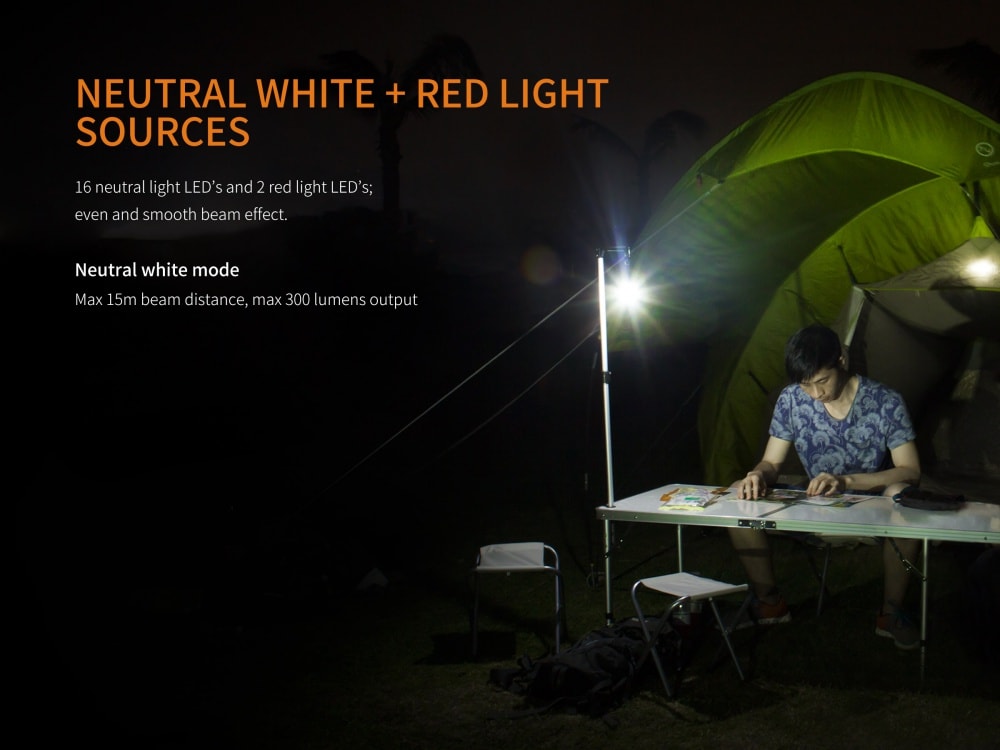

• Utilizes 16 neutral white LEDs plus 2 red LED
• White light features 4 output modes and red light features 2 modes

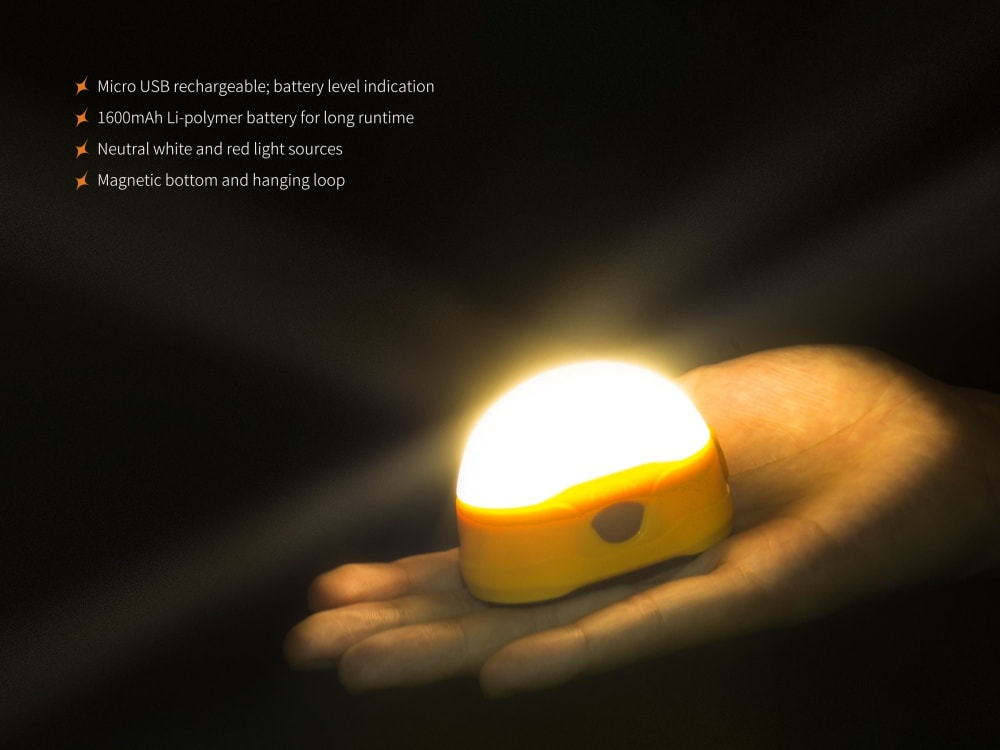

• Micro USB rechargeable
• Battery level indication

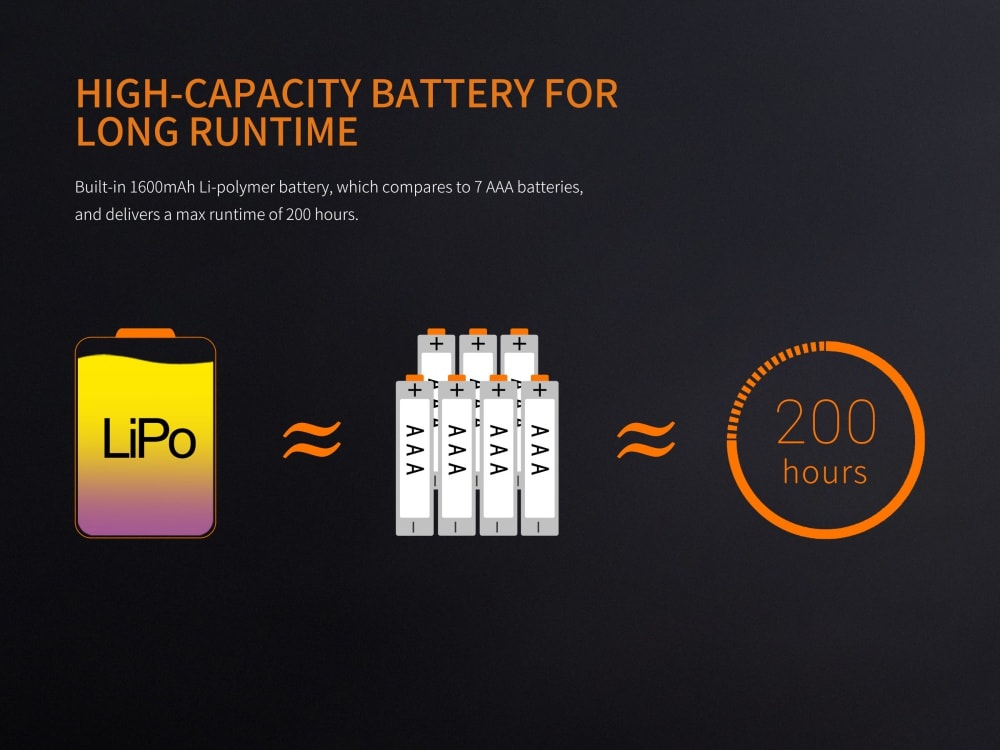

• Built-in 1600mAh Li-polymer battery - comparable to 7 AAA batteries

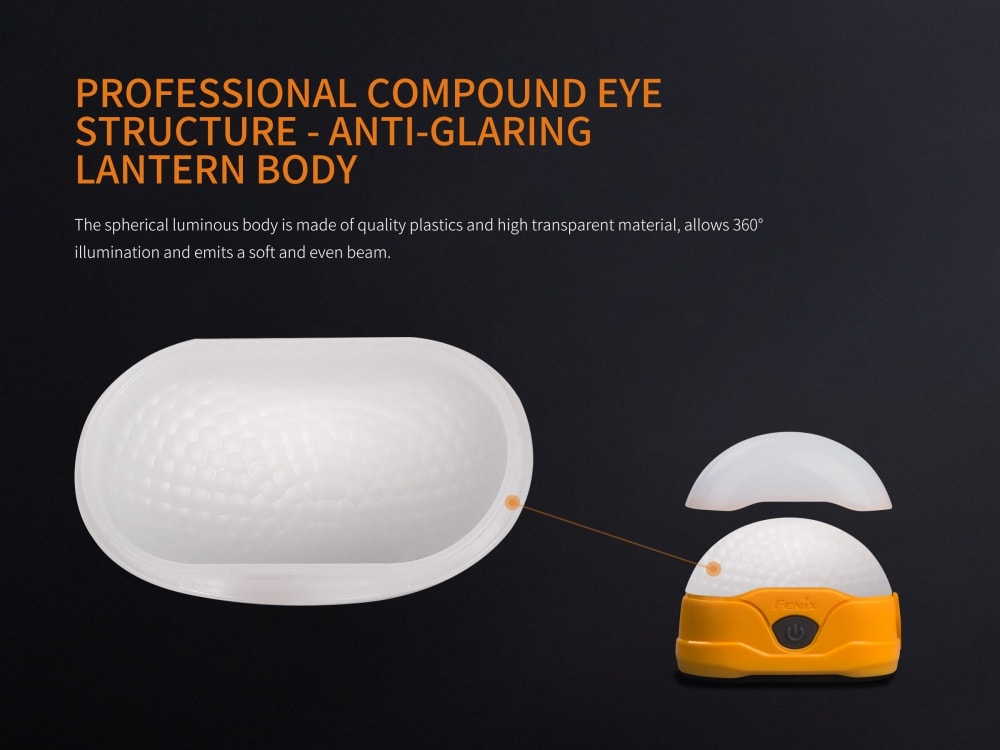

• Professional compound eye structure - anti-glaring lantern body
• Allows 360º illumination

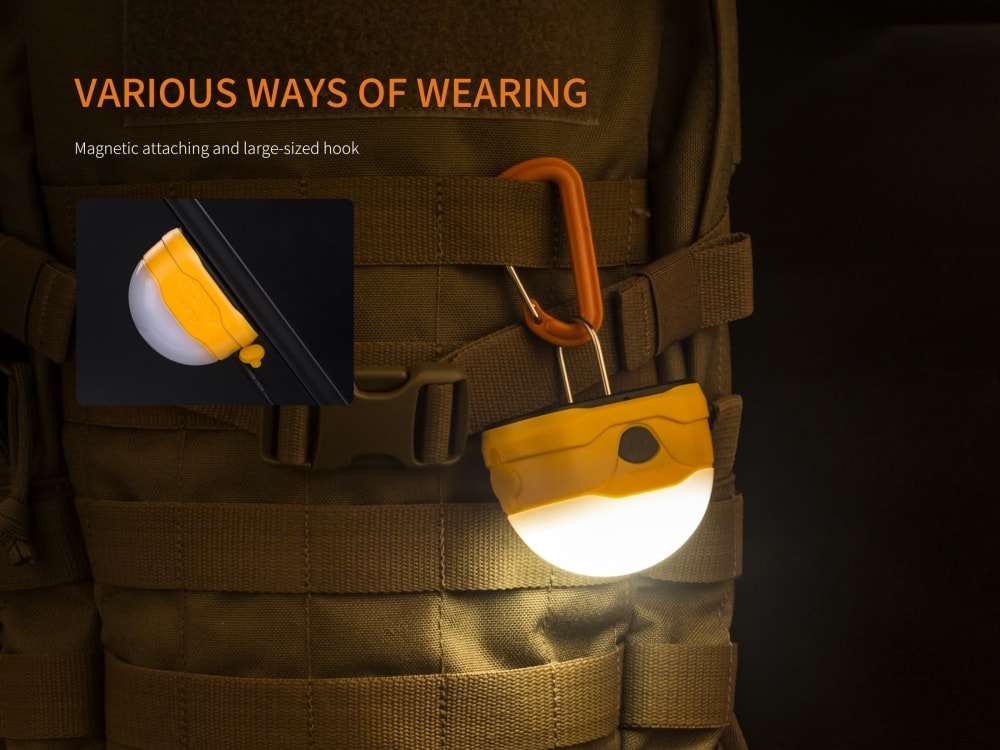

• Magnetic bottom plus hanging loop
• Single switch for fast and convenient operation
• Made of quality plastics and highly transparent material

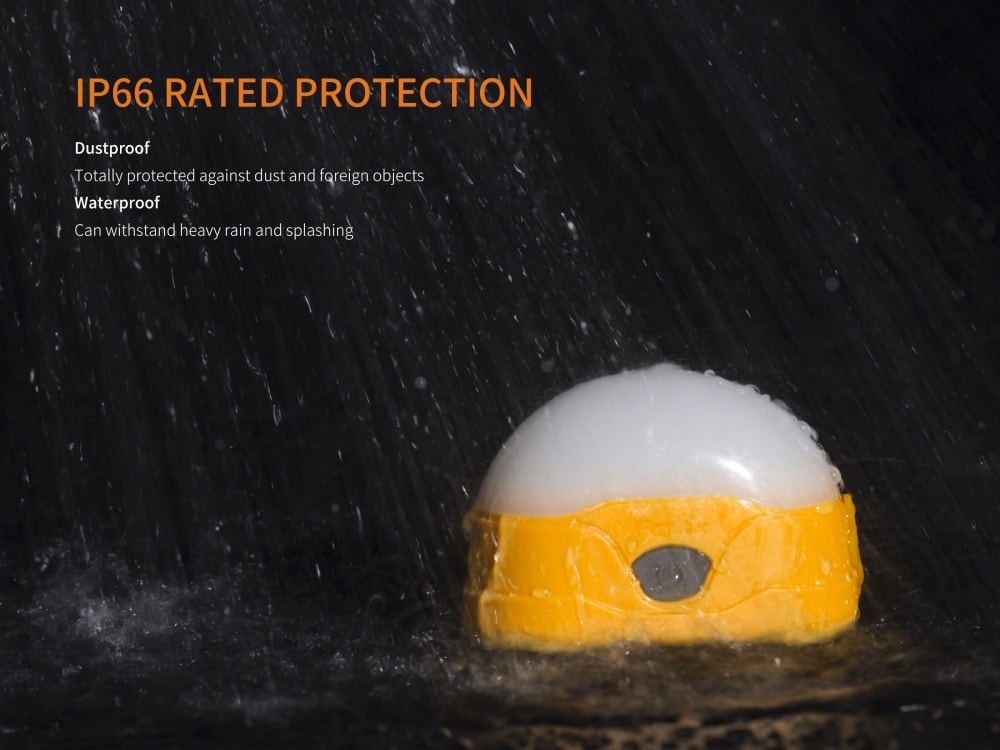

• IP66 rated protection

Batteries

• Built-in: 1600mAh Li-polymer battery

Size

• Length: 2.8 inches
• Width: 1.6 inches
• Height: 1.9 inches
• Weight: 3.2 oz

How long does it take to charge the Fenix CL20R camping lantern?

The CL20R lantern's internal 1600mAh battery takes about 1 hour and 40 minutes to charge.

Is the CL20R waterproof if the USB cap is open?

No, the CL20R is only waterproof when the USB cover is in place. Please ensure that the cover is in place before exposing the lantern to water.

What batteries work in the Fenix CL20R lantern?

The Fenix CL20R lantern is only compatible with its included built-in 1600mAh Li-polymer battery. This battery cannot be removed or replaced.

Which battery chargers will work with the Fenix CL20R batteries?

The Fenix CL20R lantern has a built-in battery that cannot be removed and can only be charged directly through the light via micro USB. The CL20R is extremely compact and lightweight making it easy for travel and adventures. With its multiple outputs, white and red LEDs, and portability, the CL20R is the perfect camping companion.

The Fenix CL20R is a Micro USB rechargeable camping lantern. This summary is drawn from the manufacturer's official user manual — see the downloadable PDF reference manual on the product page for complete details.

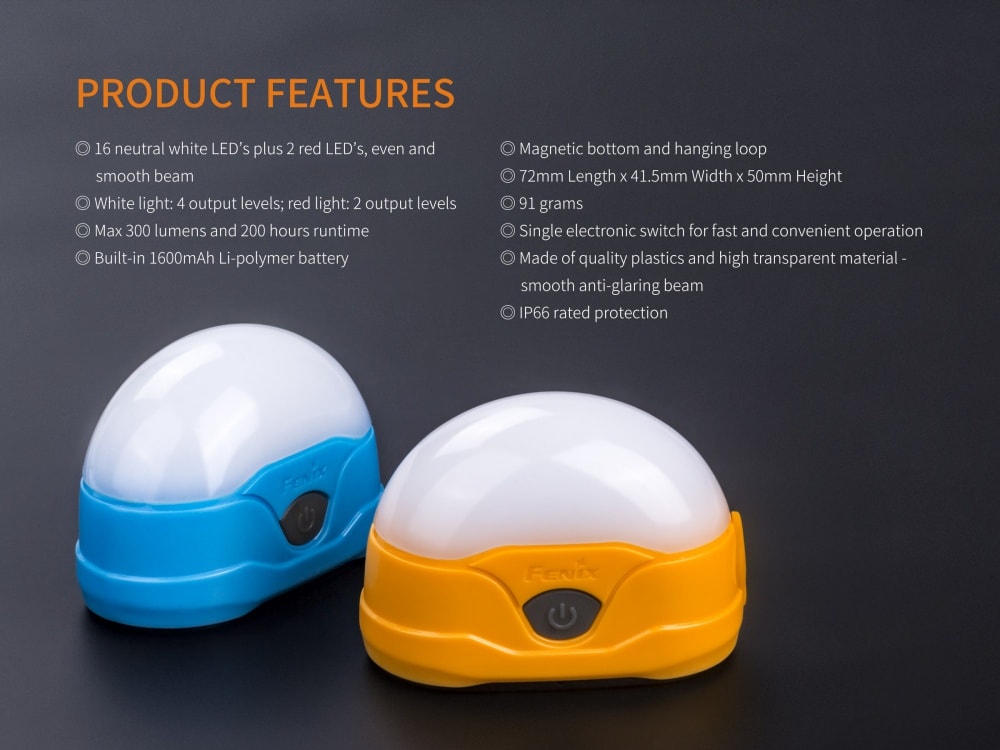

Overview

• 16 neutral white LEDs plus 2 red LEDs, even and smooth beam.
• White lantern: 4 output levels; red lantern: 2 output levels.
• Max 300 lumens and 200 hours runtime.
• Built-in 1600mAh Li-polymer battery.
• Magnetic bottom and hanging loop.
• Digitally regulated output maintains constant brightness.
• Single electronic switch for fast and convenient operation.
• Made of quality plastics and high transparent material for a smooth, anti-glaring beam.
• IP66 rated protection.
• Size: 72mm Length x 41.5mm Width x 50mm Height. Weight: 91 grams.

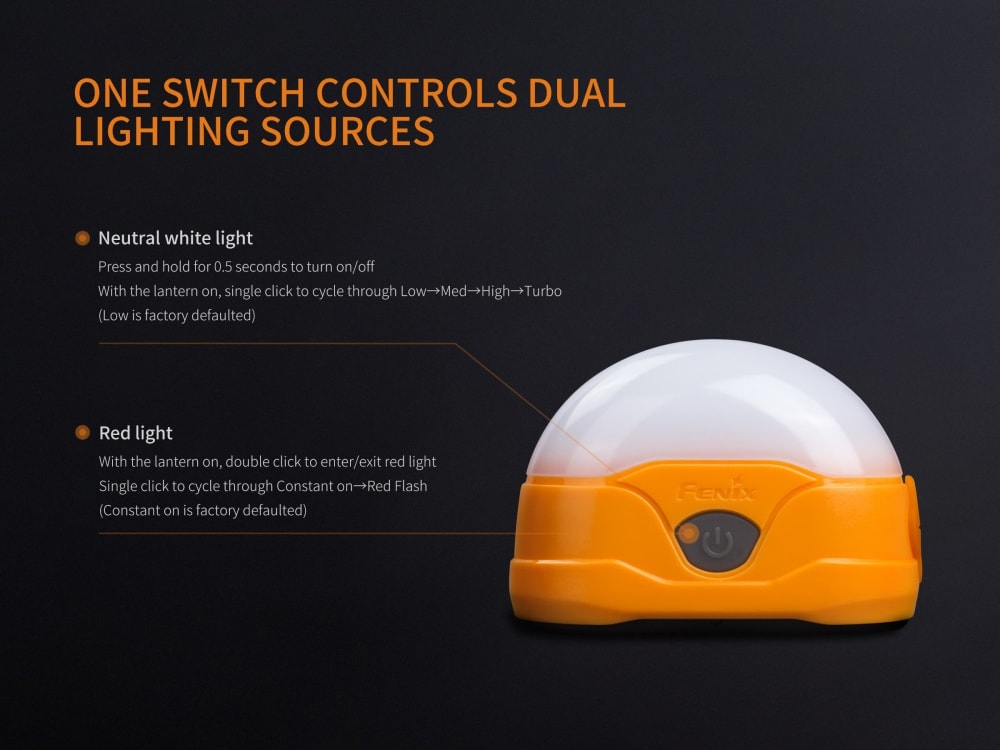

Operating Instructions

White Lantern

On/Off: Press and hold the switch for 0.5 seconds to turn the lantern on or off.

Output Selection: Single click the switch to cycle through Low→Med→High→Turbo (Low is factory defaulted).

Red Lantern

On/Off: With the lantern turned on, double click to enter red lantern. Double click again to return to white lantern. Press and hold for 0.5 seconds to turn off the lantern.

Output Selection: Single click the switch to cycle through Constant on→Red Flash (Constant on is factory defaulted).

Intelligent Brightness Downshifting

The camping lantern will accumulate a lot of heat when used for extended periods. After 30 minutes working on Turbo, the light will automatically step down from 300 lumens to 120 lumens to reduce temperature. After an hour working on High, the light will automatically step down from 130 lumens to 52 lumens to reduce temperature.

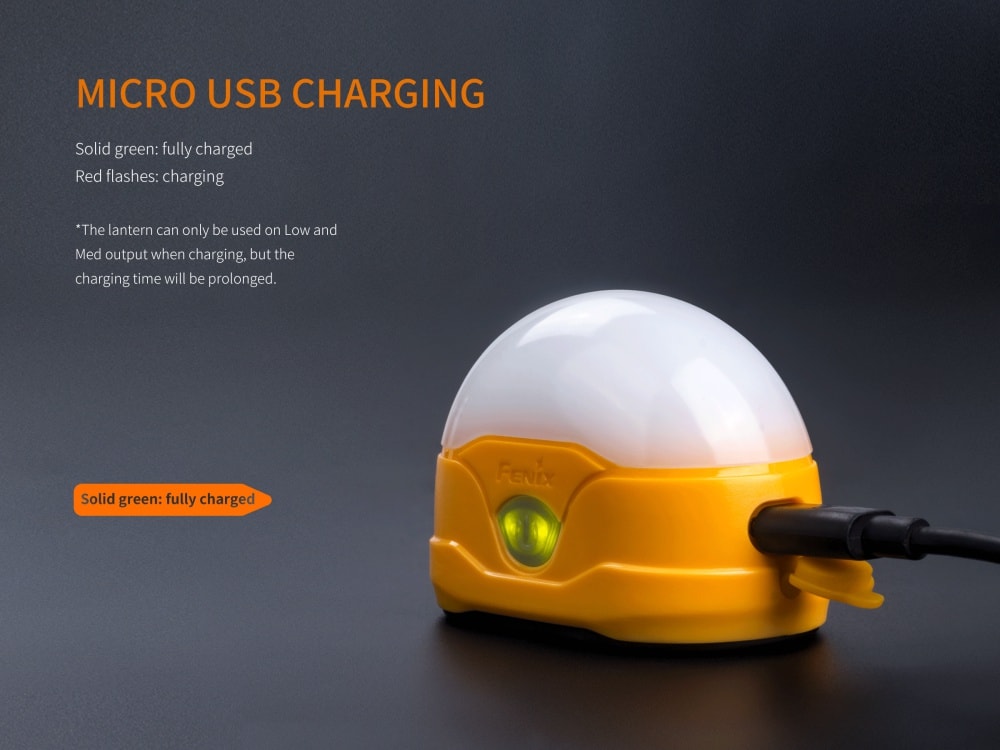

Charging

Remove the anti-dust cover to reveal the charging port of the camping lantern and plug the Micro USB terminal of the charging cable into it. If the battery level is fairly sufficient, the charging indicator displays green to indicate unnecessary charging. Otherwise the charging indicator will display red while charging, and will turn solid green when fully charged. Normal charging time for the built-in 1600mAh battery is approximately 1 hour and 40 minutes from depleted to fully charged with the light off. Once charging is completed, be sure to remove the charging cable and replace the anti-dust cover to maintain the waterproof ability.

*The lantern can only be used on Low and Med output while charging, but the charging time will be prolonged.

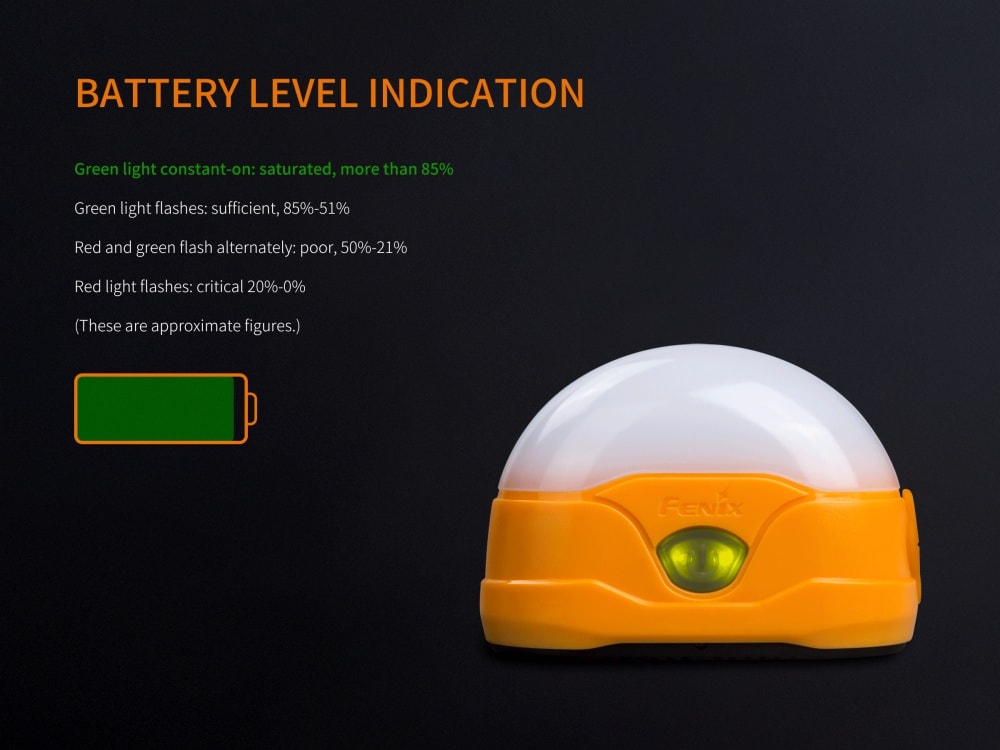

Battery Level Indication

With the lantern turned off, single click the switch — the battery level indicator on the side switch will display the battery status for 3 seconds.

• Green light constant-on: saturated, more than 85%.
• Green light flashes: sufficient, 85%-51%.
• Red and green light alternately: poor, 50%-21%.
• Red light flashes: critical, 20%-0%.

(These are approximate figures.)

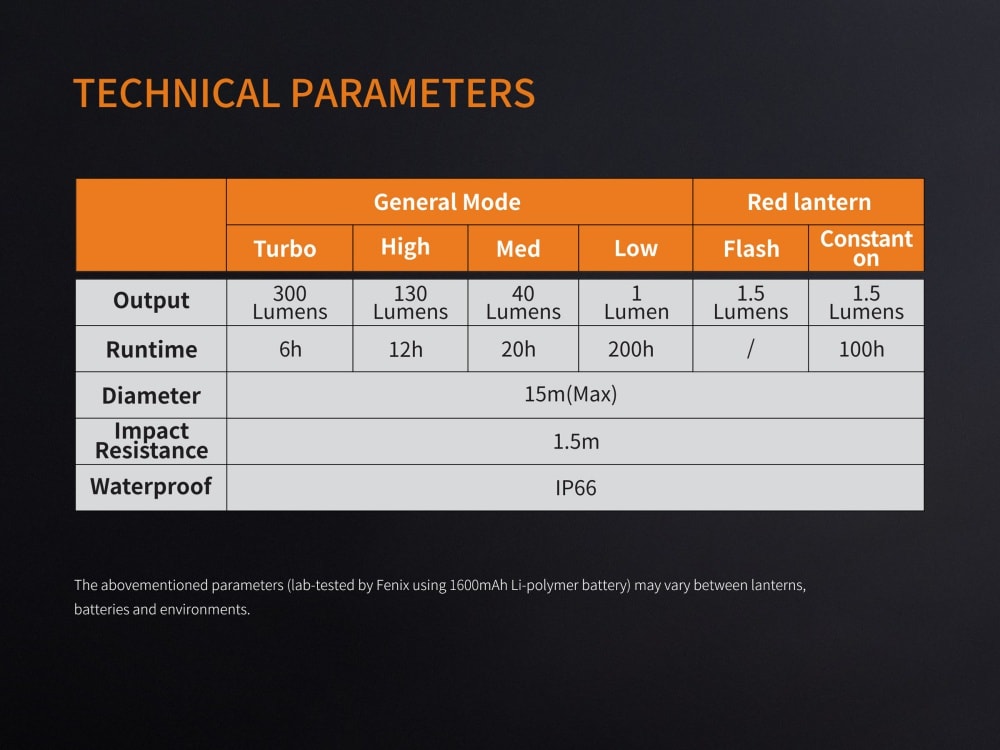

Technical Parameters

• Turbo: Output 300 lumens, Runtime 6 hours.
• High: Output 130 lumens, Runtime 12 hours.
• Med: Output 40 lumens, Runtime 20 hours.
• Low: Output 1 lumen, Runtime 200 hours.
• Red Flash: Output 1.5 lumens.
• Red Constant-on: Output 1.5 lumens, Runtime 100 hours.
• Beam Diameter: 15 meters (Max).
• Waterproof: IP66.
• Impact Resistance: 1.5 meters.

Note: The above specifications are lab-tested by Fenix using a 1600mAh Li-polymer battery and may vary between lanterns, batteries, and environments.

Usage and Maintenance

• Recharge a stored lantern every three months to maintain optimum performance of the battery.
• Fully charge the lantern in time to guarantee normal function the next time it is needed.

Warning

This lantern is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the lantern directly into anyone's eyes.

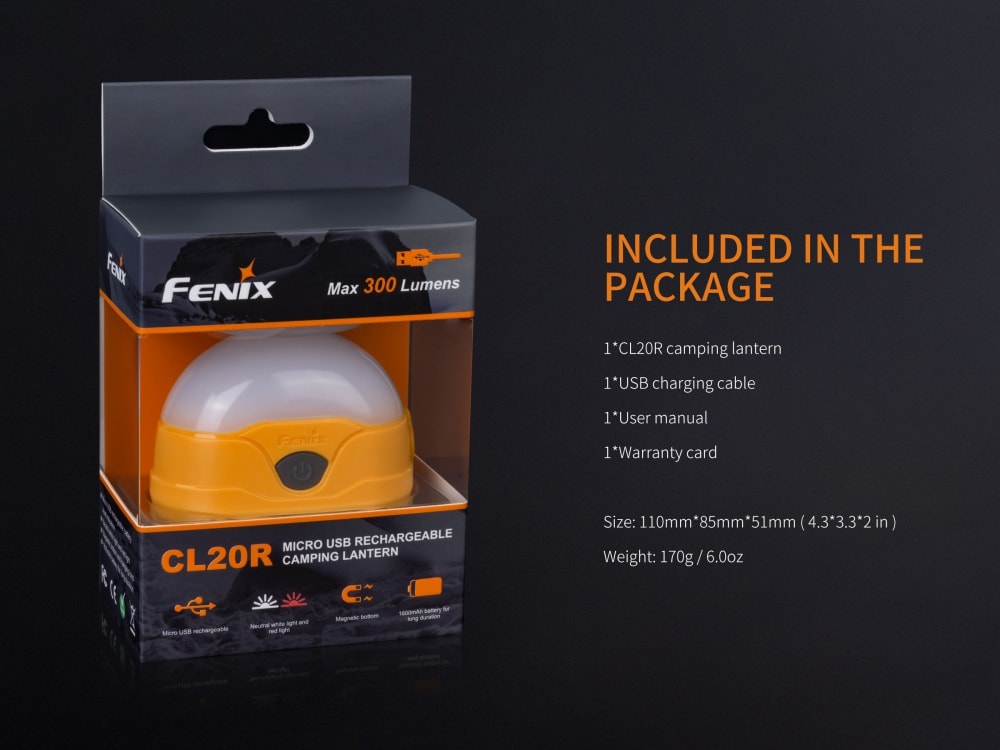

Included

Fenix CL20R camping lantern, USB charging cable, User manual, Warranty card.
