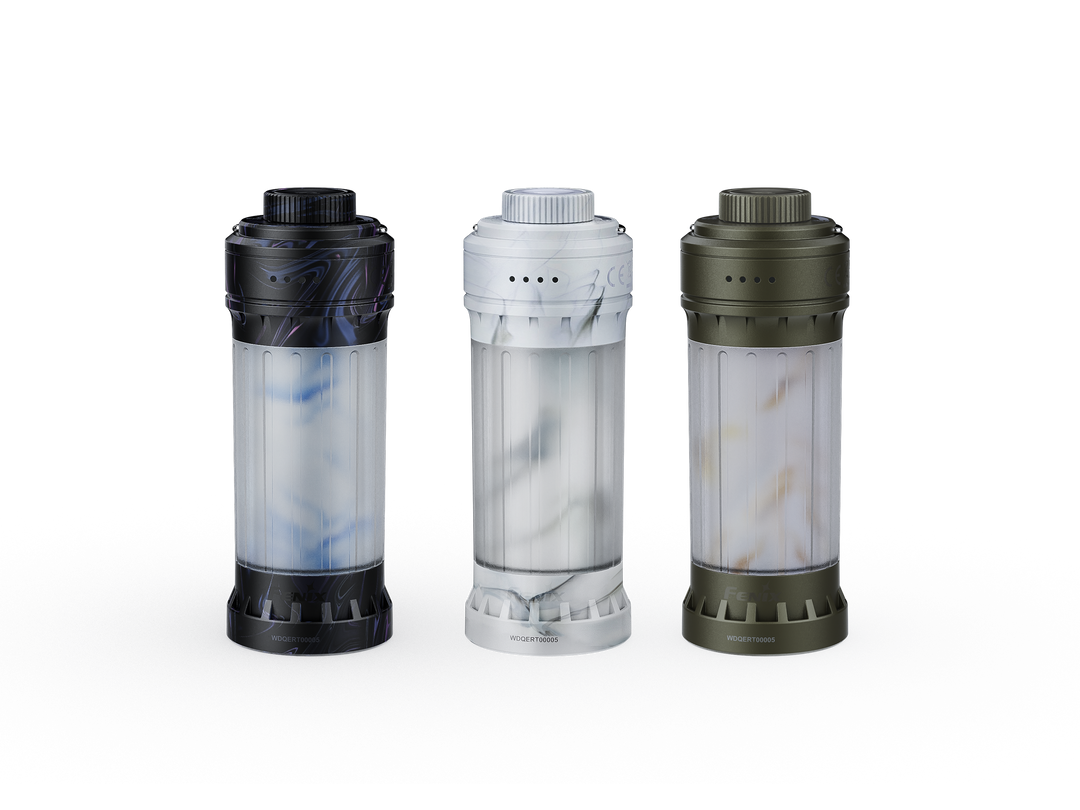

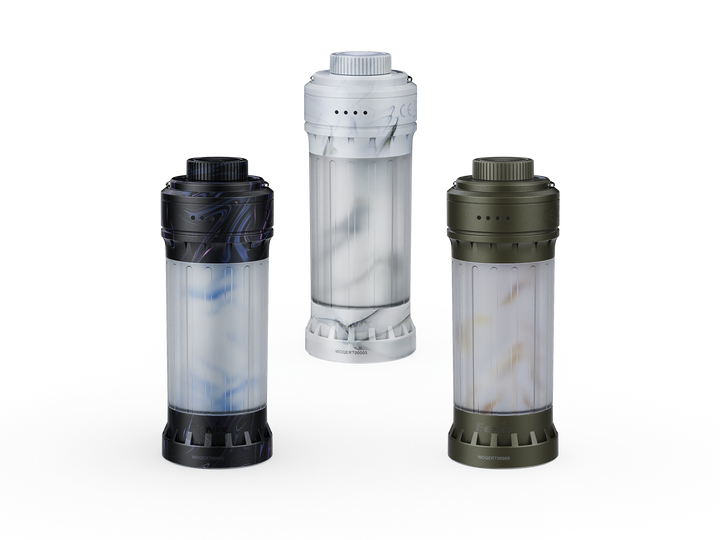

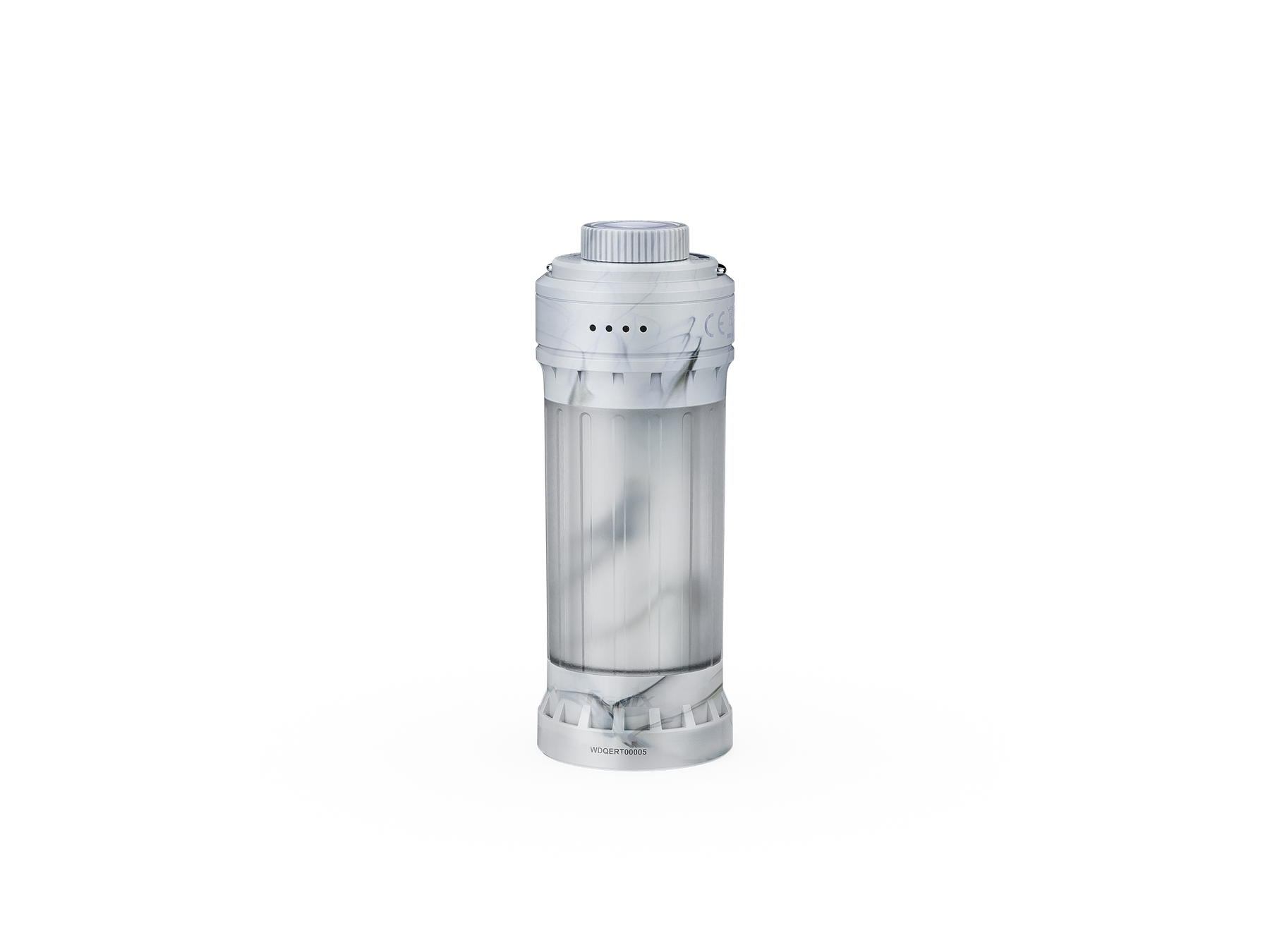

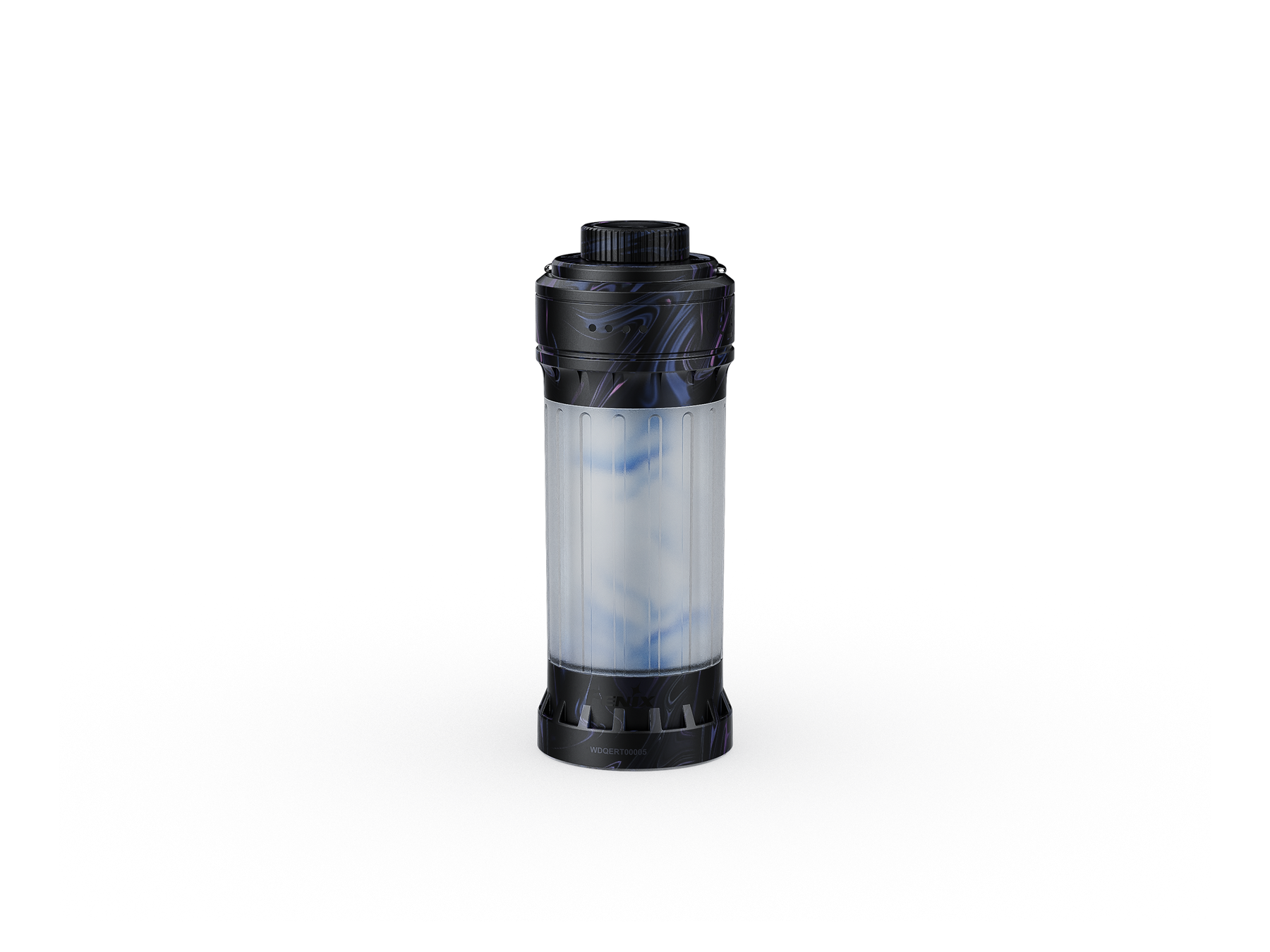

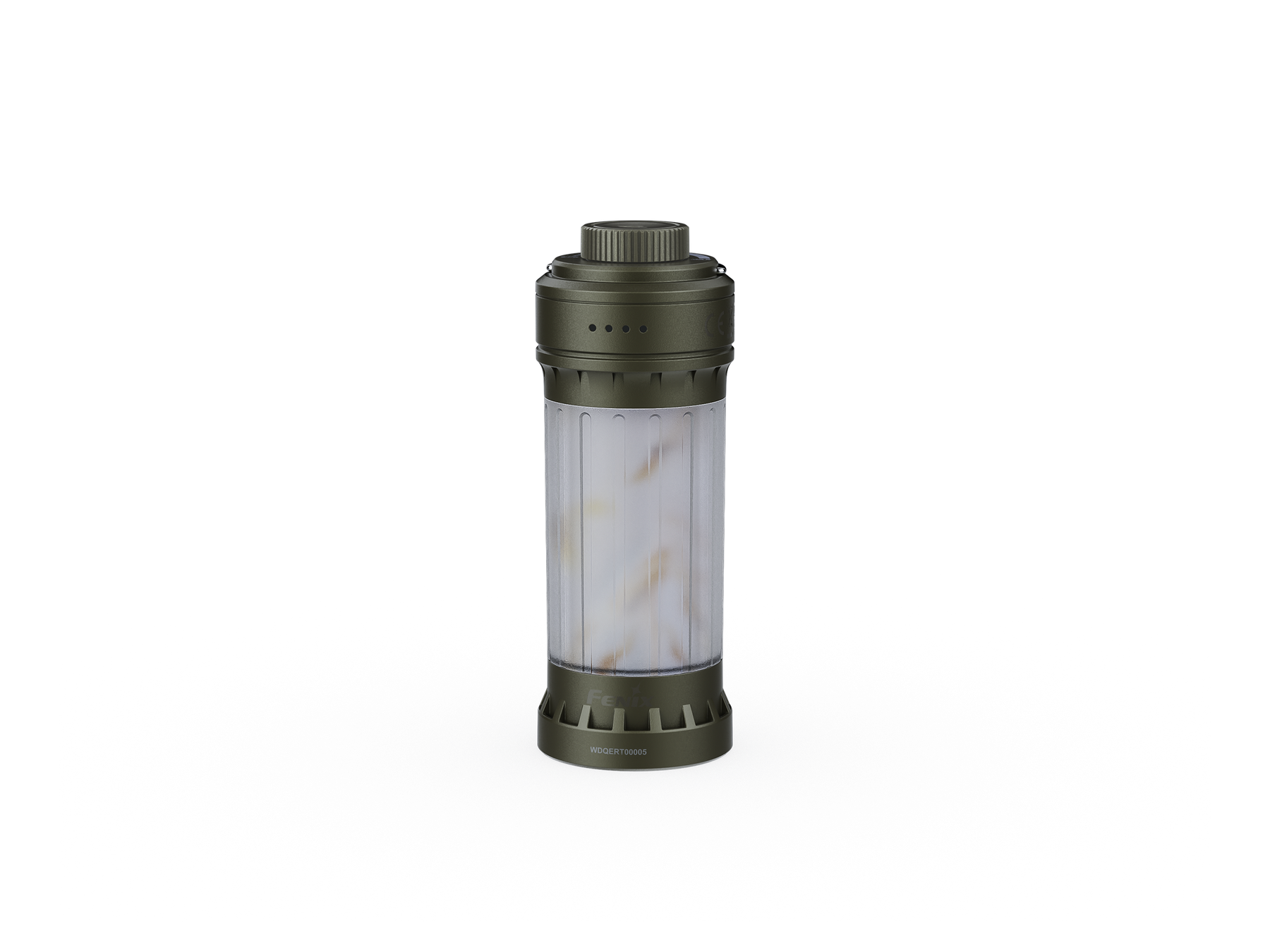

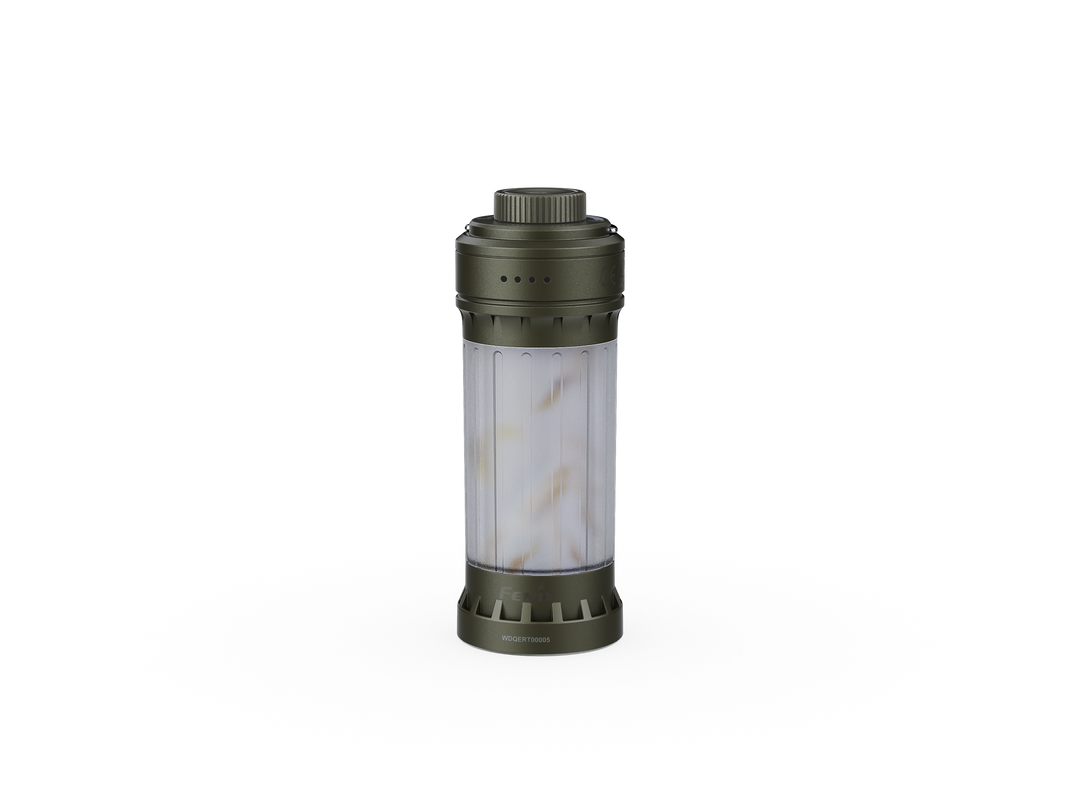

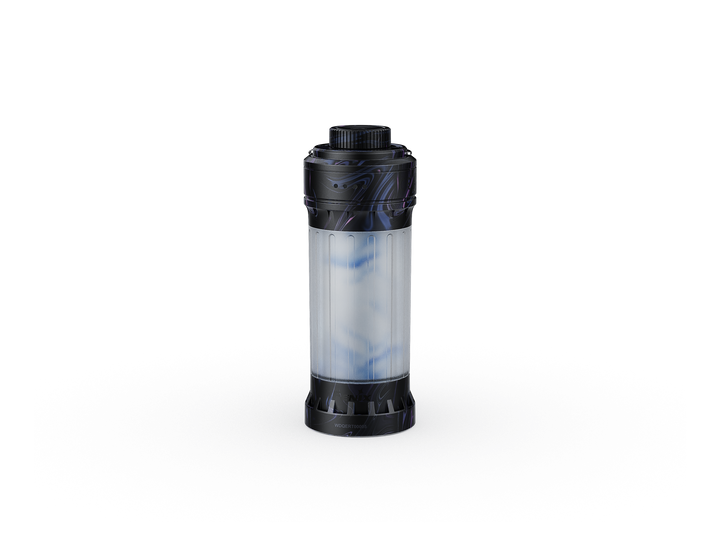

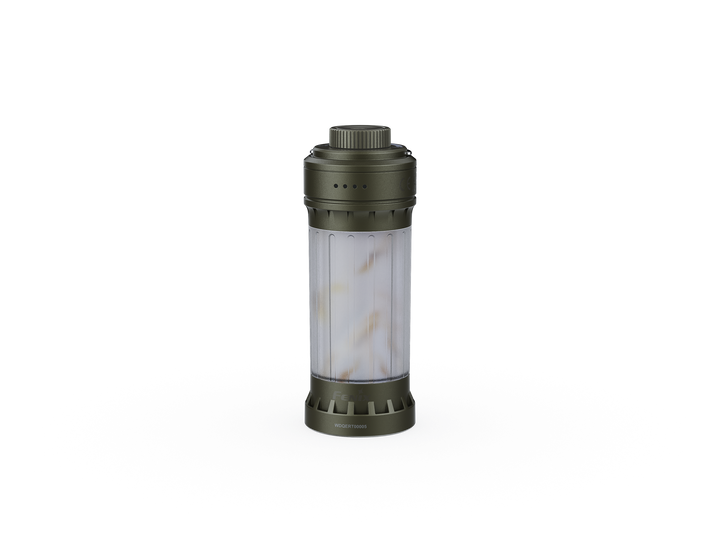

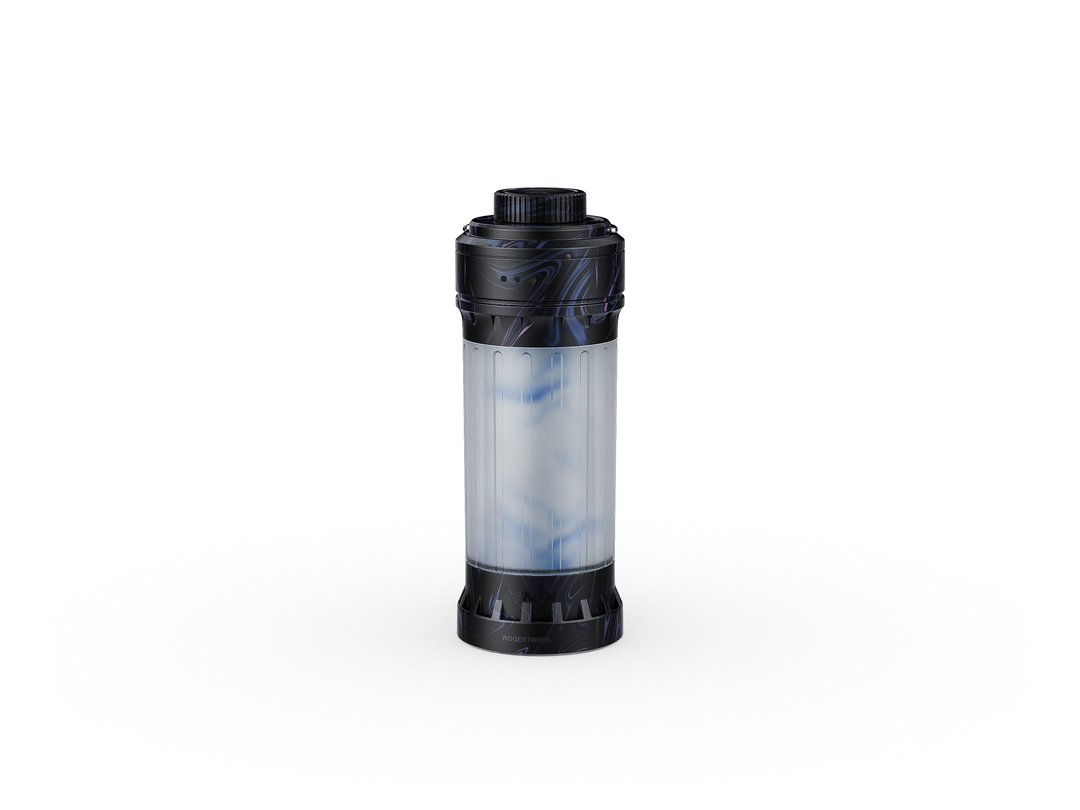

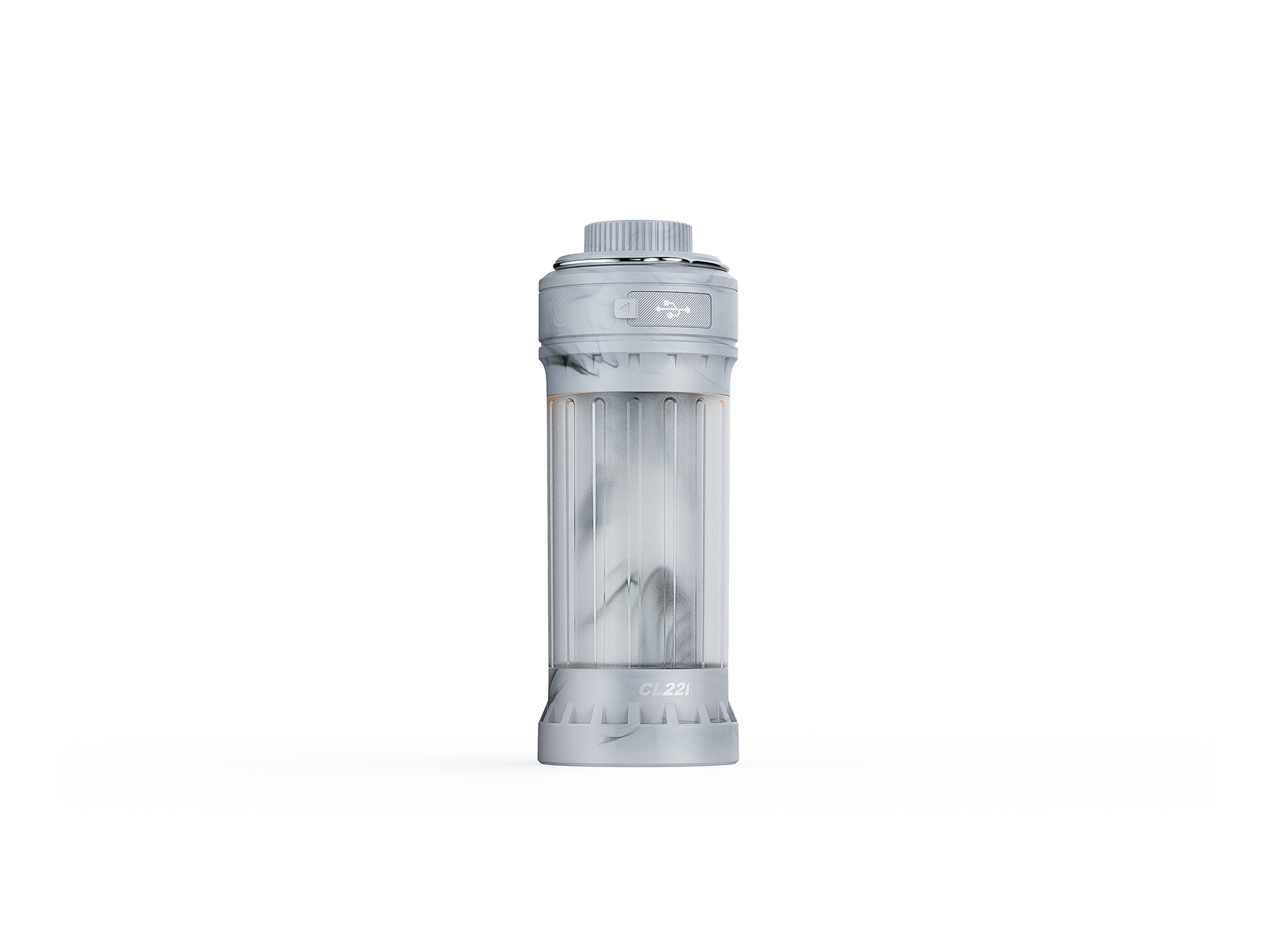

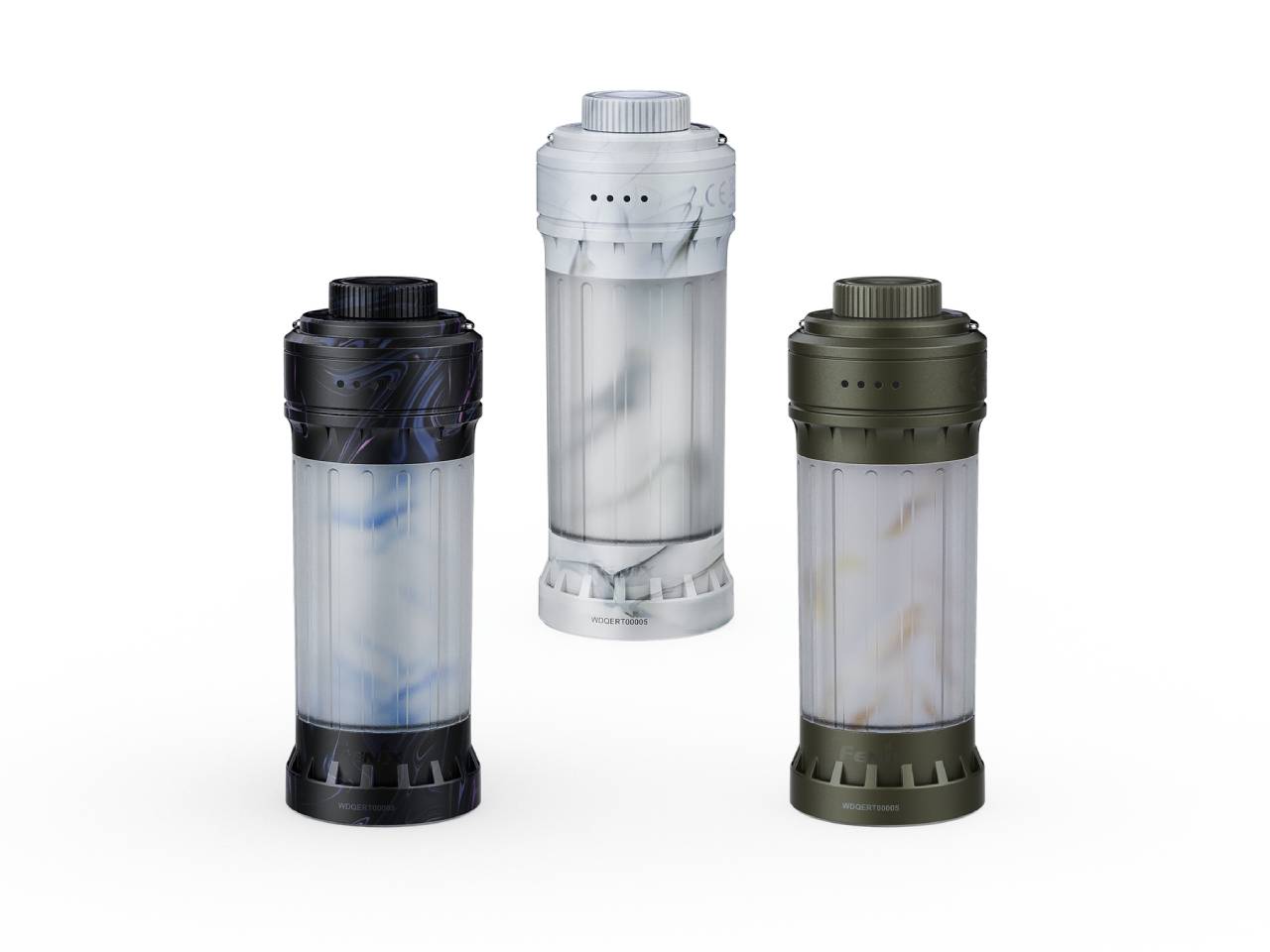

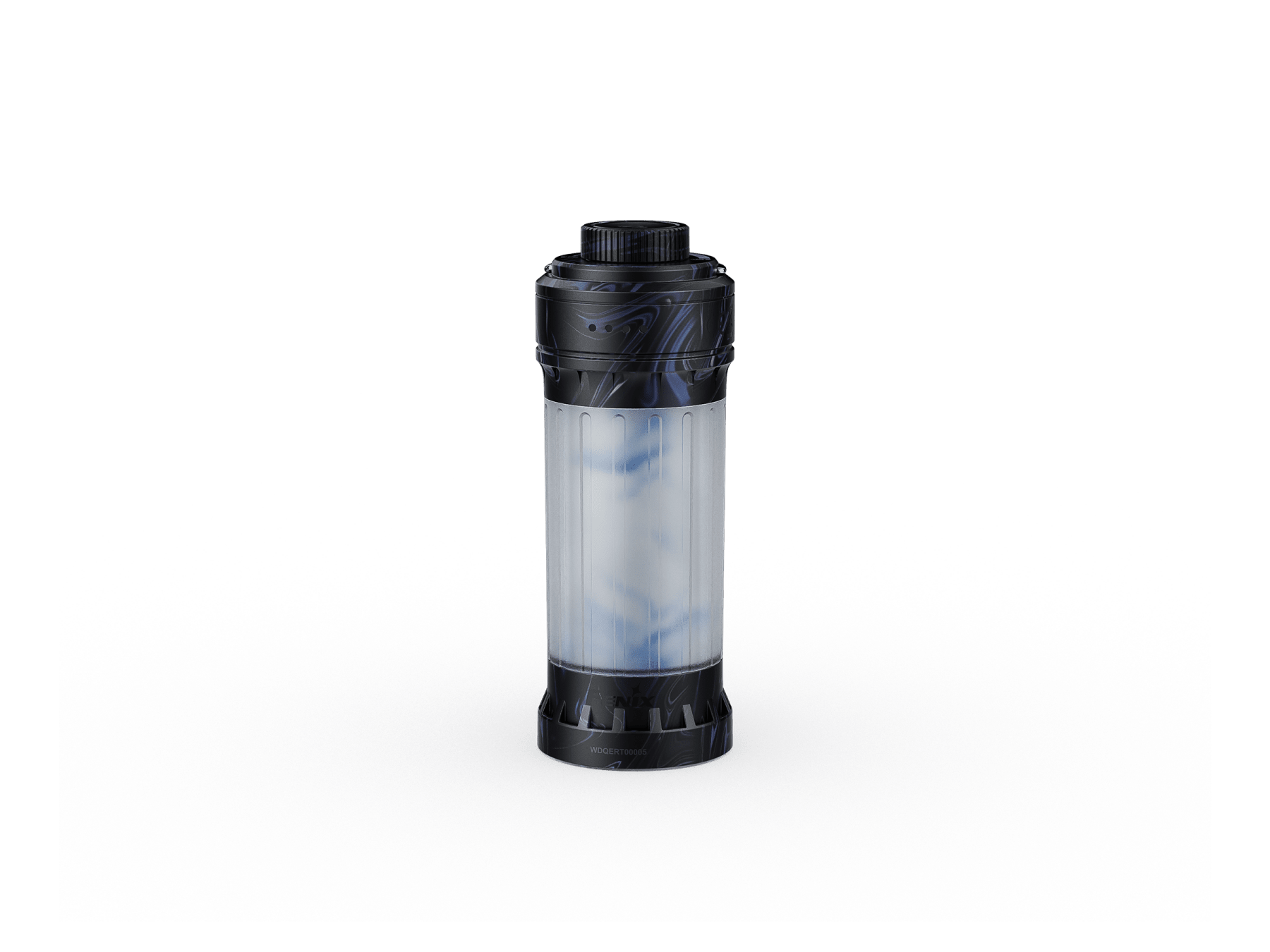

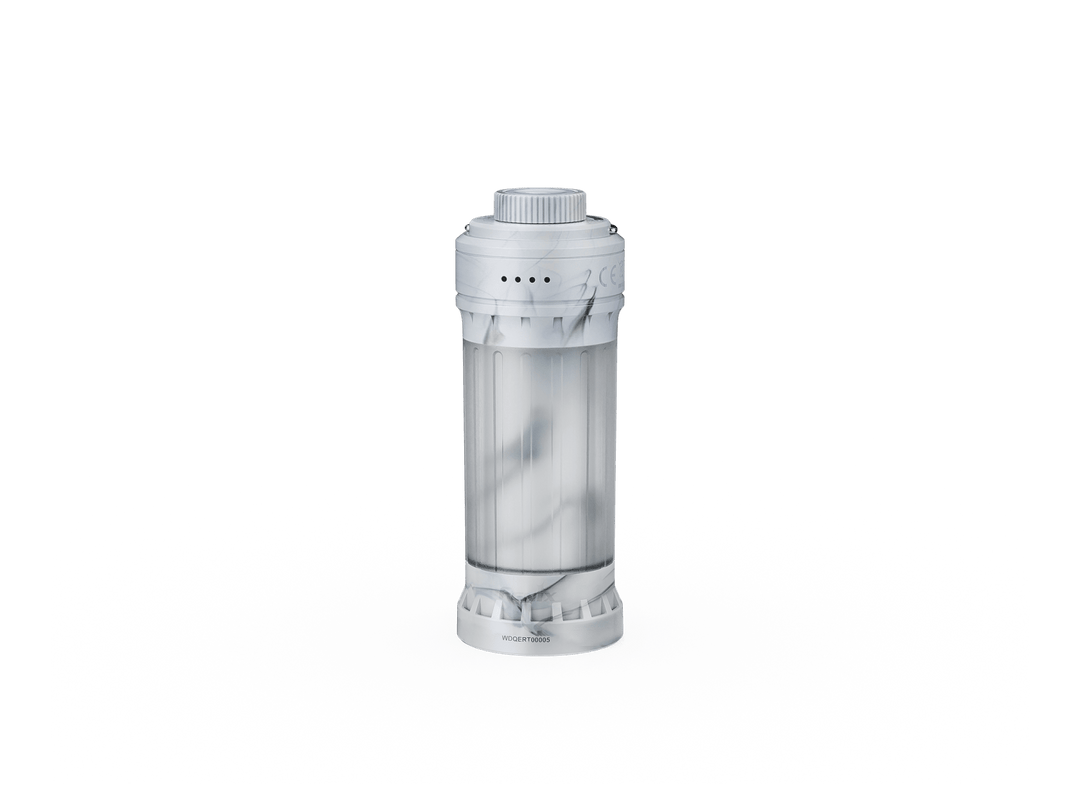

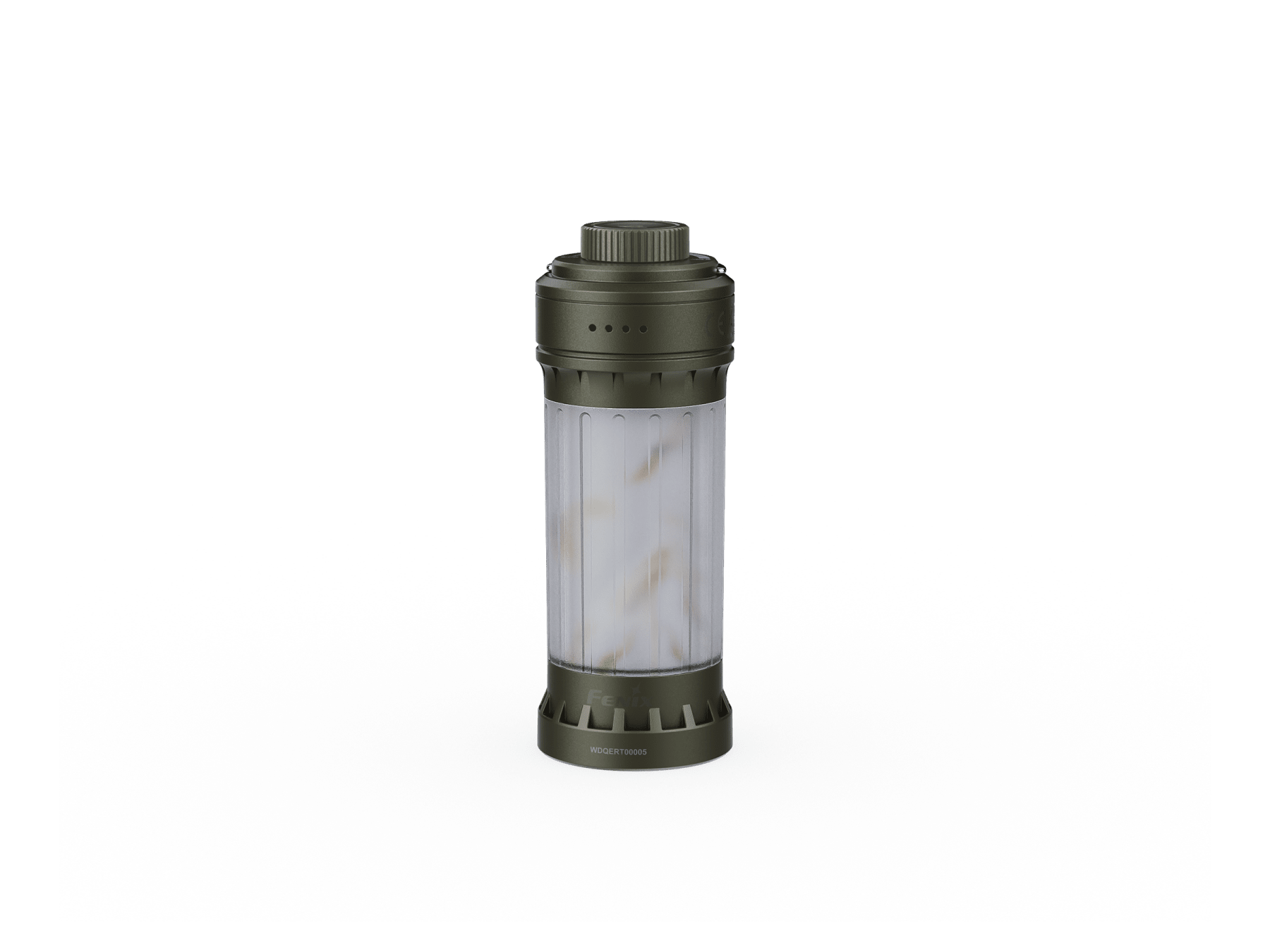

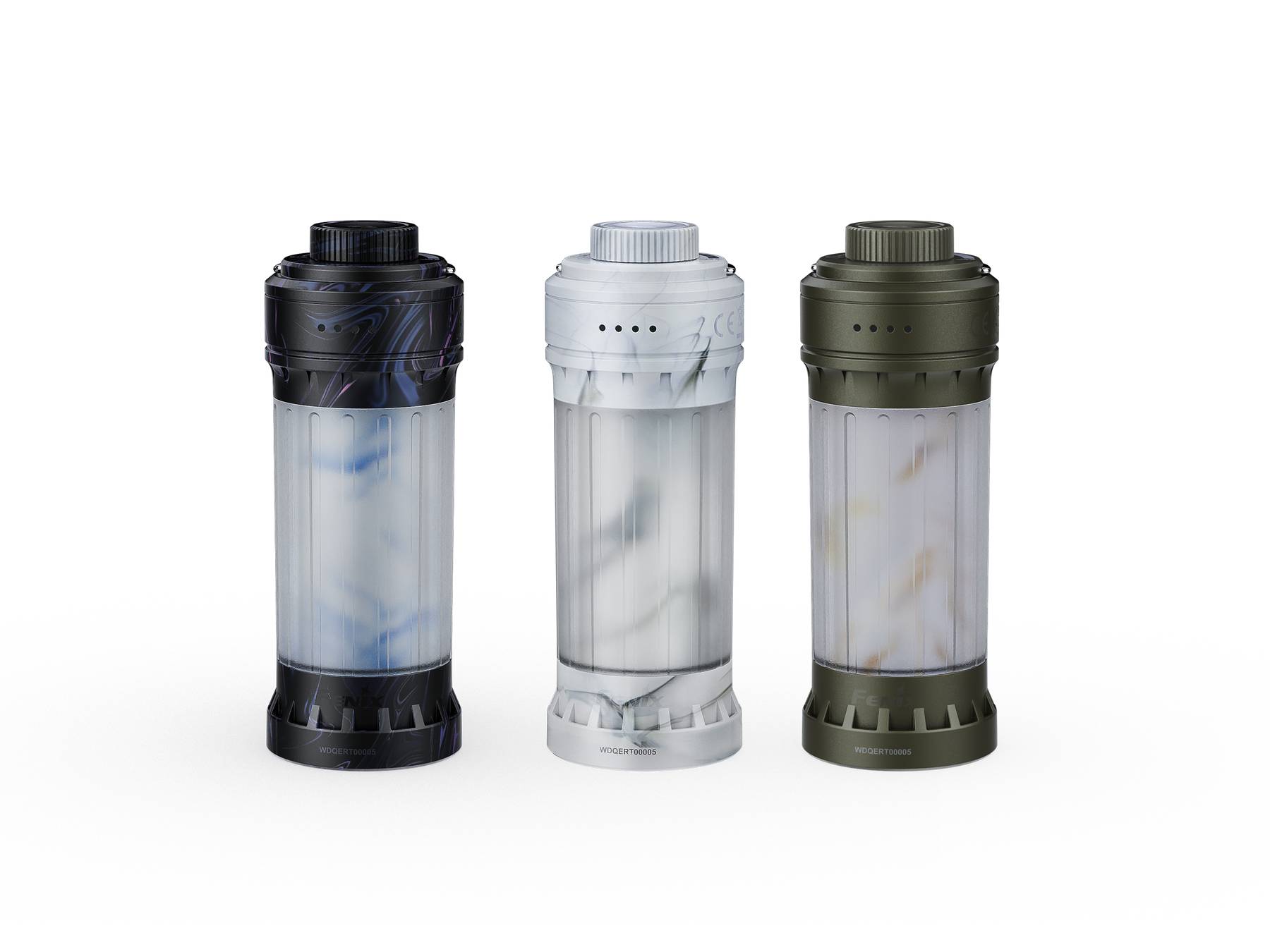

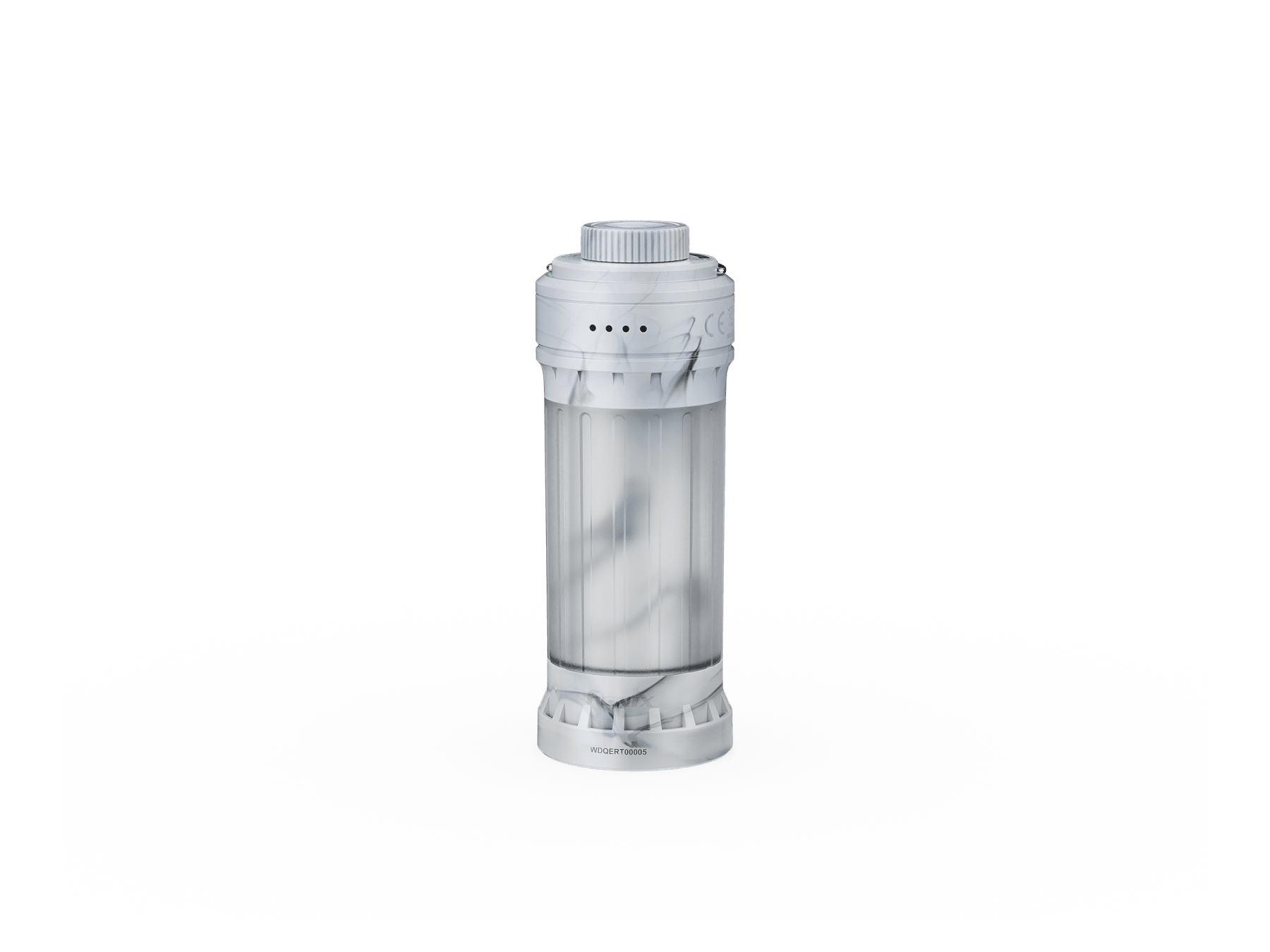

The Fenix CL22R is a rechargeable camping lantern combining 360° lighting and a downward floodlight in one unit. This product is offered in multiple color options, which may change over time, so this summary does not reference any specific color. This summary is drawn from the manufacturer's official user manual — see the downloadable PDF reference manual on the product page for complete details.
Warning
- Keep this lantern out of the reach of children.
- Do not shine the lantern directly into the eyes of anyone.
- Do not place the lantern near flammable objects — high temperatures can cause objects to overheat and become flammable/ignite.
- Do not use the lantern in inappropriate ways such as holding the unit in your mouth; doing so could cause serious personal injury or death if the lantern or internal battery fails.
- This lantern will accumulate a lot of heat while operating, resulting in a high temperature of the lantern's outer case. Pay close attention to avoid burns.
- Turn off the lantern to prevent it from overheating during storage or transportation.
- The LEDs of this lantern are not replaceable; the whole lantern will need to be replaced when any one of the LEDs reaches the end of its lifespan.
Overview
- 500 lumens maximum combined output.
- Utilizes one COB, one Redslight SC1818C cold white LED, and twelve WS2812B-3535 LEDs, each with a lifespan of 50,000 hours.

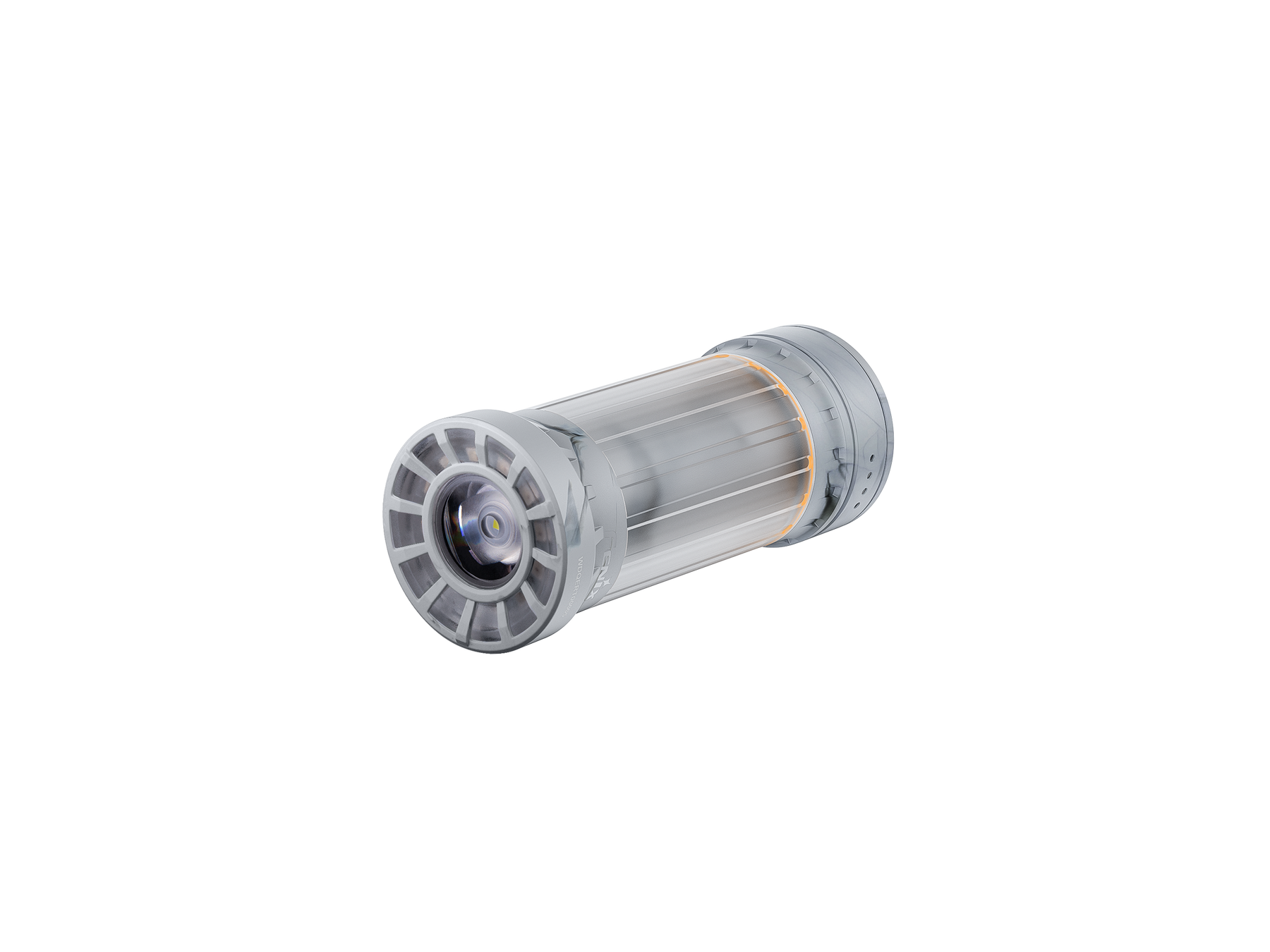

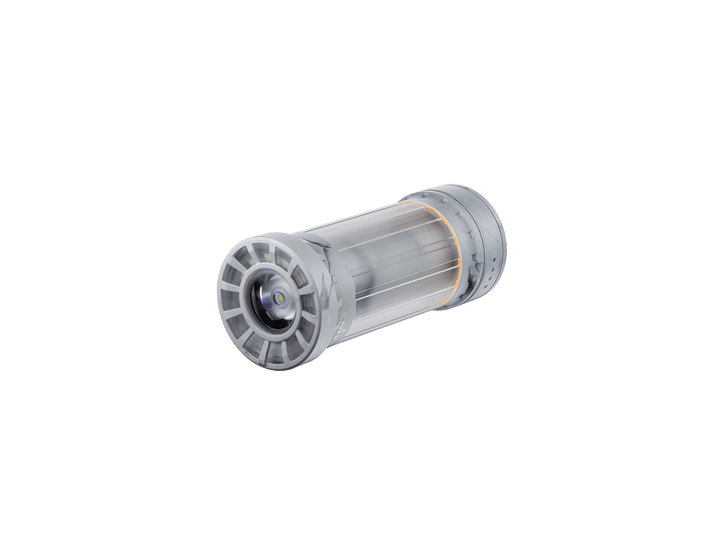

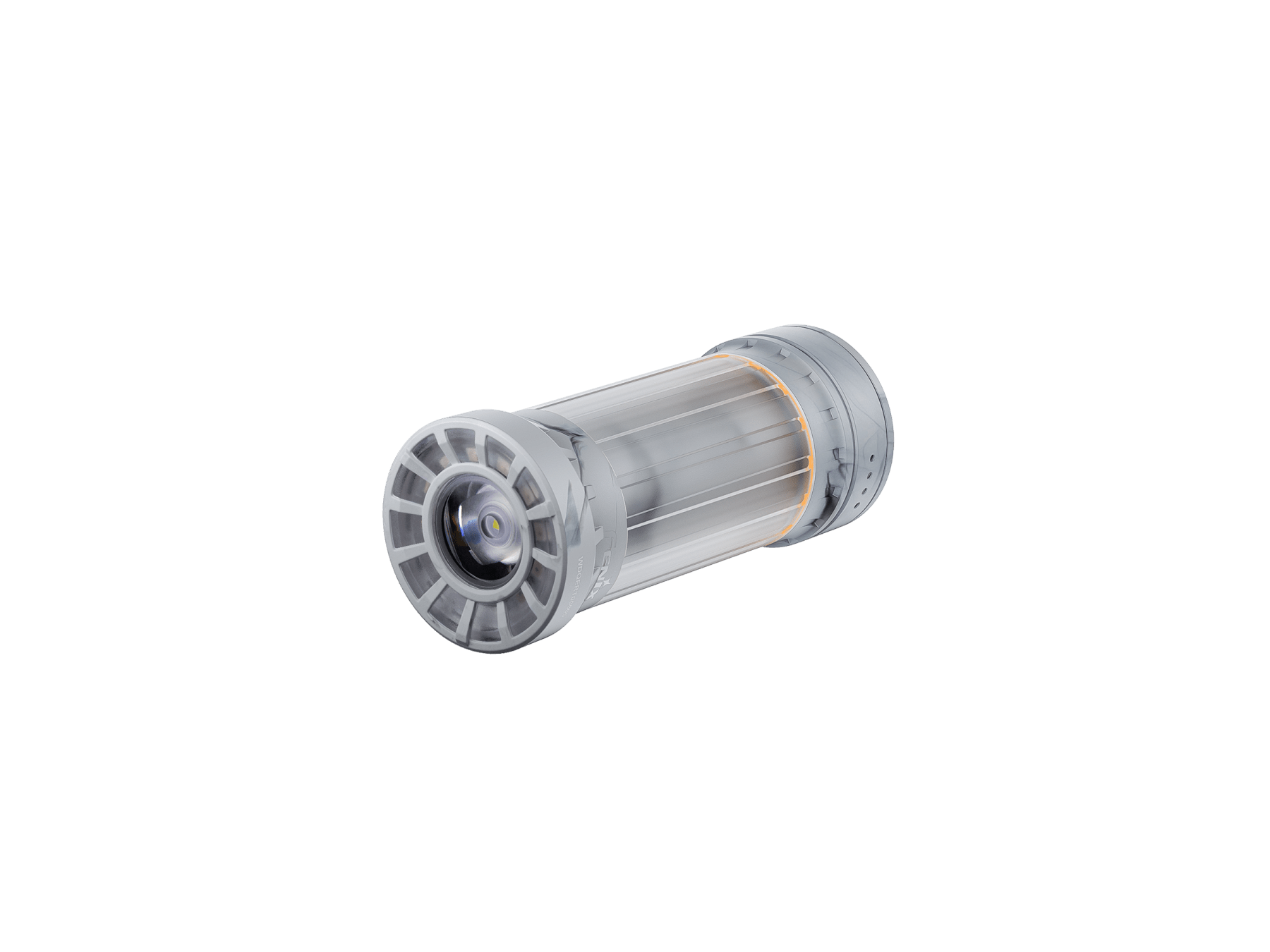

- 360° lighting mode has a max beam diameter of 20 meters, while Down light mode has a max beam distance of 80 meters. Both modes can be used together.
- White and red light sources for various lighting demands.

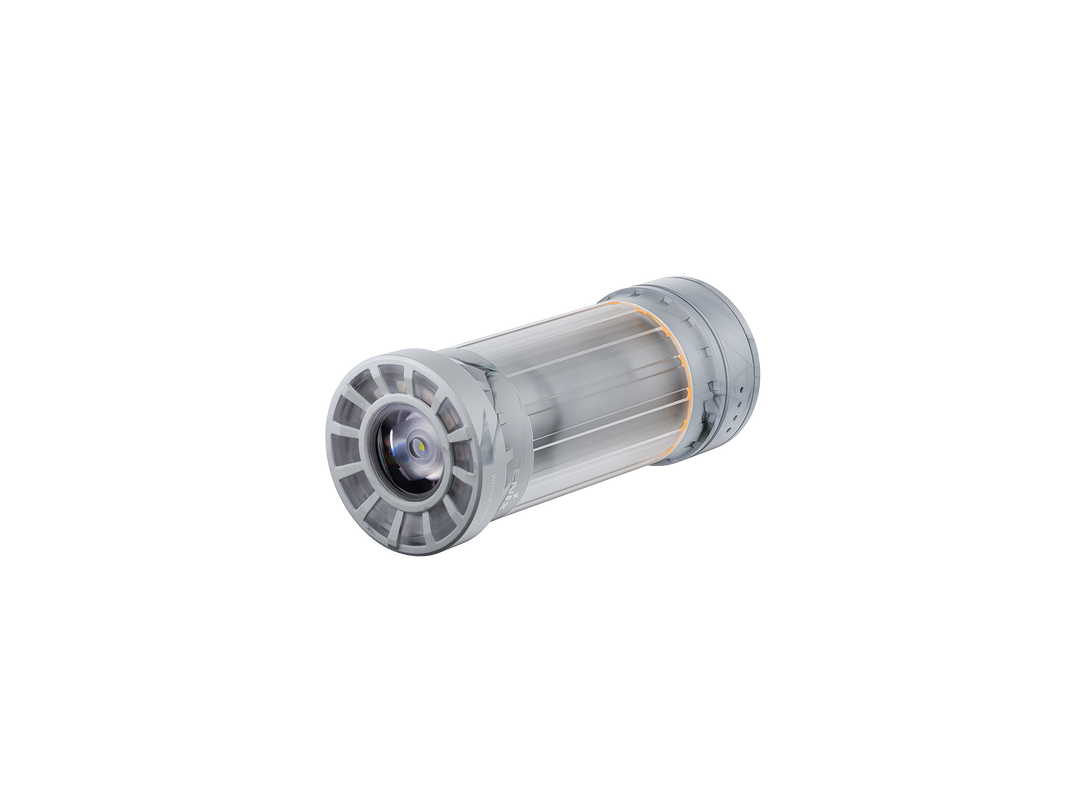

- Bottom colorful atmosphere lights create a romantic ambiance.
- Powered by a built-in 2600mAh battery.
- Universal USB Type-C charging port and battery level indication.
- Rotary switch and electronic switch for easy and fast operation.

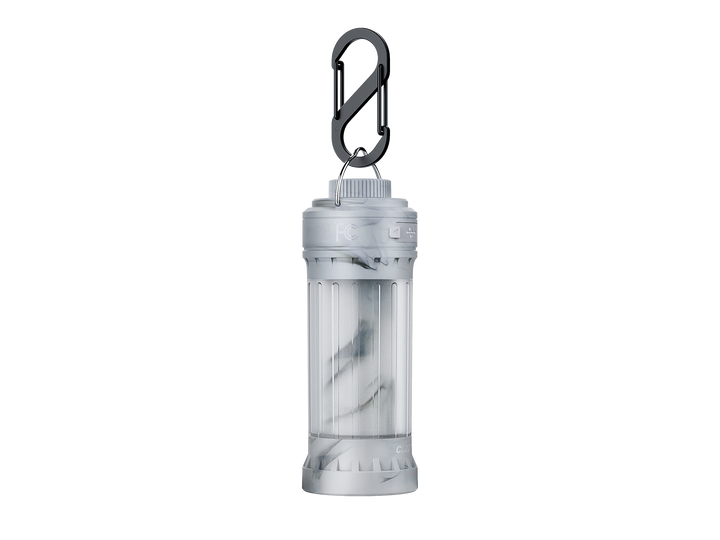

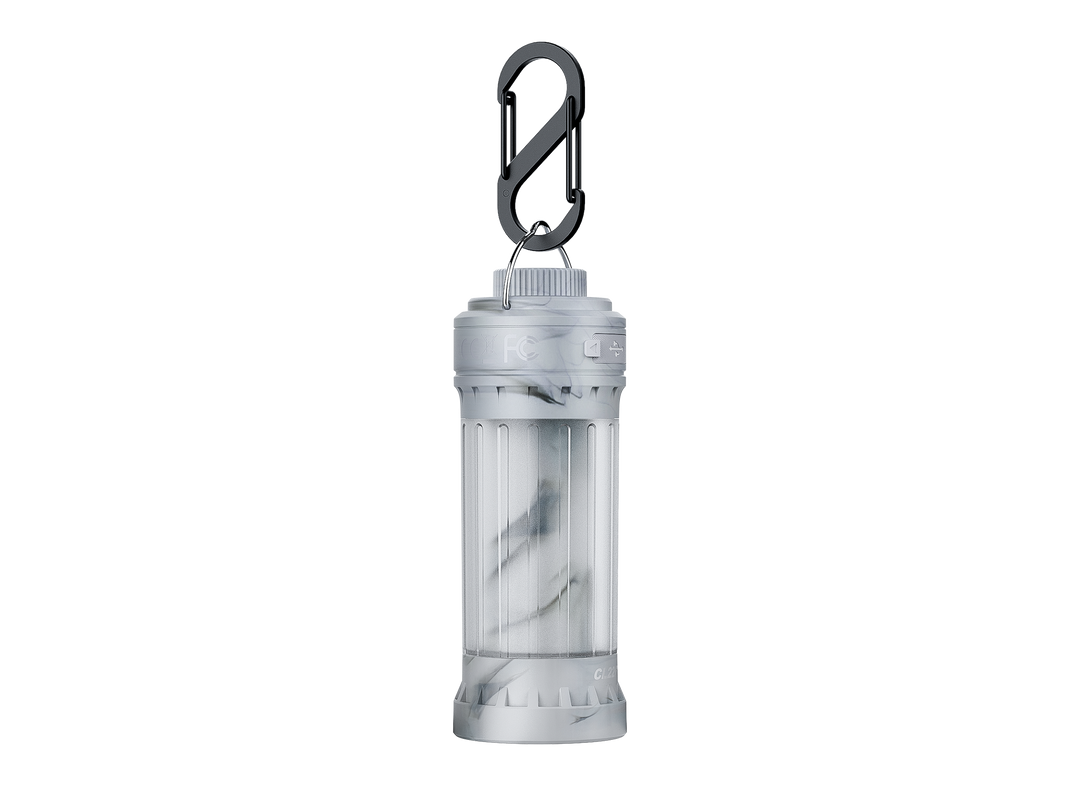

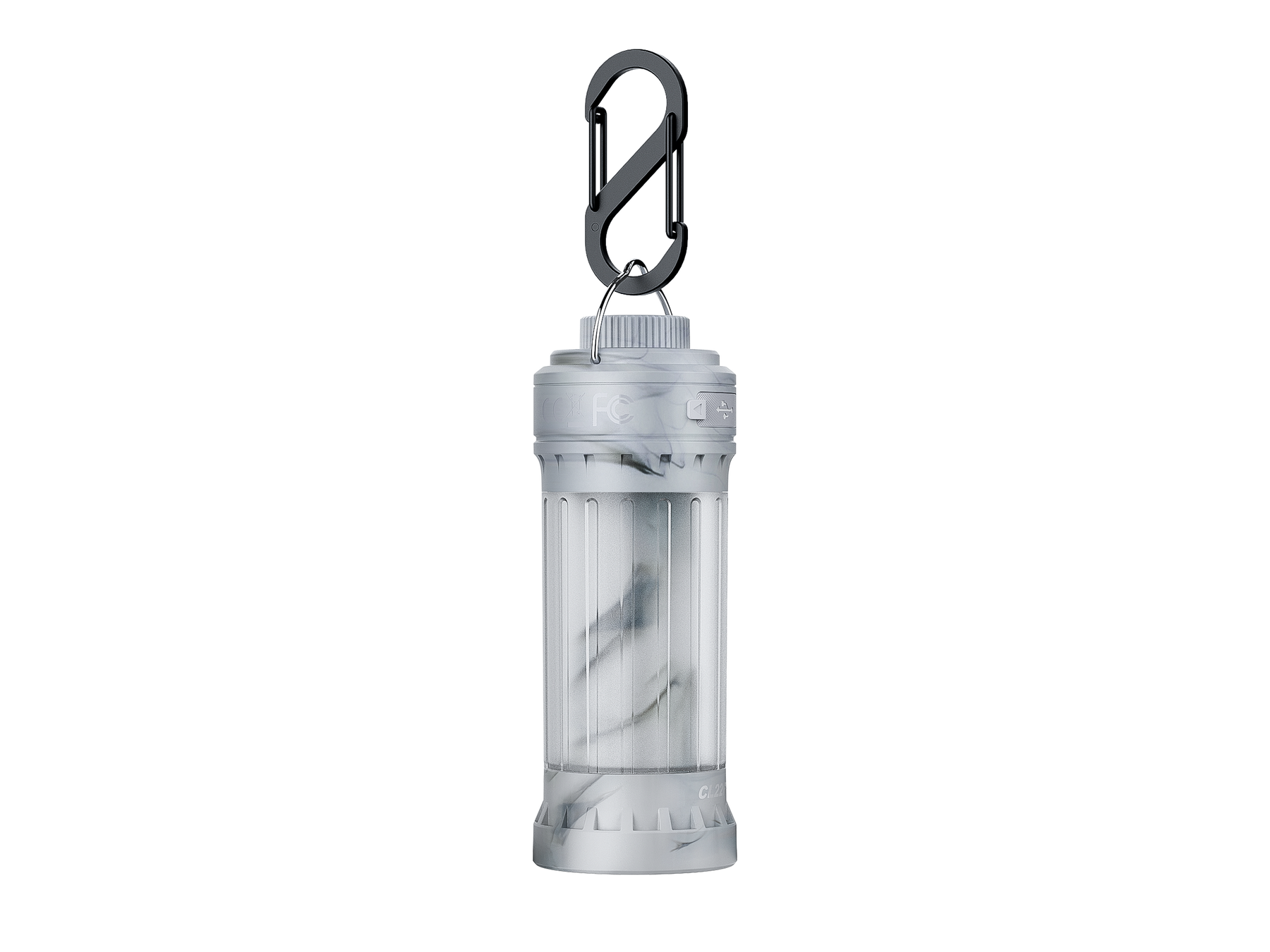

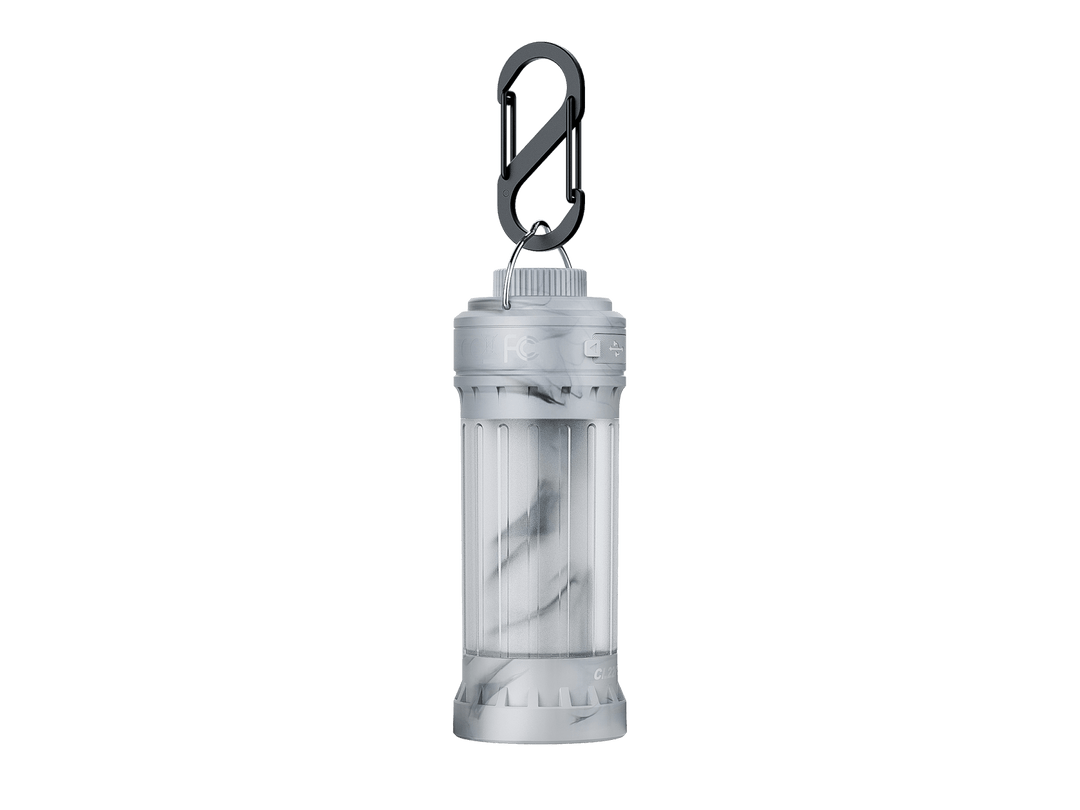

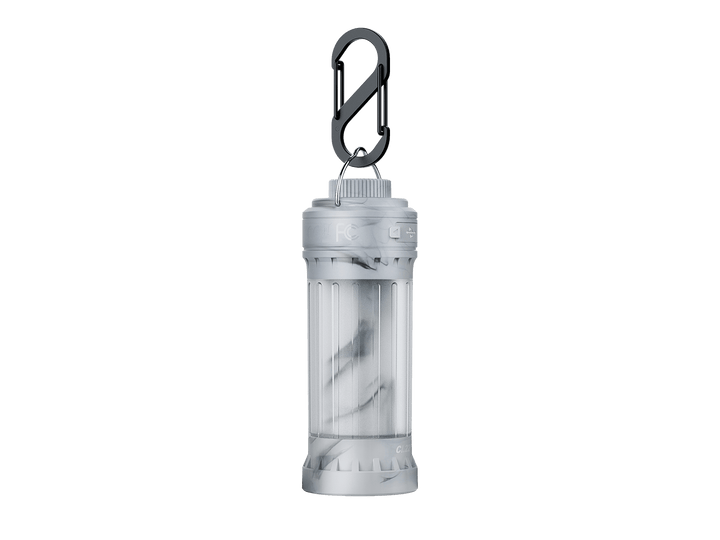

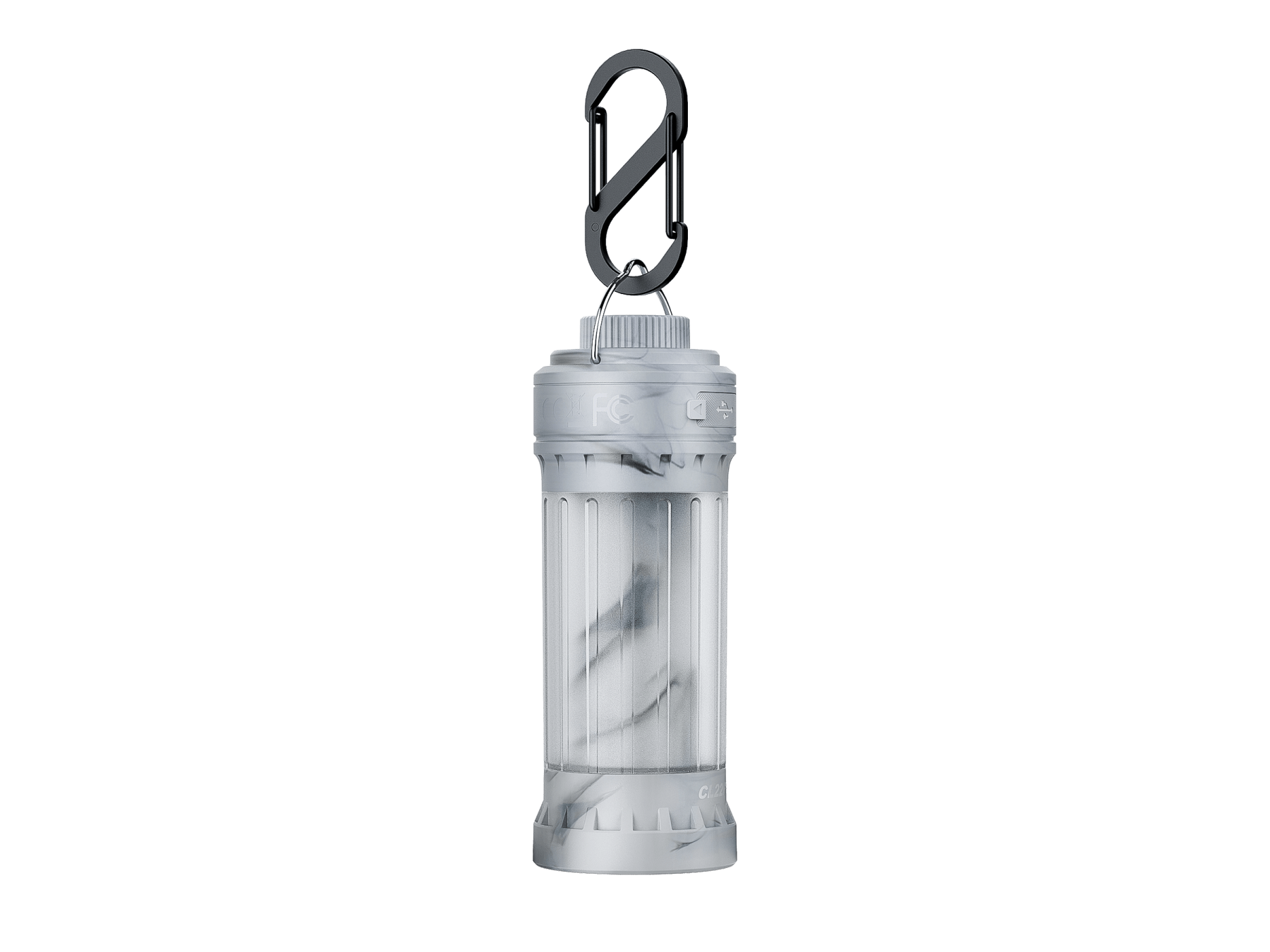

- Built-in hanging loop and included double snap hook allow for easy carry and hanging.
- IP65-rated protection and 1.5 meters impact resistance.
- Size: 1.50" x 1.65" x 4.53" / 38 x 42 x 115 mm. Weight: 4.76 oz / 135 g.
Operating Instructions

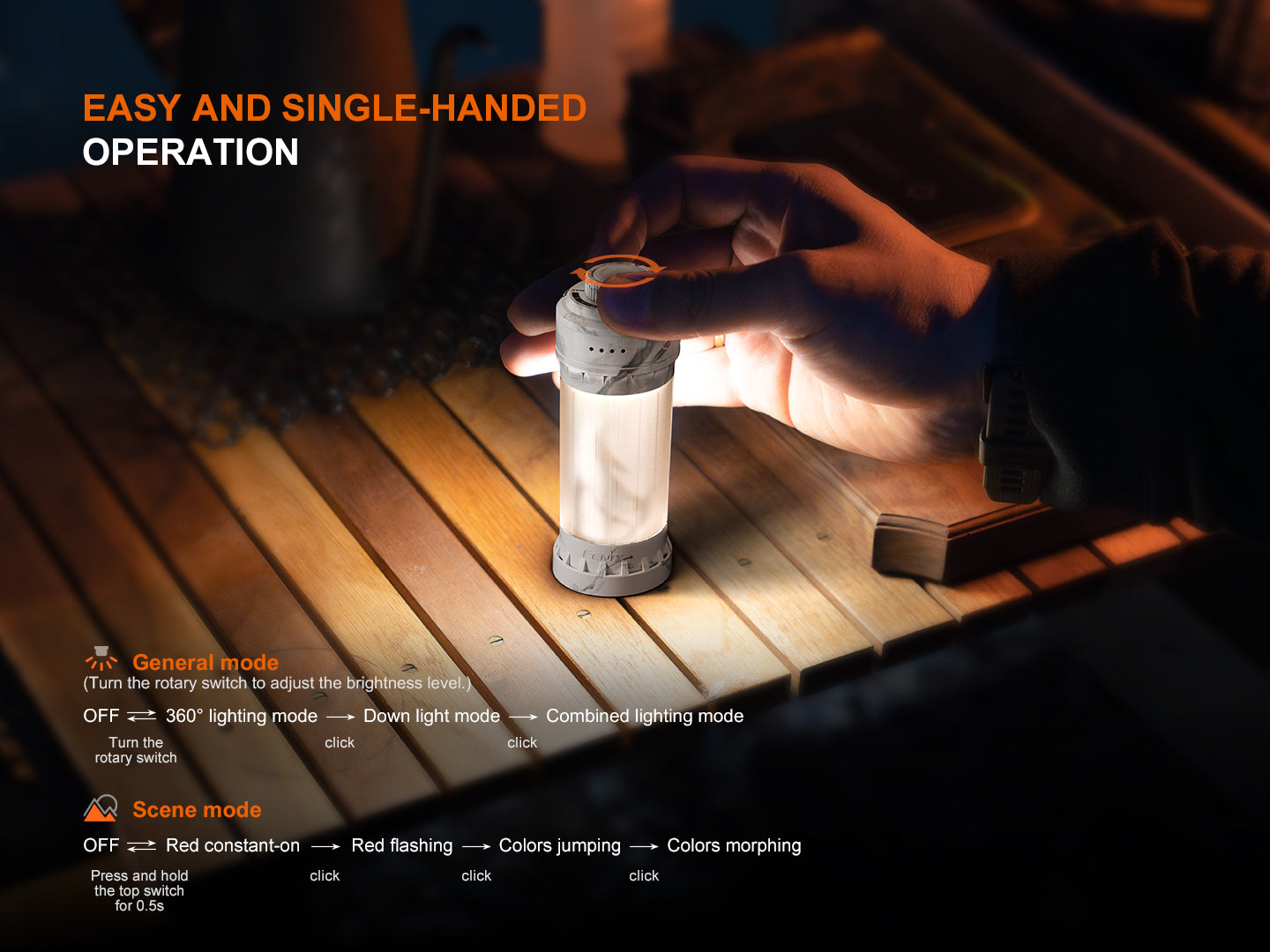

On/Off: With the lantern switched off, press and hold the top electronic switch for 0.5 seconds to turn on the lantern and enter Scene mode; press and hold again to turn it off. Rotate the rotary switch clockwise from the OFF state to enter General mode, and rotate it counterclockwise to the OFF state to turn off the lantern.
Mode Switching / Output Selection: In General mode, single click the top electronic switch to cycle through 360° lighting mode→Down light mode→Combined lighting mode (360° + Down light). For these three modes, rotate the rotary switch clockwise to raise brightness and counterclockwise to lower it. In Scene mode, single click the top electronic switch to cycle through Red constant-on→Red flashing→Colors jumping→Colors morphing.
Intelligent Memory Circuit: In General mode, the lantern memorizes the last selected mode and recalls it when turned on again. In Scene mode, the lantern memorizes the last selected output and recalls it when turned on again.
Charging

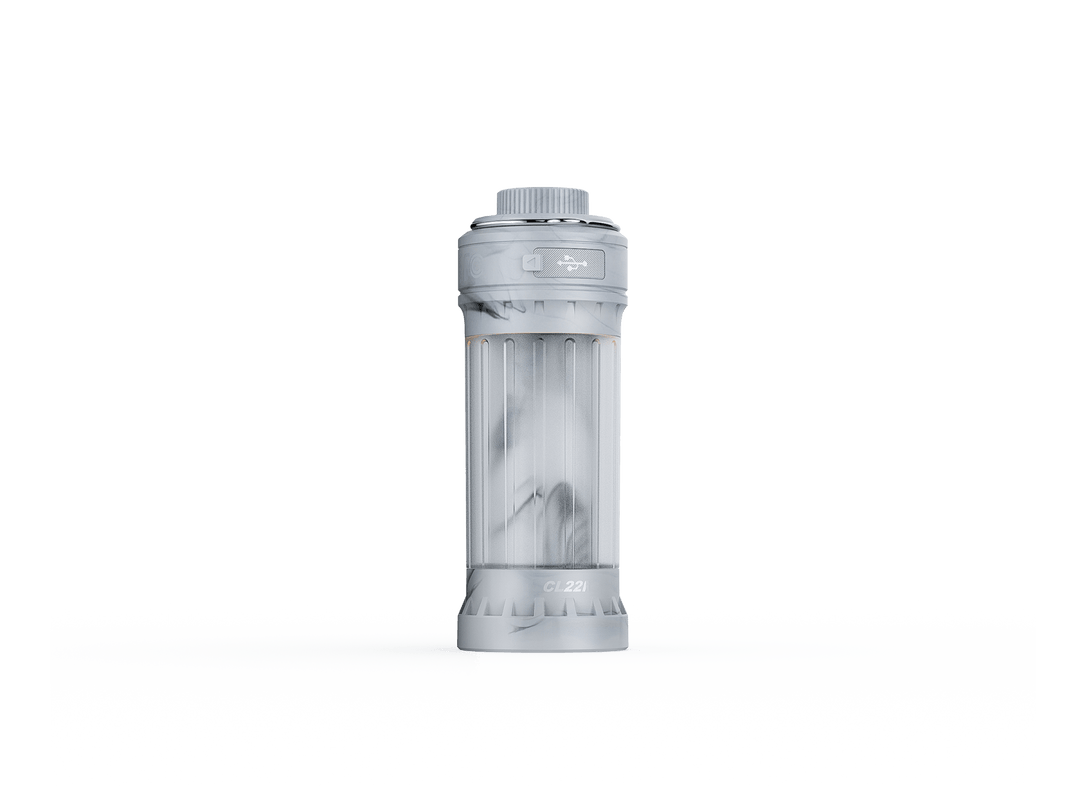

Open the anti-dust cover to reveal the USB Type-C charging port and connect the charging cable. When charging, the charging indicators flash from left to right; all four indicators turn constant-on once charging is complete.
Note: the lantern can be operated while charging, though the actual max output of the 360° lighting mode is limited to 100 lumens while charging. Normal charging time is approximately 3 hours from depleted to fully charged with a 5V/1A or higher power adapter. Once charging is completed, be sure to close the anti-dust cover to maintain the dustproof and waterproof ability.
Battery Level Indication
Each time the lantern is turned on, the indicator(s) show the battery level for 3 seconds. With the lantern switched off, single click the top electronic switch to check the battery level.
- Four lights on: 100% - 80%.
- Three lights on: 80% - 60%.
- Two lights on: 60% - 40%.
- One light on: 40% - 20%.
- One light flashes: 20% - 1%.
Intelligent Overheat Protection
The lantern will accumulate a lot of heat when used at high output levels for extended periods. When the lantern reaches a temperature of 50°C/122°F or above, it will automatically step down a few lumens to reduce the temperature. When the temperature drops below 50°C/122°F, the lantern will gradually recall the preset output level.
Low Voltage Warning
When the voltage level drops below the preset level, one of the battery level indicators constantly blinks to remind you to recharge the battery in a timely manner. To ensure normal use, the lantern will not turn off automatically and will work until the battery level runs out.

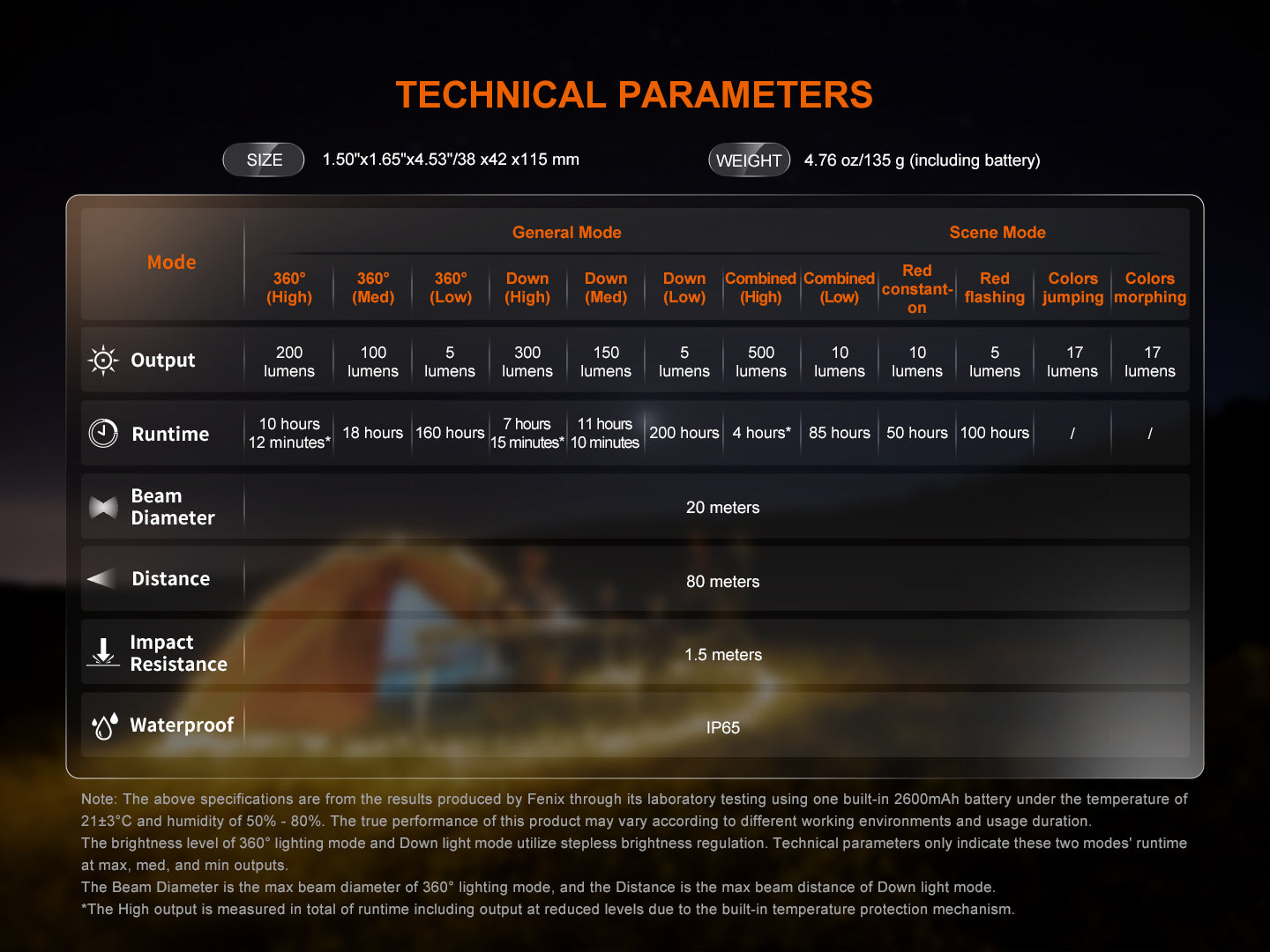

Technical Parameters
- 360° High: Output 200 lumens, Runtime 10 hours 12 minutes*.
- 360° Med: Output 100 lumens, Runtime 18 hours.
- 360° Low: Output 5 lumens, Runtime 160 hours.
- Down High: Output 300 lumens, Runtime 7 hours 15 minutes*.
- Down Med: Output 150 lumens, Runtime 11 hours 10 minutes.
- Down Low: Output 5 lumens, Runtime 200 hours.
- Combined High: Output 500 lumens, Runtime 4 hours*.
- Combined Low: Output 10 lumens, Runtime 85 hours.
- Red constant-on: Output 10 lumens, Runtime 50 hours.
- Red flashing: Output 5 lumens, Runtime 100 hours.
- Colors jumping: Output 17 lumens.
- Colors morphing: Output 17 lumens.
- Beam Diameter (360° lighting mode): 20 meters.
- Distance (Down light mode): 80 meters.
- Impact Resistance: 1.5 meters.
- Waterproof: IP65.
Note: The above specifications are from the results produced by Fenix through its laboratory testing using one built-in 2600mAh battery under the temperature of 21±3°C and humidity of 50% - 80%. The true performance of this product may vary according to different working environments and usage duration. *The High output is measured in total of runtime including output at reduced levels due to the built-in temperature protection mechanism.
Usage and Maintenance
- Disassembling the sealed parts in the lantern can cause damage to the lantern and will void the warranty.
- Fully charge the lantern in time to ensure normal function the next time it is needed.
- Recharge a stored lantern every three months to maintain optimum performance of the battery.
- The lantern may flicker, shine intermittently or even fail to illuminate due to a poor battery level — please recharge the lantern.
- If this doesn't work, please contact your authorized distributor.

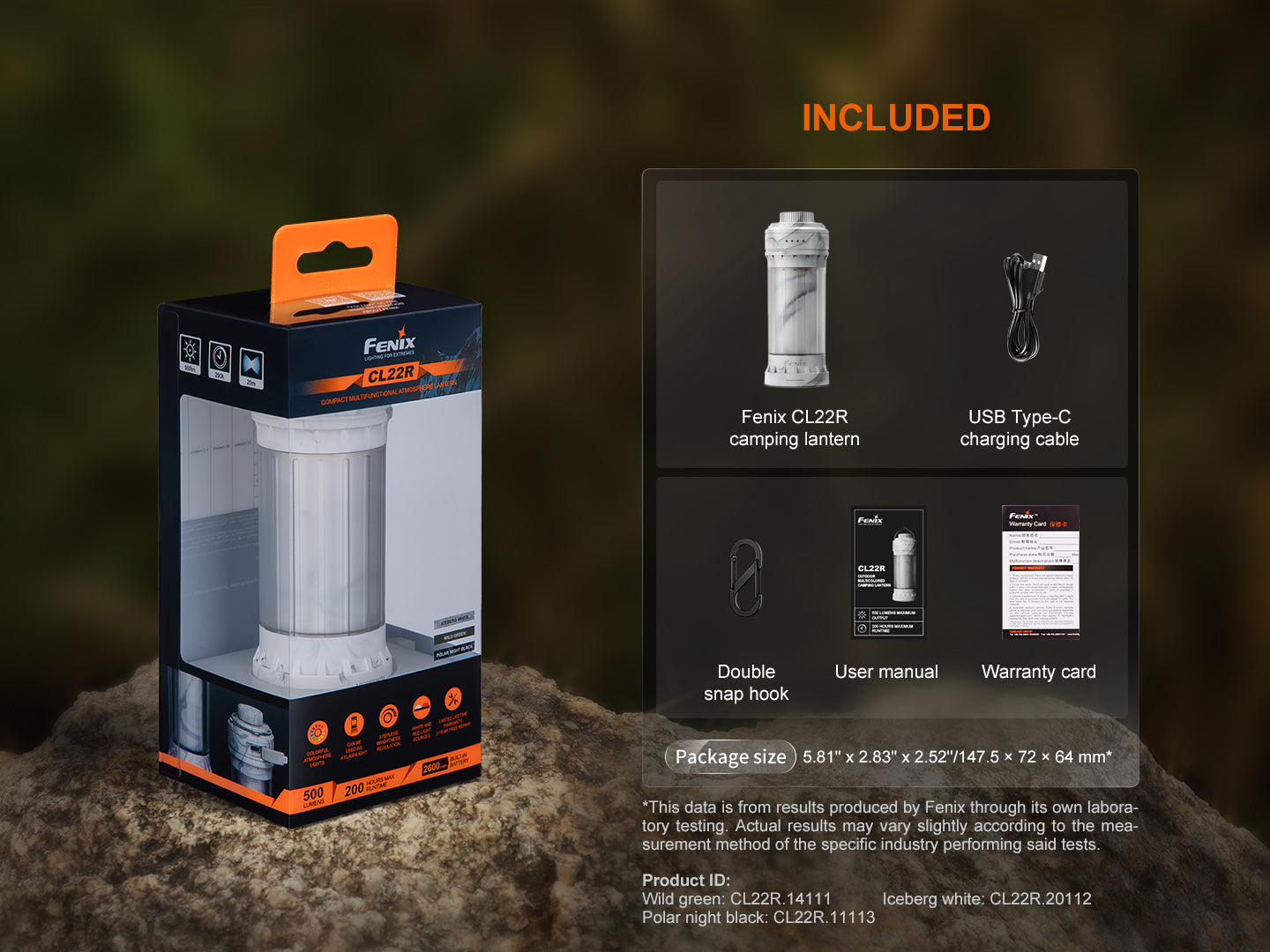

Included
Fenix CL22R camping lantern, USB Type-C charging cable, Double snap hook, User manual, Warranty card.
