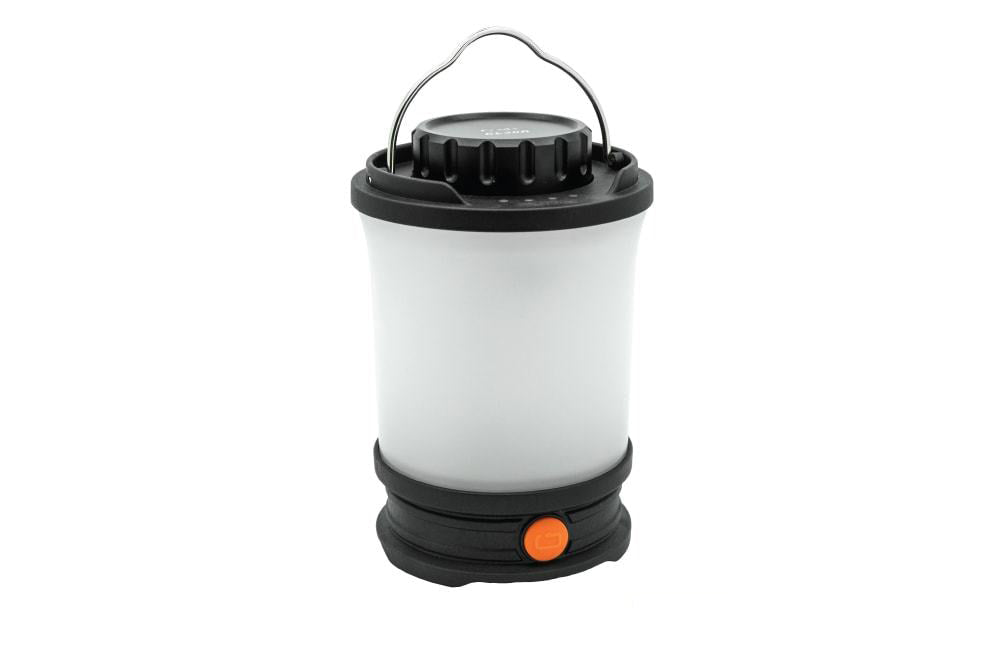

Fenix CL30R LED Camping Lantern

Maximum 650 Lumens with wide-range and high-intensity luminance

Outputs

• Turbo: 650 Lumens
• 4.5 hours with included batteries
• 6 hours with 3500mAh 18650 batteries
• High: 350 Lumens
• 9 hours with included batteries
• 12 hours with 3500mAh 18650 batteries
• Mid: 100 Lumens
• 38 hours with included batteries
• 51 hours with 3500mAh 18650 batteries
• Low: 50 Lumens
• 70 hours with included batteries
• 93 hours with 3500mAh 18650 batteries
• Eco: 10 Lumens
• 300 hours with included batteries
• 400 hours with 3500mAh 18650 batteries
• Flash: 100 Lumens
• 70 hours with included batteries
• 93 hours with 3500mAh 18650 batteries

Details

• 115-foot (35 meters) diameter wide-range beam
• Serves as a portable power bank
• Excellent cold-resistant design Integrated
• Micro-USB charging with battery level indicator
• Reverse polarity protection to protect from improper battery installation

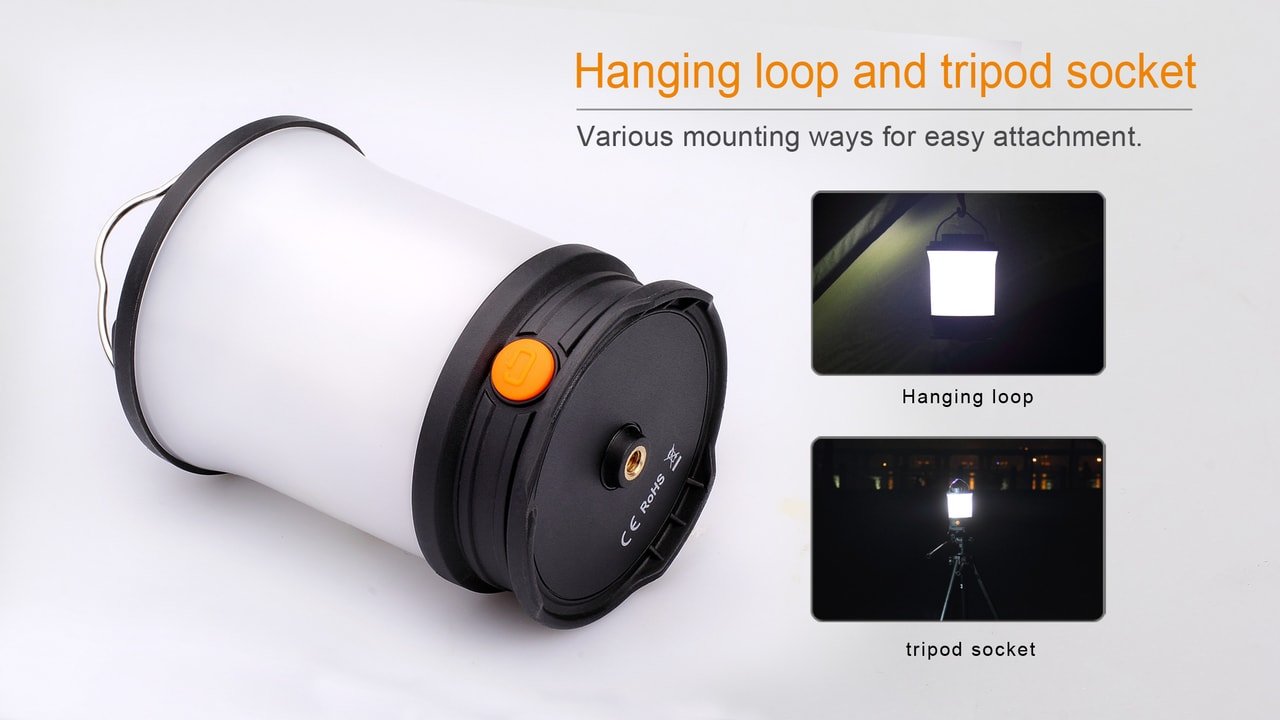

• Tripod socket for easy attachment
• Sturdy Hanging Loop

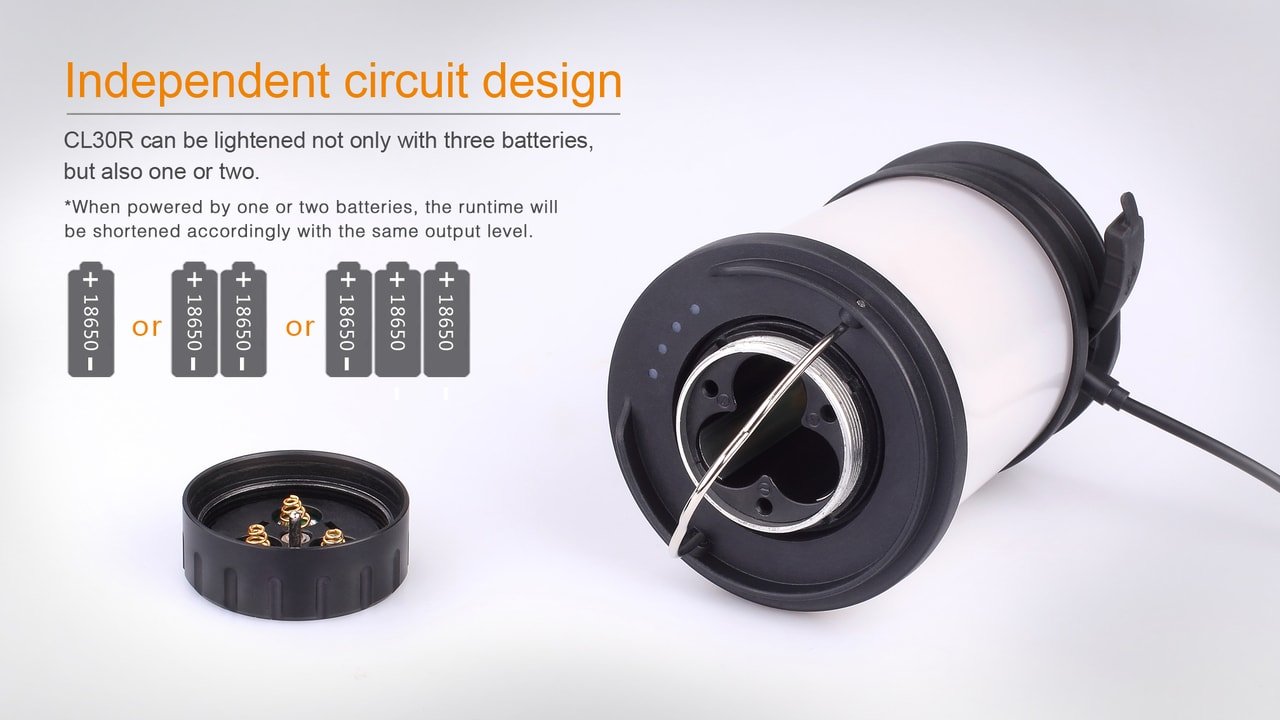

• Powered by one, two, or three rechargeable 18650 Lithium-ion batteries
• Single button switch for easy and fast operation

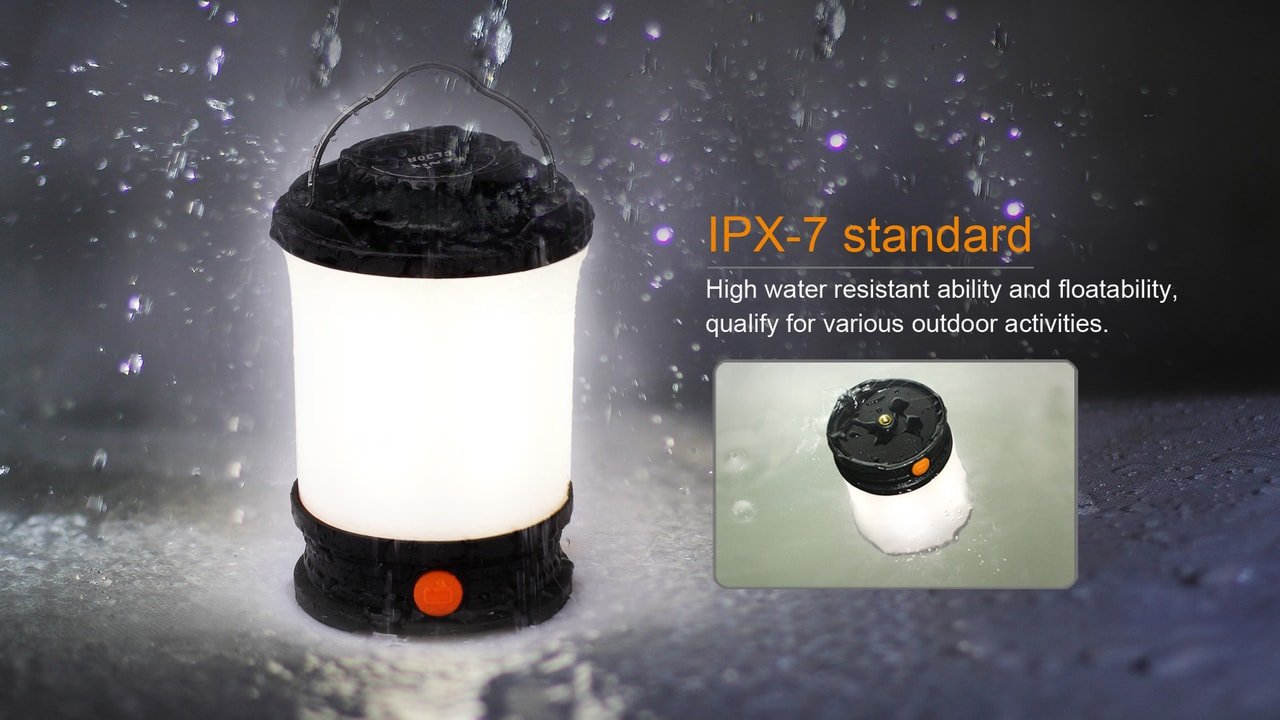

• Waterproof to IP67 standard: Fully submersible to 3.6 feet for up to 30 minutes.
• High water resistance ability and float ability make the CL30R perfect for various outdoor activities

Batteries

• Included: Three ARB-L18-2600 rechargeable 2600mAh 18650 batteries
• Recommended Batteries: Three Fenix ARB-L18-3500 rechargeable 3500mAh 18650 batteries
• *The Fenix CL30R will NOT work with FLAT-TOP 18650 batteries*

Size

• Diameter: 3.9 inches
• Height: 5.35 inches
• Weight: 14.5 oz excluding batteries and other accessories

Can I use and charge a Fenix 18650 3500 mAh battery in the Fenix CL30R camping lantern?

Yes, you can use and charge a Fenix 18650 battery 3500 mAh in the Fenix CL30R camping lantern. With the 3500 mAh battery, you'll gain 15-20% extra runtime compared with the 2600 mAh battery that is included with the lantern.

Can the CL30R be used while it is charging?

Yes, it can be, but the lantern will only be used in the Low output while charging.

What batteries work in the Fenix CL30R lantern?

The Fenix CL30R lantern is compatible with three 18650 li-ion battery or six non-rechargeable CR123 lithium batteries. 18650 batteries used must be button-top style batteries. Flat-top 18650 batteries will not work in the CL30R.

The Fenix CL30R is a rechargeable camping lantern with five brightness levels plus Turbo and Flash outputs, and also serves as a portable power bank for other devices. This summary is drawn from the manufacturer's official user manual — see the downloadable PDF reference manual on the product page for complete details.

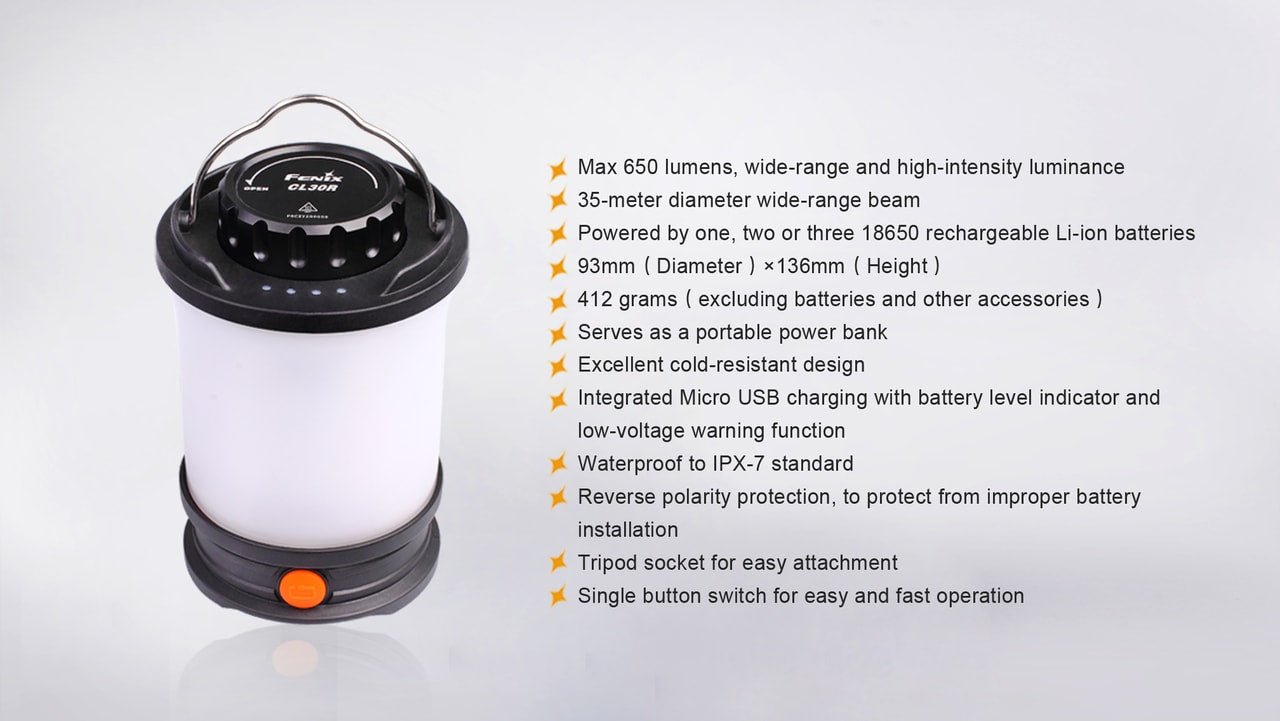

Overview

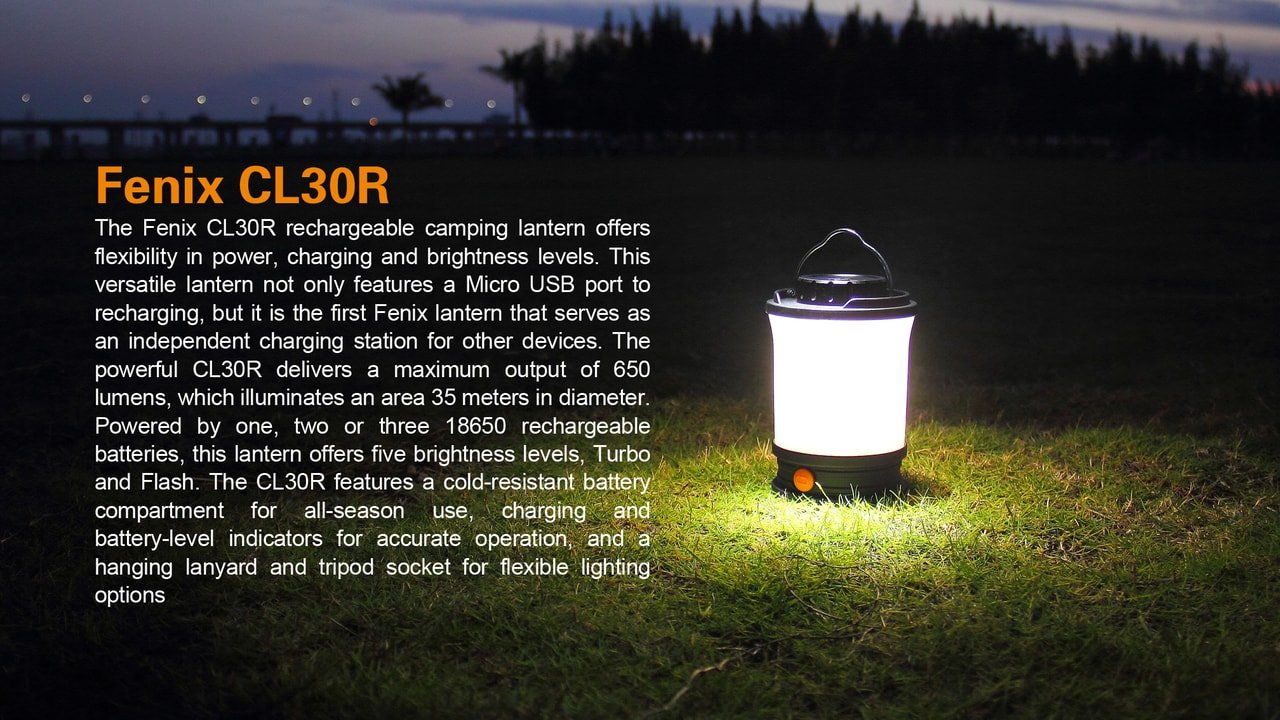

The Fenix CL30R rechargeable camping lantern offers flexibility in power, charging, and brightness levels. This versatile lantern features a Micro-USB port for recharging and is also an independent charging station for other devices. The CL30R delivers a maximum output of 650 lumens, illuminating an area 35 meters in diameter. Powered by one, two, or three 18650 rechargeable Li-ion batteries, the lantern offers five brightness levels plus Turbo and Flash. It features a cold-resistant battery compartment for all-season use, charging and battery-level indicators, and a hanging lanyard and tripod socket for flexible lighting options.

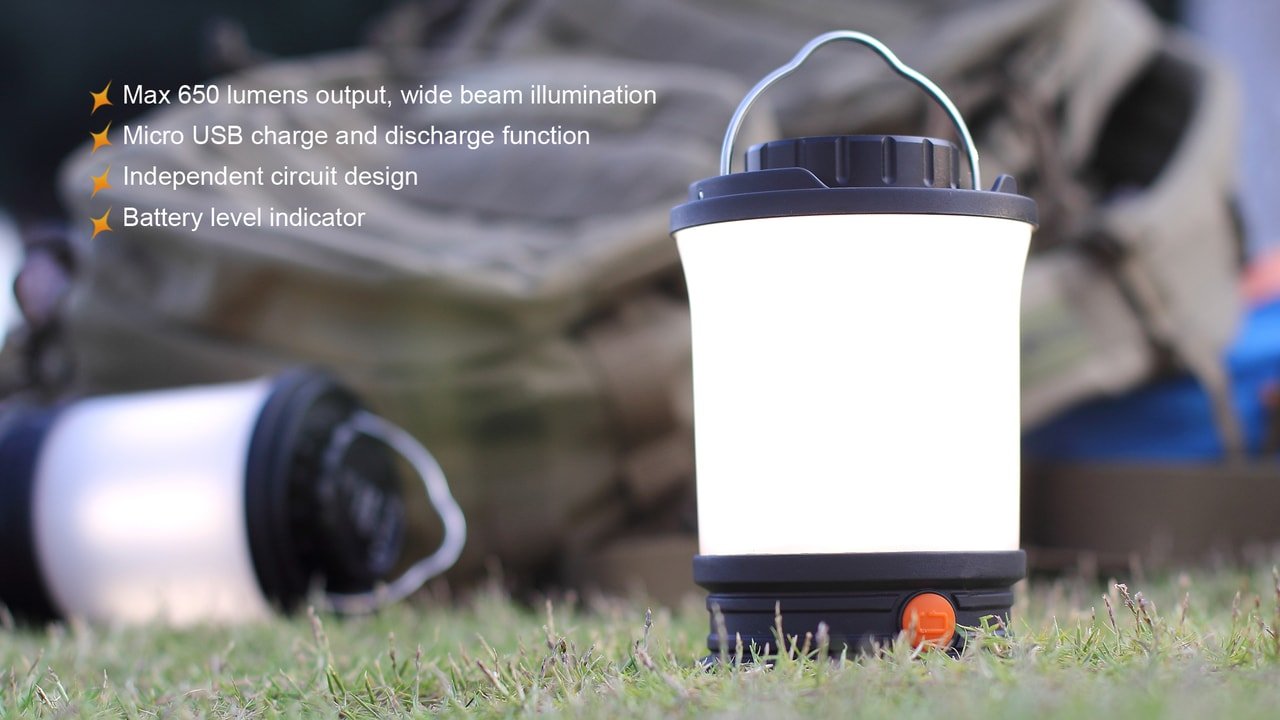

• Max 650 lumens, wide-range and high-intensity luminance.
• Powered by one, two, or three 18650 rechargeable Li-ion batteries.
• Serves as a portable power bank.

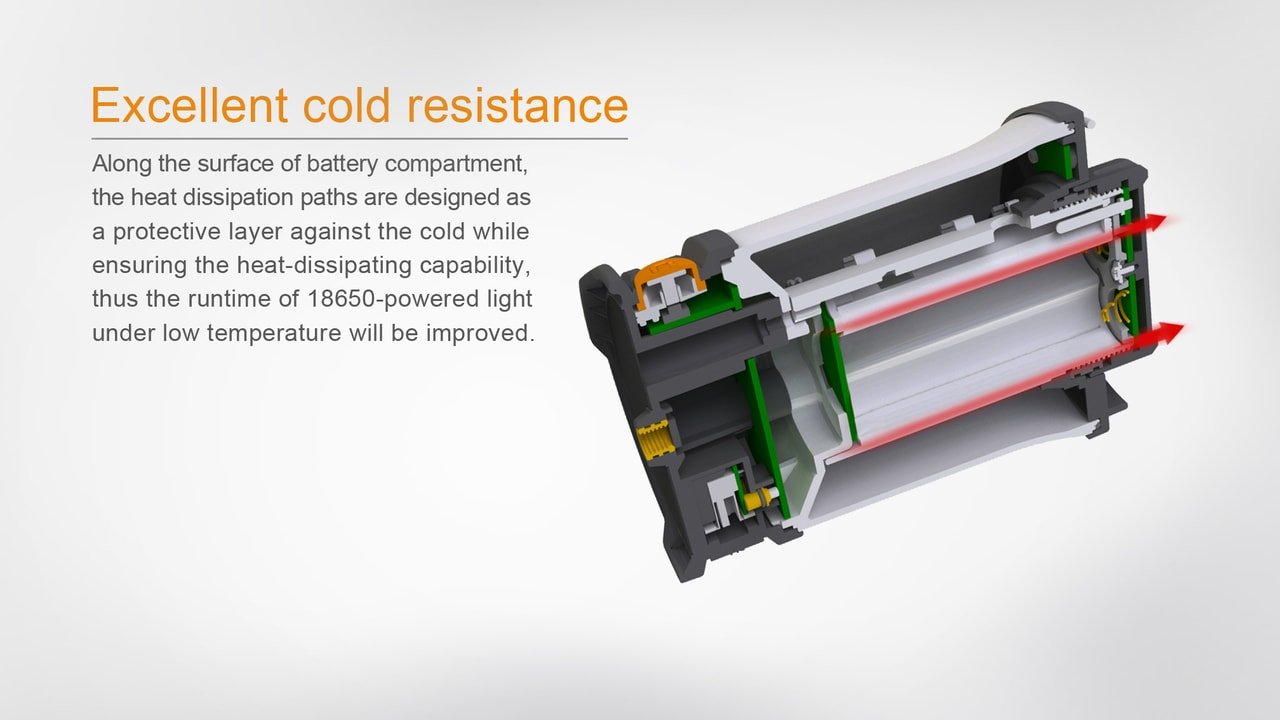

• Excellent cold-resistant design.
• Integrated Micro-USB charging with battery level indicator and low-voltage warning function.
• 35-meter diameter wide-range beam.
• Waterproof to IPX-7 standard.
• Reverse polarity protection, to protect from improper battery installation.
• Tripod socket for easy attachment.
• Single button switch for easy and fast operation.

Operating Instructions

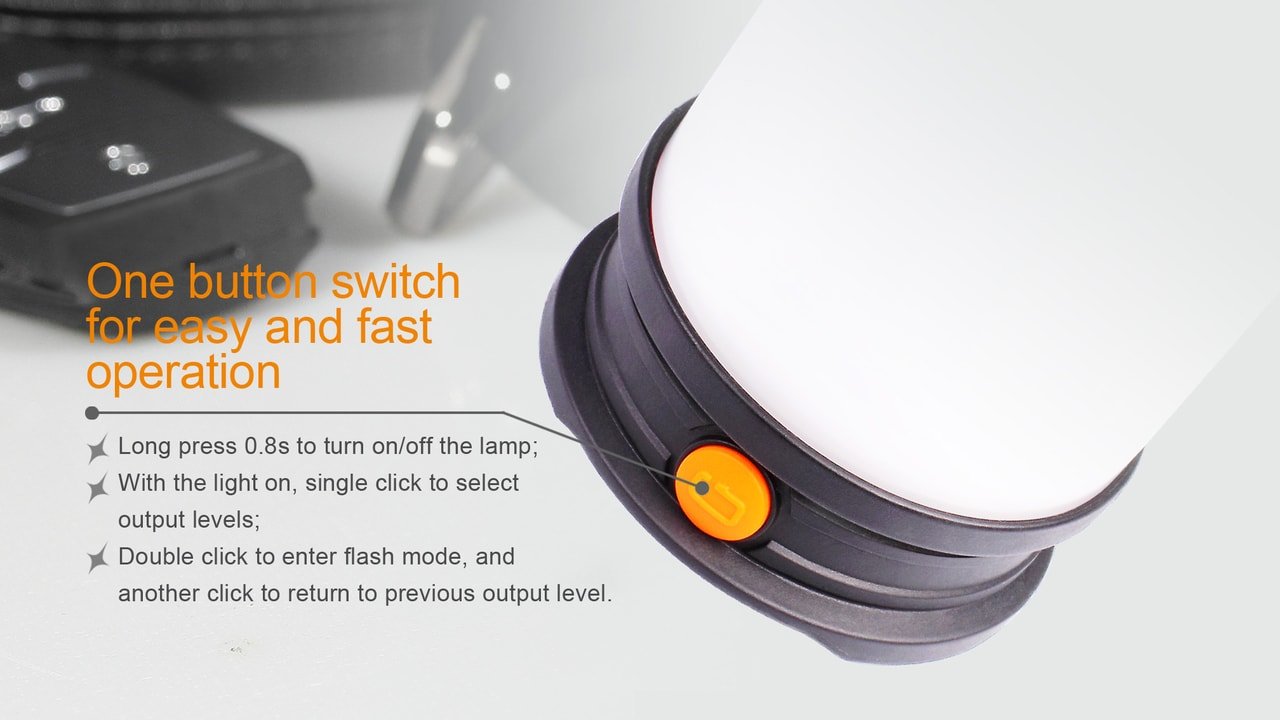

On/Off: Press and hold the switch for 0.8 seconds to turn the camp lantern on or off.

Output Selection: When the lantern is on, single-click the switch to cycle through Eco→Low→Mid→High→Turbo. With the lantern on, double-click the switch to enter Flash mode, and single-click to return to the previous state. Note: the camp lantern only lights up at Mid output when being charged.

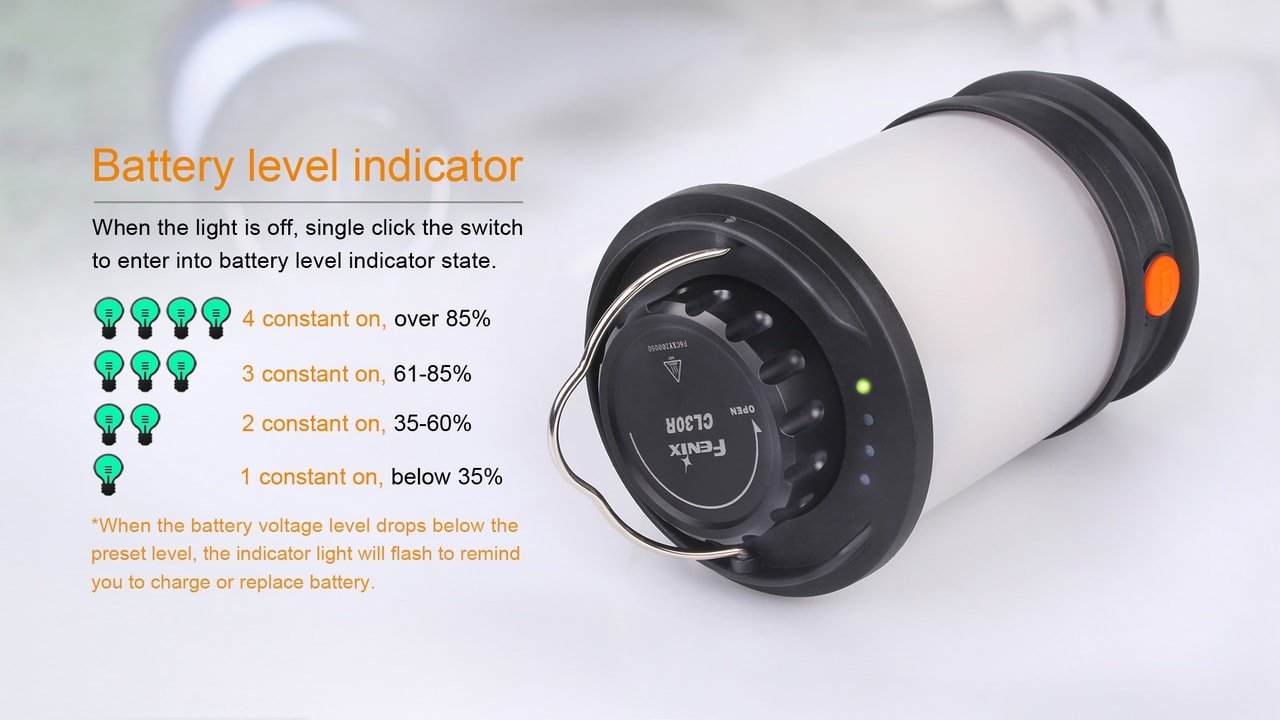

Battery Level Indicator: With the light off, single-click the side switch to enter power display. The number of constant-on lights shows the battery power: one light shows the battery power is less than 35%, two constant-on lights show the range 36%-60%, three constant-on lights show the range 61%-85%, and four constant-on lights show the battery power is over 85%. The indicator lights go out after 8 seconds.

Intelligent Memory Circuit: The lantern memorizes the last-used brightness level in General Mode. The next time it is turned on, it will recall the previously used brightness level in General Mode.

Low-Voltage Warning Function

When the voltage level drops below the preset level, the indicator light on the switch blinks to remind you to recharge the camp lantern or replace the battery. To ensure normal use, the camp lantern will not turn off automatically and will work until the battery runs out. Note: this only works on 18650 Li-ion batteries with a button top.

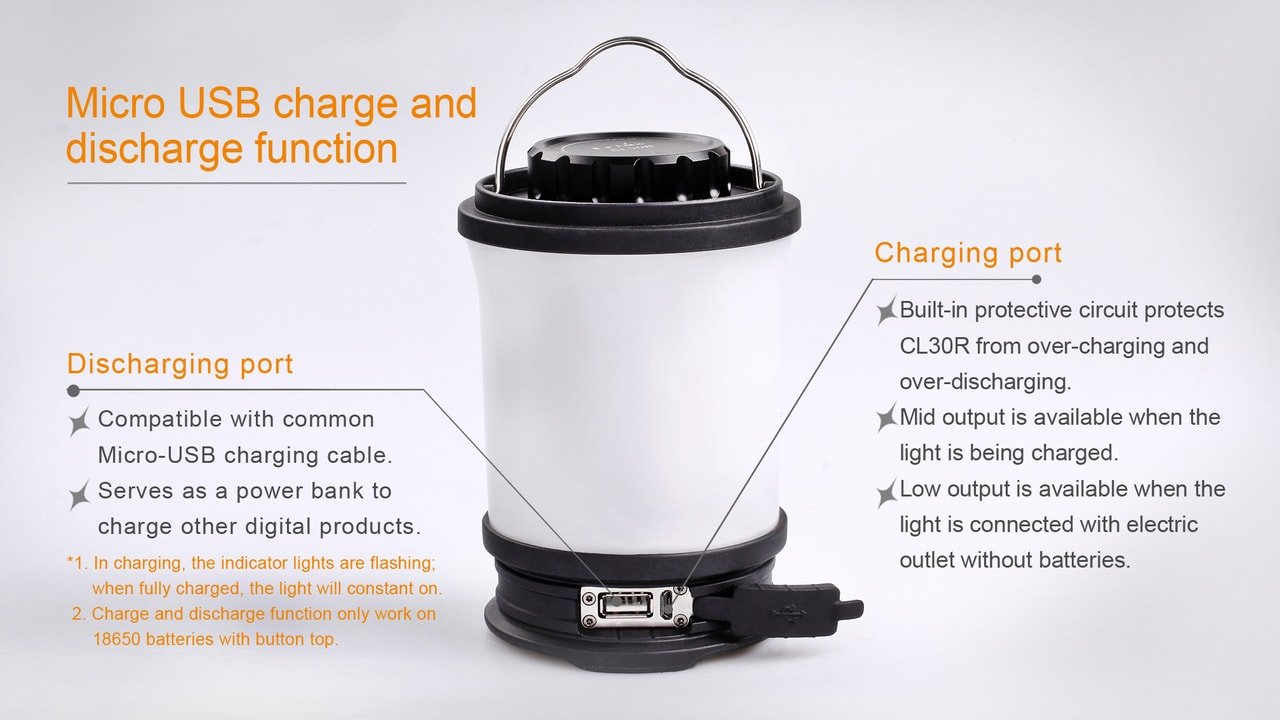

Charging

To Charge the CL30R: Connect the USB cable to a USB power adaptor (sold separately), remove the anti-dust plug of the camp lantern to reveal the charging port, and plug the Micro-USB end of the USB cable into the lantern's charging port. The indicator light on the top flashes in turn to indicate the charging process has begun, and turns solid green once the battery is fully charged. Fenix recommends using a power adaptor with an output of 5V, 1.5A. It takes about 8.5 hours to fully charge three 2600mAh Fenix ARB-L18-2600 18650 Li-ion batteries, as originally included with the lantern.

To Charge Other Devices: The camp lantern can be connected via USB cable to digital products such as mobile phones with a standard Micro-USB charging port.

Note: once charging is completed, disconnect the USB cable from the lantern and be sure the anti-dust plug is secured. Do not charge the camping lantern while the light is turned on — doing so will extend the charging time or prevent the battery from fully charging. If emergency lighting is needed while charging, the camp lantern only lights up at Mid output.

Battery Replacement

Unscrew the battery cover clockwise or counterclockwise to remove it. Insert the battery with the anode side (+) toward the lantern head. Put the battery cover back on and screw it clockwise to secure it.

Note: the camping lantern is shipped with a Fenix 2600mAh ARB-L18 rechargeable Li-ion battery. Please remove the battery insulation tab before first use.

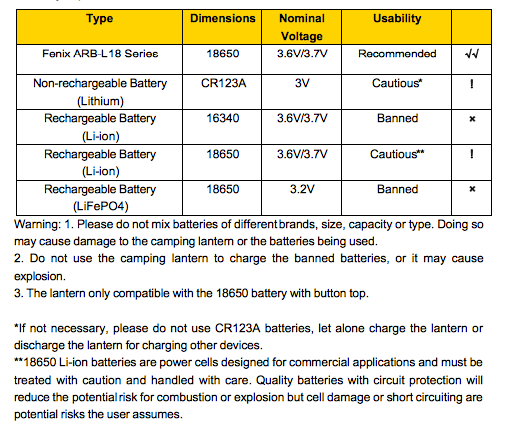

Battery Specifications

• Fenix ARB-L18 Series (18650, 3.6V/3.7V): Recommended.
• Non-rechargeable Battery, Lithium (CR123A, 3V): Caution.
• Rechargeable Battery, Li-ion (16340, 3.6V/3.7V): Banned.
• Rechargeable Battery, Li-ion (18650, 3.6V/3.7V): Caution.
• Rechargeable Battery, LiFePO4 (18650, 3.2V): Banned.

Do not mix batteries of different brands, sizes, capacities or types. Doing so may cause damage to the camping lantern or the batteries. Do not use the camping lantern to charge banned batteries, or it may cause explosion. The lantern is only compatible with 18650 batteries with a button top. 18650 Li-ion batteries are power cells designed for commercial applications and must be treated with caution and handled with care. Quality batteries with circuit protection will reduce the potential risk for combustion or explosion, but cell damage or short circuiting are potential risks the user assumes.

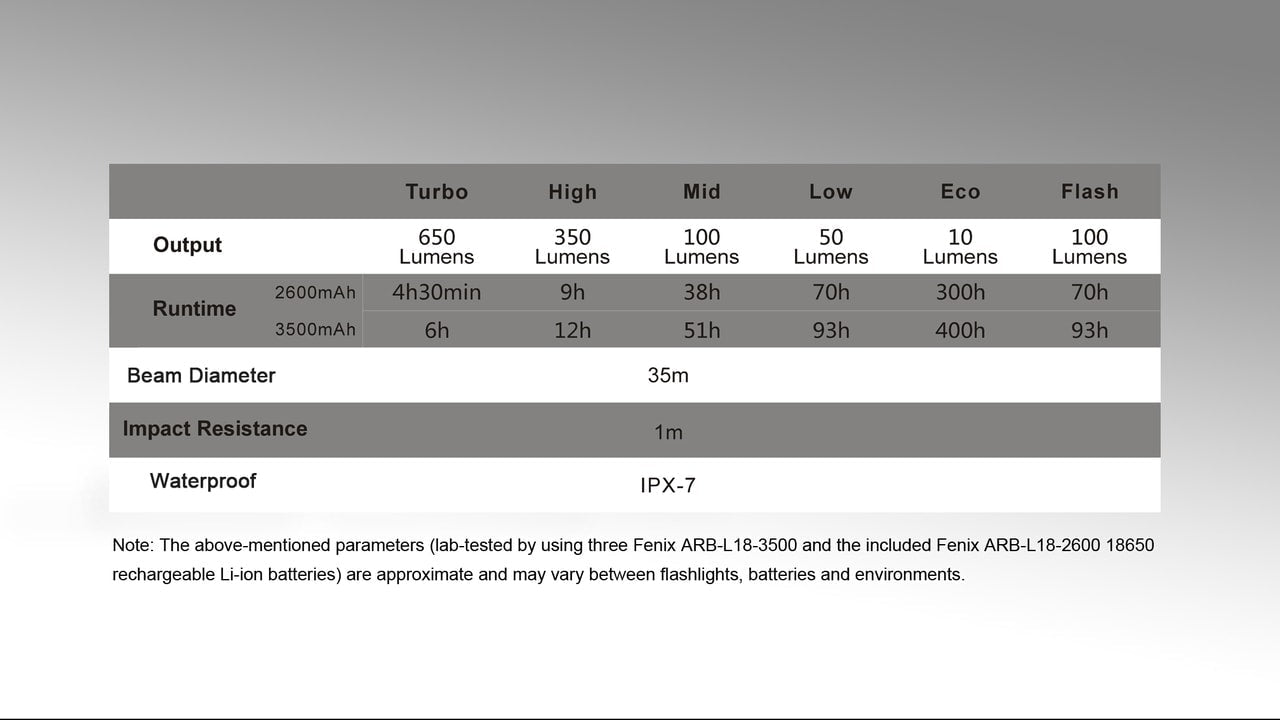

Technical Parameters

• Turbo: Output 650 lumens, Runtime 4 hours 30 minutes (with 2600mAh batteries) / 6 hours (with 3500mAh batteries).
• High: Output 350 lumens, Runtime 9 hours (2600mAh) / 12 hours (3500mAh).
• Mid: Output 100 lumens, Runtime 38 hours (2600mAh) / 51 hours (3500mAh).
• Low: Output 50 lumens, Runtime 70 hours (2600mAh) / 93 hours (3500mAh).
• Eco: Output 10 lumens, Runtime 300 hours (2600mAh) / 400 hours (3500mAh).
• Flash: Output 100 lumens, Runtime 70 hours (2600mAh) / 93 hours (3500mAh).
• Distance: 35 meters.
• Water Resistance: IPX-7.
• Impact Resistance: 1 meter.
• Weight: 412 g, excluding batteries and other accessories.
• Dimensions: 93 mm (Length) x 93 mm (Width) x 136 mm (Height).

Note: The above specifications were obtained using three Fenix ARB-L18-3500 and the included Fenix ARB-L18-2600 18650 rechargeable Li-ion batteries, and may vary depending on the batteries used and the surrounding environment.

Usage and Maintenance

• Disassembling the sealed head can cause damage to the light and will void the warranty.
• Fenix recommends using excellent quality batteries; if the lantern will not be used for an extended period, remove the batteries, or the flashlight could be damaged by electrolyte leakage or battery explosion.
• Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
• Periodic cleaning of the battery contacts improves the lantern's performance, as dirty contacts may cause the lantern to flicker, shine intermittently, or even fail to illuminate for the following reasons: poor battery level (replace the batteries, confirming correct anode/cathode installation); or the threads, PCB board contact, or other contacts are dirty (clean the contact points with a cotton swab soaked in rubbing alcohol).
• If the above methods don't work, please refer to the warranty policy before contacting your authorized distributor.

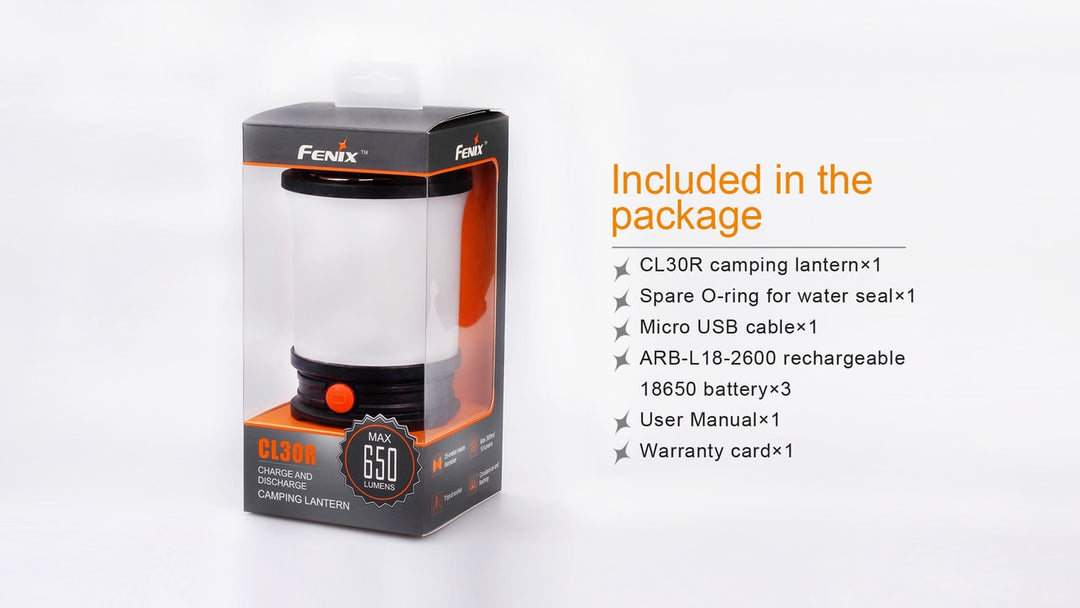

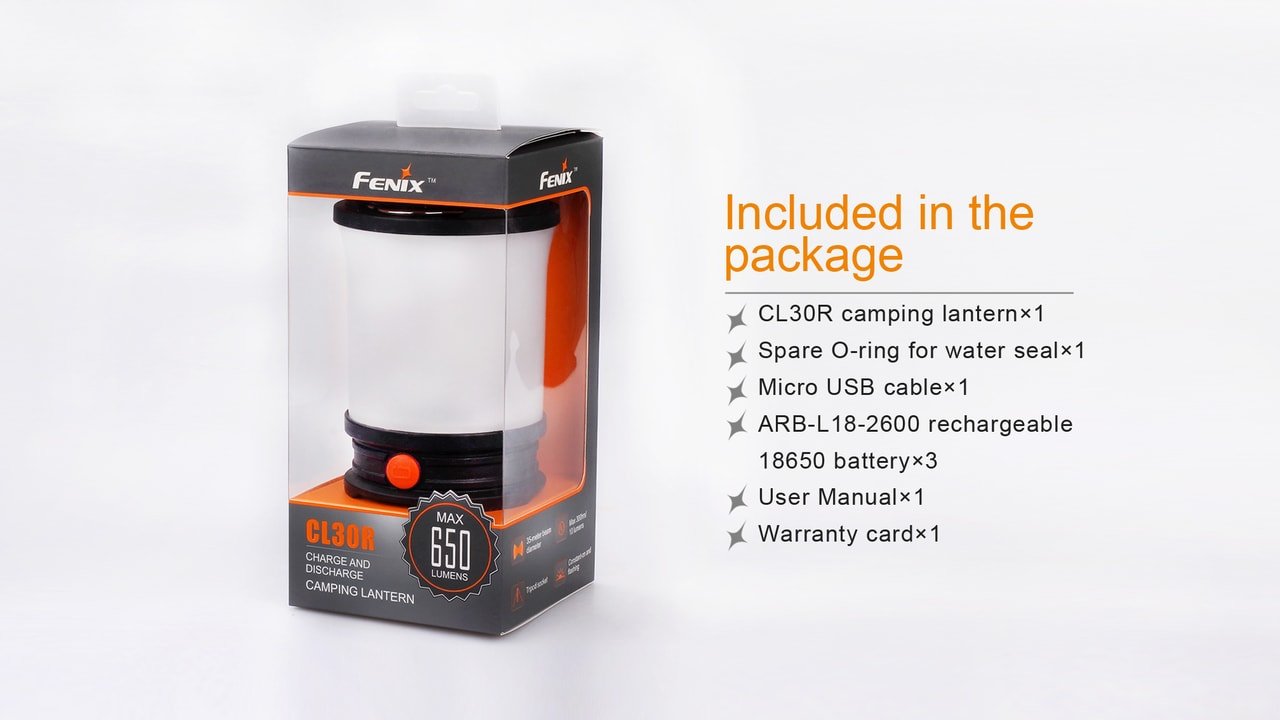

Included

Fenix CL30R camping lantern, Spare O-ring for water seal, User manual, Warranty card, Micro-USB cable, 3x ARB-L18-2600 rechargeable 18650 batteries.
