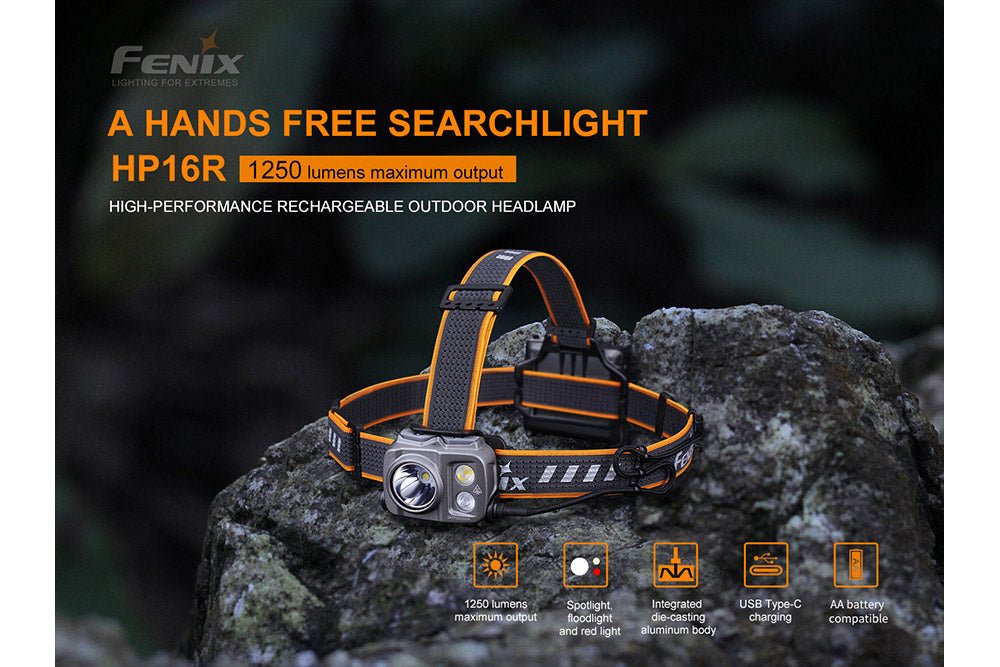

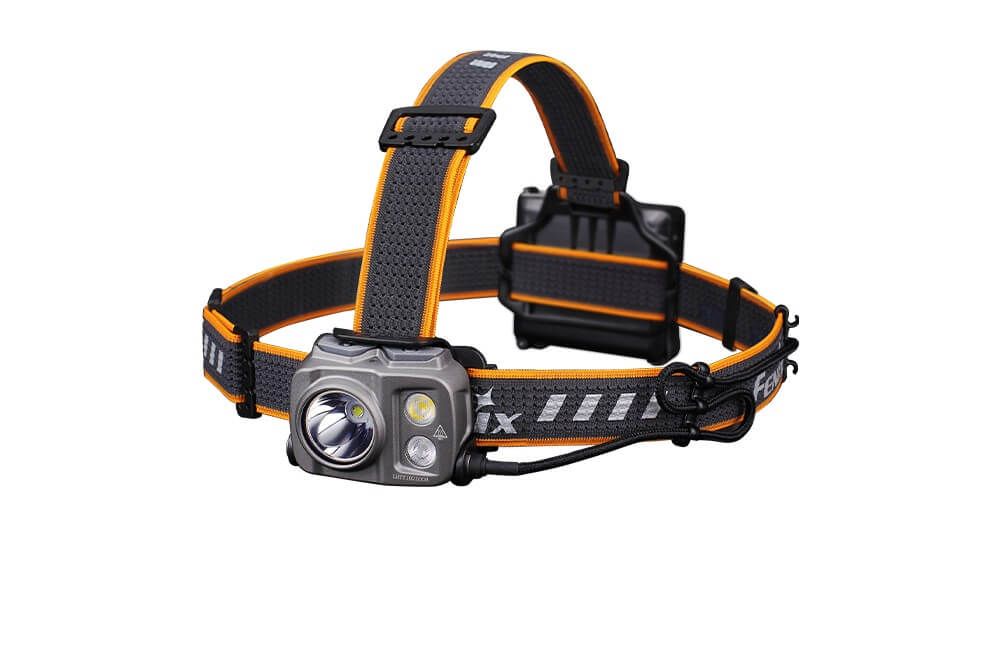

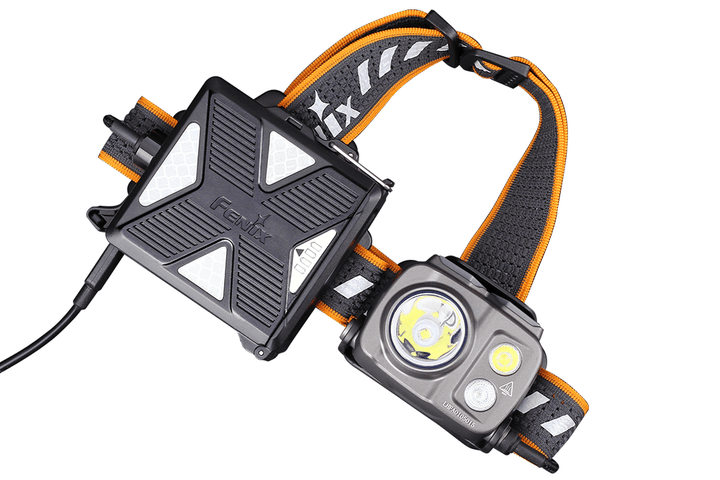

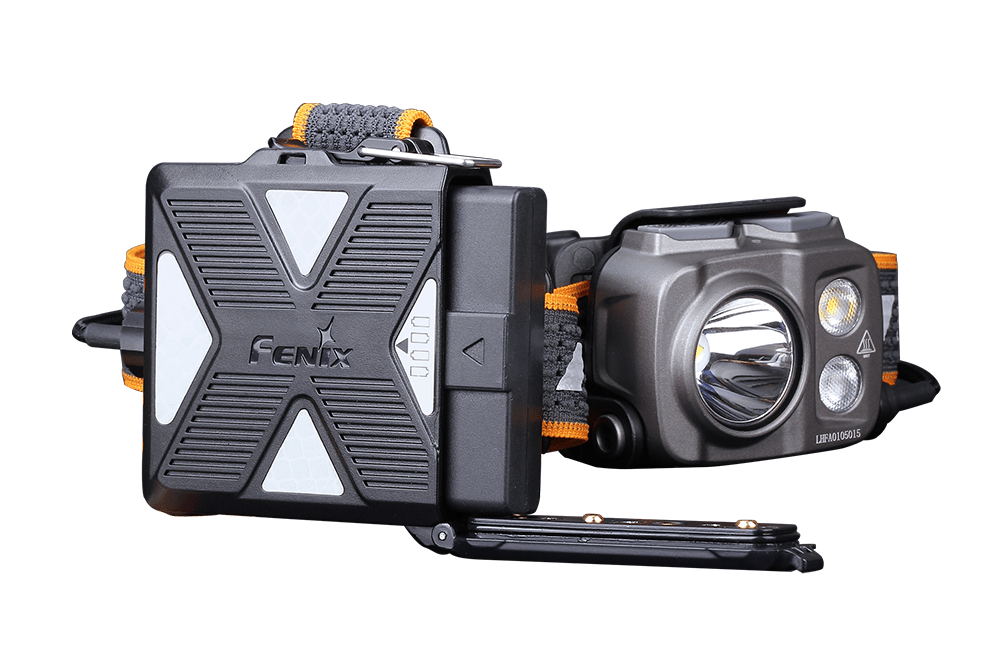

Fenix HP16R Rechargeable Headlamp - 1250 Lumens

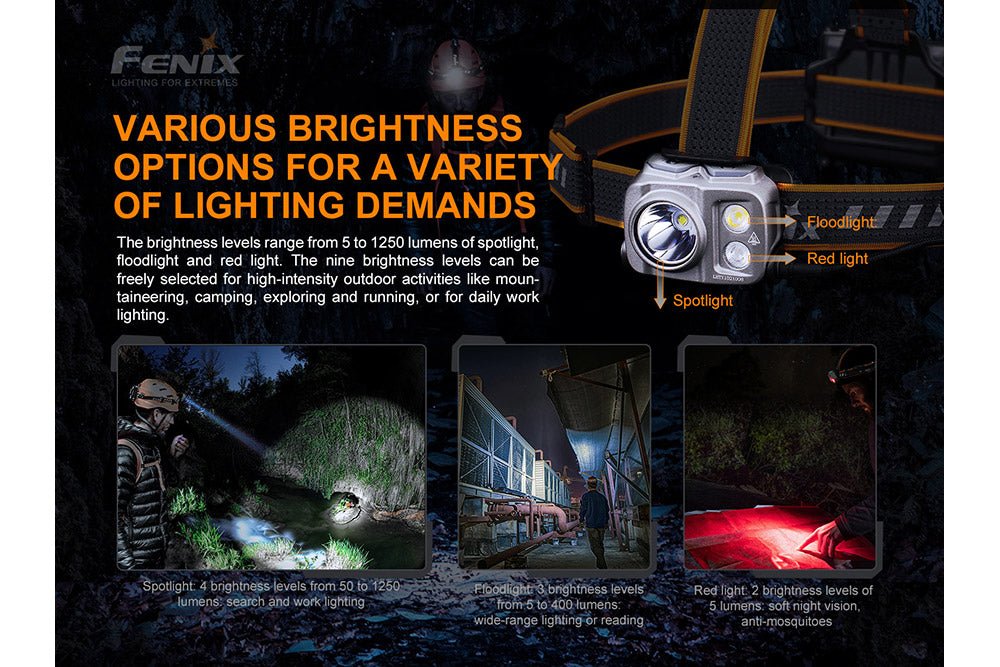

Outputs

• Spotlight
• Turbo: 1250 Lumens, 4 hours, 853 ft
• High: 400 Lumens, 8 hours, 488 ft
• Med: 150 Lumens, 12 hours, 288 ft
• Low: 50 Lumens, 36 hours, 170 ft
• Floodlight
• High: 400 Lumens, 8 hours, 157 ft
• Med: 150 Lumen, 12 hours, 98 ft
• Low: 5 Lumens, 300 hours, 19 ft
• Red Light Red: 5 Lumens, 300 hours, 19 ft
• Red Flash: 5 Lumens, 600 hours, 19 ft

Details

• 1250 Lumen maximum output
• Cree XP-G3 White LED
• Integrated die-casting body
• Dual Switch Control
• USB Type-C 2A Fast Charging
• Overheat Protection IP66 Water Resistance: Fully protected from rain and heavy splashing
• CRI of 75 with 4500K color temperature for natural color rendering
• Physical and Electronic Lockout

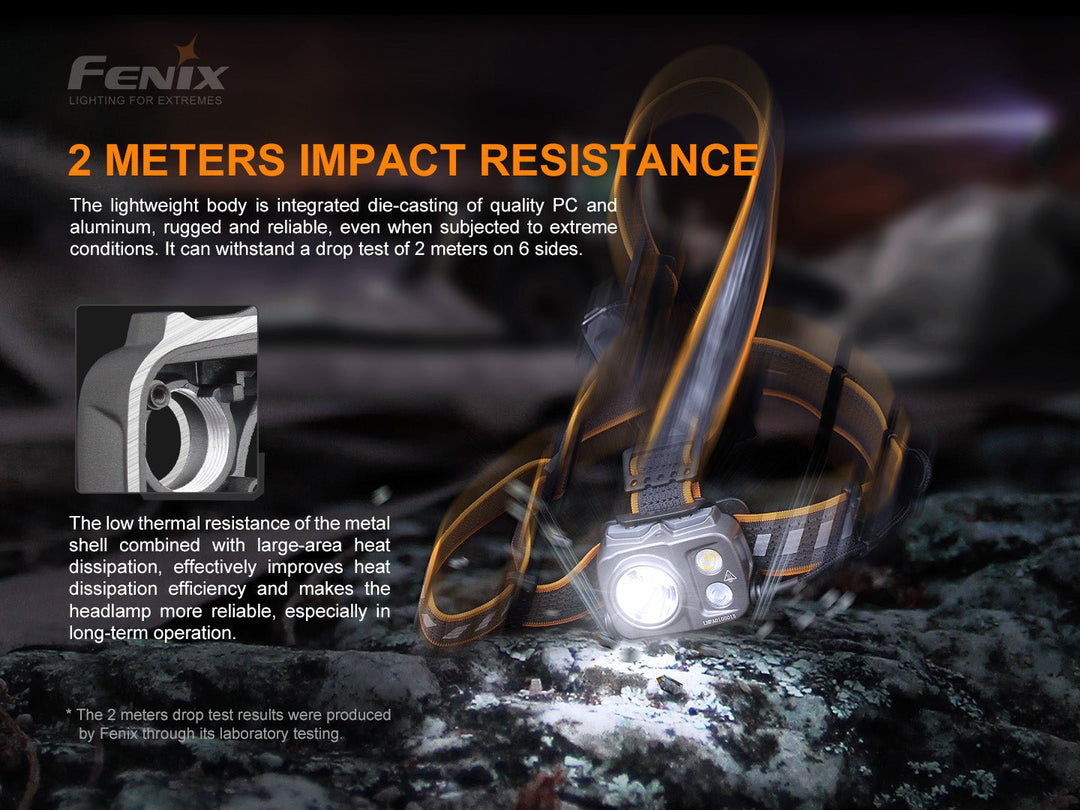

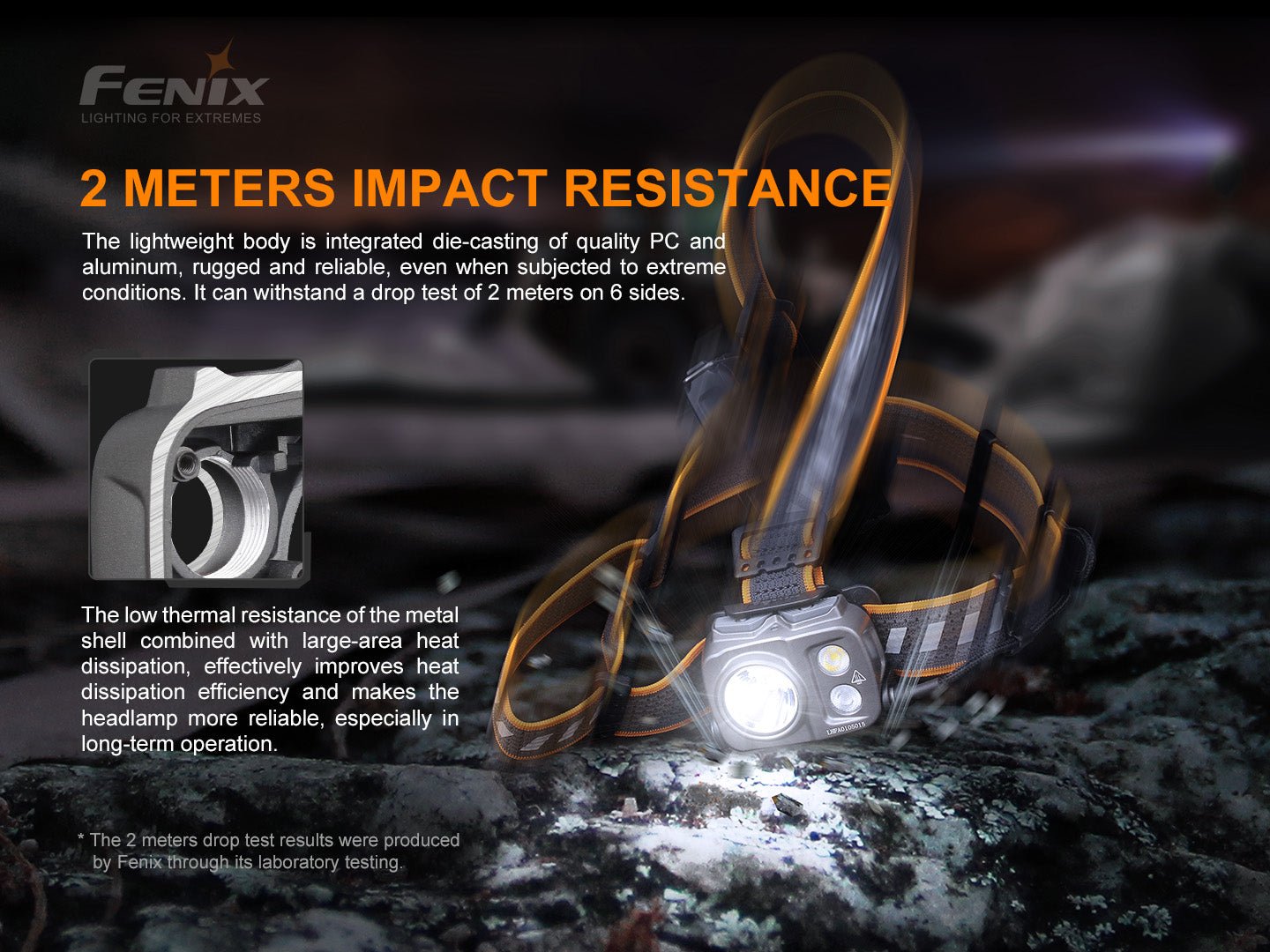

• 6.5 ft. Impact resistance

Batteries

• Included: 3000mAh Li-polymer battery. Use included batteries whenever possible.

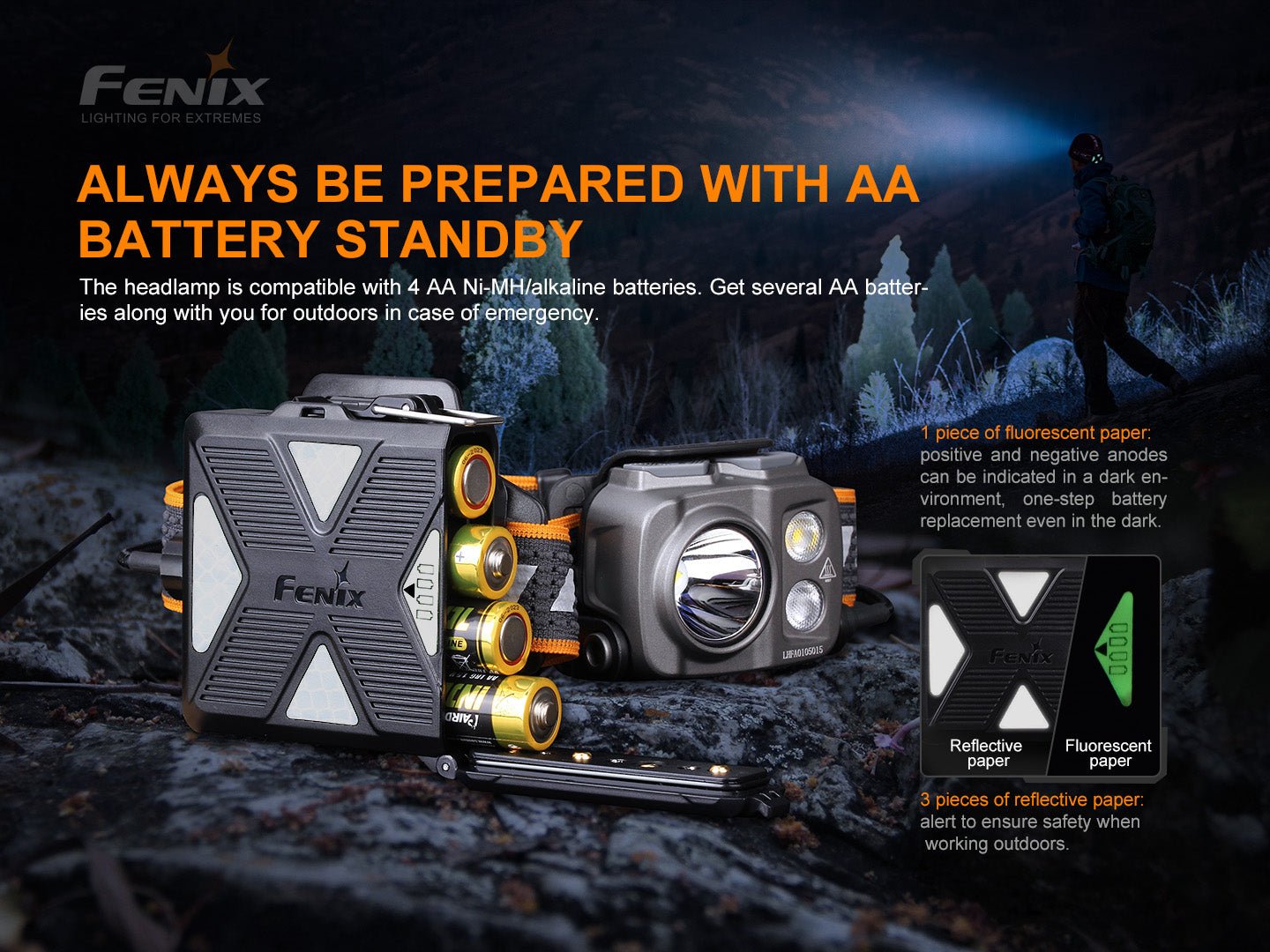

• Compatible: 4 AA batteries (Ni-MH / Alkaline). We recommend rechargeable Tenergy or Energizer brand AA batteries.
• Note: When using AA batteries, the maximum brightness of spotlight mode is 800 lumens; and the brightness levels on spotlight mode and floodlight mode cannot be simultaneously selected.

Size

• Headlamp
• Length: 2.44 inches
• Height: 1.85 inches
• Width: 1.26 inches

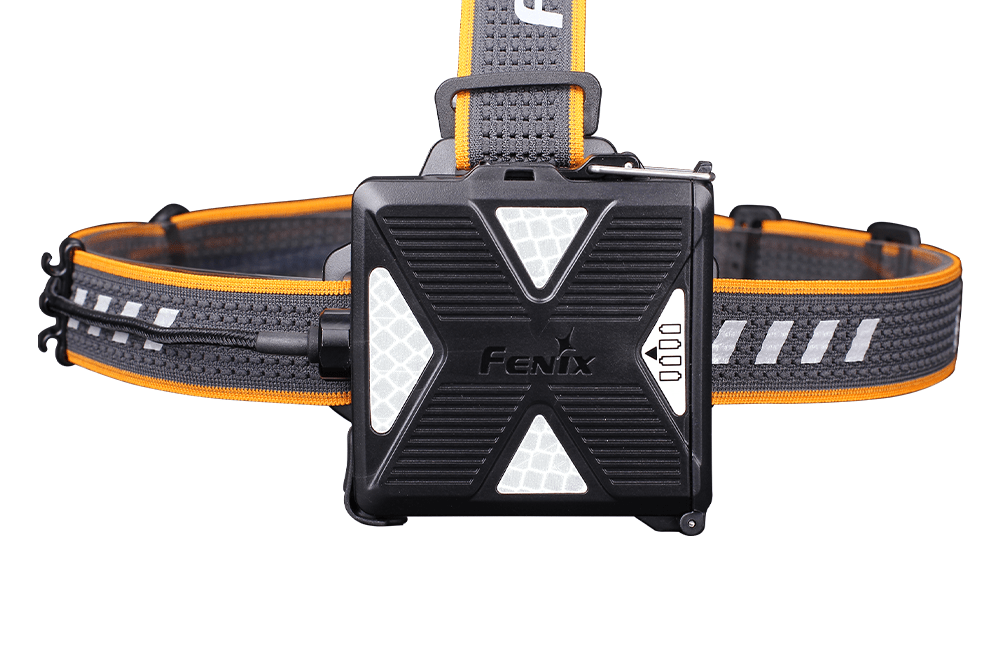

• Battery case
• Length: 2.87 inches
• Width: 2.72 inches
• Width: .98 inches
• Weight: 7.62 oz including battery and headband

What are the beam angles of the HP16R?

The HP16R features floodlight and a spotlight with a two-part beam with a center hot spot and wider flood ring.

The spotlight beam angle has a central hotspot of 10° with an outer flood ring of 80°

The floodlight features an 80° beam angle

What batteries can I use with the Fenix HP16R headlamp?

The Fenix HP16R headlamp comes with a rechargeable 3000mAh lithium-polymer battery. Alternatively, you can also use four AA batteries.

The Fenix HP16R is a rechargeable multi-LED headlamp with a dual-switch design and a lockout function. This summary is drawn from the manufacturer's official user manual — see the downloadable PDF reference manual on the product page for complete details.

Overview

• 1250 lumens maximum output.
• Luminus SST40 white light LED, Cree XP-G3 S4 neutral white LED, and Everlight 2835 red light LED; with a lifespan of 50,000 hours.
• Included a 3000 mAh Li-polymer battery pack and compatible with 4 AA Ni-MH/Alkaline batteries (charging is prohibited).
• Separately controlled dual switch for easy and fast operation.
• Lockout function avoids accidental activation.
• USB Type-C charging port with 2A fast charging, 3 hours for full charging.
• 60° tilt mechanism directs the beam where needed.
• Made of quality plastics and aluminum, integrated die-casting for better heat dissipation and safety performance.
• Headlamp: 2.44" x 1.85" x 1.26" / 62 x 47 x 32 mm.

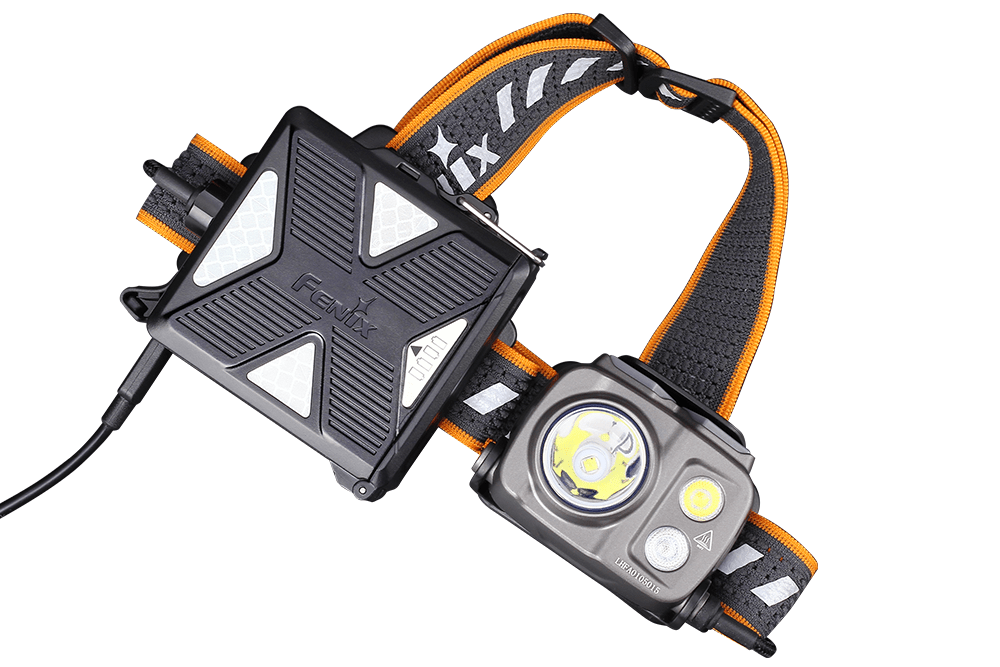

• Battery case: 2.87" x 2.72" x 0.98" / 73 x 69 x 25 mm.
• Weight: 7.62 oz / 216 g (including battery and headband).

Operating Instructions

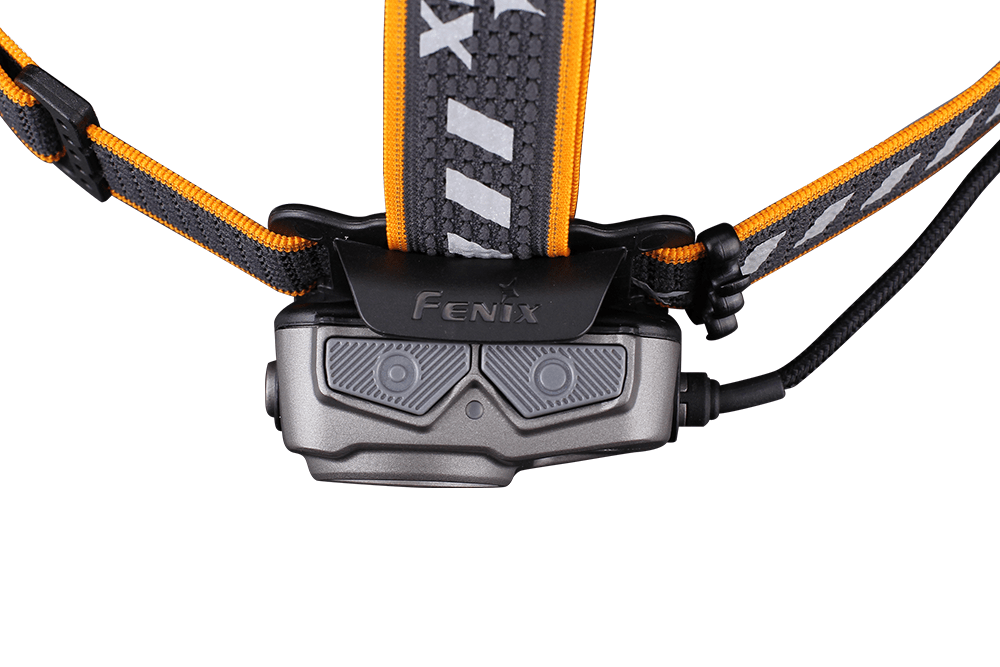

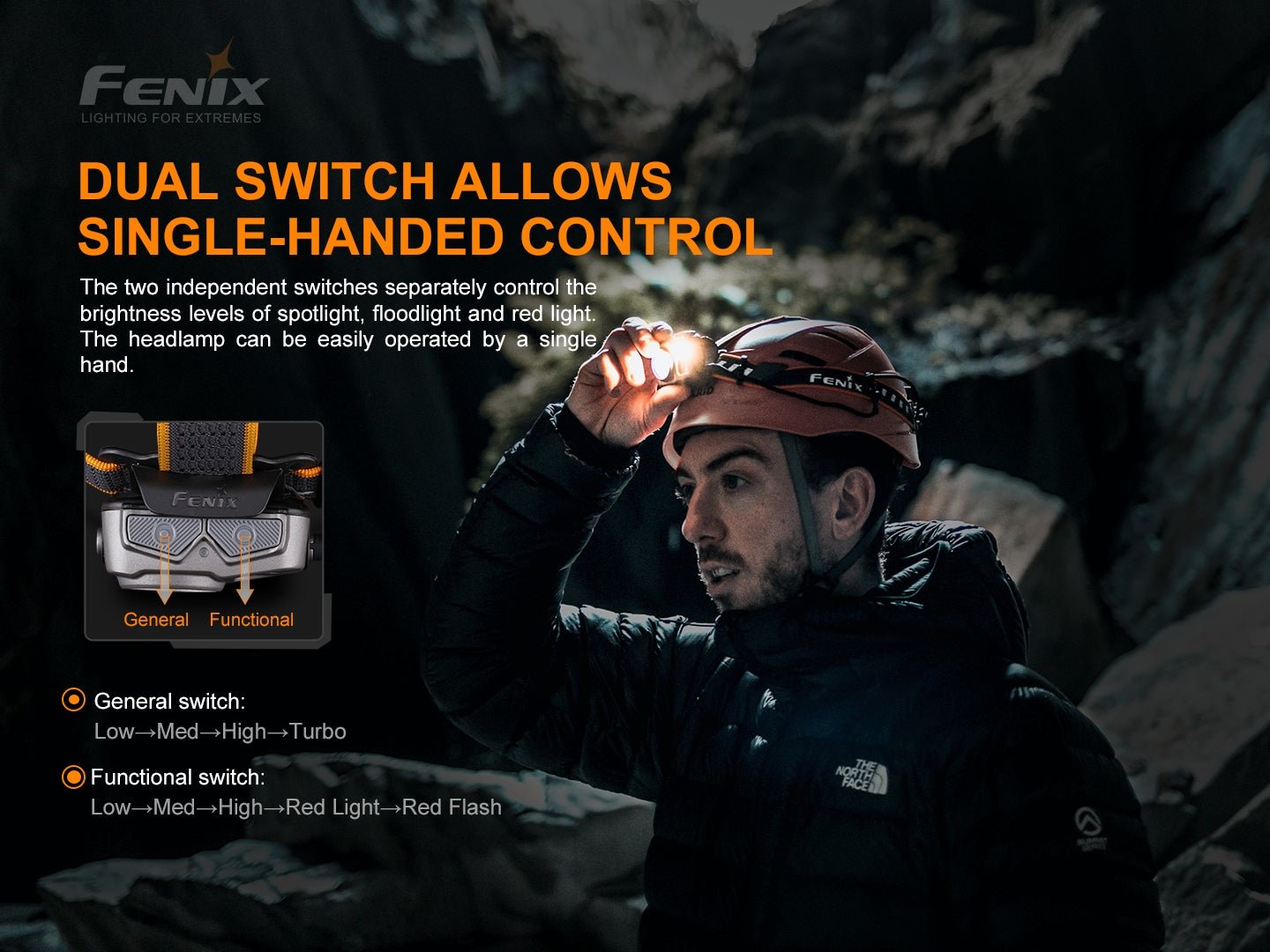

Switches: General switch — for on/off and output selection on General mode. Functional switch — for on/off and output selection on Functional mode.

On/off: Press and hold either of the switches for 0.5 seconds to turn on/off the lamp.

Output Selection: General mode — single click the general switch to cycle through Low → Med → High → Turbo of Spotlight. Functional mode — single click the functional switch to cycle through Low → Med → High → Red Light → Red Flash.

Intelligent Memory Circuit: The headlamp memorizes the last selected output. When turned on again, the previously used output will be recalled.

Lockout Function

Lock: when the lamp is switched off, press and hold either of the two switches, or simultaneously press the two switches for 3 seconds, the lamp will blink red three times to indicate locked status.

Unlock: when the lamp is locked, simultaneously press the two switches for 3 seconds, the lamp will be activated with 3 one-second red blinks and activated on Red Light. In locked status, clicking or pressing the switches will activate 3 one-second red blinks to indicate locked status.

If the headlamp is turned off on Turbo level of Spotlight mode, when turned on again, it will be activated on High output of Spotlight mode.

Battery Specifications

• Fenix ARB-LP3000: 58 x 50 x 14 mm, 3.7V, Recommended (rechargeable via headlamp).
• Fenix ARB-L14-1600U: 14500, 1.5V, Recommended — no charging via headlamp.
• Ni-MH Battery: AA, 1.2V, Usable — no charging via headlamp.
• Alkaline Battery: AA, 1.5V, Usable — no charging via headlamp.
• Non-rechargeable Battery (Lithium): AA, 1.5V, Banned — no charging via headlamp.
• Rechargeable Battery (Li-ion): 14500, 3.7V, Banned — no charging via headlamp.

1. It is strictly prohibited to charge non-rechargeable batteries via the headlamp. 2. Recharge a stored headlamp every four months to maintain optimal Li-polymer battery performance. 3. If the lamp will not be used for an extended period, remove the AA batteries from the lamp in case of damage by electrolyte leakage.

Intelligent Overheat Protection

The lamp will accumulate a lot of heat when used at relatively high output levels for extended periods. When the lamp reaches a temperature of 65°C or above, the lamp will automatically step down a few lumens to reduce the temperature. When the temperature drops below 65°C, it will then allow the user the reselection of the modes.

Low-Voltage Warning

When the voltage level drops below the preset level, the headlamp is programmed to downshift to a lower brightness level until Low output is reached. When this happens in Low output mode, the battery level indicator blinks to remind you to timely recharge or replace the battery.

Note: this only works with Fenix ARB-LP3000 Li-polymer battery.

Headband Assembly

The headband is factory assembled by default. Adjust the headband by sliding the buckle to required length.

Usage and Maintenance

• Disassembling the sealed head can cause damage to the lamp and will void the warranty.
• Fenix recommends using an excellent quality Fenix battery.
• If the lamp will not be used for an extended period, remove the battery, or the lamp could be damaged by electrolyte leakage.
• Lock the lamp or take out the battery to prevent accidental activation during storage or transportation.
• Periodic cleaning of the battery contacts improves the lamp's performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons: A) The battery needs replacing — replace battery (ensure battery is inserted according to the manufacturer's specifications). B) The contact point or contact of the battery or headlamp is dirty — clean the contact points with a cotton swab soaked in rubbing alcohol. If the above methods don't work, please contact the distributor.

Battery Replacement

• Pull latch to open the battery cover.
• Insert the battery/batteries in accordance with the polarity marks.
• Replace the battery cover and fasten the latch.

Charging

• The included Li-polymer battery pack can be charged via the headlamp. It is strictly prohibited to charge non-rechargeable AA (Ni-MH/Alkaline) batteries via the headlamp.
• Uncover the anti-dust cap of the battery case and plug the USB Type-C side of the charging cable into the charging port of the battery case.
• The indicator on the battery case will display red while charging, and will turn to green when fully charged.
• Replace the anti-dust cap to ensure waterproof and dustproof ability.
• The normal charging time of the Fenix ARB-LP3000 Li-polymer battery is about 3 hours with the lamp being switched off.

Battery Level Indication

With the lamp switched off, single click either of the switches to check the battery status; the indicator will last for 3 seconds.

• Green light on: saturated 100% - 85%
• Green light flashes: sufficient 85% - 50%
• Red light on: poor 50% - 25%
• Red light flashes: critical 25% - 1%

Note: this only works with Fenix ARB-LP3000 Li-polymer battery.

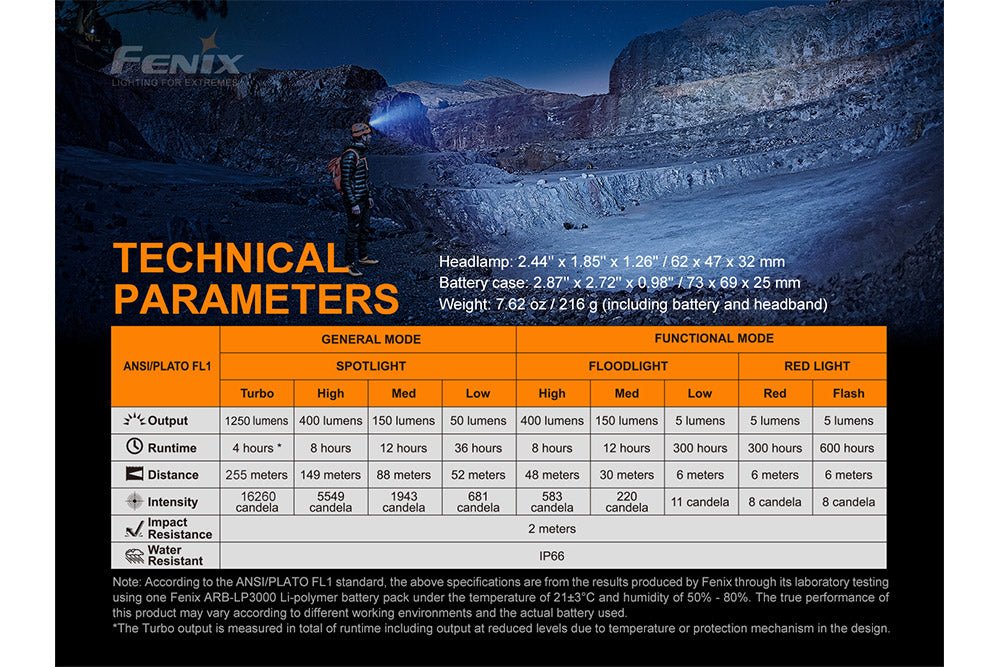

Technical Parameters — General Mode (Spotlight)

• Turbo: Output 1250 lumens, Runtime 4 hours*, Distance 255 meters, Intensity 16260 candela
• High: Output 400 lumens, Runtime 8 hours, Distance 149 meters, Intensity 5549 candela
• Med: Output 150 lumens, Runtime 12 hours, Distance 88 meters, Intensity 1943 candela
• Low: Output 50 lumens, Runtime 36 hours, Distance 52 meters, Intensity 681 candela

Technical Parameters — Functional Mode (Floodlight / Red Light)

• High (Floodlight): Output 400 lumens, Runtime 8 hours, Distance 48 meters, Intensity 583 candela
• Med (Floodlight): Output 150 lumens, Runtime 12 hours, Distance 30 meters, Intensity 220 candela
• Low (Floodlight): Output 5 lumens, Runtime 300 hours, Distance 6 meters, Intensity 11 candela
• Red (Red Light): Output 5 lumens, Runtime 300 hours, Distance 6 meters, Intensity 8 candela
• Flash (Red Light): Output 5 lumens, Runtime 600 hours, Distance 6 meters, Intensity 8 candela

All modes: Impact Resistance 2 meters, Waterproof IP66. *The Turbo output is measured in total runtime including output at reduced levels due to temperature or protection mechanism in the design. Specifications are based on ANSI/PLATO FL1 standard testing using one Fenix ARB-LP3000 Li-polymer battery pack at 21±3°C and 50%-80% humidity — actual performance may vary by environment and the battery used.

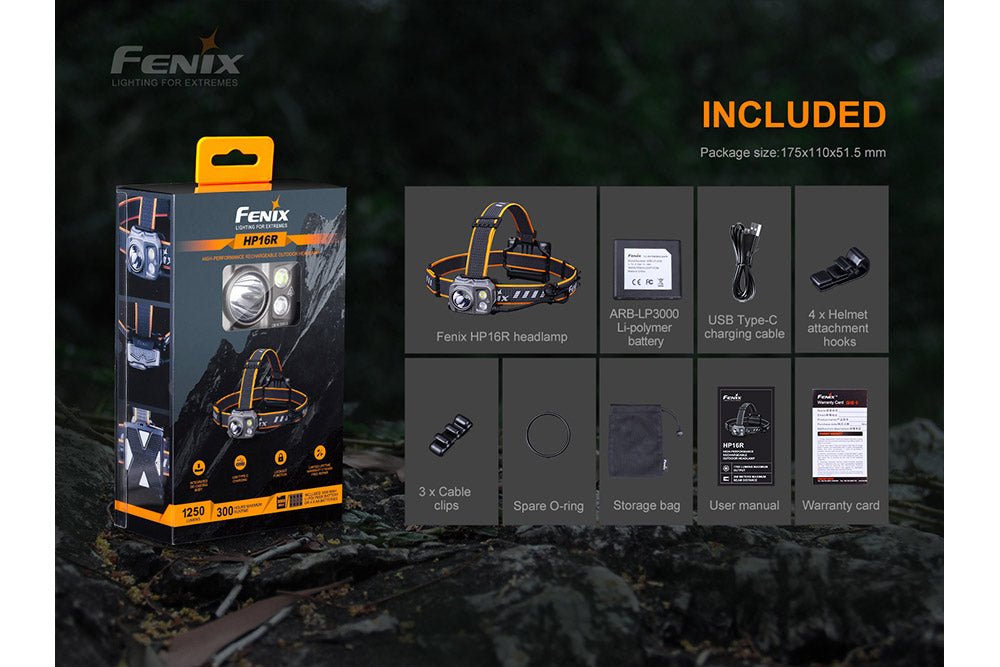

Included

Fenix HP16R headlamp, ARB-LP3000 Li-polymer battery, USB Type-C charging cable, 4 x Helmet attachment hooks, 3 x Cable clips, Spare O-ring, Storage bag, User manual, Warranty card.
