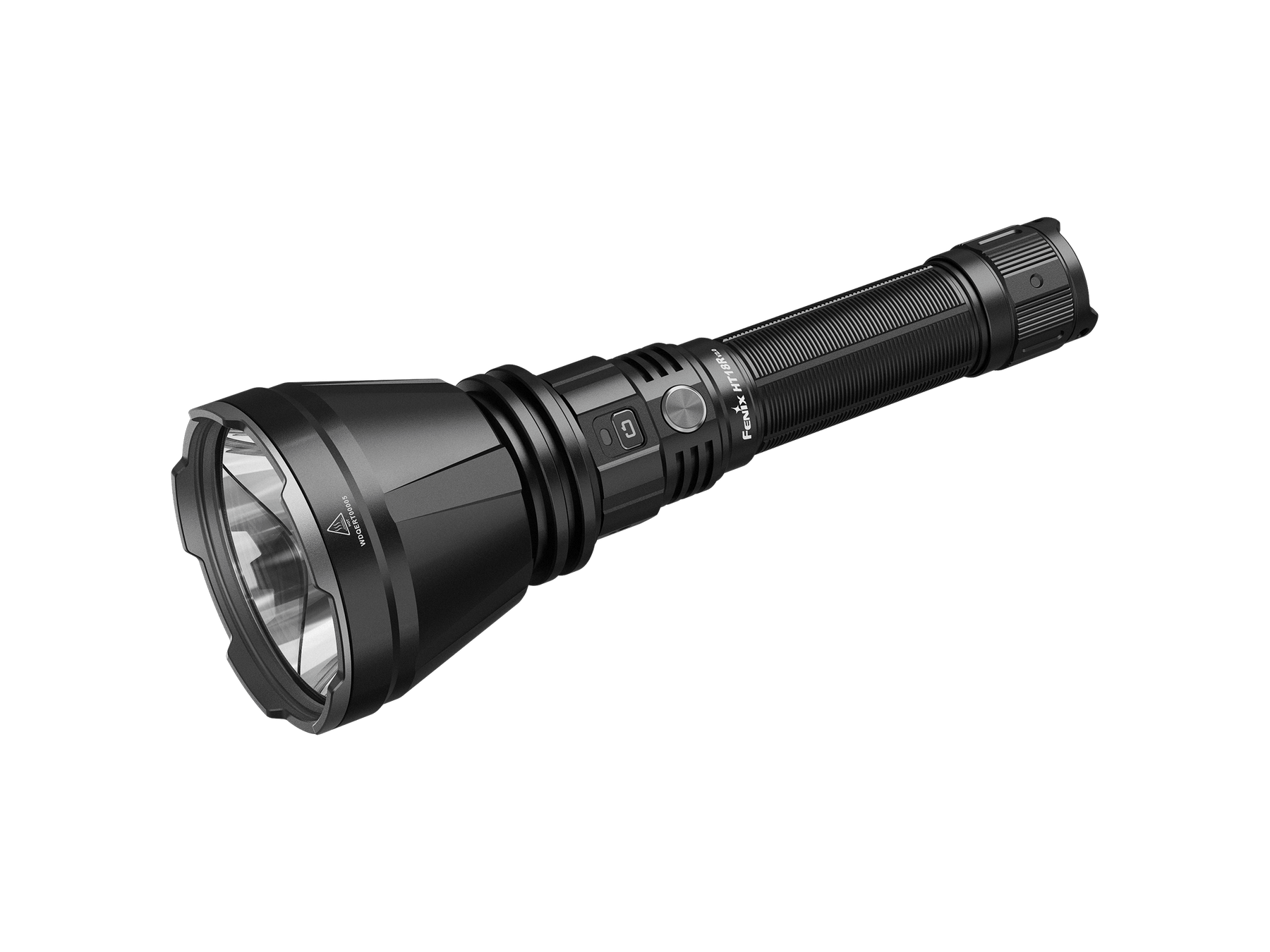

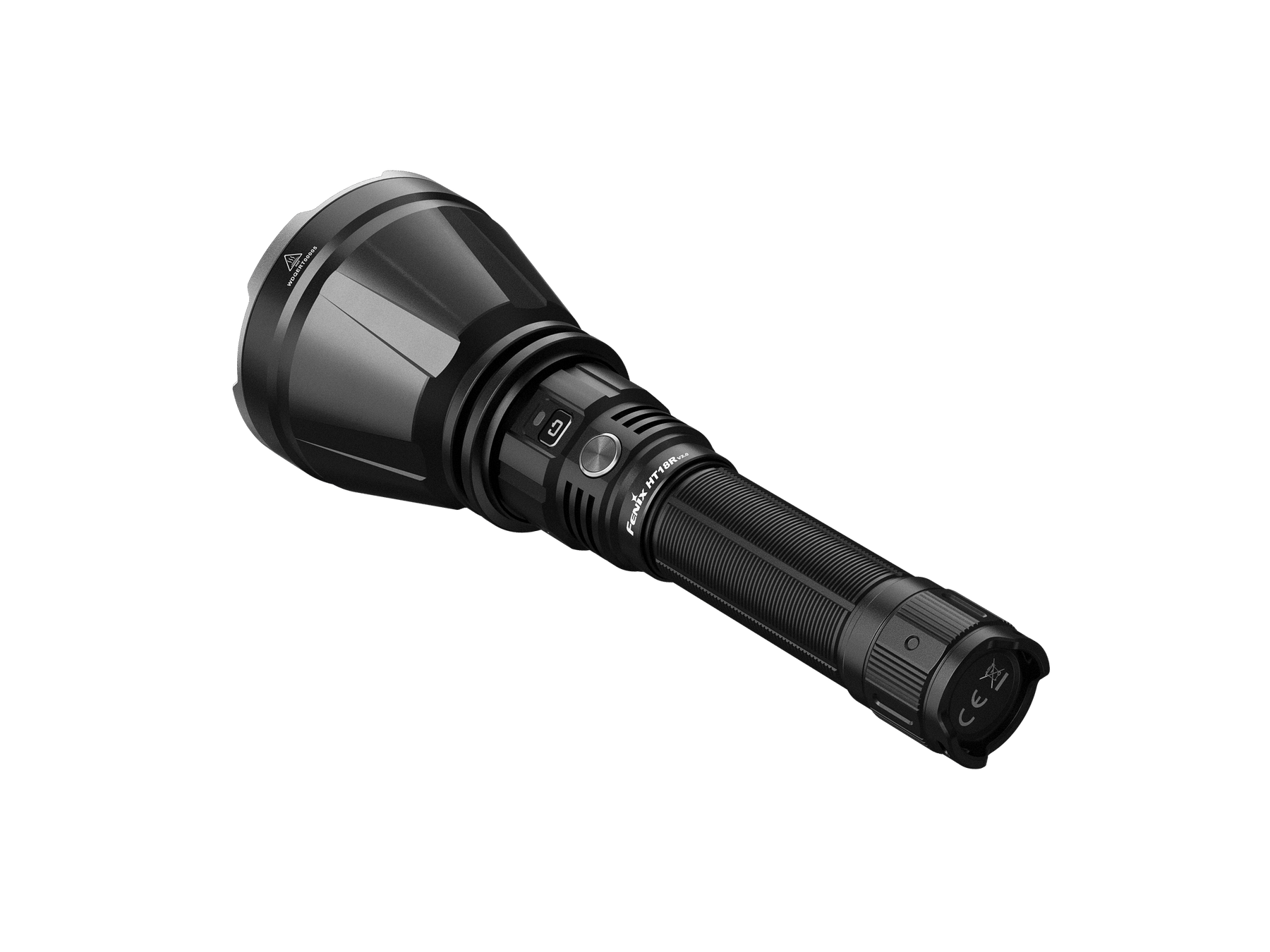

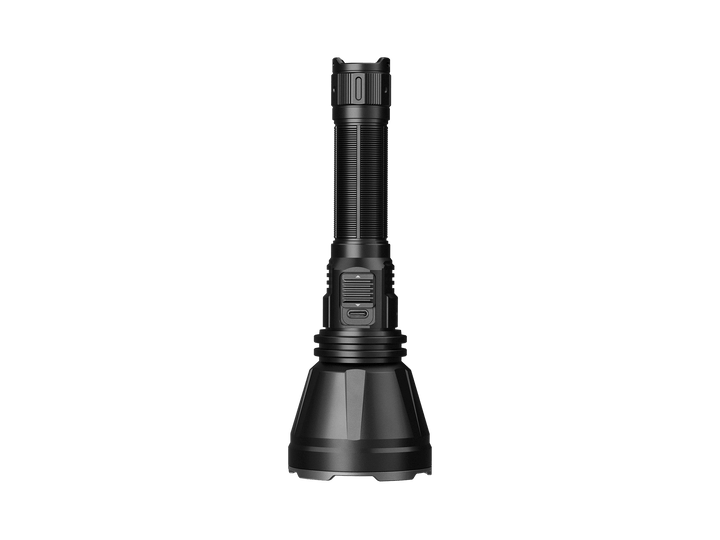

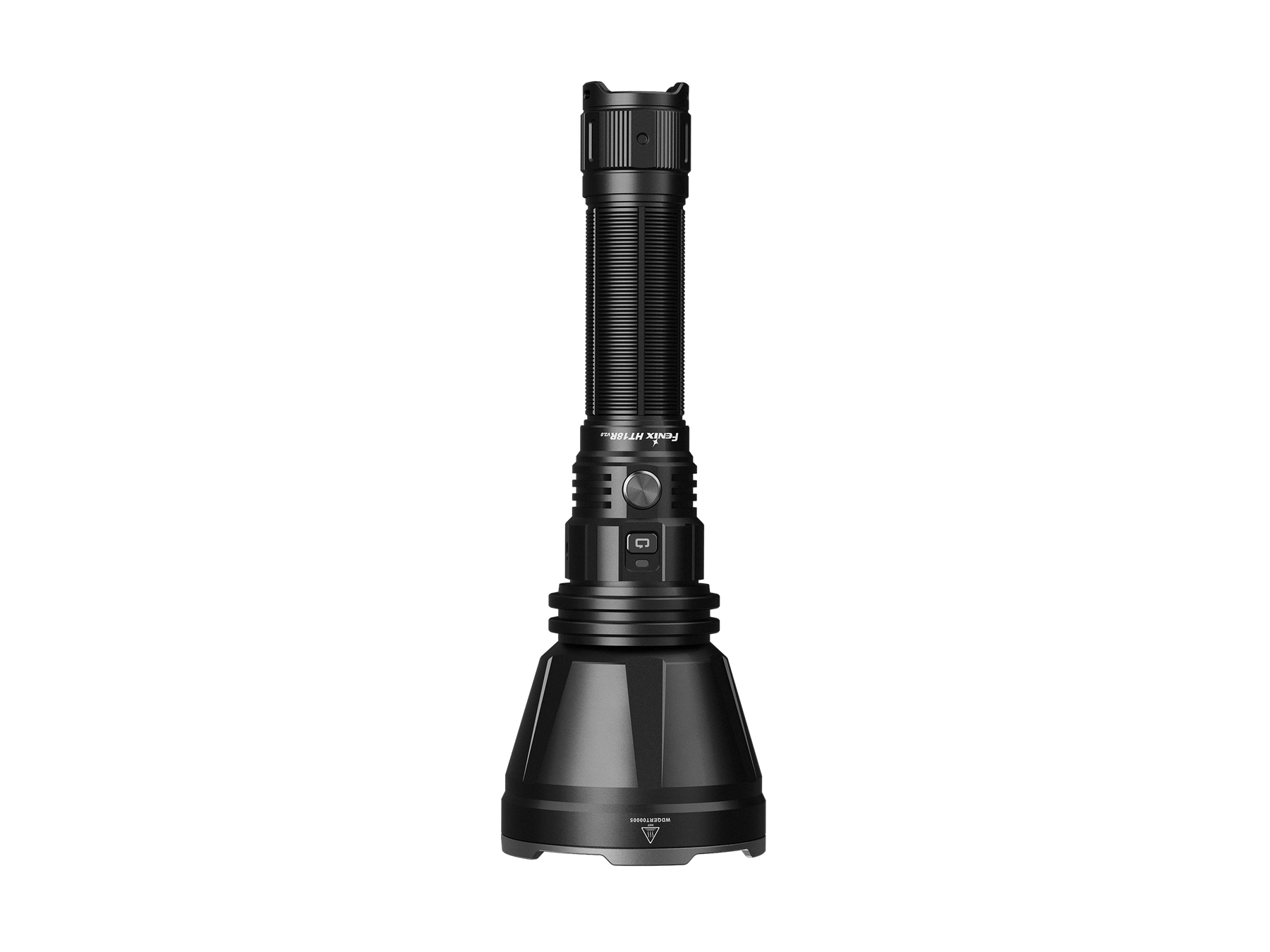

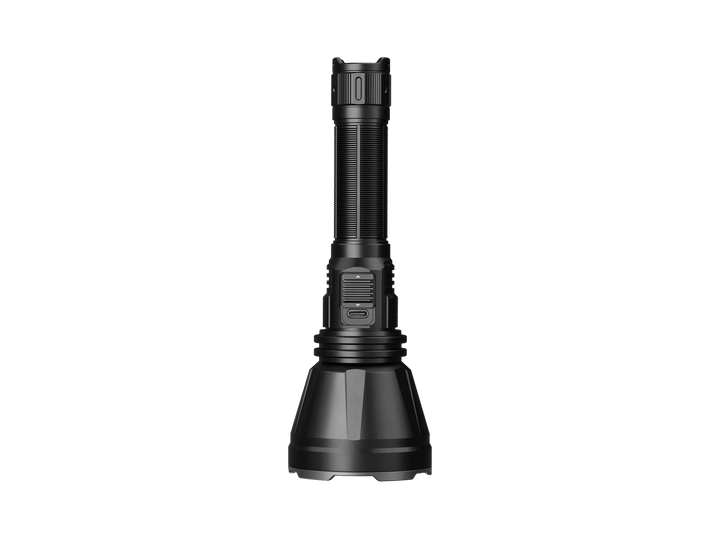

Fenix HT18R V2 Long-Range Hunting Flashlight

Outputs

• Turbo: 3700 Lumens, 2 hours, 3609 feet
• High: 1000 Lumens, 3 hours, 1870 feet
• Med: 350 Lumens, 6.83 hours, 1083 feet
• Low: 30 Lumens, 87 hours, 312 feet
• Strobe: 3000 Lumens
• SOS: 150 Lumens
• Beacon: 3700 Lumens

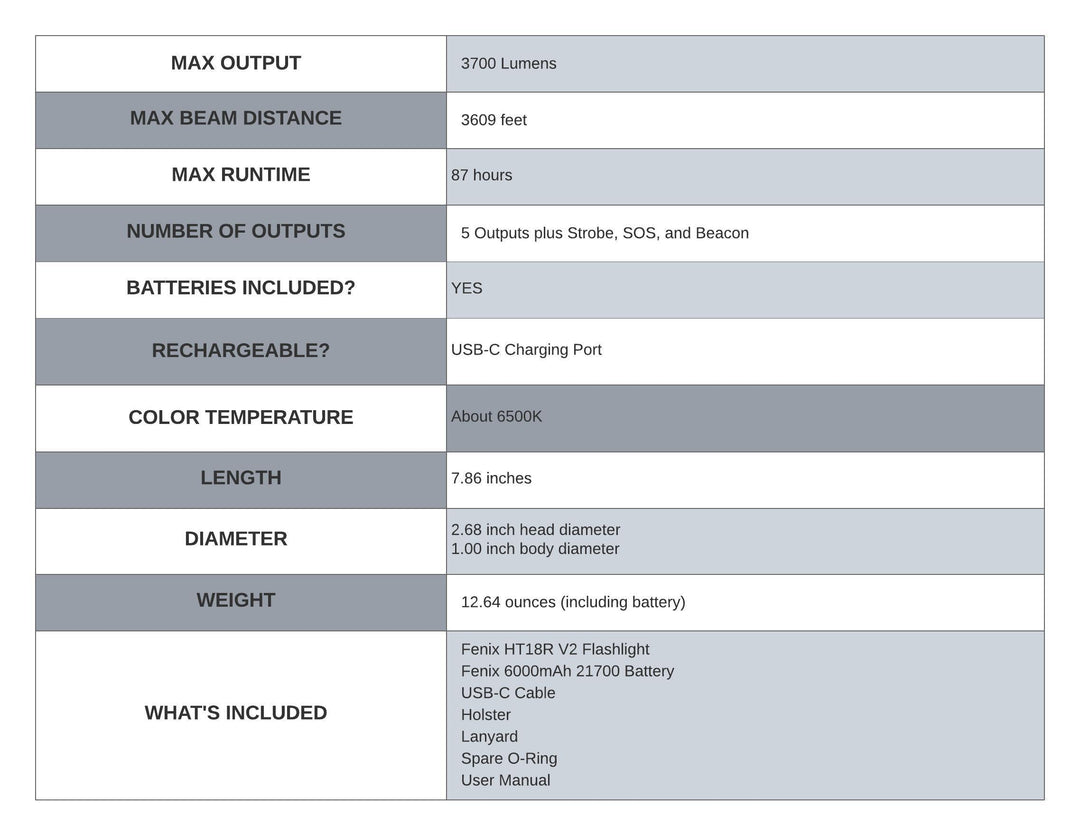

Details

• 3700 lumen maximum output
• 1100-meter beam distance
• 1.5-hour fast charging via built-in USB-C port
• Battery level indicator
• Instant Turbo activation
• Instant Strobe
• Beacon (flashing) and SOS safety modes

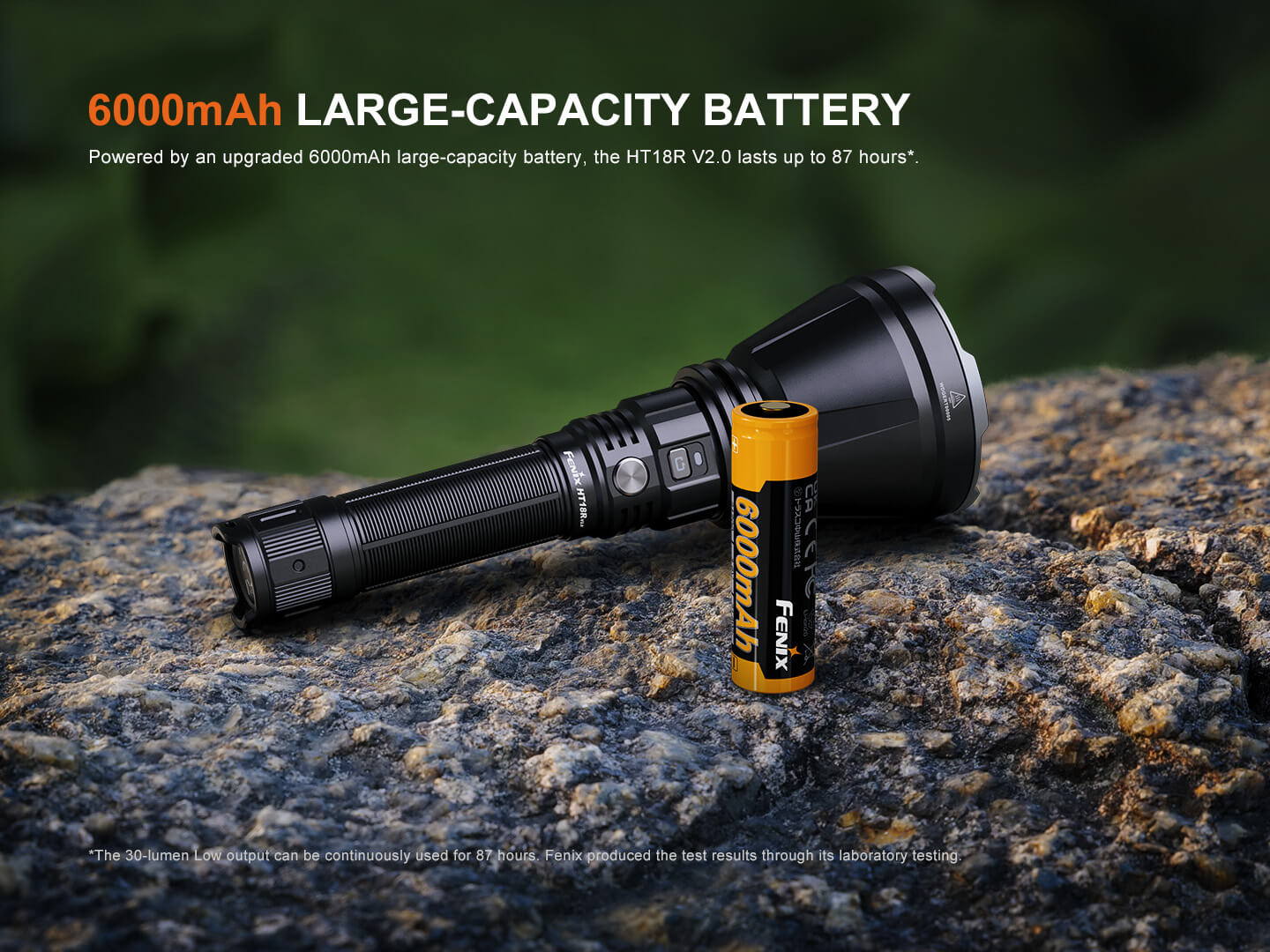

• Large capacity 6000mAh battery included
• Dual side switches

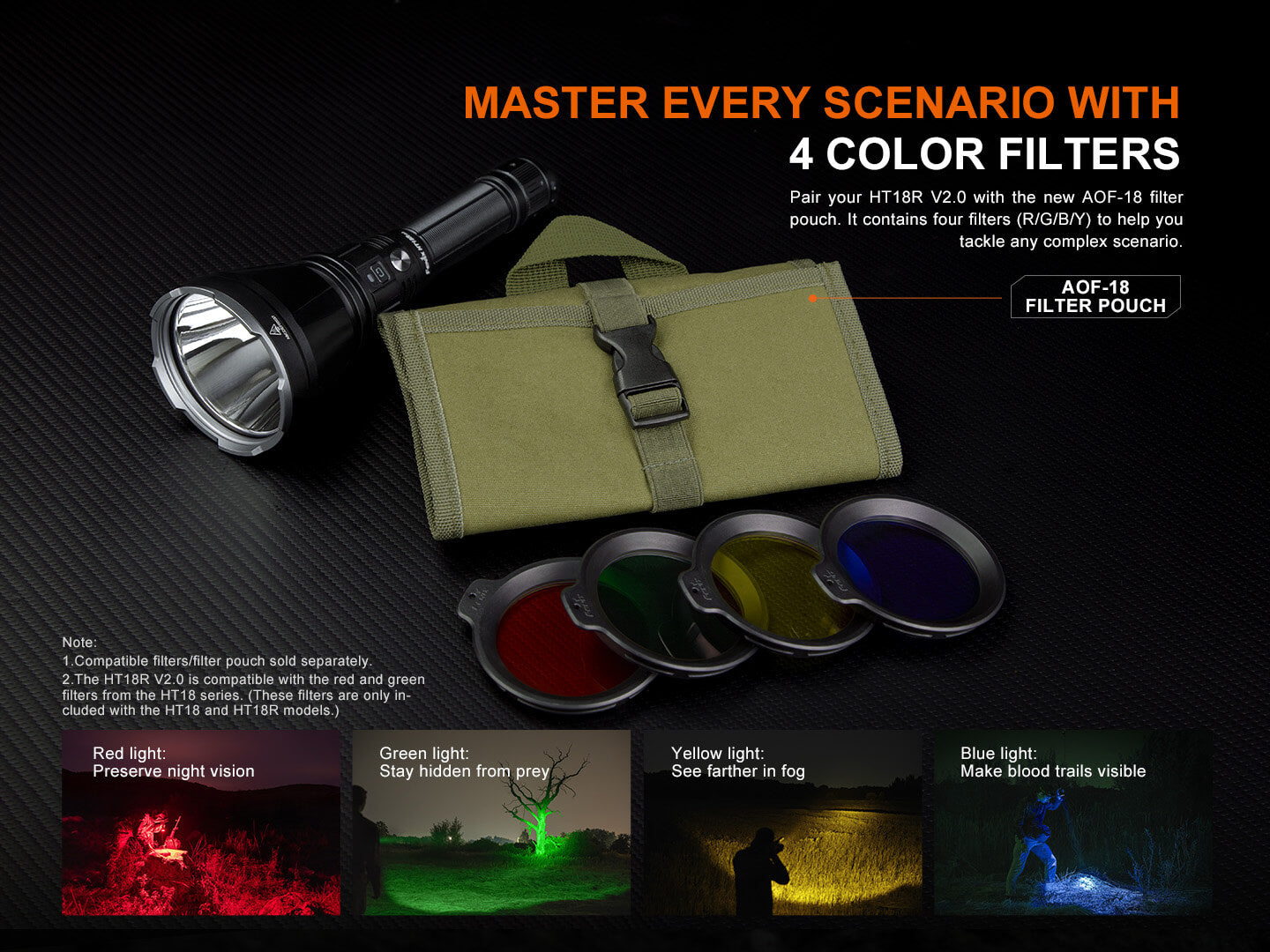

• Compatible with purpose-built AOF-18 red, green, yellow, and blue color filters
• 1-meter impact resistant

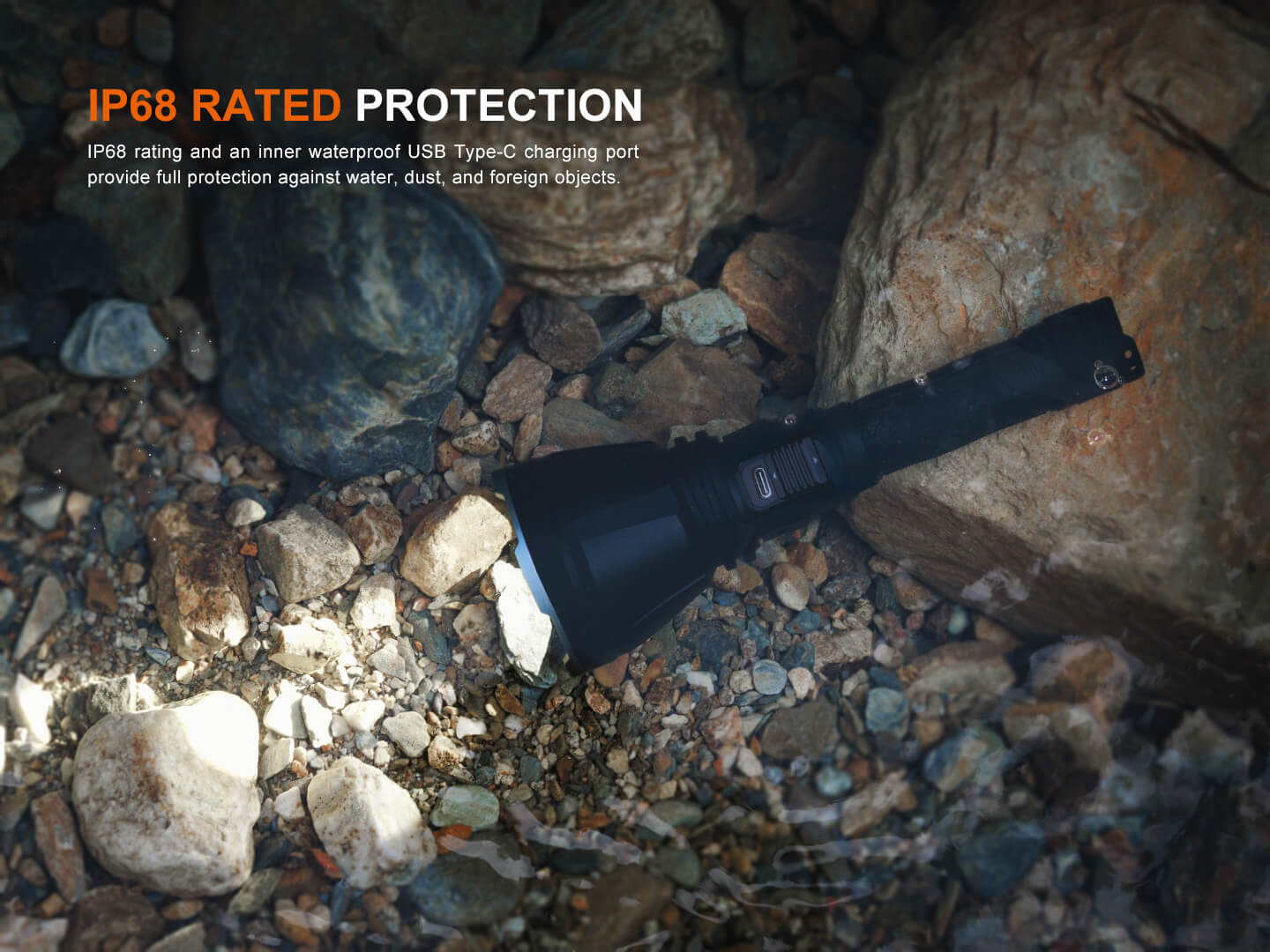

• Waterproof to IP68 standard

Batteries

• Included: Fenix ARB-L21-6000 rechargeable 6000mAh 21700 battery
• Compatible: Any Fenix 21700 battery, or 1 Fenix 18650 battery if using the ALF-18 battery adapter

Size

• Length: 7.86 inches
• Head Diameter: 2.68 inches
• Body Diameter: 1 inch
• Weight: 12.64 ounces

Q: What kind of LED is used in HT18R V2.0?

A: Utilizes one Luminus SFT90 LED with a lifespan of 50,000 hours.

Q: What is the color temperature of HT18R V2.0?

A: Around 6500K.

Q: What is the working voltage of HT18R V2.0?

A: 3.0 V - 4.2 V.

Q: Is HT18R V2.0 rechargeable? How long is the charging time?

A: Yes, the HT18R V2.0 is rechargeable with its USB Type-C charging port. The charging time is approximately 1.5 hours from depleted to fully charged with a 9 V/3 A charging adapter. When using a 5 V/3 A charging adapter that does not support fast charging, the charging time is approximately 2.5 hours.

Q: How to prevent accidental activation of the HT18R V2.0?

A: Solution 1: Turn off the flashlight and unscrew the tail cap a few turns or take out the battery.

Solution 2: Fully press the tactical switch and the functional switch simultaneously for 3 seconds to lock the flashlight.

Q: Why does the HT18R V2.0 downshift to a lower mode after being used for a while and the higher mode cannot be selected?

A: There are two reasons:

1. Intelligent Overheat Protection

The flashlight will accumulate a lot of heat when used at high output levels for extended periods. When the flashlight reaches a temperature of 60°C or above, the flashlight will automatically step down a few lumens to reduce the temperature.

2. Low-voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until the lowest output is reached.

Q: Why does the HT18R V2.0 sometimes flicker?

A: The reasons that may cause the light to flicker, shine intermittently or even fail to illuminate:

1. Poor battery level.

Solution: Recharge or replace the battery.

2. The contact or contact point of the battery or flashlight is dirty.

Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don't work, please contact your authorized distributor.

Q: What are the optional accessories for HT18R V2.0?

A:

Included lanyard & holster

AER-05 tactical remote pressure switch

ALG-18 flashlight ring

AOF-18 filer pouch

Filter adapters of HT18R & HT18R V2.0

The Fenix HT18R V2.0 is a multi-mode outdoor long-range flashlight with 3700 lumens max output and 1100 meters max beam distance. This summary is drawn from the manufacturer's official user manual — see the downloadable PDF reference manual on the product page for complete details.

Key Features

• 3700 lumens maximum output, 1100 meters maximum beam distance.
• Uses one Luminus SFT90 LED with a lifespan of 50,000 hours.
• Powered by a Fenix ARB-L21-6000 battery.
• Neck-mounted inner waterproof USB Type-C charging port with a sliding anti-dust cover.
• Dual side switch for Instant Turbo and Instant Strobe.
• Professional SOS and Beacon modes for outdoor emergencies.
• Boot-up battery level indication and low-voltage warning.

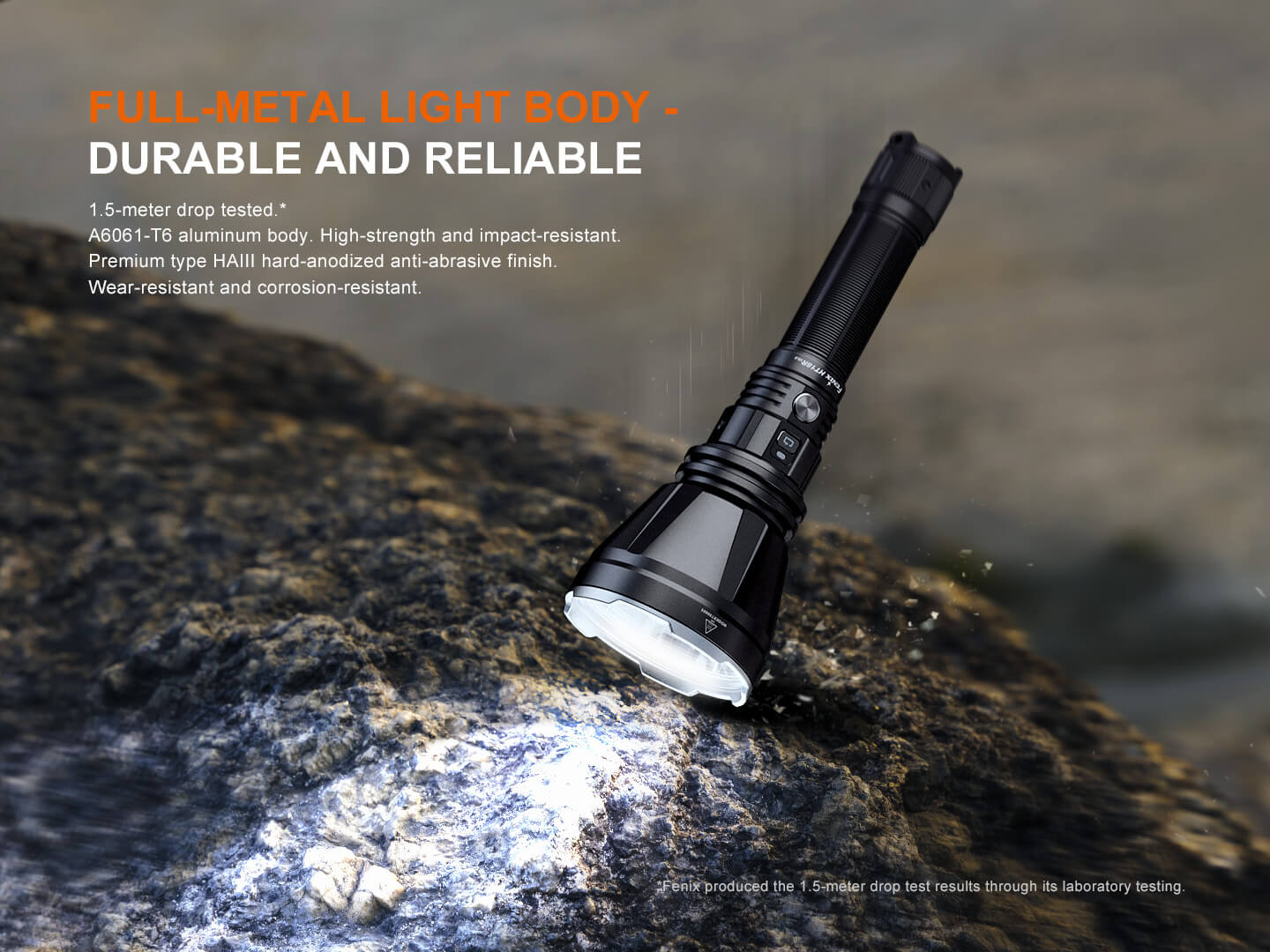

• Made of durable T6061-T6 aluminum alloy.
• Premium type HAIII hard-anodized anti-abrasive finish.
• Size: 7.86" x 2.68" x 1.00" / 199.7 x 68.04 x 25.42 mm.
• Weight: 12.64 oz / 358.2 g (including battery).

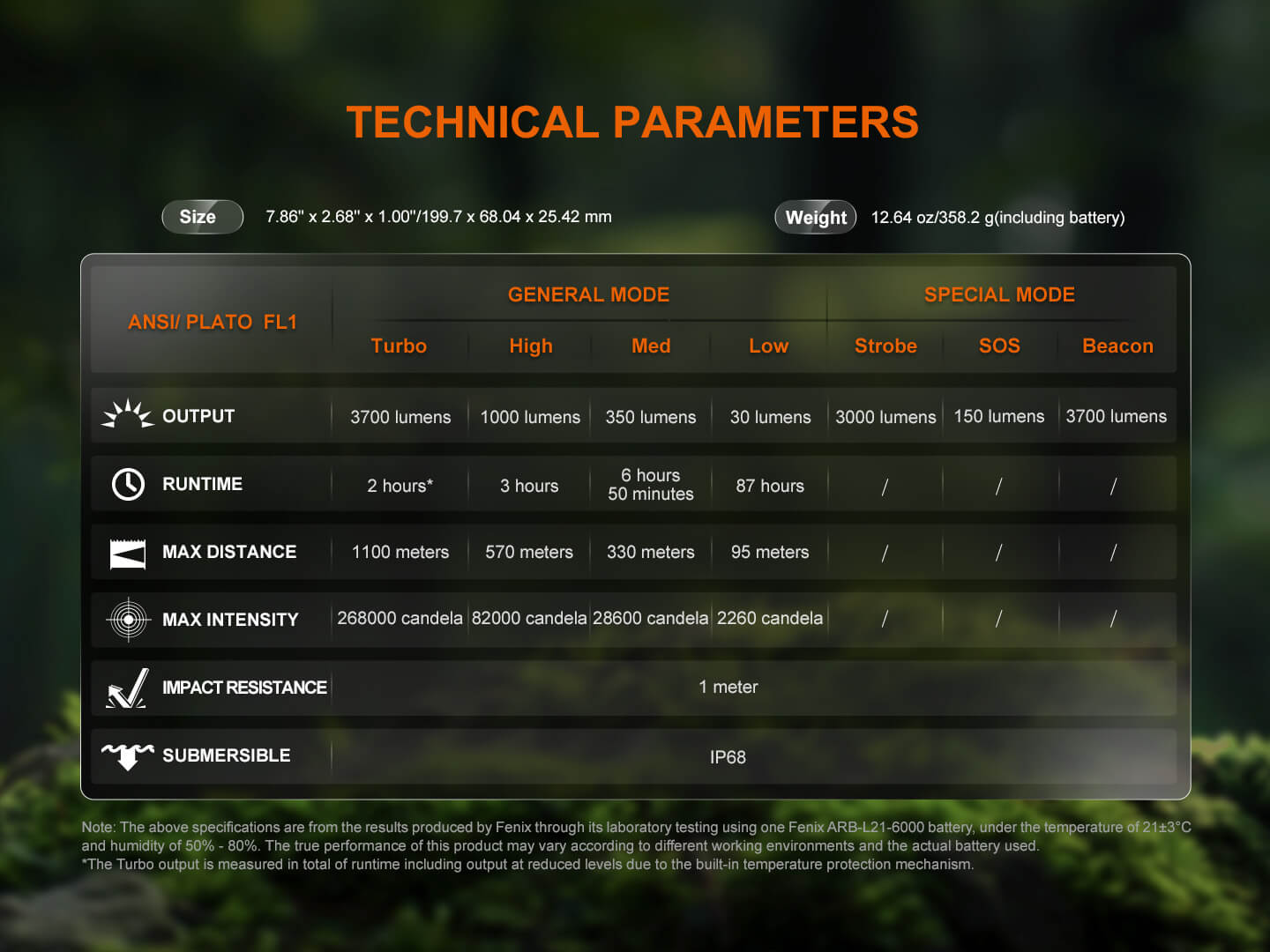

Technical Parameters (ANSI/PLATO FL1)

• Turbo: Output 3700 lumens, Runtime 2 hours*, Max Distance 1100 meters, Max Intensity 268,000 candela
• High: Output 1000 lumens, Runtime 3 hours, Max Distance 570 meters, Max Intensity 82,000 candela
• Medium: Output 350 lumens, Runtime 6 hours 50 minutes, Max Distance 330 meters, Max Intensity 28,600 candela
• Low: Output 30 lumens, Runtime 87 hours, Max Distance 95 meters, Max Intensity 2,260 candela
• Strobe: Output 3000 lumens
• SOS: Output 150 lumens
• Beacon: Output 3700 lumens

Impact Resistance: 1 meter. Submersible: IP68. *The Turbo output is measured in total runtime including output at reduced levels due to the built-in temperature protection mechanism. The above specifications are from results produced by Fenix through laboratory testing using one Fenix ARB-L21-6000 battery, under a temperature of 21±3°C and humidity of 50%-80%. Real-world performance may vary according to different working environments and the actual battery used.

Warnings

• Do not place this flashlight in the reach of children.
• Do not shine this flashlight directly into the eyes of anyone.
• Do not place light head near flammable objects; high temperatures can cause objects to overheat and become flammable/ignite.
• Do NOT use this flashlight in inappropriate ways such as holding the unit in your mouth, doing so could cause serious personal injury or death if the light or internal battery fails.
• This flashlight will accumulate a significant amount of heat during operation, resulting in a high temperature of the light shell. Pay close attention to avoid burns.
• Remove the battery to prevent accidental activation when the flashlight is placed in a closed and flammable environment such as pockets and backpacks.
• The LED of this light is not replaceable; the whole flashlight will need to be replaced when the LED reaches the end of its lifespan.

Operating Instructions

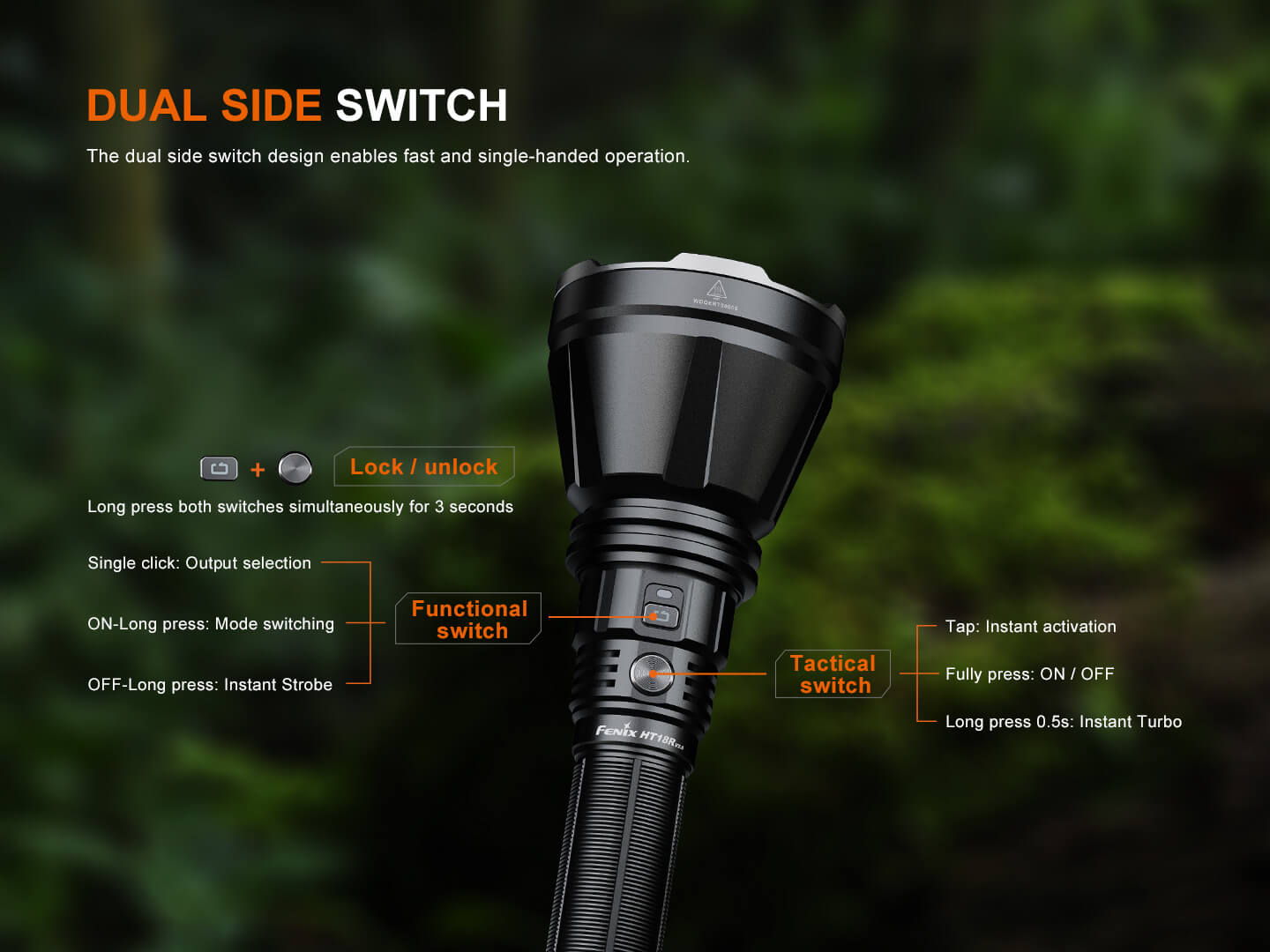

Switches: The round switch is the tactical switch for on/off, momentary-on, Instant Turbo, and additional features. The rectangular switch is the functional switch for output selection, mode switching, Instant Strobe, and other functions.

On/Off: With the light turned off, tap the tactical switch to turn on the light momentarily, release it and the light will go out. Fully press the tactical switch to constantly turn on the light. With the light turned on, fully press the tactical switch to turn off the light.

Mode Switching: With the light turned on, press and hold the functional switch for 0.5 seconds to enter the Special mode. Press and hold the functional switch for 0.5 seconds again or tap the tactical switch to exit the Special mode and recall the previously used output of the General mode, or fully press the tactical switch to turn off the light.

Output Selection: With the light turned on, in General mode: single click the functional switch to cycle through Turbo→High→Med→Low. With the light turned on, in Special mode: single click the functional switch to cycle through Strobe→SOS→Beacon.

Instant Strobe: With the light turned off, press the functional switch to enter Strobe, release it and the light will go on.

Instant Turbo: With the light turned on, fully press the tactical switch for 0.5 seconds to enter Turbo, release it to recall the previously used output. With the light turned off, fully press the tactical switch for 0.5 seconds to enter Turbo, release it and the light will go out.

Lockout Function: Lock — with the flashlight unlocked, fully press the tactical switch and the functional switch simultaneously for 3 seconds; the flashlight will blink twice on the Low output to indicate locked status. Unlock — with the light locked, fully press the tactical switch and the functional switch simultaneously for 3 seconds; the flashlight will activate on the previously used output to indicate the flashlight is unlocked. In locked status, all operations except for unlocking the flashlight will trigger 2 blinks on the Low output to indicate that it is locked.

Intelligent Memory Circuit: The flashlight automatically memorizes the previously used output, excluding Strobe, SOS, and Beacon. When turned on again, the previously used output will be recalled.

Battery Specifications

• Fenix ARB-L21 series: 21700, 3.6V — Recommended
• Rechargeable Battery (Li-ion), non-Fenix: 21700, 3.6V — Use with caution

Warning: Do not mix batteries of different brands, sizes, capacities, or types. *21700 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Using low-quality batteries or mishandling batteries (such as short-circuiting or overheating) could lead to combustion and jeopardize the safety of users and property. Any adverse effects resulting from the use of low-quality batteries are not covered by any Fenix warranty or liability. Using quality batteries with circuit protection will reduce the potential for combustion or explosion.

Battery Replacement

Unscrew the light tail and insert the battery with the anode side (+) towards the light head, then screw the light tail back on.

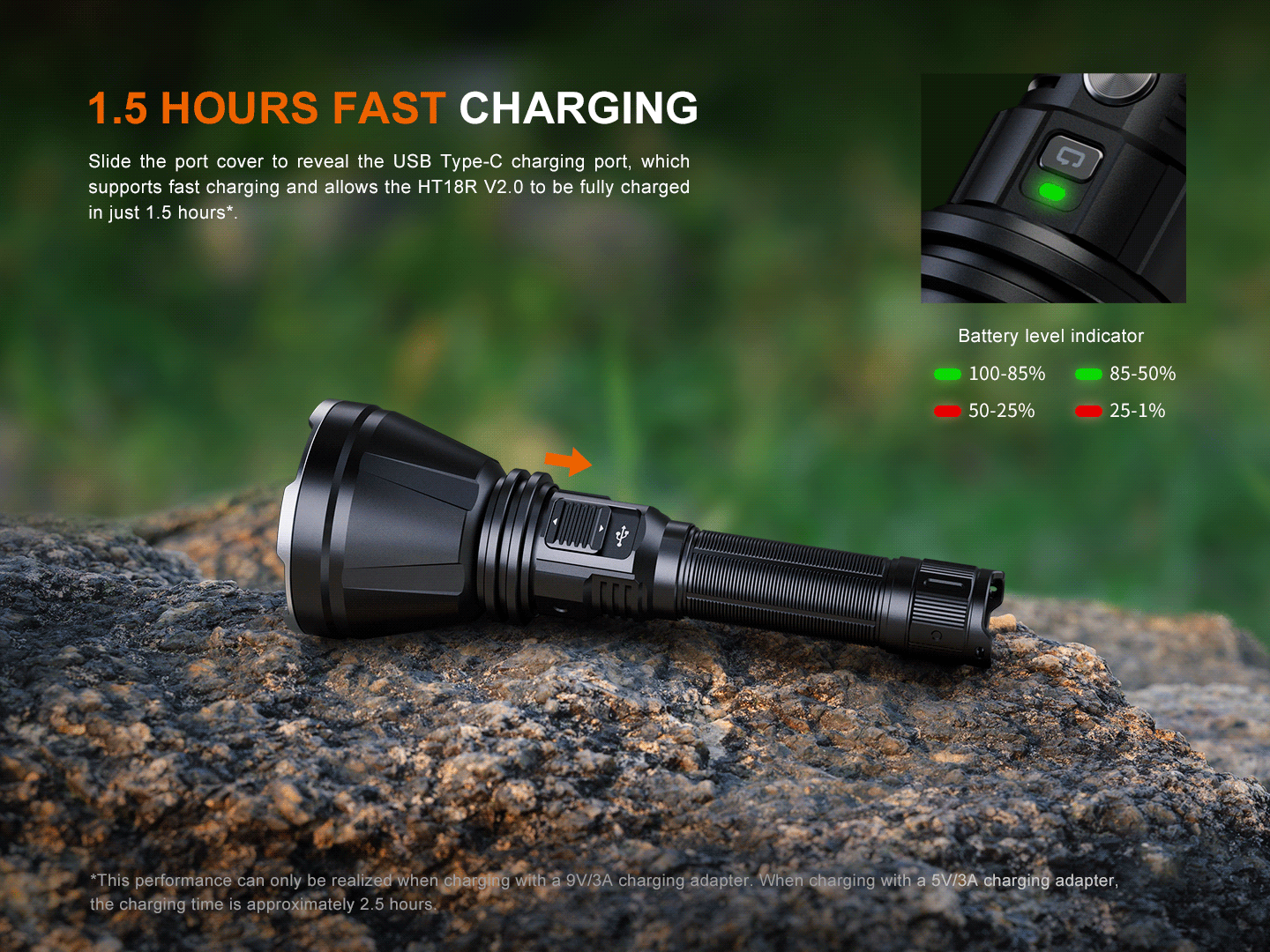

Charging

• Slide the port cover on the light neck to reveal the charging port, then connect the USB Type-C end of the charging cable to it.
• The battery level indicator will display red while charging and will turn green when fully charged.
• Once charging is completed, be sure to unplug the charging cable and slide the anti-dust cover back.

Note: The charging time is approximately 1.5 hours from depleted to fully charged with a 9V/3A charging adapter. When using a 5V/3A non-fast charging adapter, the charging time is approximately 2.5 hours. The flashlight can be operated while charging. Recharge a stored flashlight every four months to maintain the optimum performance of the battery. This only works with a Fenix ARB-L21 Series rechargeable battery.

Battery Level Indication

Each time the flashlight is turned on, the battery level indicator will indicate the battery level and will last for 3 seconds. If the flashlight is turned off within 3 seconds, the battery level indicator will go out accordingly.

• Green light on: saturated 100% - 85%
• Green light flashes: sufficient 85% - 50%
• Red light on: poor 50% - 25%
• Red light flashes: critical 25% - 1%

*Note: This only works with a Fenix ARB-L21 Series rechargeable battery.

Intelligent Overheat Protection

The flashlight will accumulate a lot of heat when used at high output levels for extended periods. When the flashlight reaches a temperature of 60°C/140°F or above, it will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C/140°F, the flashlight will gradually recall the preset output level.

Low-Voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Low output is reached. When this happens in Low output, the battery level indicator blinks red to remind users to recharge or replace the battery in a timely manner.

Usage and Maintenance

• Disassembling the sealed head can cause damage to the flashlight and will void the warranty.
• Fenix recommends using an excellent quality battery.
• If the flashlight will not be used for an extended period, remove the battery, or the flashlight could be damaged by electrolyte leakage.
• Unscrew the tail cap a few turns or take out the battery to prevent accidental activation during storage or transportation.
• Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
• Periodic cleaning of the flashlight and battery contacts improves the flashlight's performance as dirty contacts may cause the flashlight to flicker, shine intermittently, or even fail to illuminate. If the above methods don't work: A. Poor battery level — recharge or replace the battery. B. The contact or contact point of the battery or flashlight is dirty — clean the contact points with a cotton swab soaked in rubbing alcohol. If the above methods don't work, please contact the distributor.

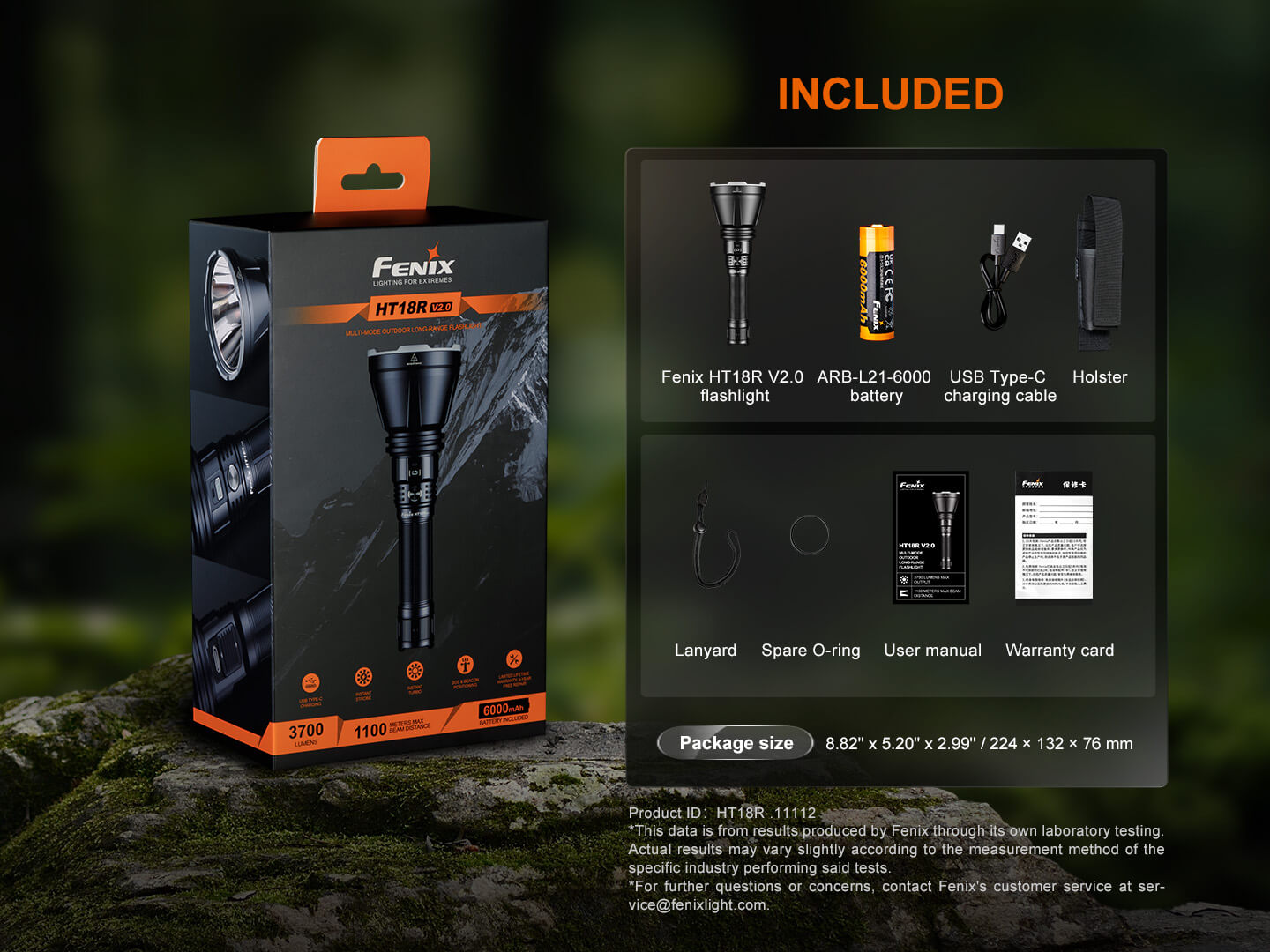

What's Included

• Fenix HT18R V2.0 flashlight
• ARB-L21-6000 battery
• USB Type-C charging cable
• Lanyard
• Holster
• Spare O-ring
• User manual
• Warranty card
