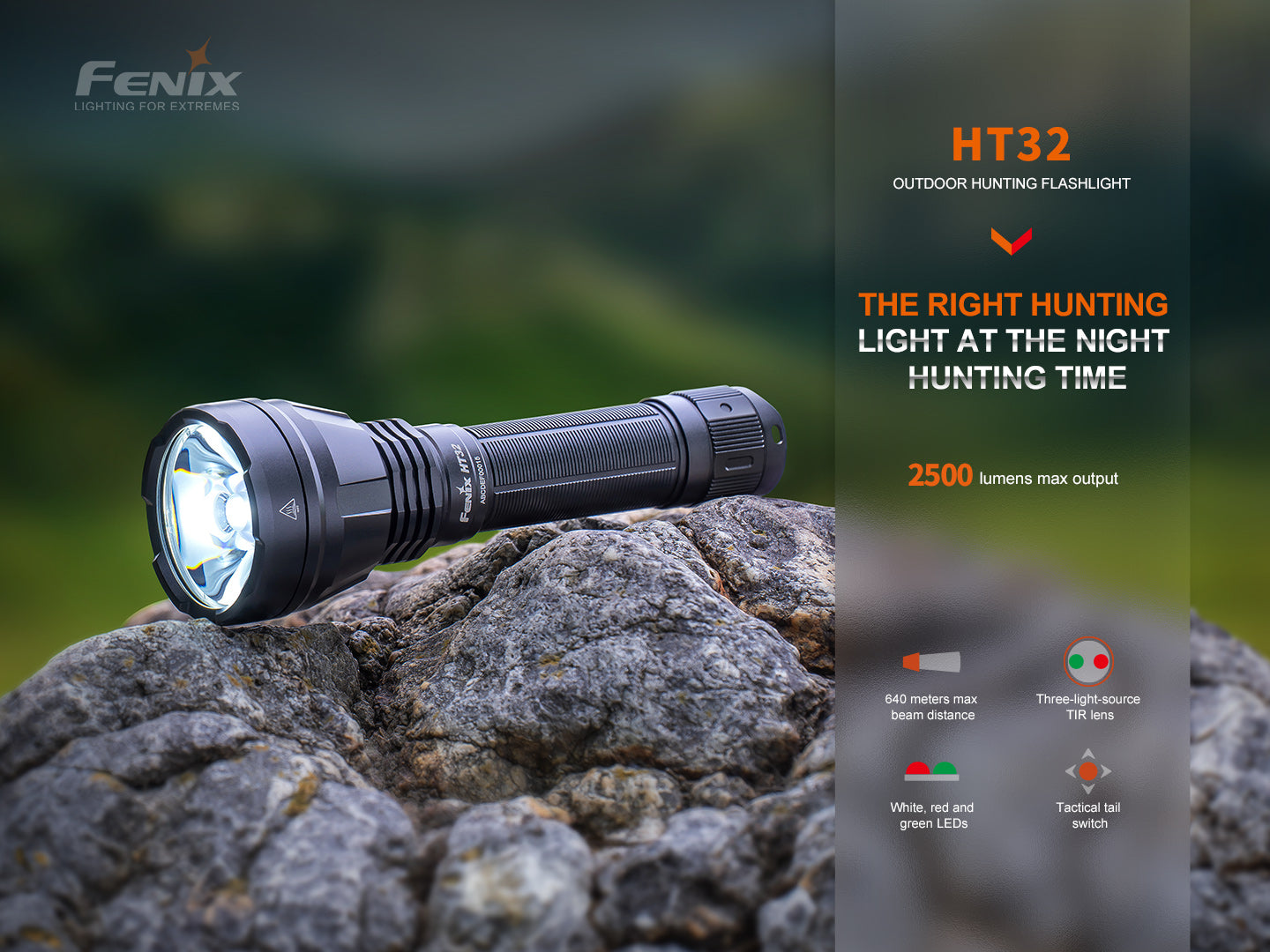

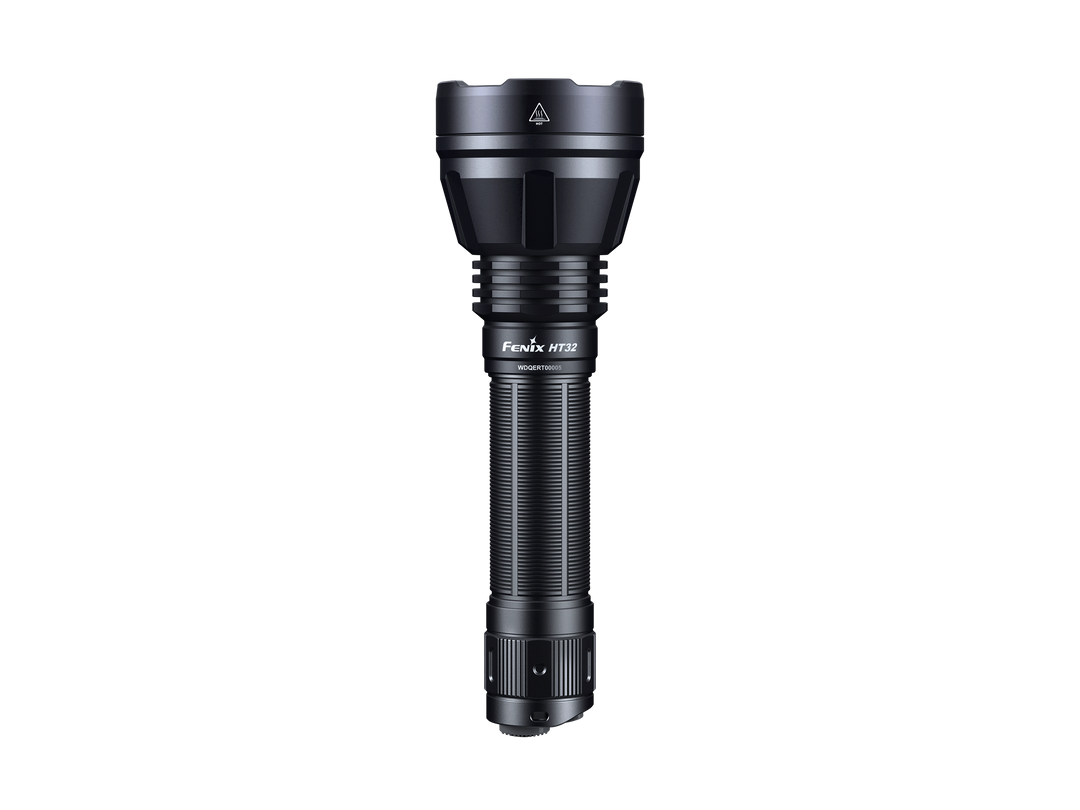

Fenix HT32 Hunting Flashlight with Red & Green Output

Outputs

• White outputs
• Turbo: 2500 Lumens, 1.83 hours, 2100 feet, 101,000 candela
• High: 1000 Lumens, 2.5 hours, 1378 feet, 43,200 candela
• Med: 350 Lumens, 8 hours, 820 feet, 15,000 candela
• Low: 50 Lumens, 29 hours, 328 feet, 2,300 candela
• Strobe: 2500 Lumens
• Red outputs
• High: 400 Lumens, 3.25 hours, 394 feet, 3,120 candela
• Low: 150 Lumens, 4.83 hours, 230 feet, 1,100 candela
• Green outputs
• High: 1400 Lumens, 2.5 hours, 689 feet, 11,000 candela
• Low: 350 Lumens, 6 hours, 328 feet, 2,500 candela

Details

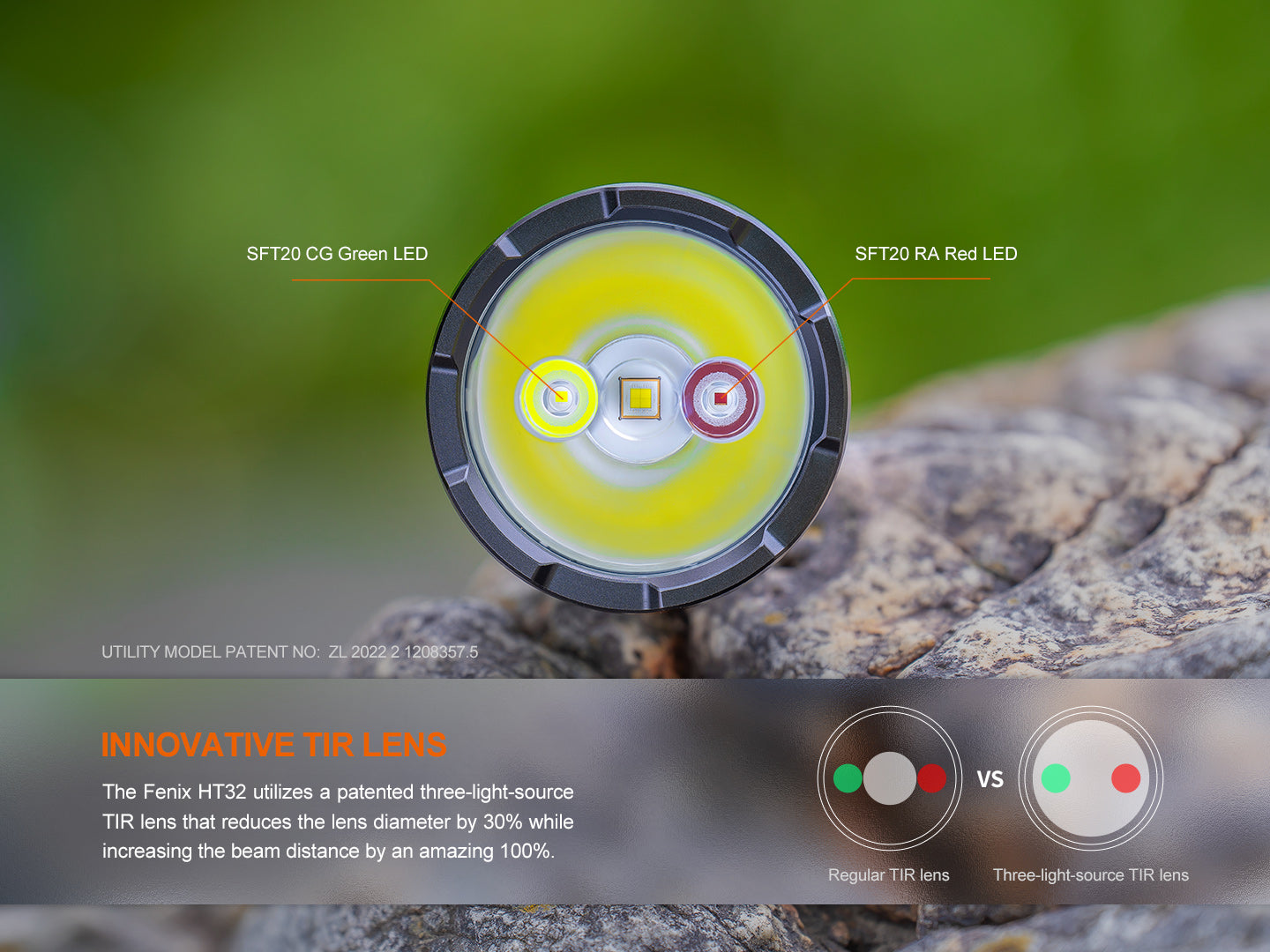

• Luminus SFT70 white LED
• Luminus SFT20 CG green LED
• Luminus SFT20 RA red LED
• Red and green light are less visible to game animals

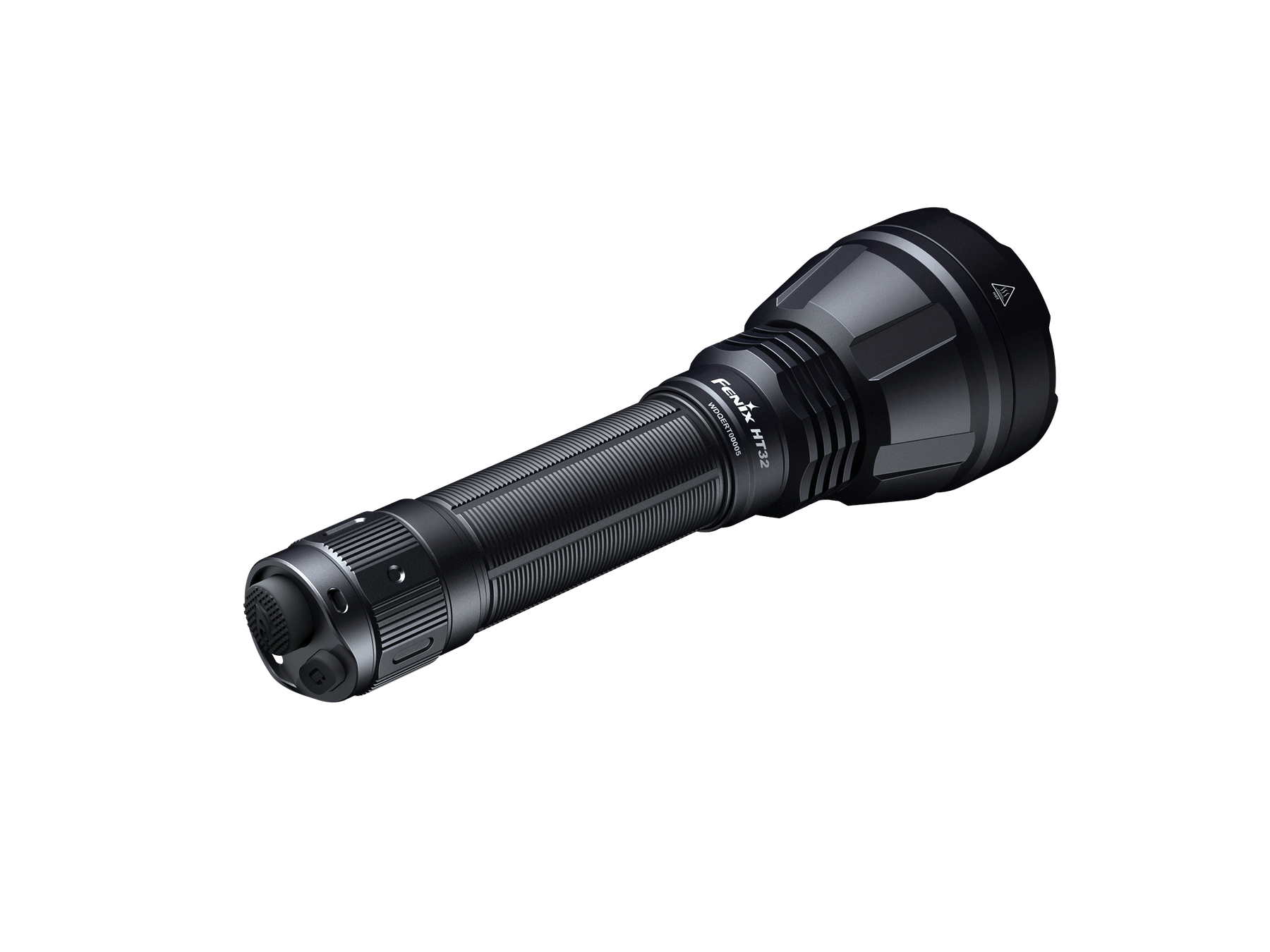

• Tactical dual-switch tail cap
• True-instant strobe
• Three-source patented TIR lens doubles beam throw
• USB Type-C rechargeable battery included

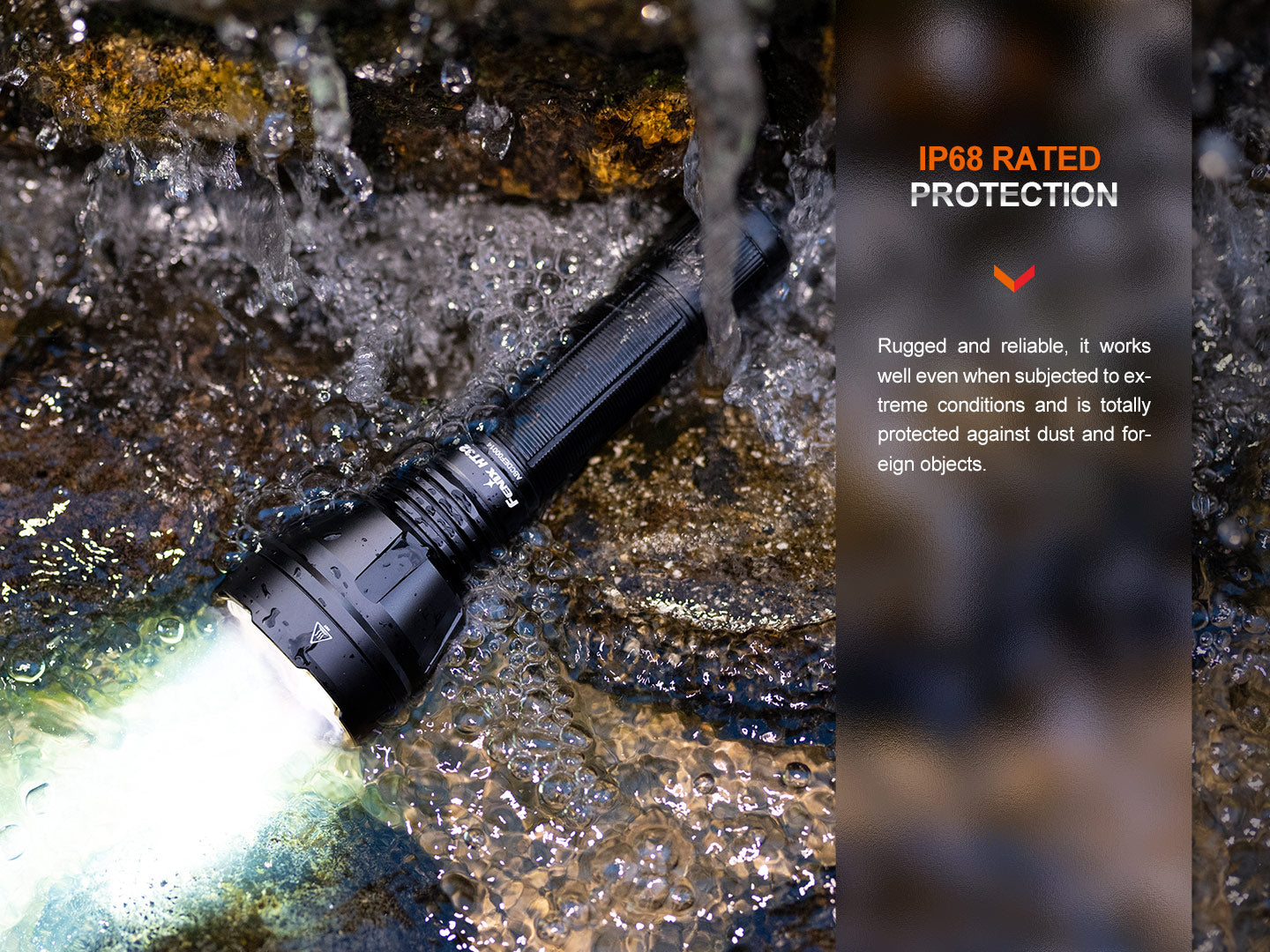

• IP68 rated waterproofing

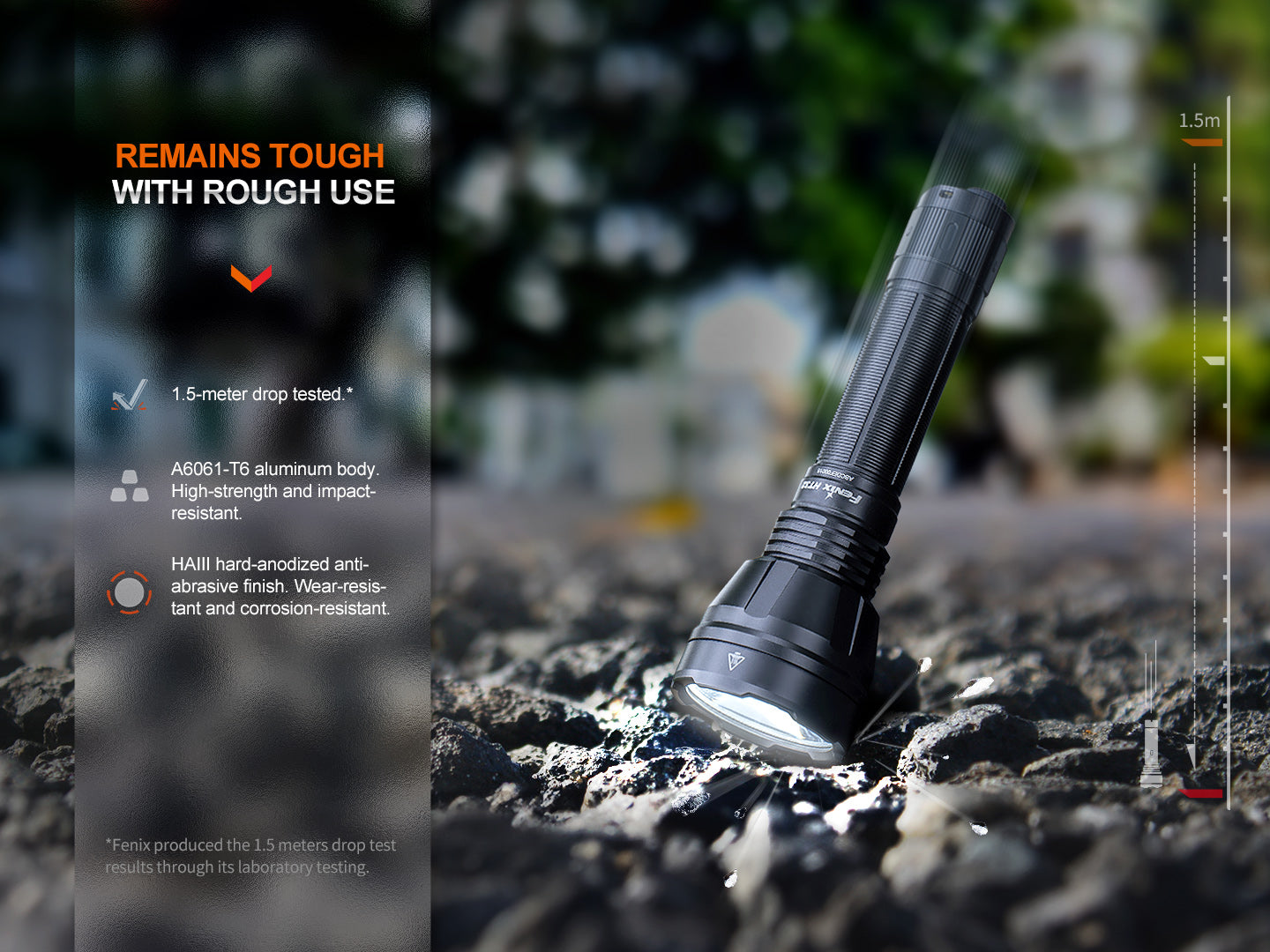

• 1-meter impact resistant
• A6061-T6 high-strength, impact-resistant aluminum body
• HAIII hard-anodized anti-abrasive finish

Batteries

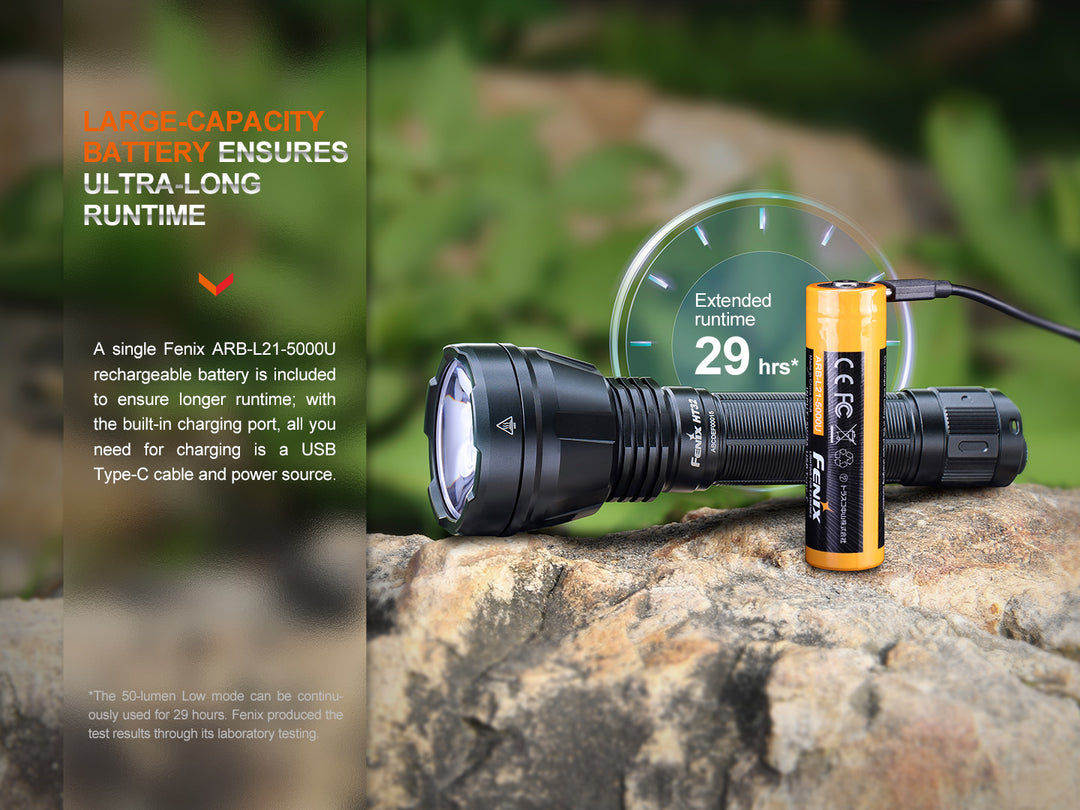

• Included: Fenix ARB-L21-5000U USB-C rechargeable battery
• Compatible battery: One 21700 battery or one 18650 battery when using the ALF-18 battery adapter

Size

• Length: 6.3 inches
• Head diameter: 2.05 inches
• Body diameter: 1 inch
• Weight: 6.53 ounces

What kind of LED is used in HT32?

The HT32 uses a Luminus SFT70 LED for the white light, an SFT20 RA LED for the red light, and a SFT20 CG LED for the green light.

What is the color temperature of the HT32?

Around 6500K

What is the working voltage of the HT32?

Between 3.0-4.2 V

Is the HT32 rechargeable?

The HT32 does not have a charging port on it, but it does include the ARB-L21-5000U battery which has a built-in USB-C charging port.

The Fenix HT32 is an outdoor hunting flashlight with 2500 lumens maximum output and 640 meters maximum beam distance, combining a bright white spotlight with auxiliary red and green LEDs for hunting and outdoor use. This summary is drawn from the manufacturer's official user manual — see the downloadable PDF reference manual on the product page for complete details.

Overview and Key Features

• 2500 lumens maximum output, 640 meters maximum beam distance.
• Uses one Luminus SFT70 white light LED with a lifespan of 50,000 hours.
• Uses one Luminus SFT20 RA high-performance red light LED, which delivers a max output of 400 lumens and a max beam distance of 120 meters.
• Uses one Luminus SFT20 CG high-performance green light LED, which delivers a max output of 1400 lumens and a max beam distance of 210 meters.
• While the patented TIR Lens diameter has been reduced by 30%, its beam distance has been increased by an amazing 100%.
• Powered by one Fenix ARB-L21 series battery.
• Instant strobe.
• Dual tail switches for fast, single-handed operation.
• Made of durable A6061-T6 aluminum.
• Premium type HAIII hard-anodized anti-abrasive finish.
• Size: 6.30" x 2.05" x 1.00" / 160 x 52 x 25.4 mm.
• Weight: 6.53 oz / 185 g (excluding battery).

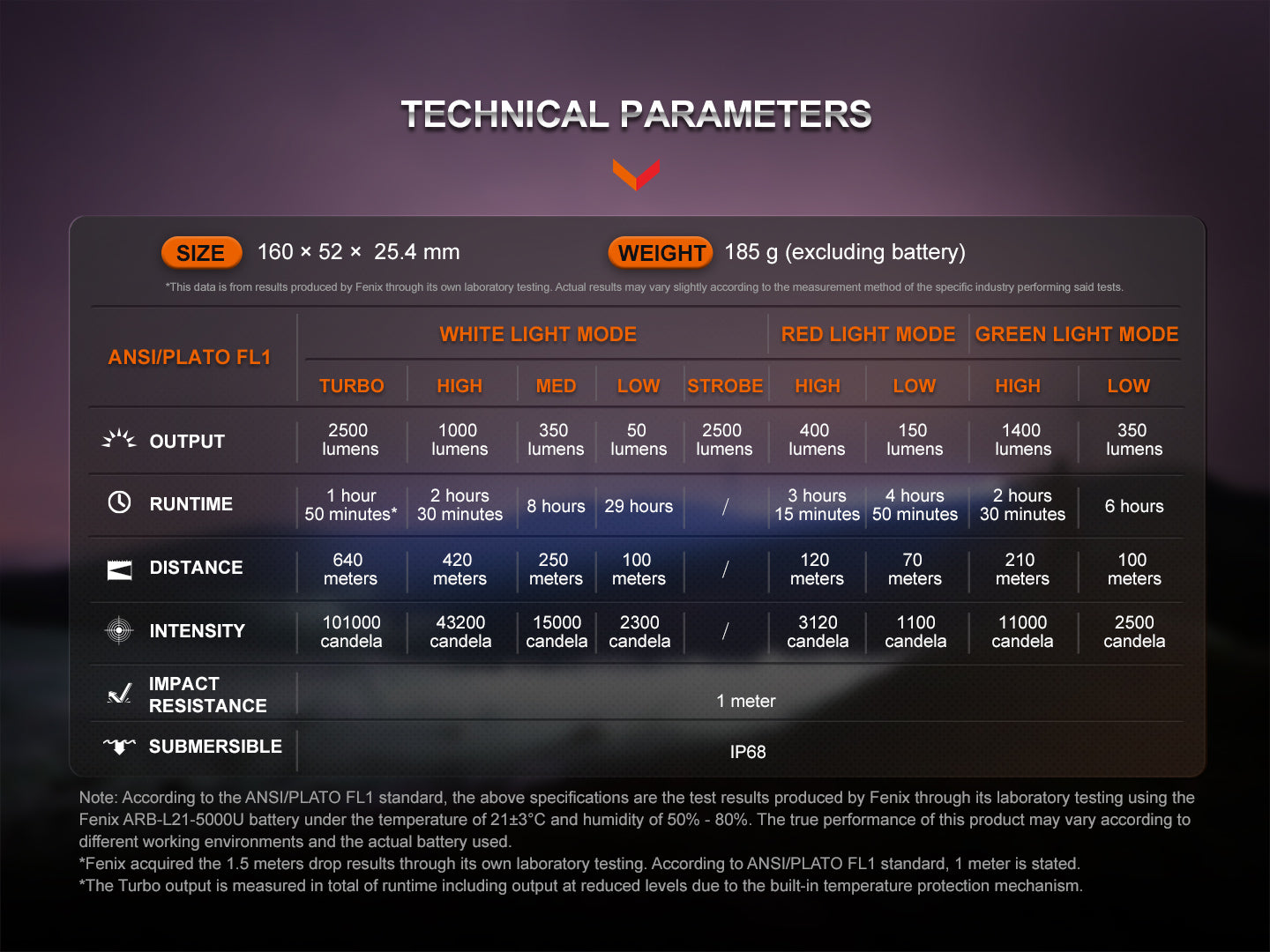

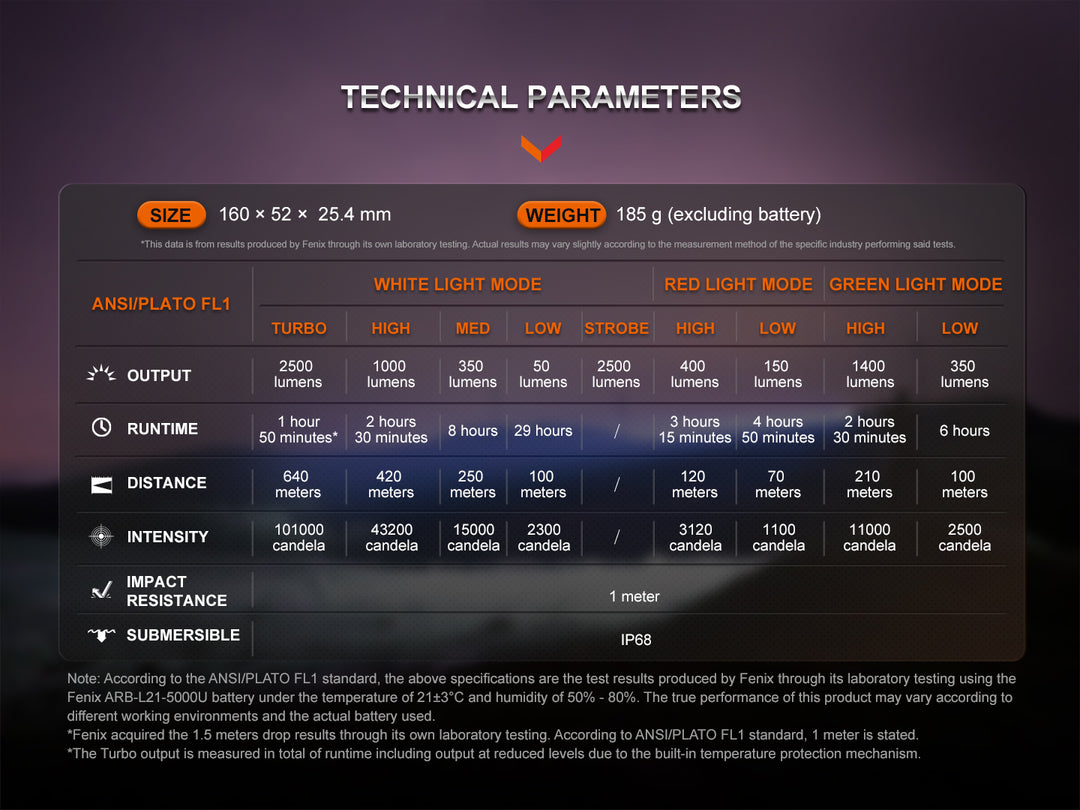

Technical Parameters (ANSI/PLATO FL1)

• White Light — Turbo: 2500 lumens, 1h 50min, 640 m (2,100 ft), 101,000 candela
• White Light — High: 1000 lumens, 2h 30min, 420 m (1,378 ft), 43,200 candela
• White Light — Med: 350 lumens, 8 hours, 250 m (820 ft), 15,000 candela
• White Light — Low: 50 lumens, 29 hours, 100 m (328 ft), 2,300 candela
• White Light — Strobe: 2500 lumens
• Red Light — High: 400 lumens, 3h 15min, 120 m (394 ft), 3,120 candela
• Red Light — Low: 150 lumens, 4h 50min, 70 m (230 ft), 1,100 candela
• Green Light — High: 1400 lumens, 2h 30min, 210 m (689 ft), 11,000 candela
• Green Light — Low: 350 lumens, 6 hours, 100 m (328 ft), 2,500 candela

Impact Resistance: 1 meter. Submersible: IP68 (waterproof, submersible). Note: the above specifications are the test results produced by Fenix through its laboratory testing using the Fenix ARB-L21-5000U battery under a temperature of 21±3°C and humidity of 50%–80%. The true performance of this product may vary according to different working environments and the actual battery used. The Turbo output is measured in total runtime including output at reduced levels due to the built-in temperature protection mechanism.

Warnings

• Do not place this flashlight out of the reach of children.
• Do NOT shine the flashlight directly into the eyes of anyone.
• Do NOT place light head near flammable objects; high temperatures can cause objects to overheat and become flammable/ignite.
• Do NOT use the flashlight in inappropriate ways such as holding the unit in your mouth, doing so could cause serious personal injury or death if the flashlight or internal battery fails.
• This flashlight will accumulate a significant amount of heat while operating, resulting in a high temperature of the flashlight shell. Pay close attention to avoid burns.
• Remove the battery from the flashlight to prevent accidental activation when the flashlight is placed in a closed-in and flammable environment such as pockets and backpacks.
• The LED of this flashlight is not replaceable; so the whole flashlight will need to be replaced when the LED reaches the end of its lifespan.

Operating Instructions

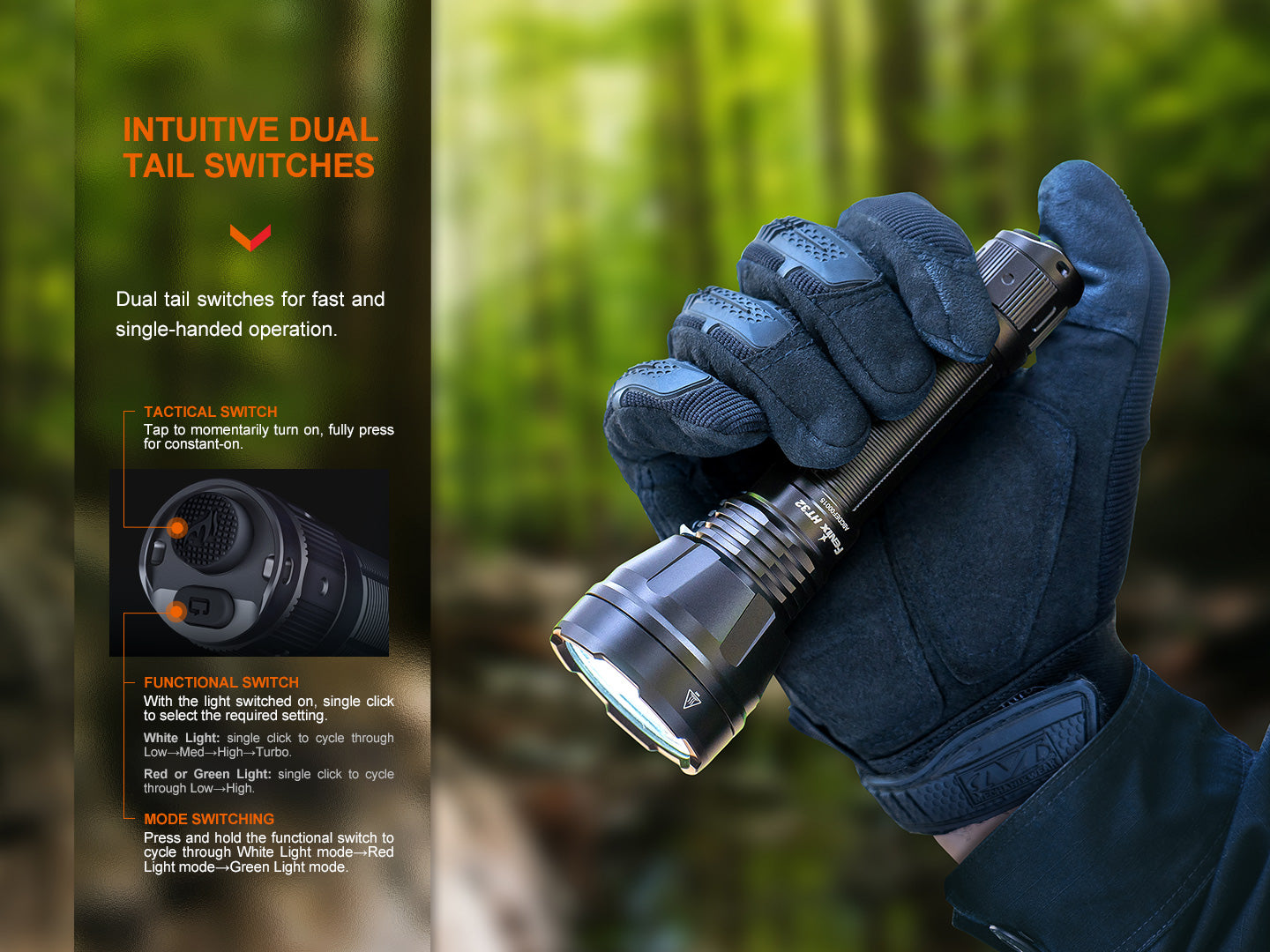

On/Off (Tactical switch): Tap the tactical switch to momentarily turn on the light, release it and the light will go out. Fully press the tactical switch to constantly turn on the light, fully press again to turn off the flashlight.

Output Selection: White Light mode: with the white light switched on, single click the functional switch to cycle through Low→Med→High→Turbo. Red/Green light mode: with the red/green light switched on, single click the functional switch to cycle through Low→High.

Mode Switching: With the light switched on, press and hold the functional switch to cycle through White Light mode→Red Light mode→Green Light mode.

Strobe: With the light switched off, press the functional switch to enter Strobe, release it and the light will go out.

Intelligent Memory Circuit: The light memorizes the last selected output, excluding strobe. When turned on again, the previously used output will be recalled.

Battery Specifications

• Fenix ARB-L21-5000 V2.0: 21700, 3.6V — Recommended
• Fenix ARB-L21-5000U: 21700, 3.6V — Recommended
• Fenix ARB-L21-4000P: 21700, 3.6V — Recommended
• Other types of Li-ion battery: 21700, 3.6V — Caution

*21700 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only using quality batteries with circuit protection will reduce the potential for combustion or explosion; cell damage or short circuiting are considered user induced damage and are not covered by any Fenix warranty or liability.

Battery Replacement

Unscrew the tail cap and insert the battery with the anode side (+) towards the light head, then screw the tail cap back on.

Intelligent Overheat Protection

The light will accumulate a lot of heat when used at high output levels for extended periods. When the light reaches a temperature of 65°C/149°F or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 65°C/149°F, it will then gradually return to the standard output level.

Low-Voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Low output is reached. When this brightness level is reached (Low output), the light blinks 3 times every 5 minutes to remind users to recharge or replace the battery. Note: this feature only works with a Fenix ARB-L21 series rechargeable battery.

Usage and Maintenance

• Disassembling the sealed head can cause damage to the light and will void the warranty.
• Fenix recommends using an excellent quality battery.
• If the light will not be used for an extended period, remove the battery, or the light could be damaged by electrolyte leakage or battery explosion.
• Remove the battery to prevent accidental activation during storage or transportation.
• Long-term use can result in O-ring wear. To maintain a proper water seal, replace the O-ring with an approved spare.
• Periodic cleaning of the battery contacts improves the lamp's performance, as dirty contacts may cause the lamp to flicker, shine intermittently, or even fail to illuminate intermittently for the following reasons: A. Poor battery level — recharge or replace the battery. B. The threads, PCB board contact, or other contacts are dirty — clean the contact points with a cotton swab soaked in rubbing alcohol. If the above methods don't work, please contact your authorized distributor.

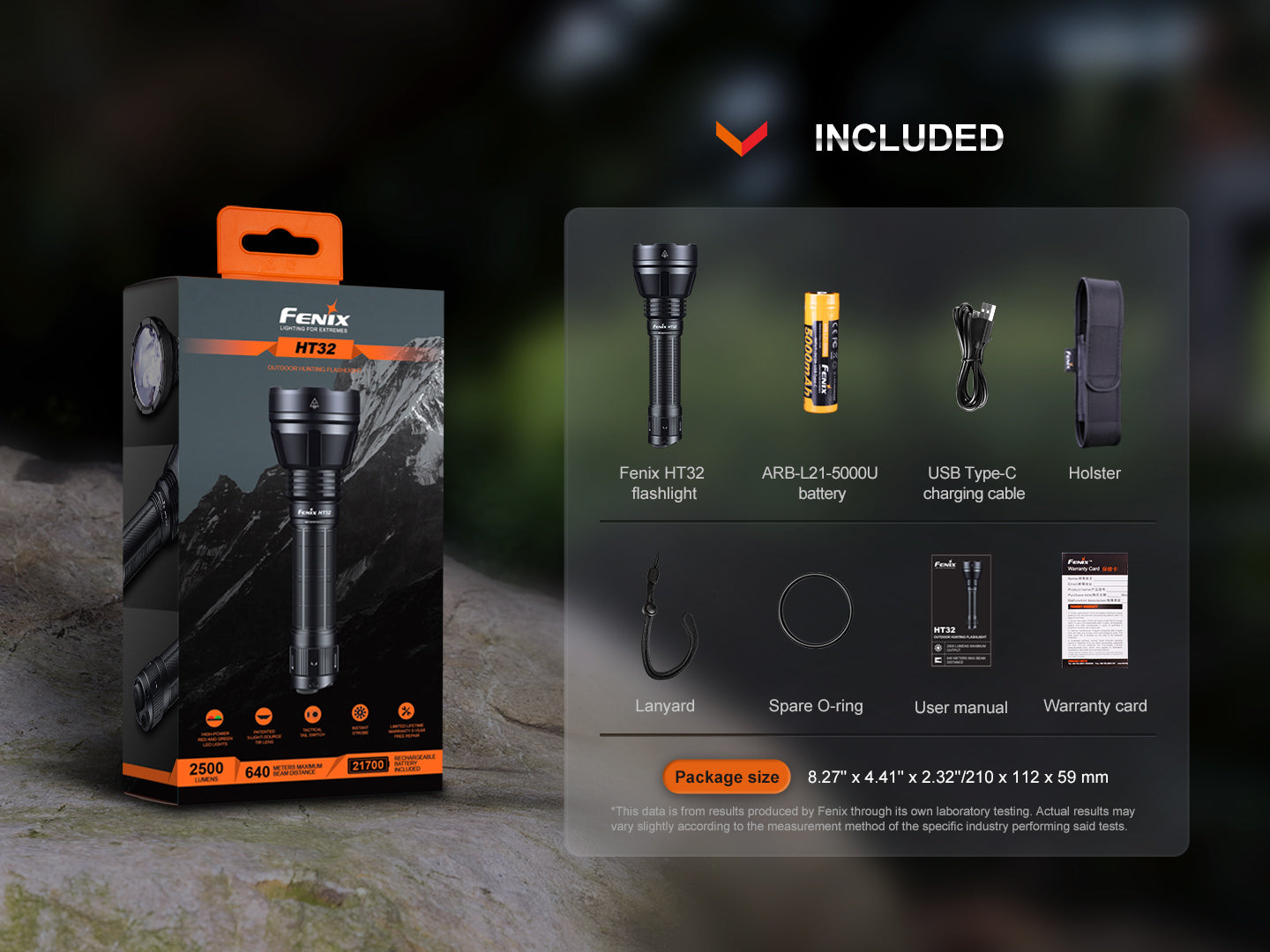

What's Included

• Fenix HT32 flashlight
• ARB-L21-5000U battery
• Lanyard
• Holster
• Spare O-ring
• User manual
• Warranty card
