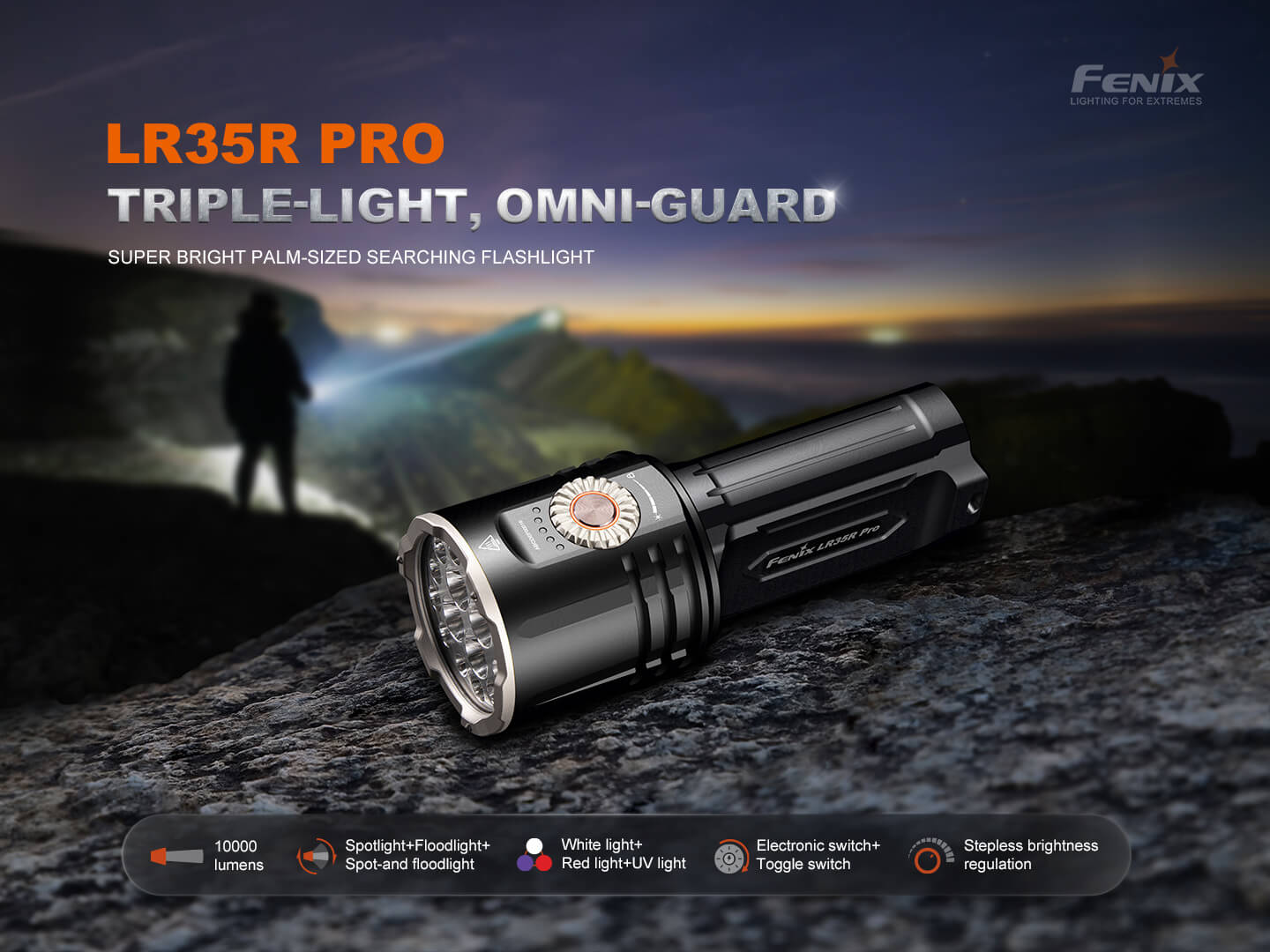

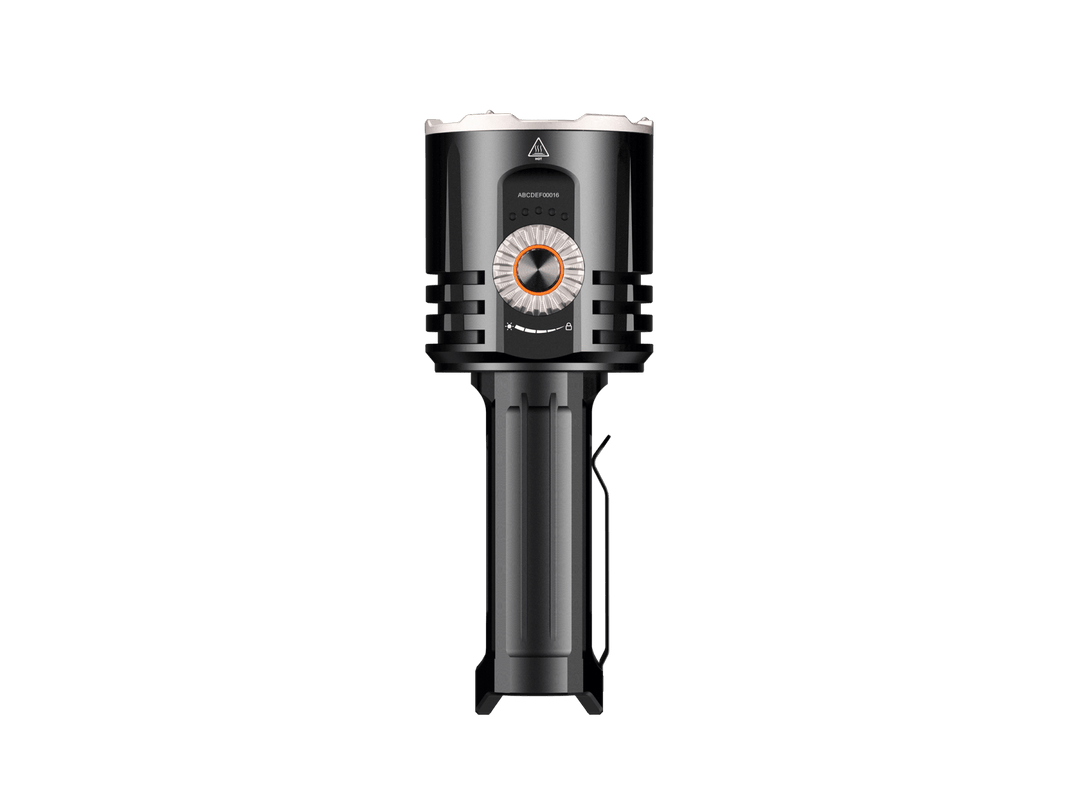

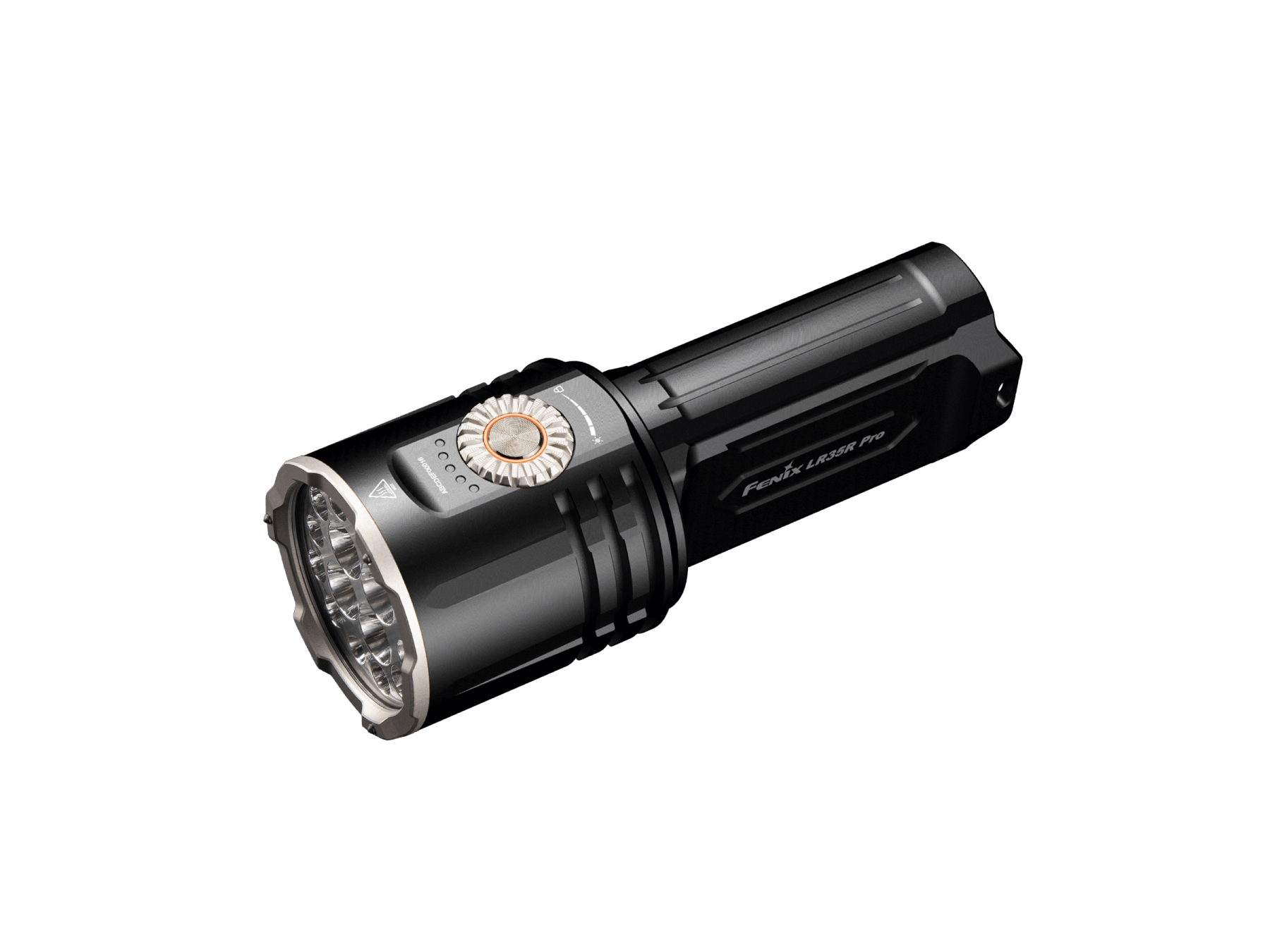

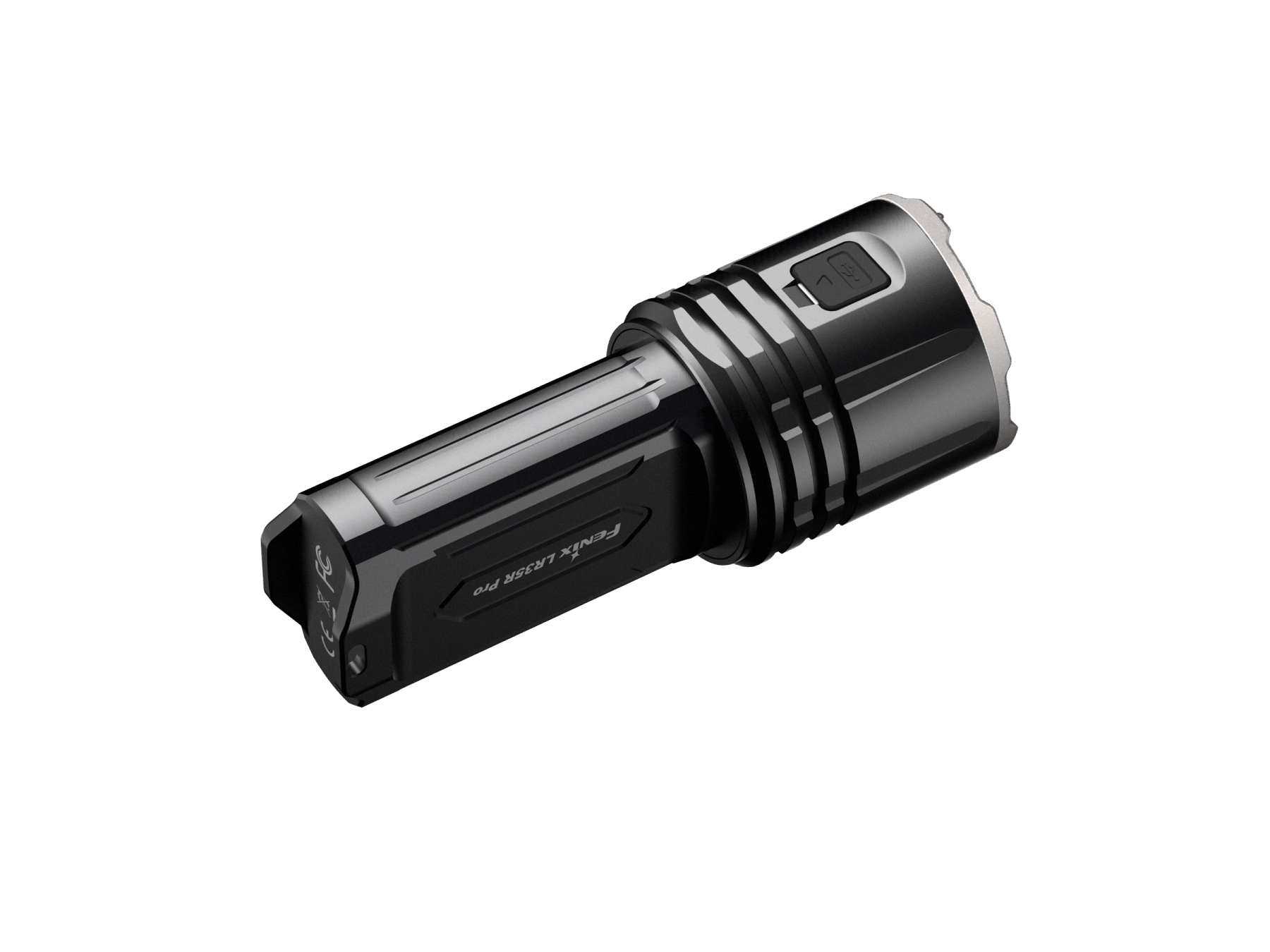

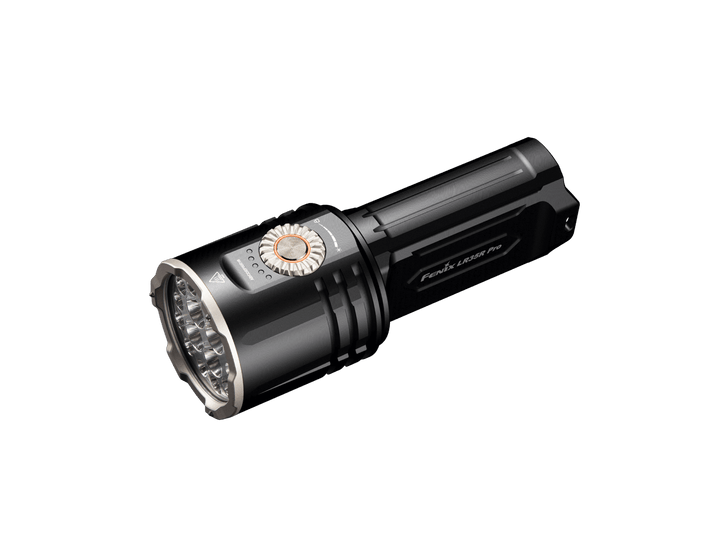

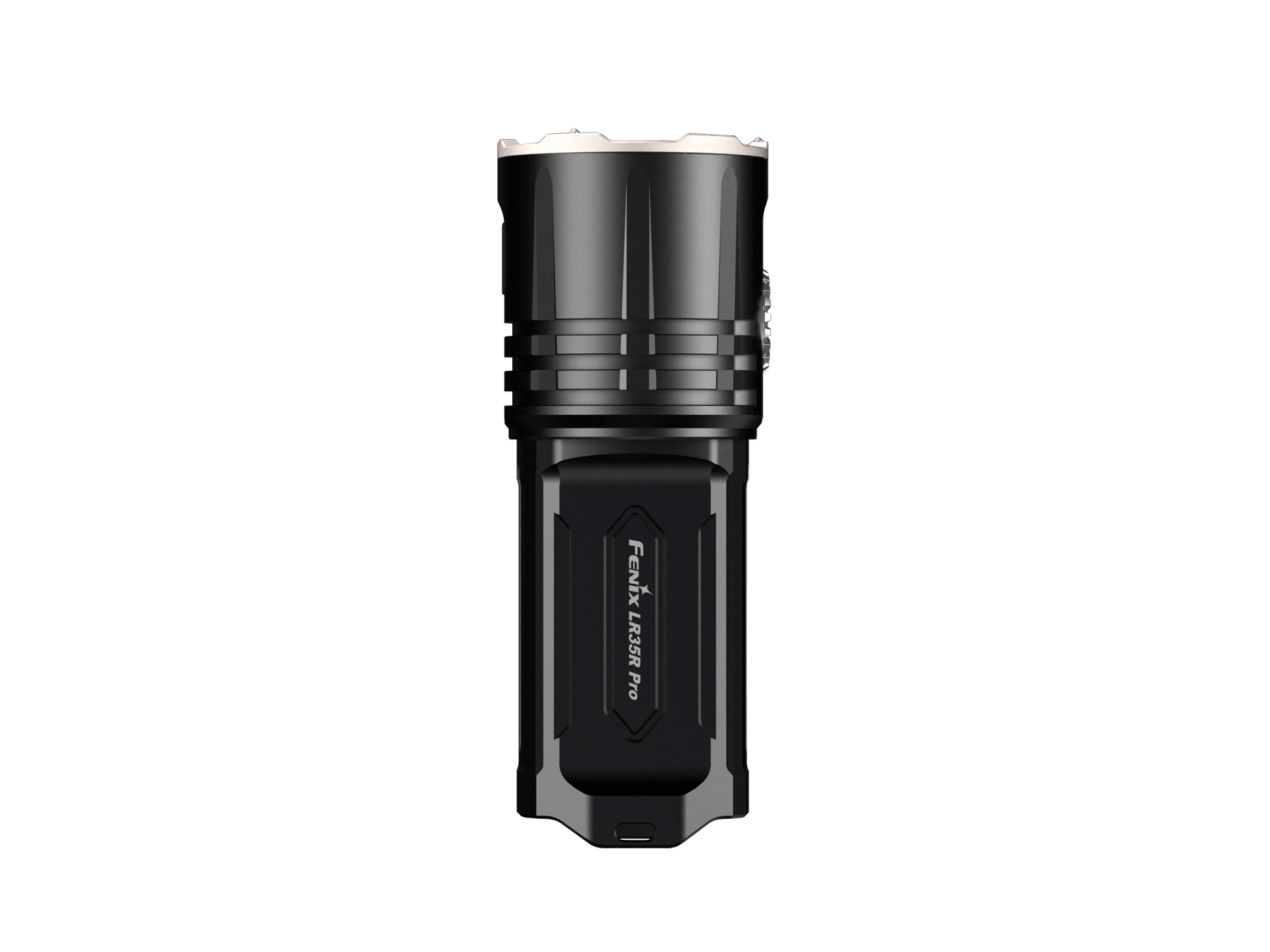

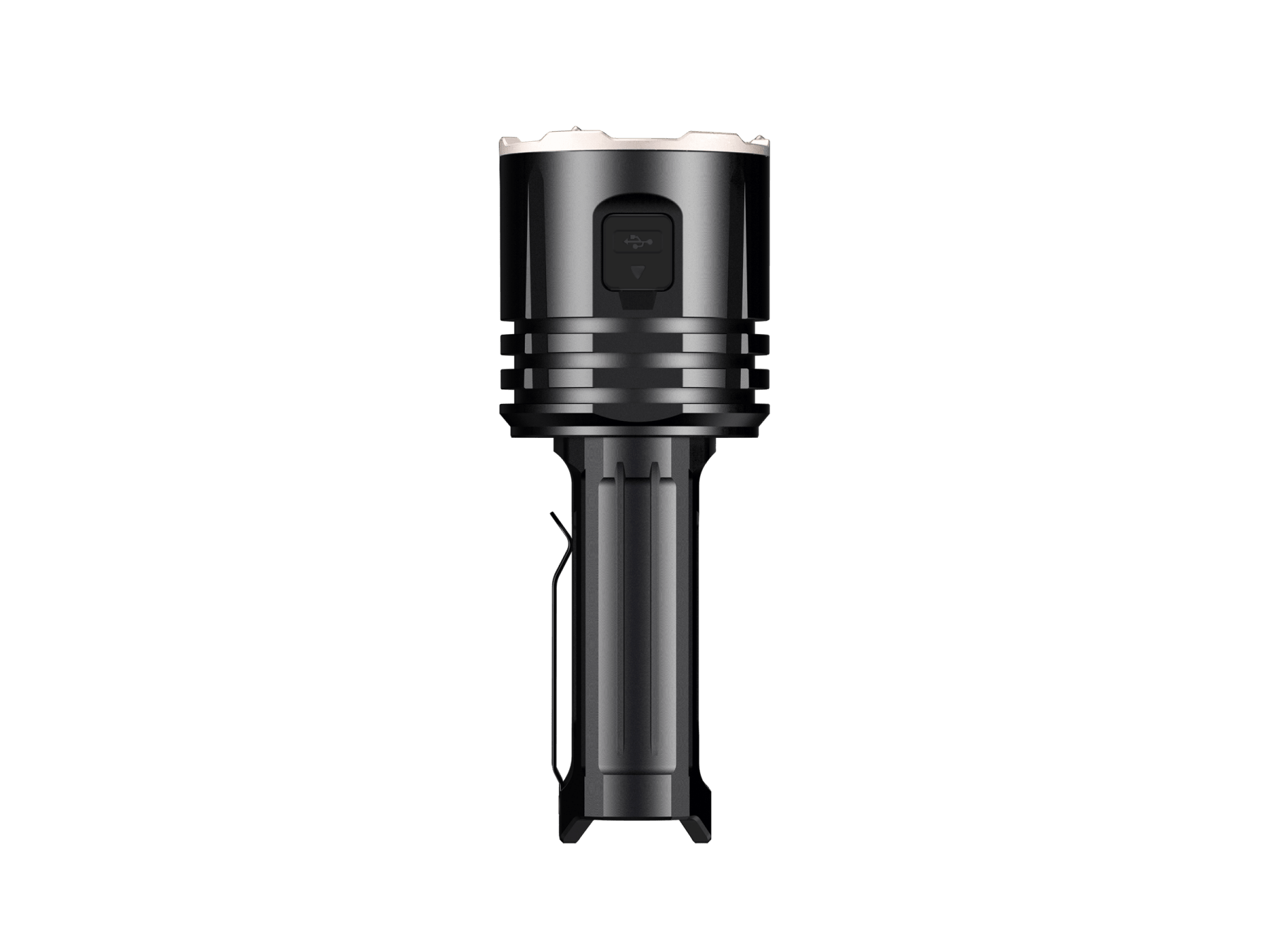

Fenix LR35R PRO Rechargeable Palm-Sized Searchlight

Outputs

• Spotlight/Floodlight Combined
• High: 10000 Lumens, 2.58 hours, 1459 feet
• Med: 5000 Lumens, 3.23 hours, 1099 feet
• Low: 80 Lumens, 61 hours, 138 feet
• Strobe: 10000 Lumens
• Spotlight
• High: 5000 Lumens, 2.73 hours, 1640 feet
• Med: 2500 Lumens, 3.17 hours, 1148 feet
• Low: 30 Lumens, 135 hours, 131 feet
• SOS: 30 Lumens, 270 hours
• Floodlight
• High: 8000 Lumens, 2.67 hours, 699 feet
• Med: 4000 Lumens, 3.22 hours, 509 feet
• Low: 50 Lumens, 103 hours, 49 feet
• Red Light
• High: 260 Lumens, 6.82 hours, 223 hours
• Med: 130 Lumens, 34 hours, 151 hours
• Low: 10 Lumens, 290 hours, 33 hours
• High Flashing: 260 Lumens
• Low Flashing: 10 Lumens
• UV Light: 3.7W, 20 hours

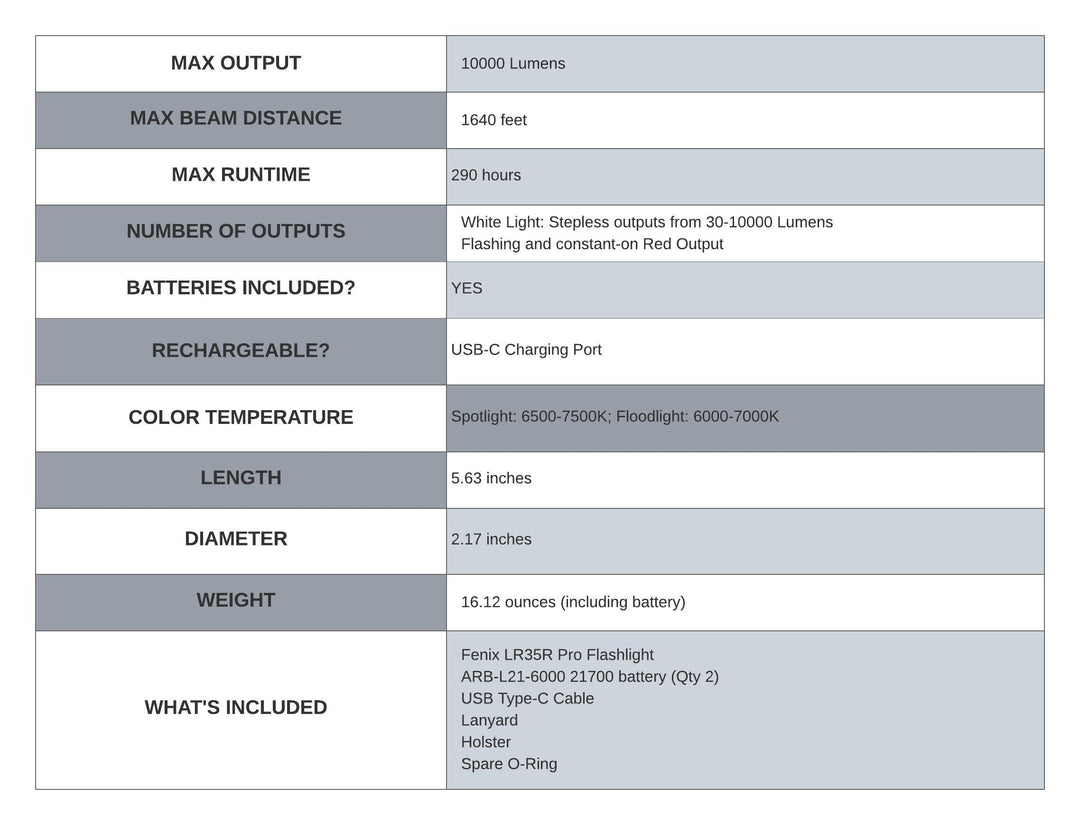

Details

• 10000 lumen maximum output
• Spotlight and floodlight can function together or separately
• White, red, and UV outputs
• Electronic toggle and switch
• Stepless brightness regulation
• 1640-foot beam distance
• 3.7W UV light - complies with EU photobiological safety standard EN 62471
• Flashing and constant-on red light
• Lockout function

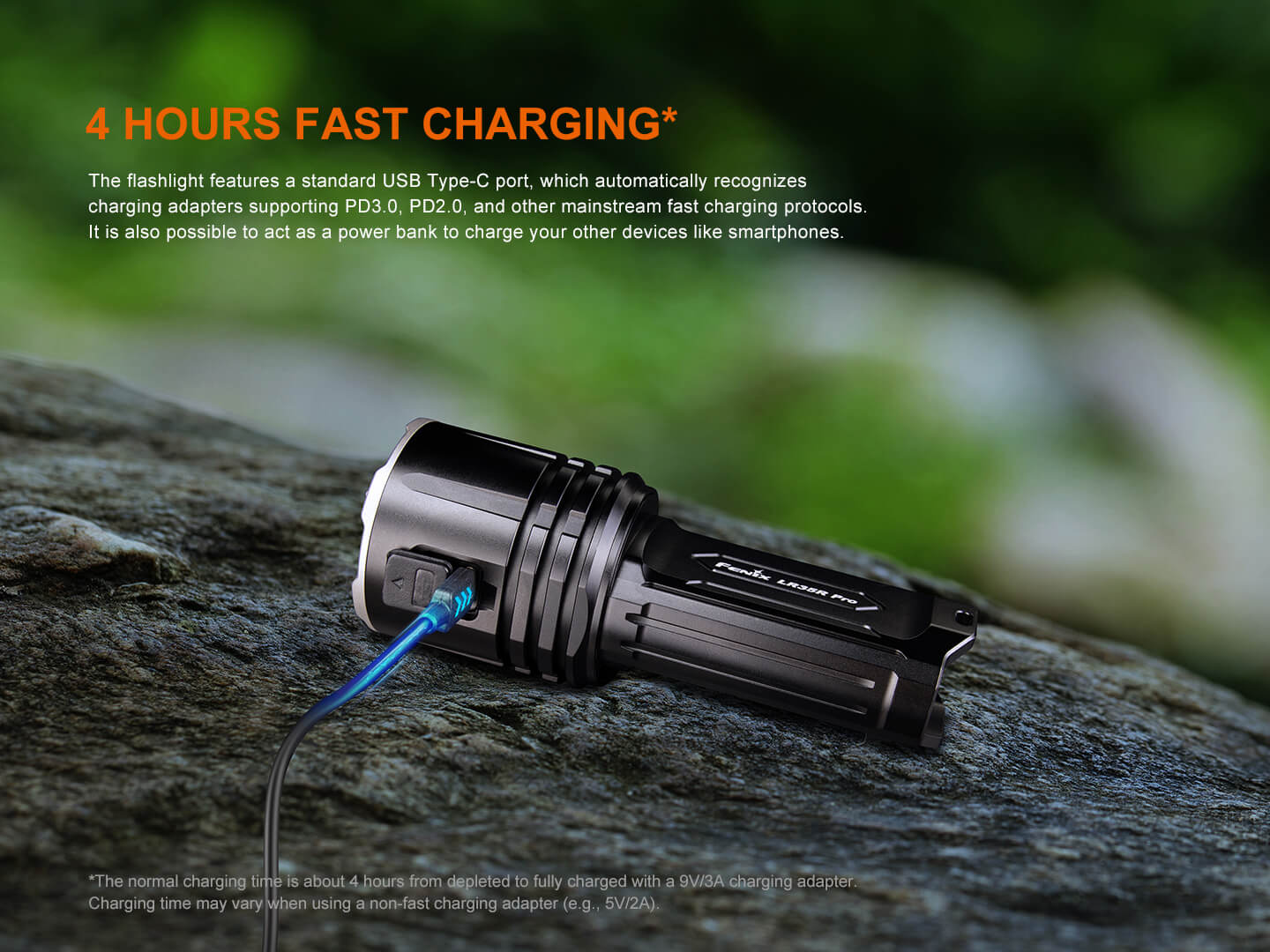

• 4-hour USB-C fast charging; automatically recognizes PD3.0 and PD2.0 and other mainstream charging protocols
• Discharge power to other devices

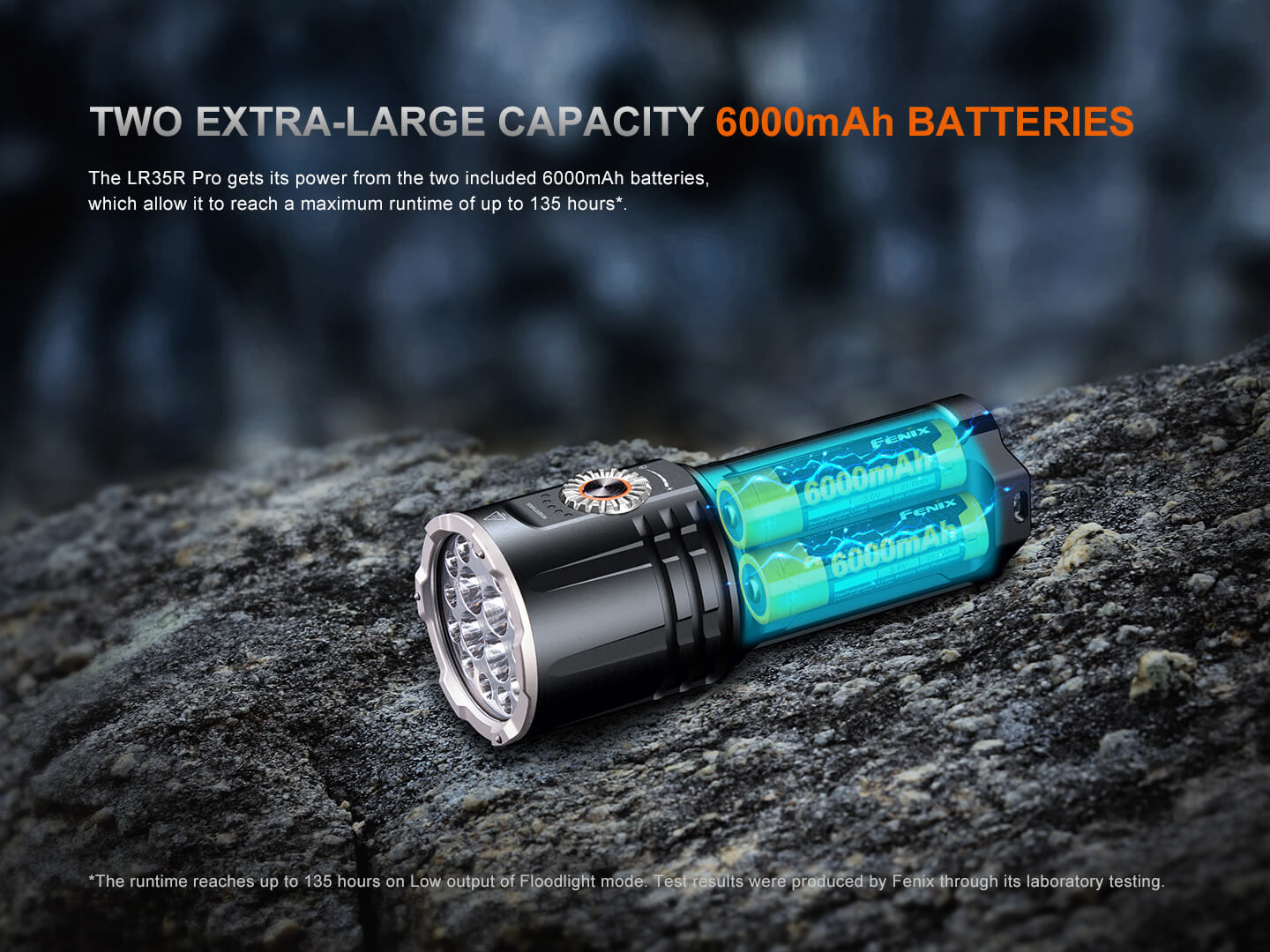

• Includes two extra-large capacity 6000mAh batteries
• Steel glass breaking tips
• Intelligent proximity downshift function

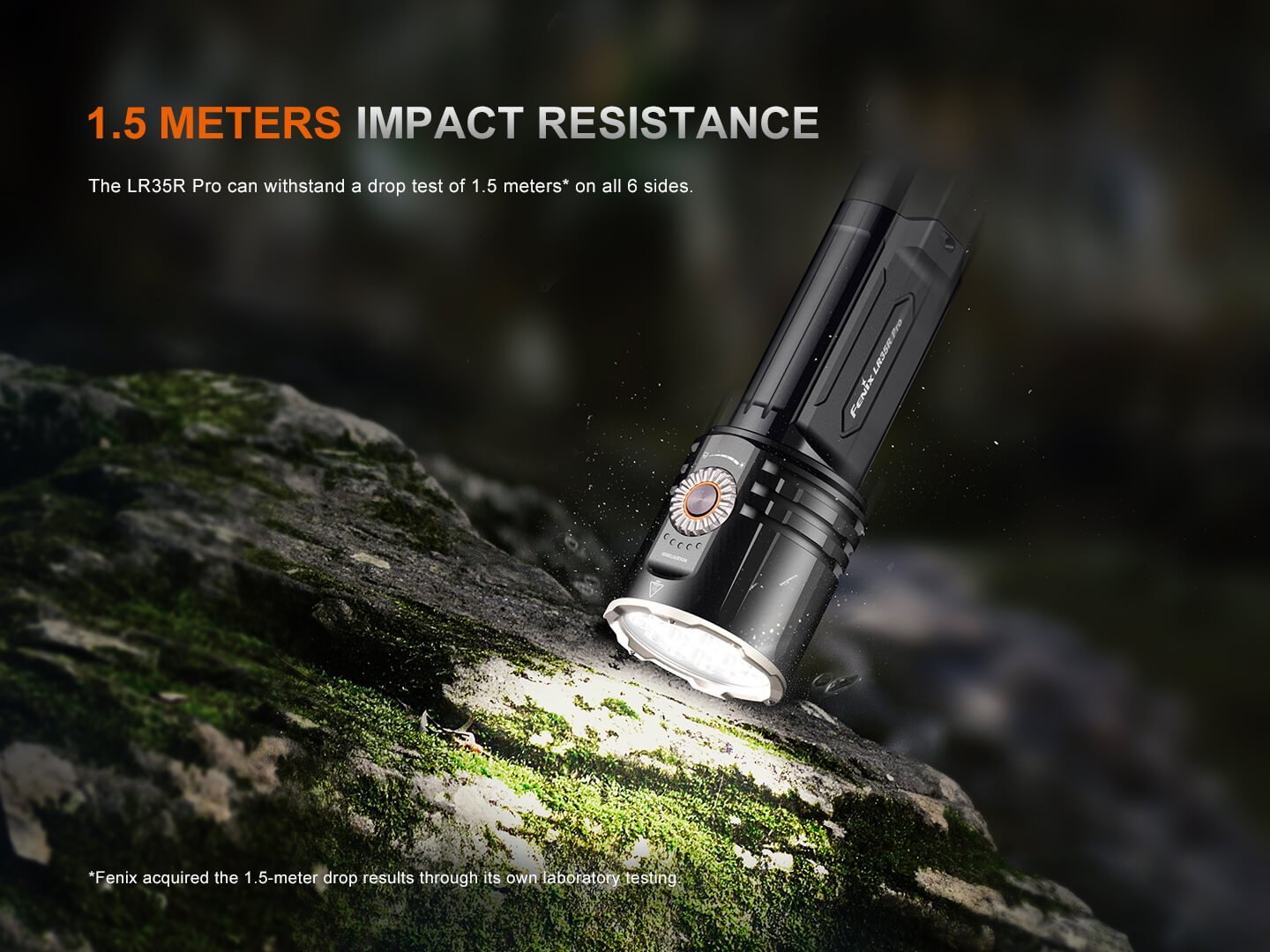

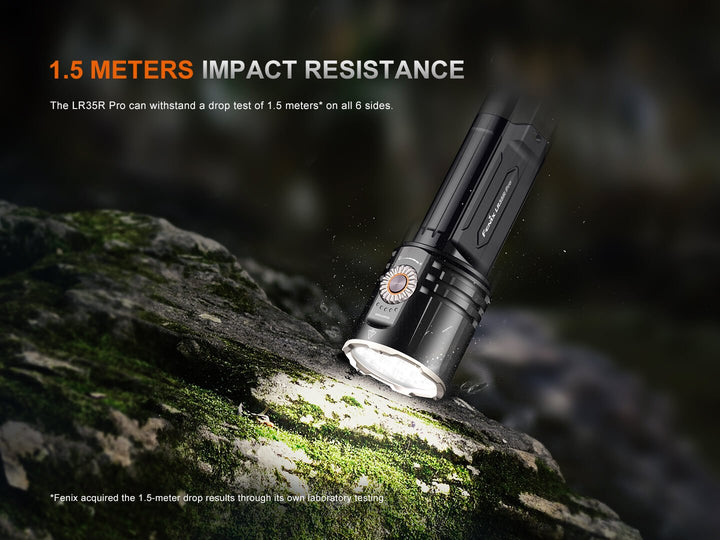

• 1.5-meter impact resistance

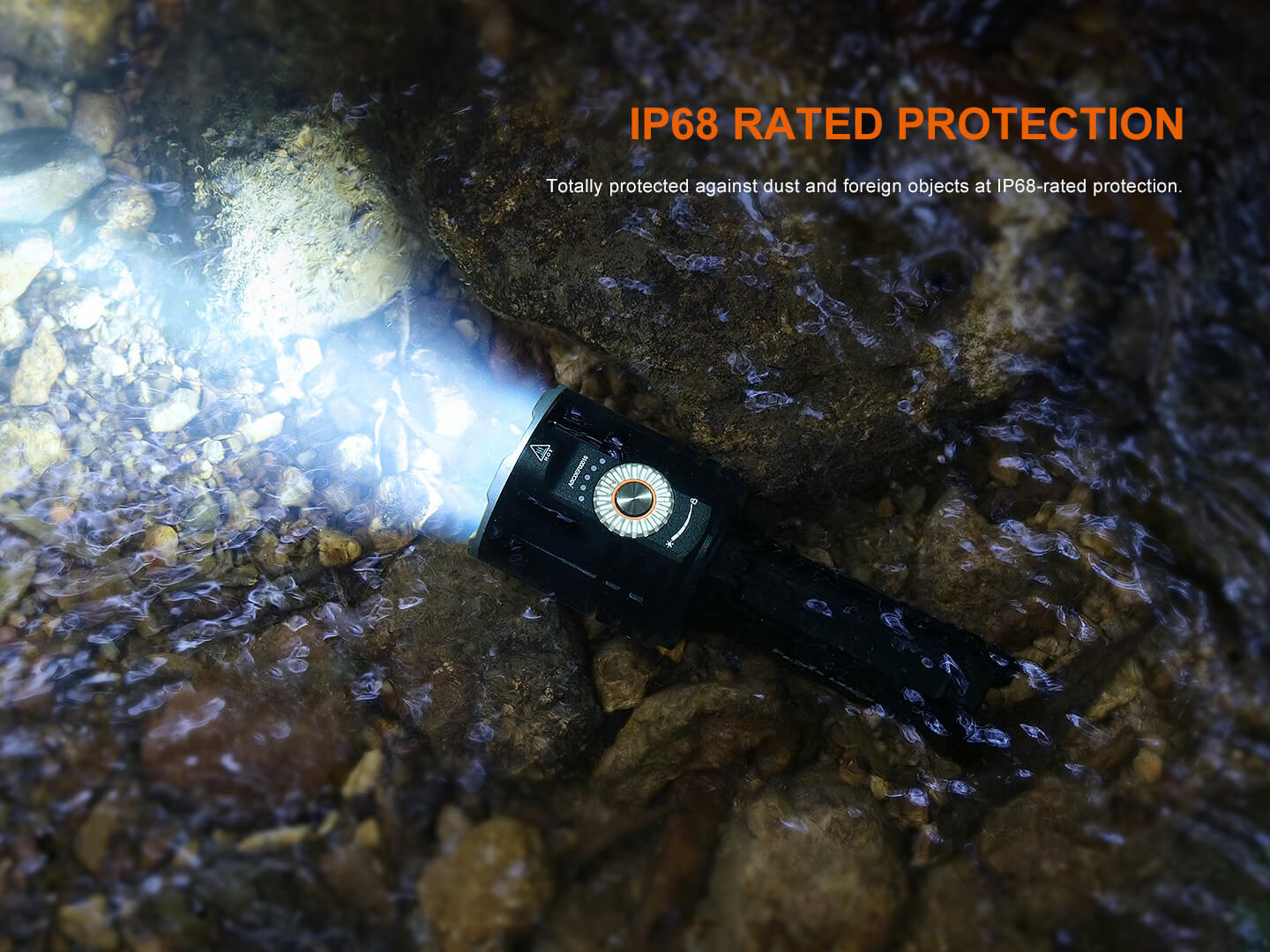

• IP68 rated waterproof

Batteries

• Included: 2 Fenix ARB-L21-6000 rechargeable 6000mAh 21700 batteries
• Compatible: 2 Fenix ARB-L21-6000 rechargeable 6000mAh 21700 batteries. Other brands or milliamp levels are not recommended.

Size

• Length: 5.63 inches
• Body Width: 2.17 inches
• Weight: 16.12 ounces (including batteries)

Q: What kind of LEDs are used in LR35R Pro?

A: Uses four Luminus SFT 25, eight Luminus SST 25, two OSRAM GR QSSPA1.23, and one SST-10-UV; with a lifespan of 50,000 hours each.

Q: What is the color temperature of LR35R Pro?

A: Spotlight: 6500K-7500K. Floodlight: 6000K-7000K.

Q: What is the working voltage of LR35R Pro?

A: 4.2 V.

Q: Is LR35R Pro rechargeable? How long is the charging time?

A: Yes. The two included batteries can be charged through the USB Type-C charging port on the flashlight. The normal charging time is about 4 hours from depleted to fully charged with a 9 V/3 A charging adapter.

Q: How to prevent accidentally activating the LR35R Pro?

A: Solution 1: Turn off the flashlight and unscrew the light body half a turn, or remove the batteries.

Solution 2: Lock the flashlight.

Q: Why does the LR35R Pro downshift to a lower mode after being used for a while and the higher mode cannot be selected?

A: There are two reasons:

1. Intelligent Overheat Protection

The flashlight will accumulate a lot of heat when used at high output levels for extended periods. When the light reaches a temperature of 55°C or above, the light will automatically step down a few lumens to reduce the temperature.

2. Low-voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until the lowest brightness level is reached.

Q: Why does the LR35R Pro sometimes flicker?

A: The reasons that may cause the light to flicker, shine intermittently or even fail to illuminate:

1. Poor battery level.

Solution: Recharge or replace the batteries.

2. The contact or contact point of the batteries or flashlight is dirty.

Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don't work, please contact your authorized distributor.

Q: What kind of batteries can be used in LR35R Pro?

A: It is recommended to use the two included Fenix ARB-L21-6000 batteries. Other Li-ion batteries are not recommended. As unmatched batteries may cause the flashlight to fail to work normally.

Q: What is the IP rating of the LR35R Pro? Does its USB Type-C port feature inner waterproof treatment?

A: IP68-rated protection. Yes, the LR35R Pro features an inner waterproof USB Type-C port.

Q: Is the UV light in the LR35R Pro safety-certified? What precautions should be taken during use?

A: The UV light in the LR35R Pro complies with the EU photobiological safety standard EN 62471(Risk Group 2). When in use, avoid direct exposure to the eyes and skin.

The Fenix LR35R Pro is a palm-sized searchlight with dual spotlight/floodlight white output plus red light and UV inspection light, powered by two 21700 batteries. This summary is drawn from the manufacturer's official user manual — see the downloadable PDF reference manual on the product page for complete details.

Warning

• Do not place this flashlight in the reach of children.
• Do not shine the flashlight directly into anyone's eyes.
• Do not place the flashlight head near flammable objects — high temperatures can cause objects to overheat and become flammable/ignite.
• Do not use the flashlight in inappropriate ways such as holding the unit in your mouth; doing so could cause serious personal injury or death if the light or internal batteries fail.
• This flashlight will accumulate a significant amount of heat while operating, resulting in a high temperature of the light shell. Pay close attention to avoid burns.
• Turn off and lock the flashlight or remove the batteries to prevent accidental activation when placed in a closed and flammable environment such as pockets and backpacks.
• The LEDs of this flashlight are not replaceable; the whole light will need to be replaced when any one of the LEDs reaches the end of its lifespan.
• Wear certified UV protection goggles when using the UV light.

Overview

• 10,000 lumens maximum output, 500 meters maximum beam distance.
• Uses four Luminus SFT25, eight Luminus SST25, two OSRAM GR QSSPA1.23, and one SST-10-UV LED, each with a lifespan of 50,000 hours.

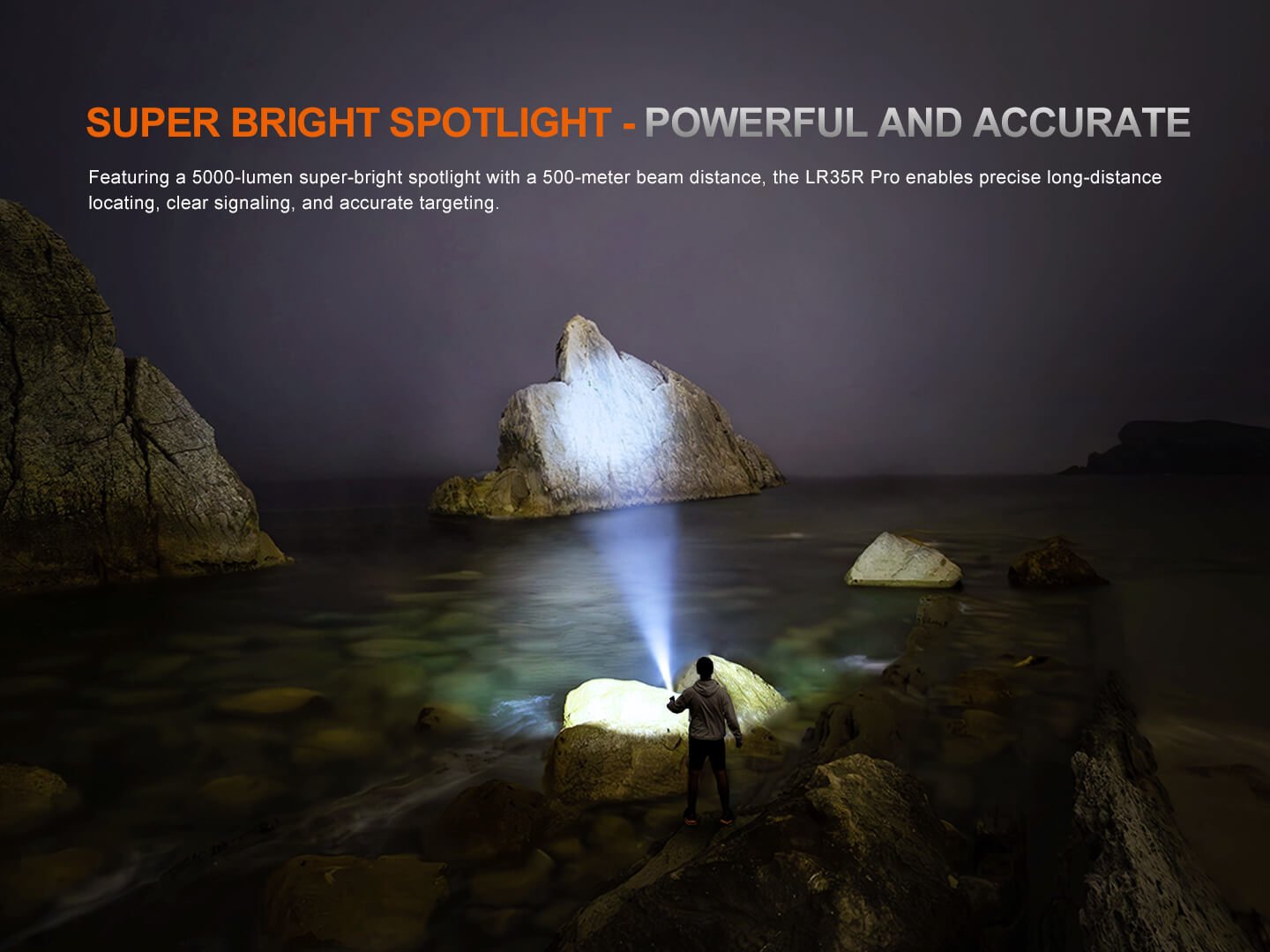

• Dual light source: 5,000-lumen, 500-meter spotlight, and 8,000-lumen floodlight.
• 365 nm UV light with 3.7 W of optical power for large-area, long-distance, high-accuracy UV detection.
• Red light for night reading and protecting night vision; red flash for alerting and asking for help.

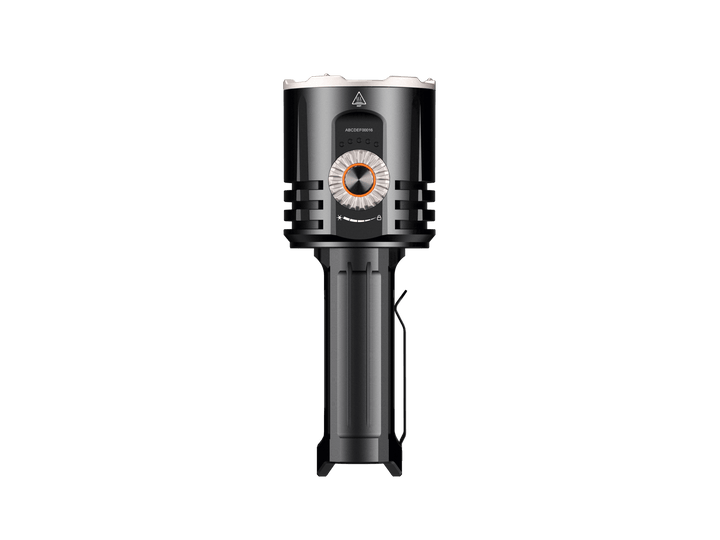

• Electronic switch for mode switching and toggle switch for stepless brightness regulation.
• Powered by two large-capacity 6000mAh 21700 batteries, providing a max runtime of 135 hours.
• USB Type-C port supports 18W fast charging and fast discharging.
• Intelligent brightness downshift function avoids danger caused by high temperature.

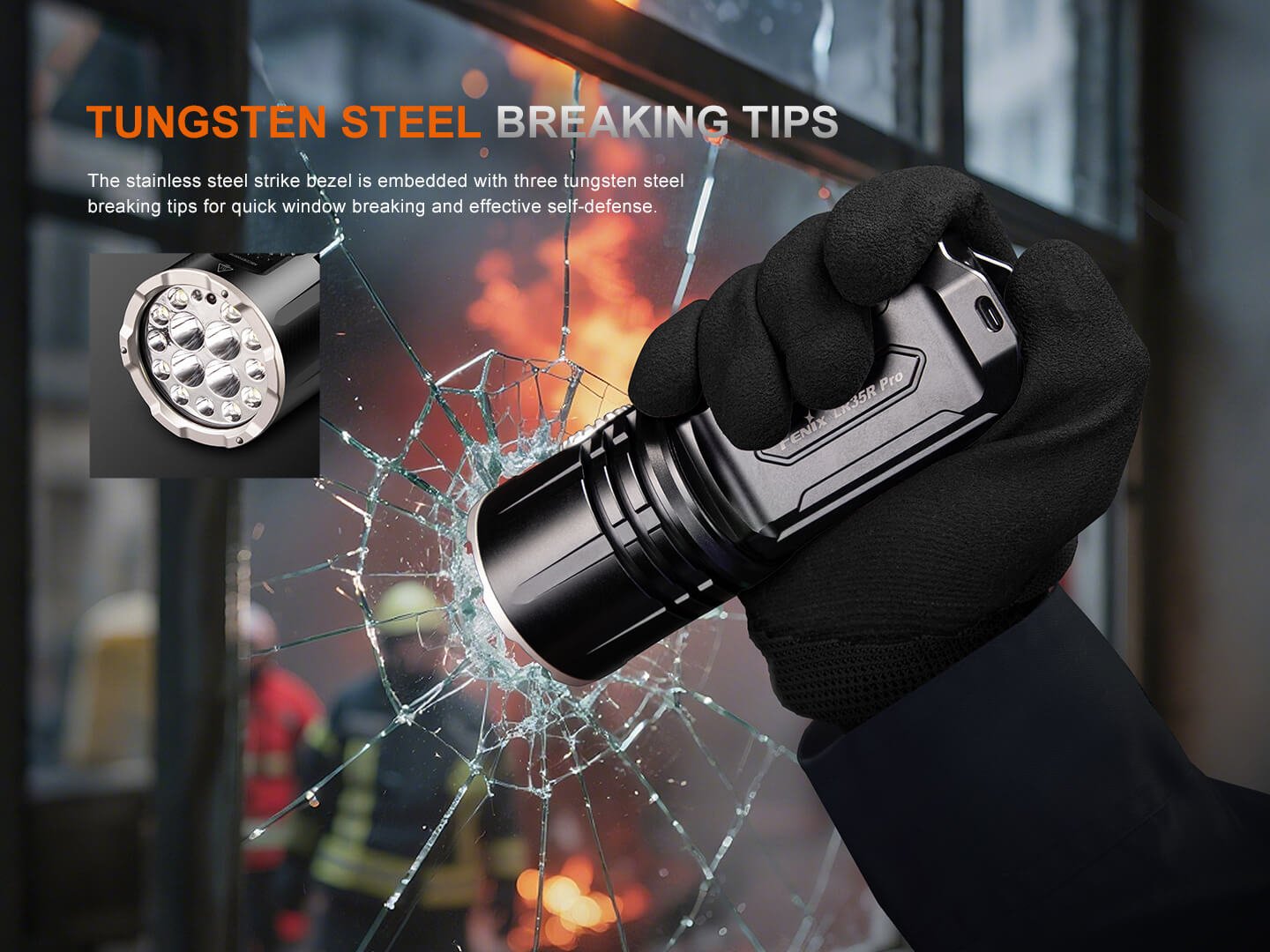

• Stainless steel strike bezel inlaid with three tungsten steel breaking tips for quick window breaking.
• Lockout function prevents accidental activation.

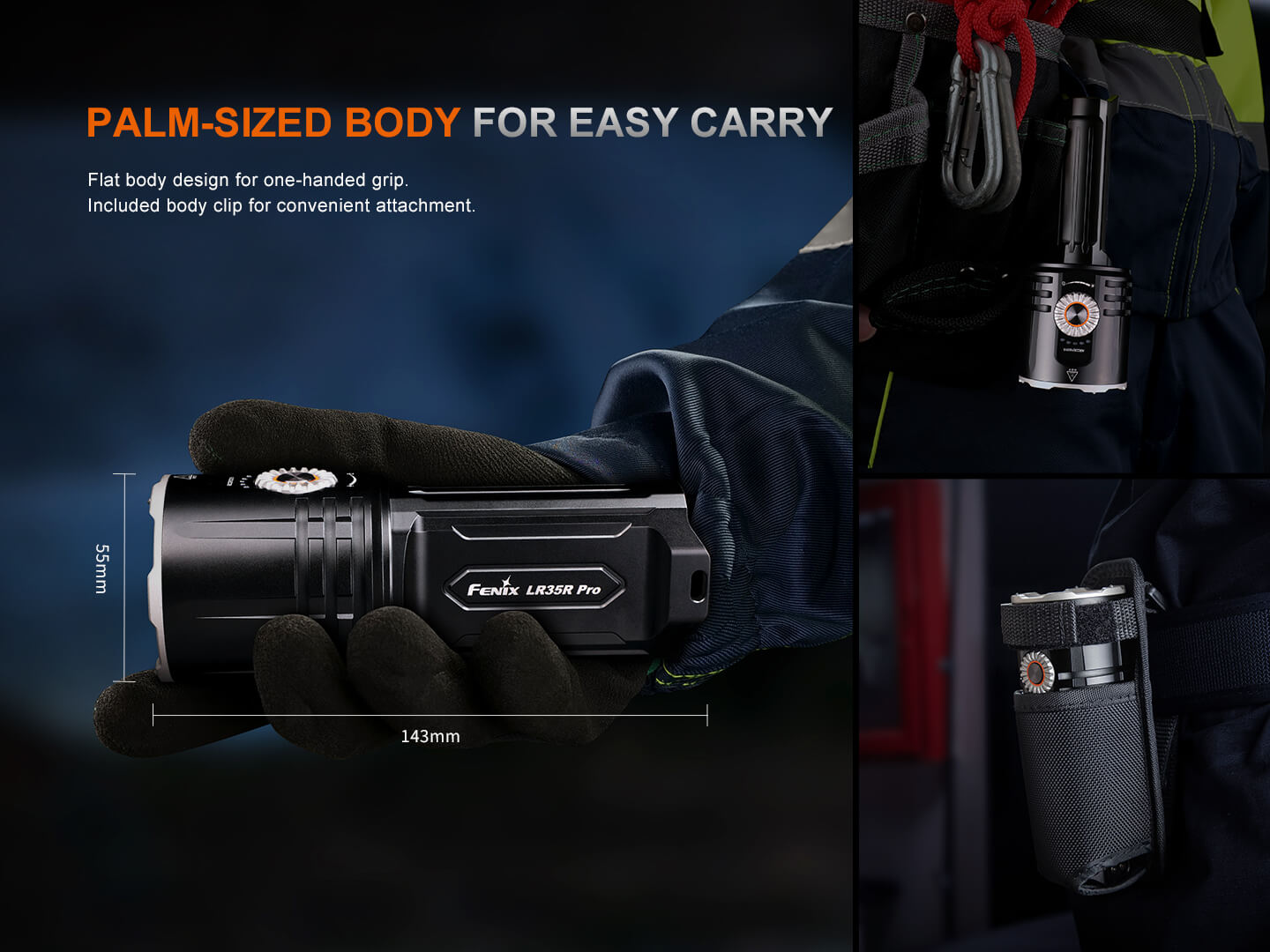

• Size: 5.63" x 2.17" x 1.83" / 143 x 55 x 46.5 mm. Weight: 16.12 oz / 457 g (including batteries).

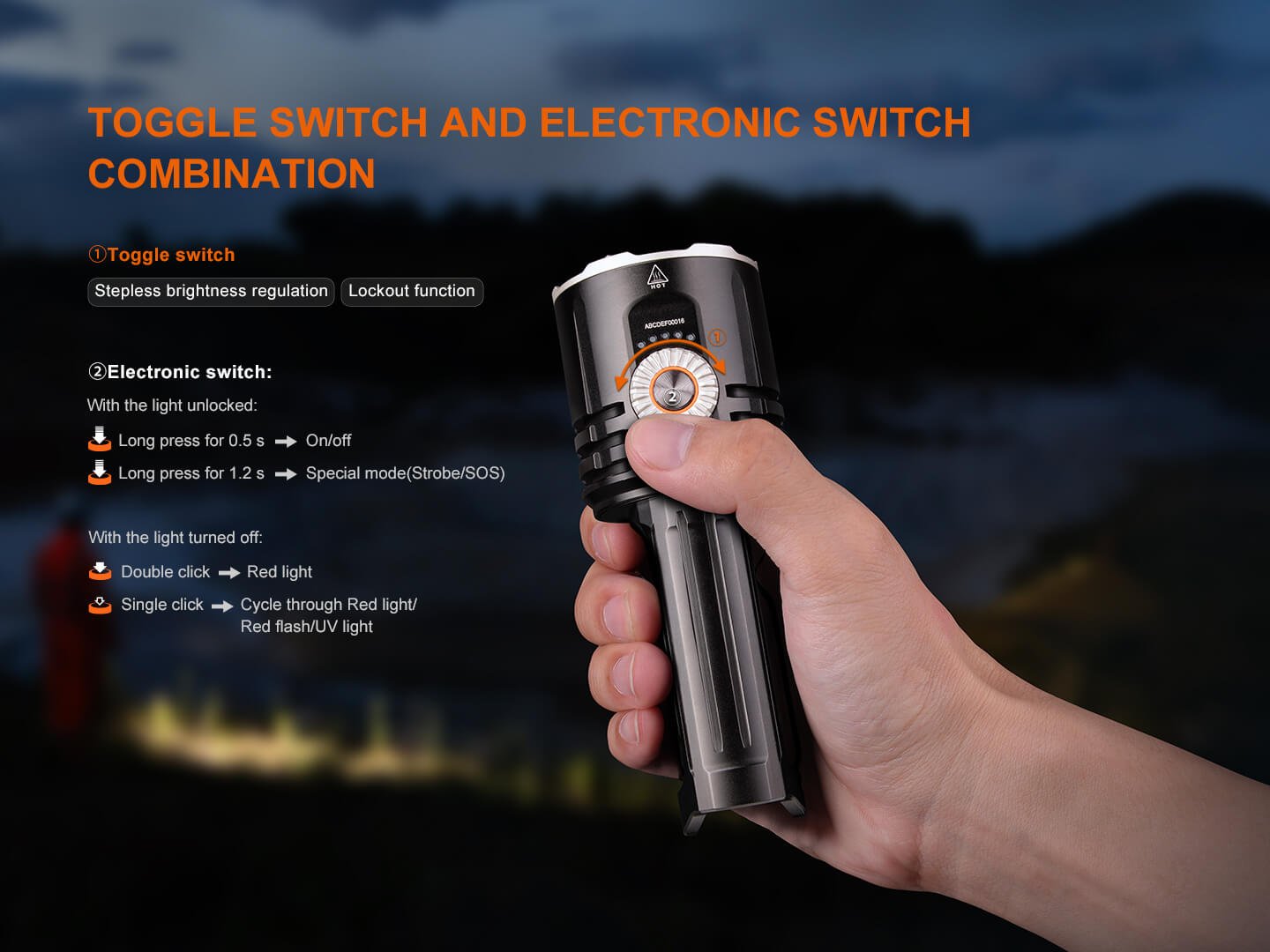

Operating Instructions

On/Off: With the light locked, rotate the toggle switch clockwise to turn it on; with the light unlocked and off, press and hold the electronic switch for 0.5 seconds to turn it on. Rotate the toggle switch all the way counterclockwise, or press and hold the electronic switch for 0.5 seconds, to turn it off.

Mode Switching: With the light on, single click the electronic switch to cycle through Spotlight→Floodlight→Spot-and floodlight mode. With the light off or locked, double click the electronic switch to enter Red light mode, then single click to cycle Red light→Red flash→UV light mode; press and hold for 0.5 seconds to exit and turn off.

Strobe & SOS: With the light unlocked, press and hold the electronic switch for 1.2 seconds to enter Strobe mode; single click to switch between Strobe and SOS; press and hold again for 1.2 seconds to exit.

Output Selection: Rotate the toggle switch for stepless brightness regulation in Spotlight, Floodlight, Spot-and floodlight, Red light, Red flash, and UV light modes.

Lock/Unlock: With the light unlocked, rotate the toggle switch all the way counterclockwise to lock it. With the light locked, rotate the toggle switch clockwise to unlock and turn it on.

Intelligent Memory Circuit: The flashlight automatically memorizes the last selected mode excluding Strobe and SOS. Turning on by the toggle switch or a 0.5-second electronic switch press recalls the last Spotlight/Floodlight/Spot-and floodlight mode; a double click recalls the last Red light/Red flash/UV light mode. Note: the flashlight does not memorize the previously used brightness level.

Battery Specifications

• Fenix ARB-L21 series (21700, 3.6V): Recommended.
• Rechargeable Battery, Li-ion (21700, 3.6V): Caution — do not use a 16340 or 18650 battery.
• Rechargeable Battery, Li-ion (18650, 3.6V): Banned.

Do not mix batteries of different brands, sizes, capacities, or types. 21700 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Using low-quality batteries or mishandling batteries could lead to combustion; using quality batteries with circuit protection reduces this risk.

Battery Replacement

Unscrew the light body and insert the batteries with the anode side (+) towards the light head, then screw the light body back on. The flashlight can be used with only one battery inserted, but brightness will be affected.

Charging

Turn off the flashlight and open the anti-dust cover, then connect the USB Type-C end of the charging cable to the light and the other end to a charging adapter. When charging, the five indicators flash green left to right; normal charging time is about 4 hours from depleted to full. The LR35R Pro recognizes PD3.0, PD2.0, other fast-charging protocols, and standard 5V adapters (max charging current 3A, 2.5A on 5V input). Do not charge the flashlight if there is no battery inserted.

Battery Level Indication

With the light off (locked or unlocked), single click the electronic switch to check the battery status; the indicator(s) also show on power-on and last 3 seconds.

• Five lights on: 100% - 80%.
• Four lights on: 80% - 60%.
• Three lights on: 60% - 40%.
• Two lights on: 40% - 20%.
• One light on: 20% - 1%.

Low-Voltage Warning

When the voltage level drops below the preset level, the flashlight downshifts to a lower brightness level until the lowest output is reached. When this happens, one battery level indicator blinks to remind users to recharge or replace the batteries.

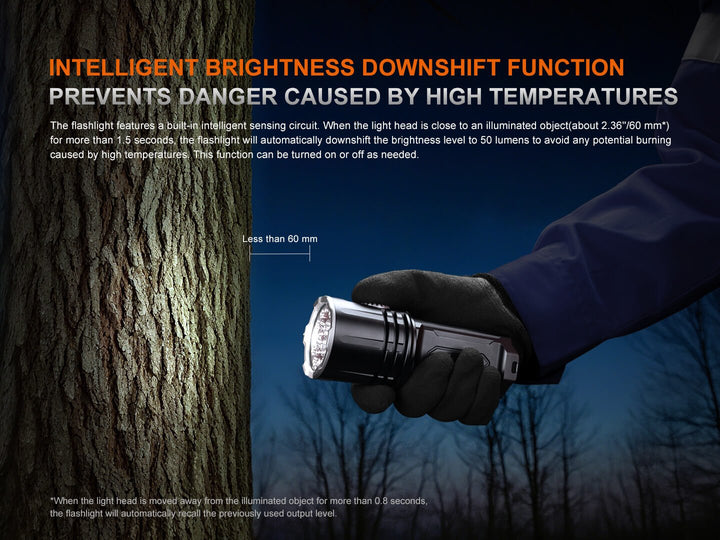

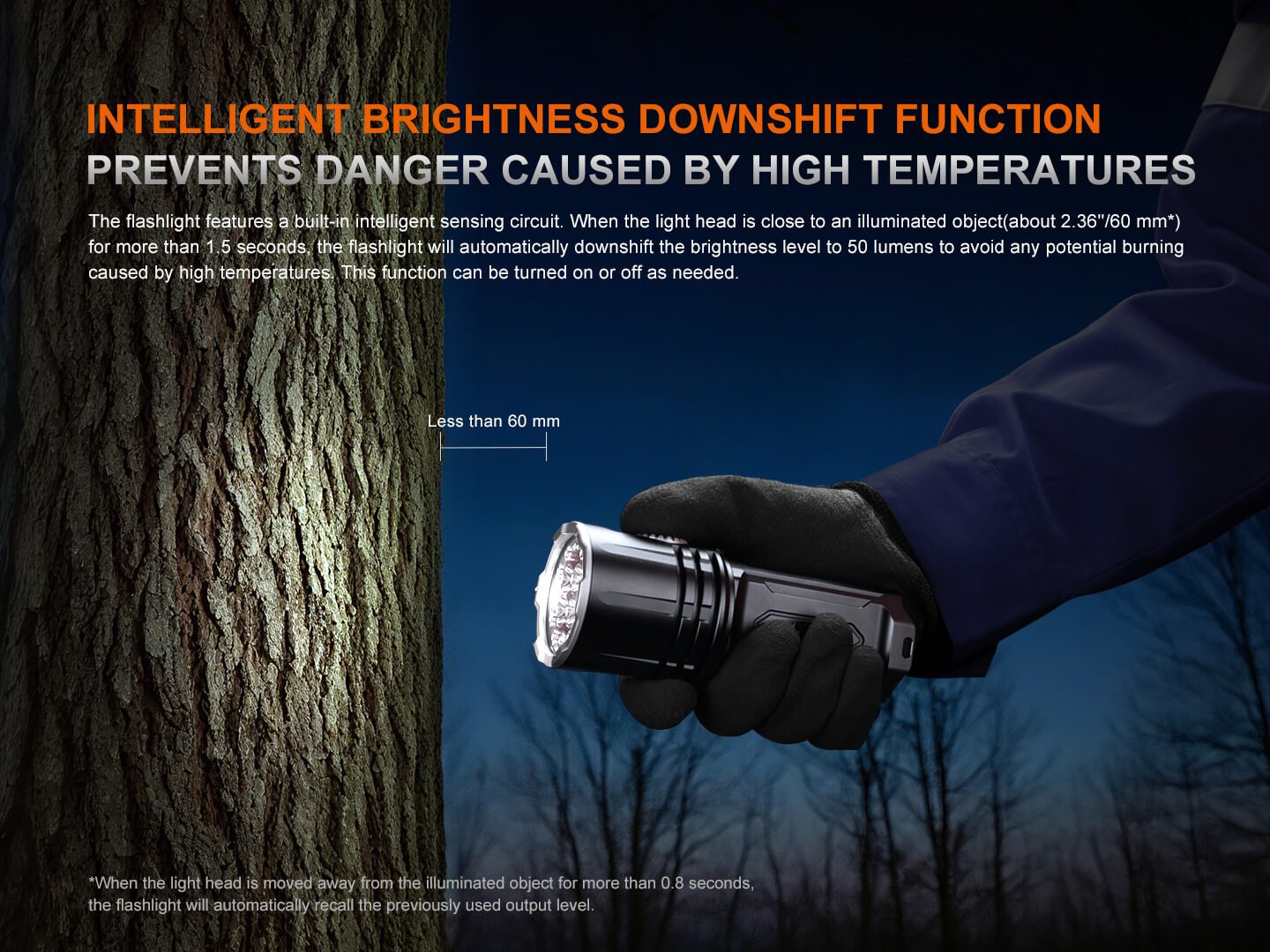

Intelligent Brightness Downshift Function

When the light head is close to an illuminated object (about 60 mm) for more than 1.5 seconds, the flashlight automatically downshifts to 50 lumens to avoid danger caused by high temperatures. When the light head is away from the object for more than 0.8 seconds, the flashlight recalls the previously used brightness level. To turn this function on or off, lock the light and press and hold the electronic switch for 6 seconds — two blinks on Floodlight Low means enabled, six blinks means disabled.

Intelligent Overheat Protection

The flashlight will accumulate heat at high output levels for extended periods. When it reaches 55°C/131°F or above, it automatically steps down a few lumens to reduce temperature, and gradually recalls the preset output level once the temperature drops below 55°C/131°F.

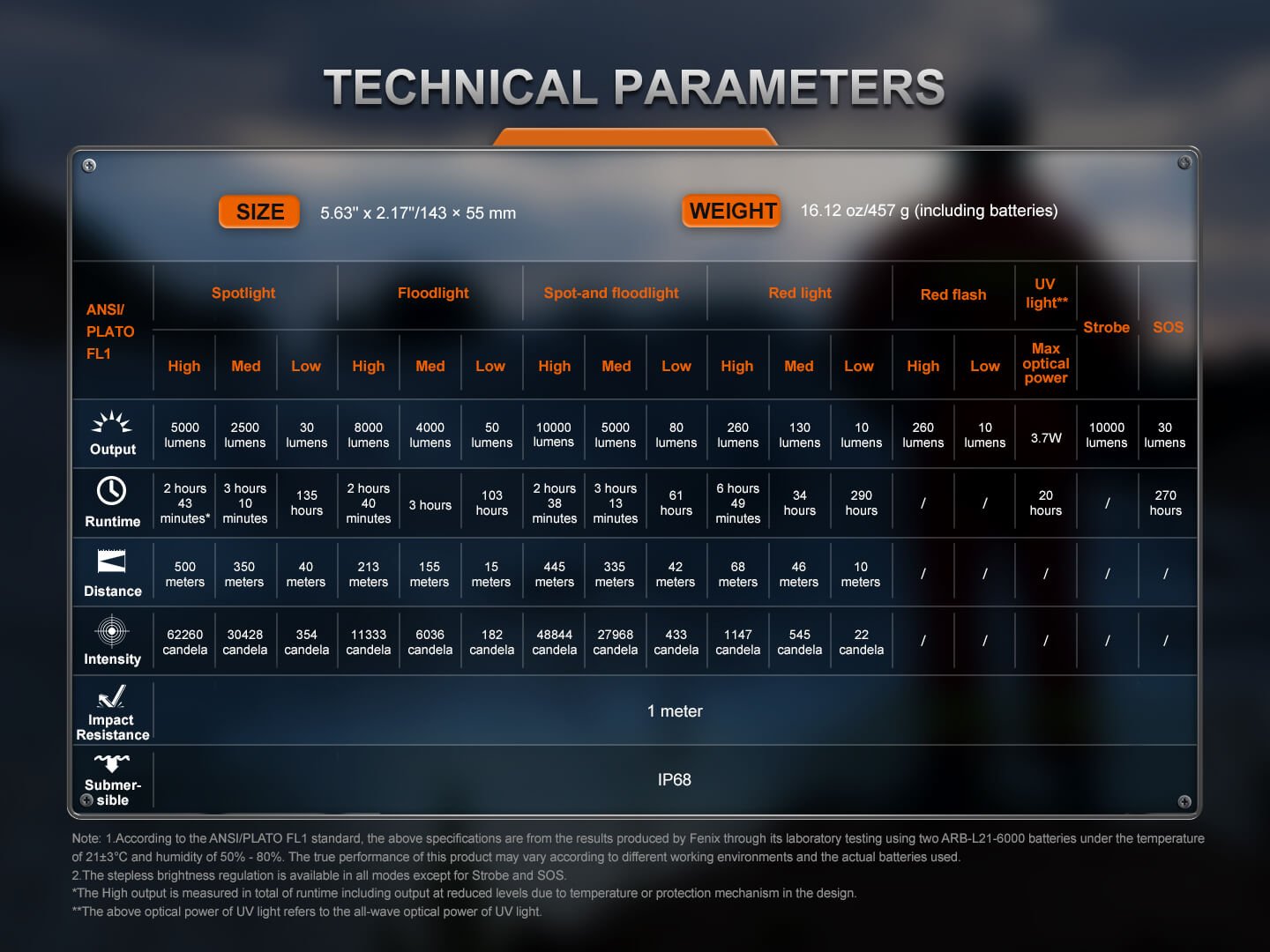

Technical Parameters

• Spotlight High: Output 5,000 lumens, Runtime 2h43min*, Distance 500 meters, Intensity 62,260 candela.
• Spotlight Low: Output 30 lumens, Runtime 135 hours, Distance 40 meters, Intensity 354 candela.
• Floodlight High: Output 8,000 lumens, Runtime 2h40min, Distance 213 meters, Intensity 11,333 candela.
• Floodlight Low: Output 50 lumens, Runtime 103 hours, Distance 15 meters, Intensity 182 candela.
• Spot-and floodlight High: Output 10,000 lumens, Runtime 2h38min, Distance 445 meters, Intensity 48,844 candela.
• Spot-and floodlight Low: Output 80 lumens, Runtime 60h31min, Distance 42 meters, Intensity 433 candela.
• Red light High: Output 260 lumens, Distance 46 meters, Intensity 537 candela.
• Red light Low: Output 10 lumens, Distance 10 meters, Intensity 28 candela.
• UV light (max optical power): 3.7 W, Runtime 20h8min.
• Strobe (Spot-and floodlight): 10,000 lumens.
• SOS (Spotlight): 30 lumens, Runtime 270 hours.
• Impact Resistance: 1 meter.
• Waterproof: IP68.

Note: The above specifications are from Fenix laboratory testing using two ARB-L21-6000 (21700) batteries under a temperature of 21±3°C and humidity of 50% - 80%. Stepless brightness regulation is available in all modes except Strobe and SOS. *The High output is measured in total of runtime including output at reduced levels due to temperature or protection mechanism.

Usage and Maintenance

• Disassembling the sealed head can cause damage to the light and will void the warranty.
• Fenix recommends using excellent quality batteries.
• If the light will not be used for an extended period, remove the batteries, or the light could be damaged by electrolyte leakage.
• Lock the light, unscrew the light body half a turn, or take out the batteries to prevent accidental activation during storage or transportation.
• Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
• Periodic cleaning of the light and battery contacts improves performance as dirty contacts may cause flickering or failure to illuminate: the flashlight may be locked (unlock by rotating the toggle switch clockwise); the battery level may be poor (recharge or replace); or the contacts may be dirty (clean with a cotton swab soaked in rubbing alcohol).
• If the above methods don't work, please contact the distributor.

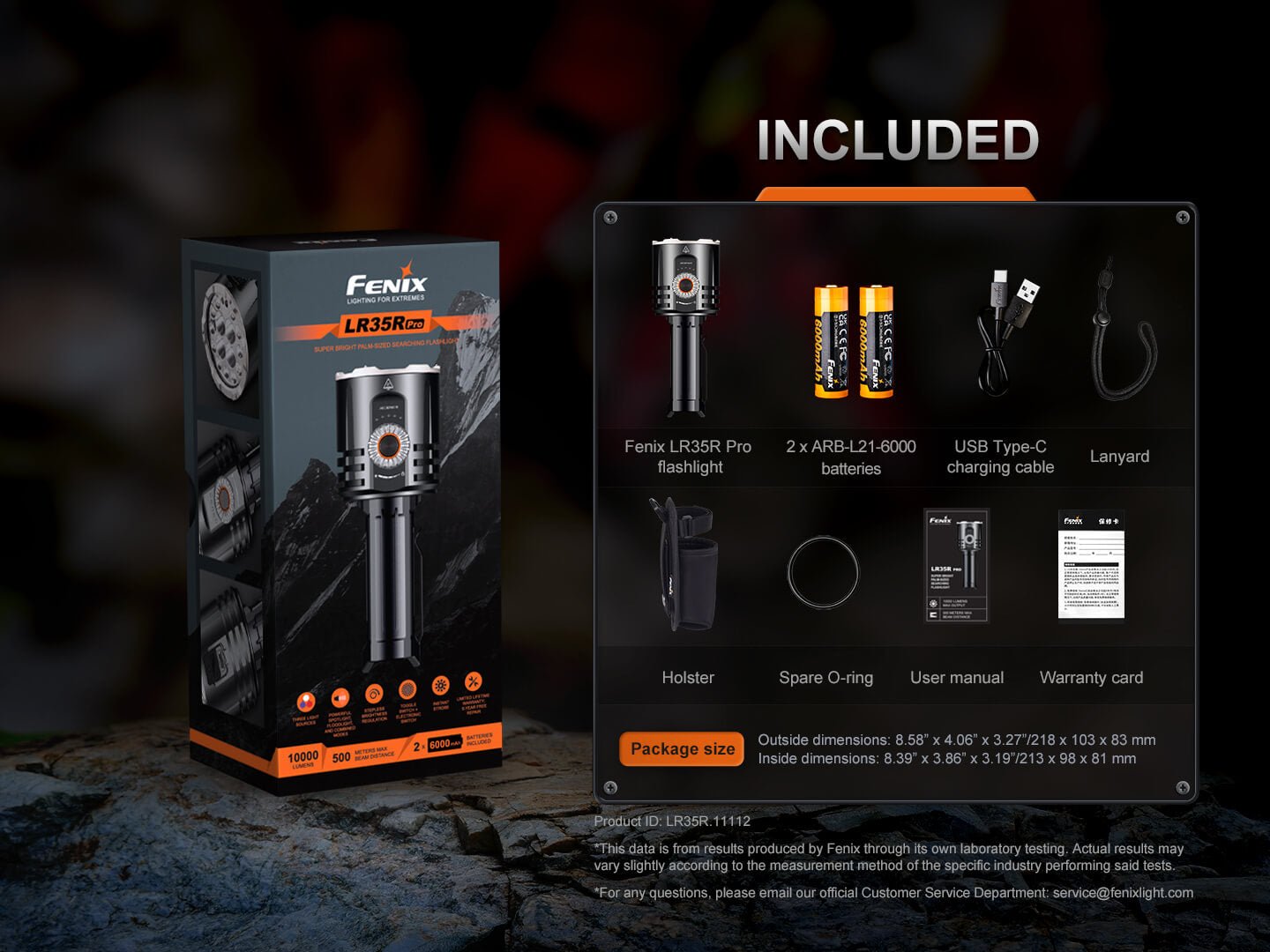

Included

Fenix LR35R Pro flashlight, 2 x ARB-L21-6000 batteries, USB Type-C charging cable, Holster, Lanyard, Spare O-ring, User manual, Warranty card.
