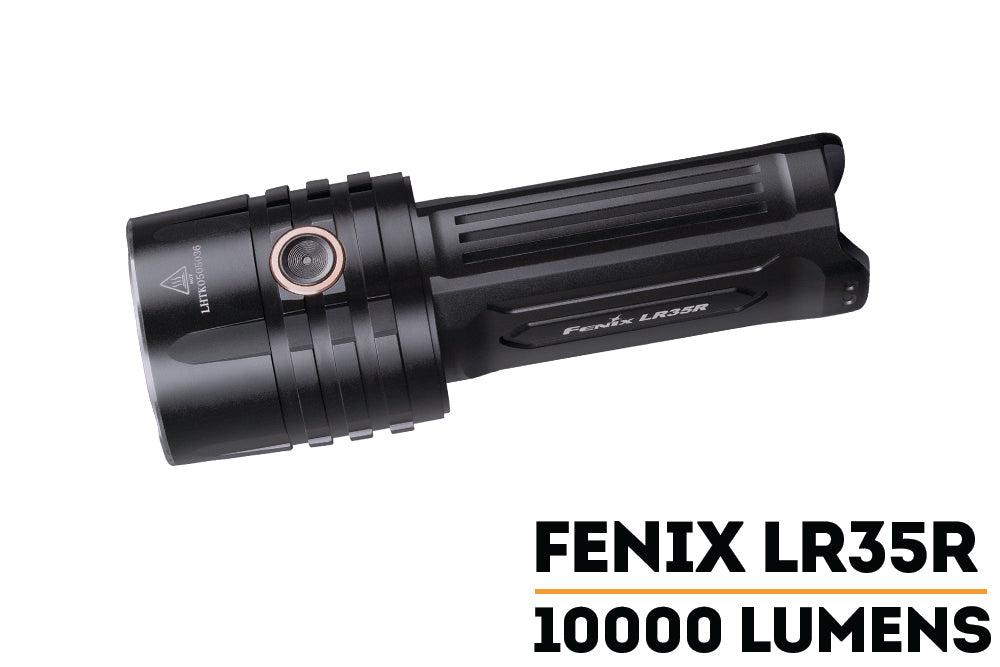

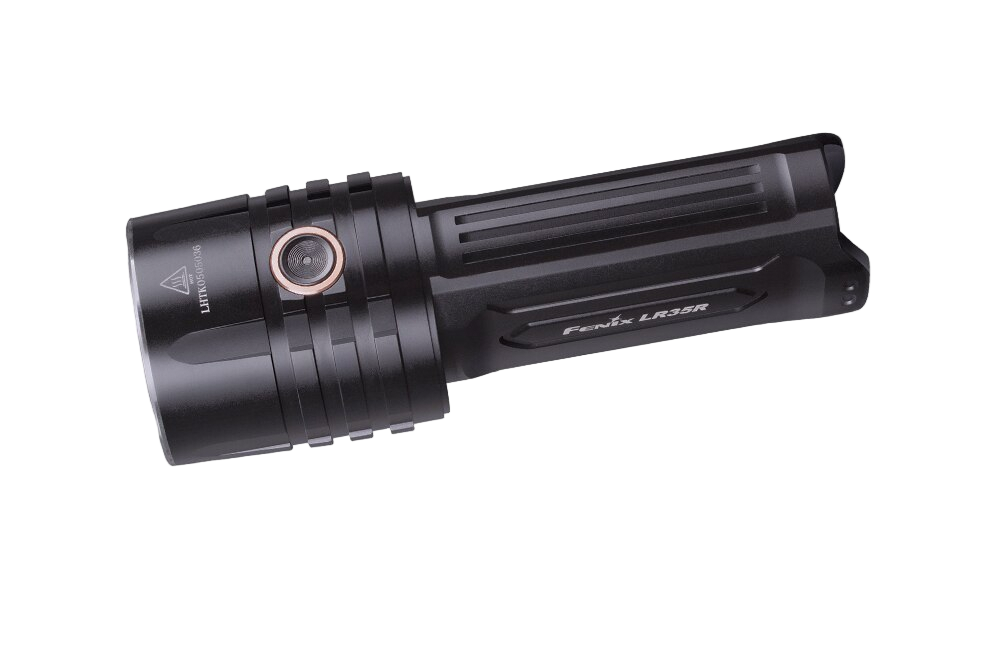

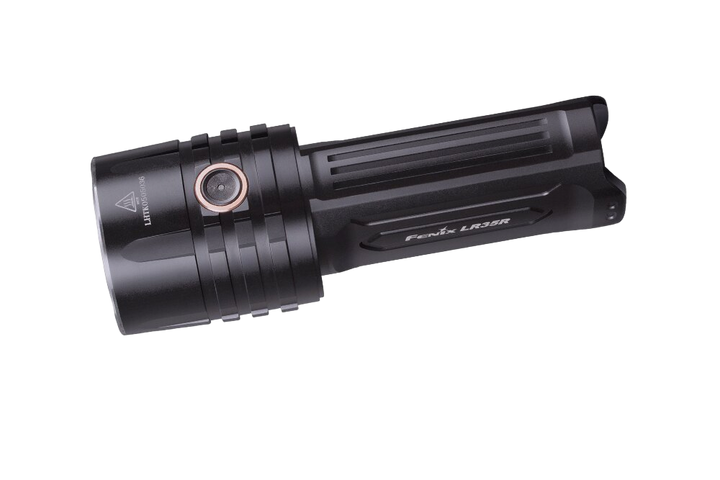

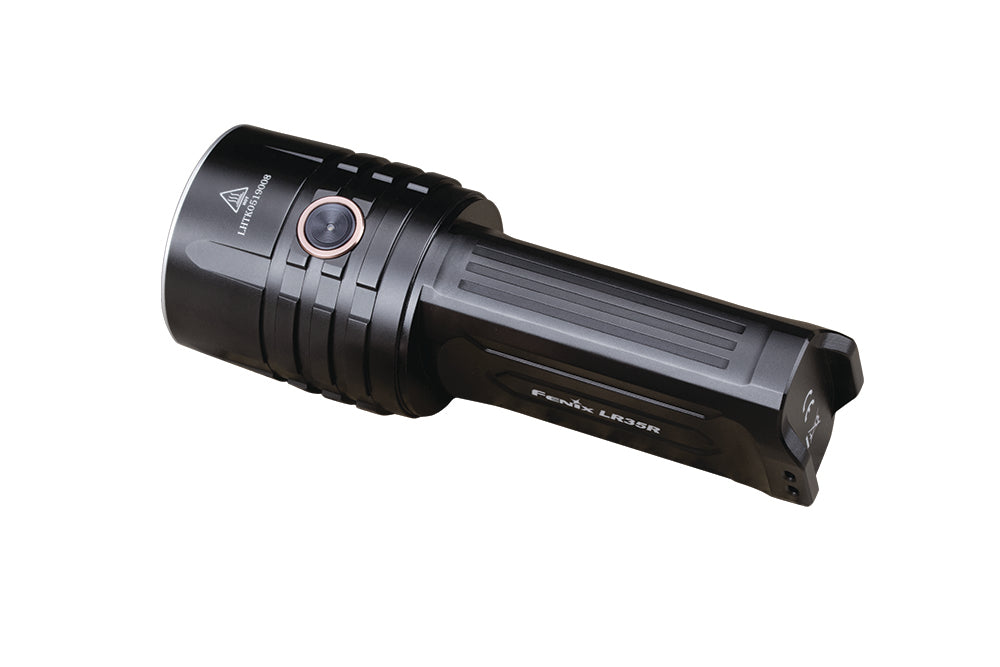

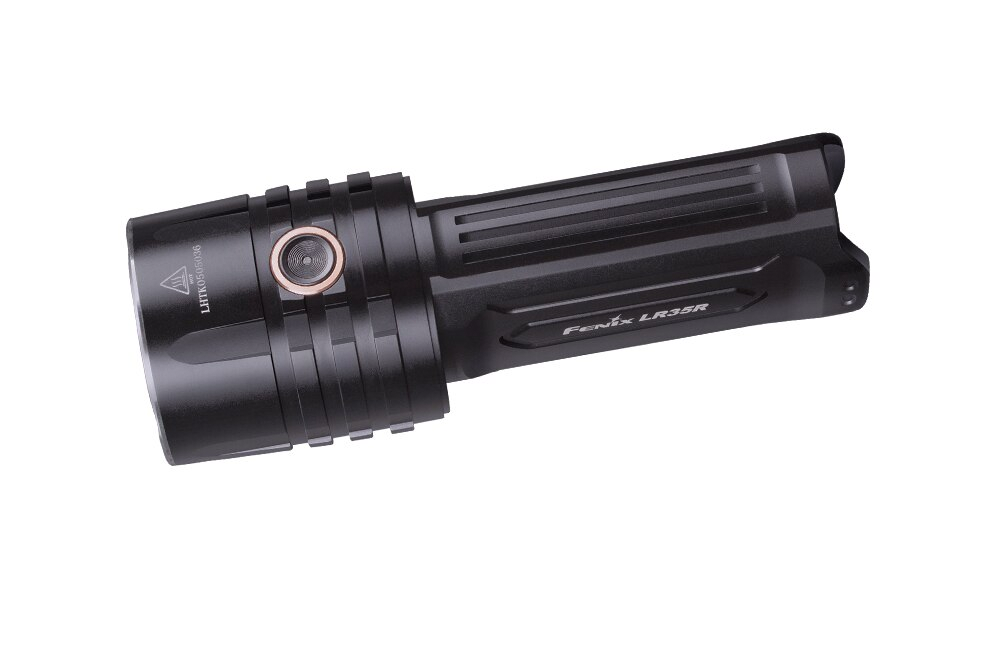

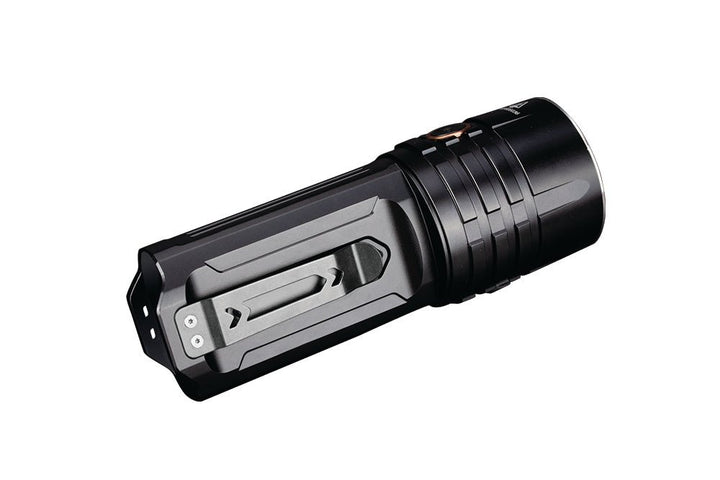

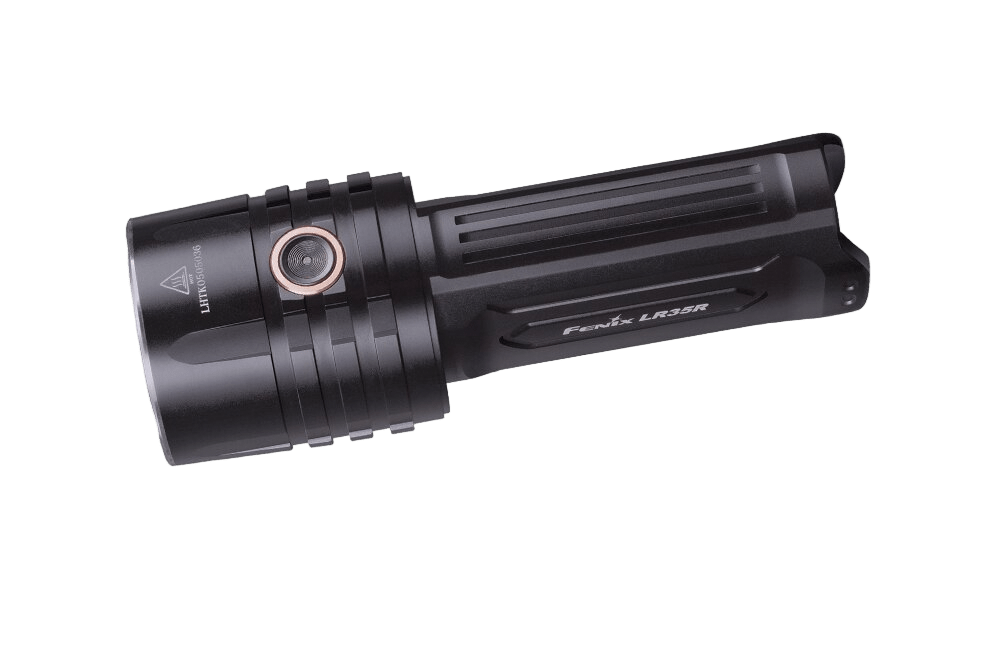

Fenix LR35R Rechargeable LED Flashlight - 10,000 Lumens

Outputs

• Turbo: 10000 Lumens, 1.42 hours, 1640 ft
• High: 3000 Lumens, 1.58 hours, 886 ft
• Med: 1200 Lumens, 3.25 hours, 558 ft
• Low: 450 Lumens, 8.33 hours, 345 ft
• Eco: 50 Lumens, 80 hours, 98 ft
• Strobe: 10000 Lumens

Details

• 6 Luminus SST40 LEDs
• 10,000 Lumens Maximum Output
• USB Type-C Charging Port
• Lockout Function
• Memory Circuit
• Battery Level Indicator
• Wide-angle 90° flood beam
• Overheat Protection
• Powerful mid-size searchlight
• IP68 Rated Protection: Fully protected against dust and debris, fully submersible to 2 meters for up to 30 minutes.
• 1 Meter Impact resistance

Batteries

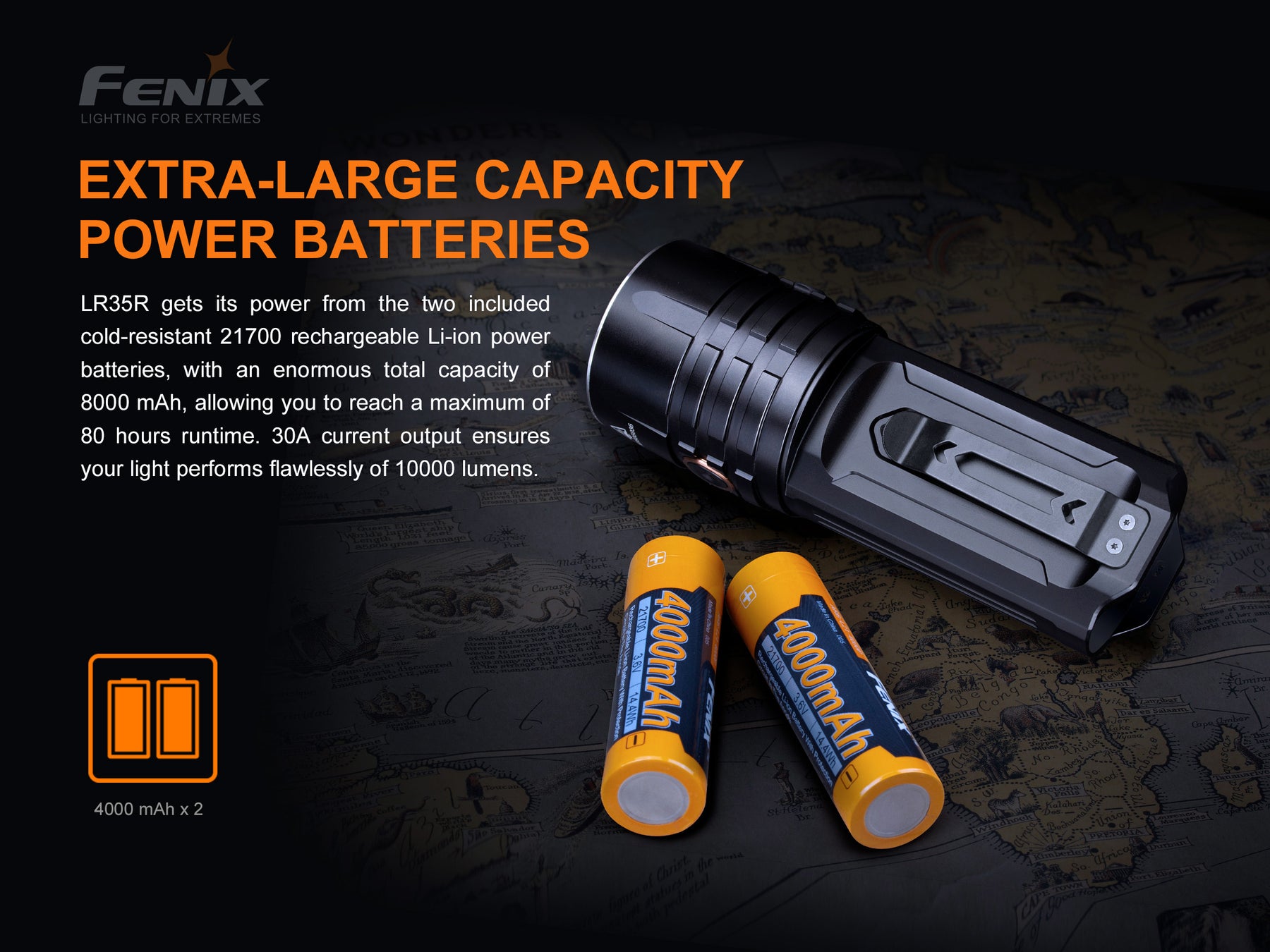

• Included: Two cold-resistant ARB-L21-4000P rechargeable 4000mAh 21700 batteries
• Compatible: Two 21700 rechargeable batteries

Size

• Length: 5.5 inches
• Head diameter: 2.03 inches
• Body thickness: 1.83 inches
• Weight: 8.4 oz (excluding battery)

What batteries work in the Fenix LR35R LED flashlight?

The Fenix LR35R runs on two 21700 lithium-ion batteries. To get the full 10,000 lumen output, you need to use the Fenix ARB-L21-4000P lithium-ion batteries which are included with the flashlight. If you use other 21700 batteries, you will get a maximum output of 8500 - 9000 lumens.

Does the LR35R have overheat protection?

Yes, the LR35R does have overheat protection. The light may become hot, especially when used at higher output levels. If the light ever reaches 140° F (60° C) it will drop the output to a lower level to allow it to cool. Once the light has cooled below this threshold it will allow access to all brightness levels again.

How to I read the battery level indicator on the LR35R?

The battery level indicator features a red or green light that is either solid or flashing.

• Solid green light: 100%-85%
• Flashing green light: 85%-50%
• Solid red light: 50%-25%
• Flashing red light: 25%-1%

During recharging the light will be solid red while charging and solid green when full.

Does the LR35R feature a lockout function?

Yes, it does.

While the flashlight is off, quickly double-click the side switch to activate the lock.

To deactivate the lock, double-click the side switch. The light will turn on in the lowest setting.

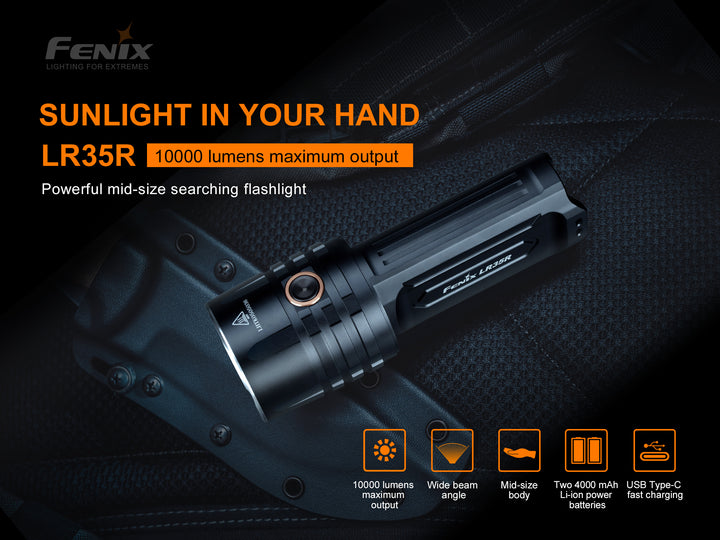

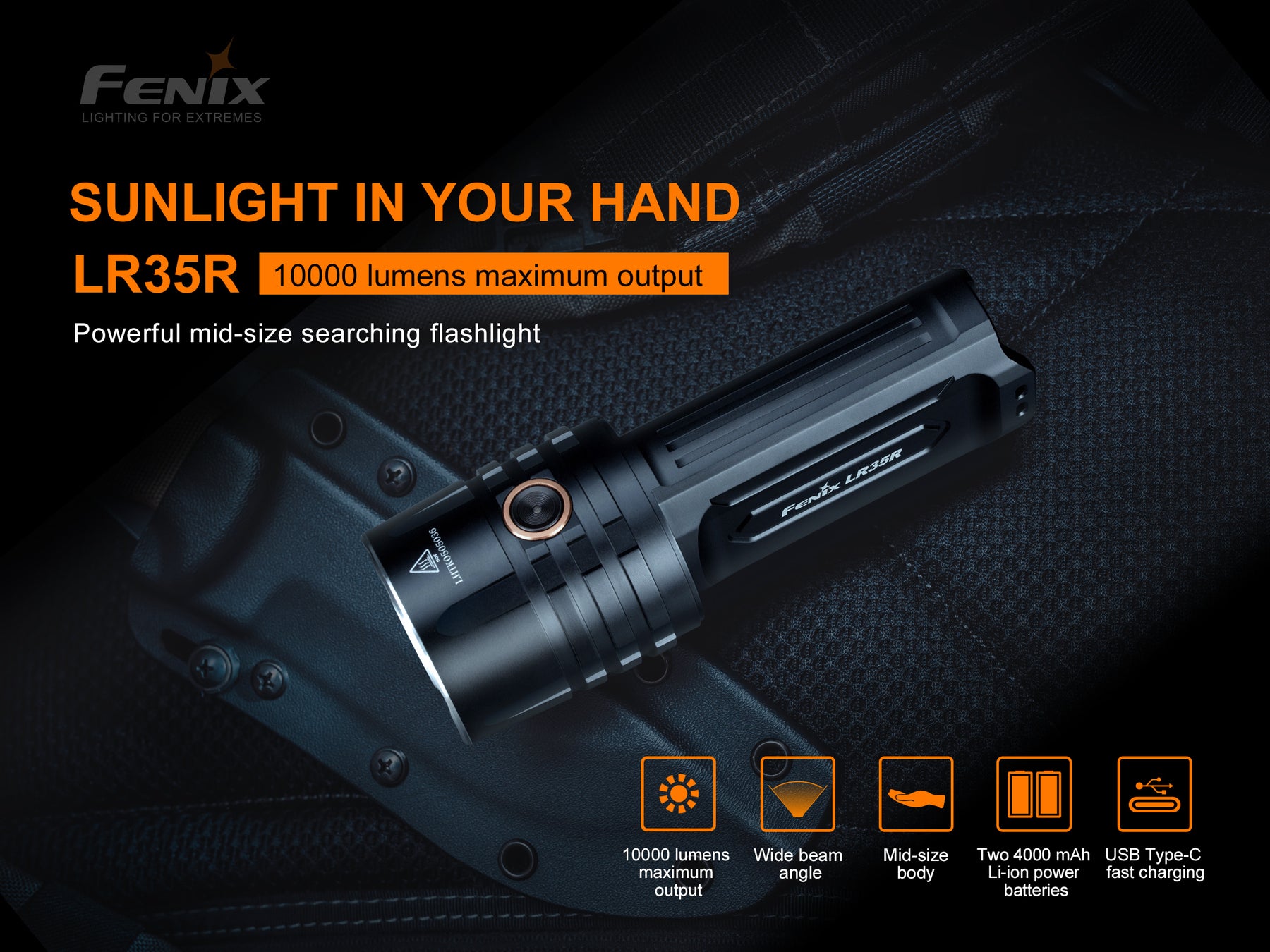

The Fenix LR35R is a mighty searching flashlight with 10,000 lumens maximum output and a 500-meter maximum beam distance. This summary is drawn from the manufacturer's official user manual — see the downloadable PDF reference manual on the product page for complete details.

Warning

• Keep this light out of the reach of children.
• Do not shine the light directly into anyone's eyes.
• Do not shine flammable objects at close range, to avoid burning objects or causing danger due to high temperature.
• Do not use the light in inappropriate ways such as biting in the mouth, to avoid personal injury or life threats if the light or internal battery fails.
• This light will accumulate a lot of heat while working, resulting in a high temperature of the flashlight shell. Pay attention to safe use to avoid scalding.
• Turn off and lock the light or remove the battery from the light to prevent accidental activation when the light is placed in a closed and flammable environment such as pockets and backpacks.
• The LED of this flashlight is not replaceable; so the whole light should be replaced when the LED reaches the end of its life.

Overview

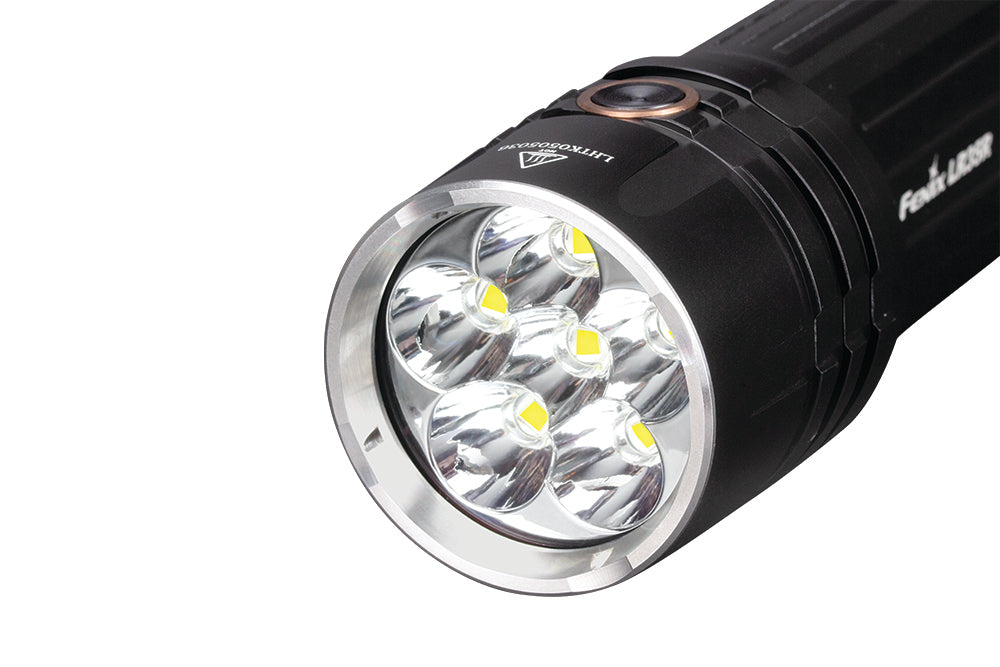

• 6 Luminus SST40 LEDs with a lifespan of 50,000 hours.
• 10,000 lumens maximum output; 500 meters maximum beam distance.
• Includes 2 x 21700 rechargeable Li-ion power batteries.

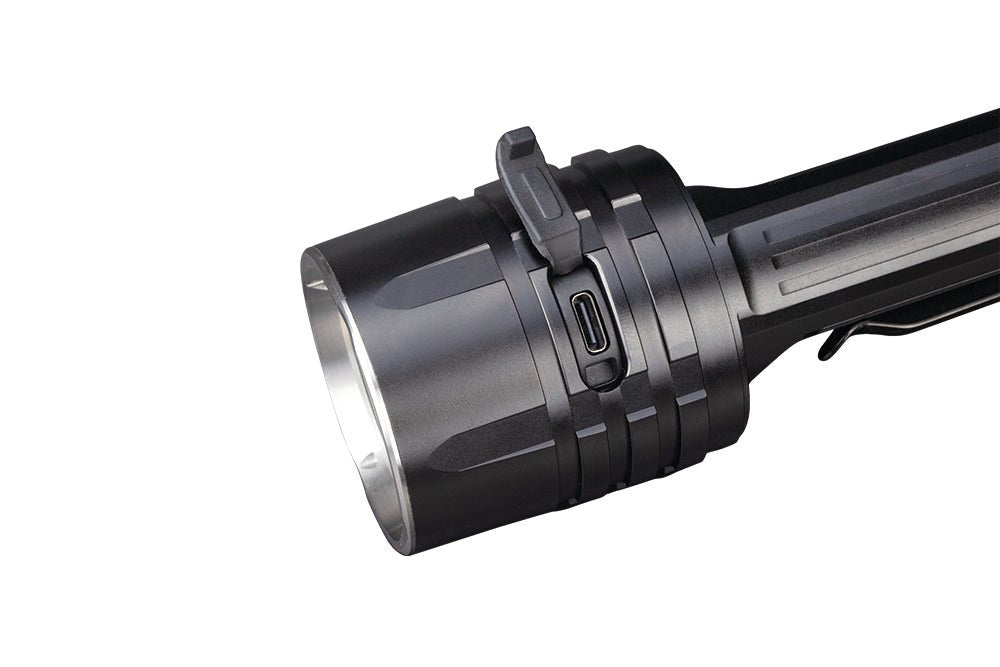

• USB Type-C charging port.
• Battery level indication for instant checking of remaining battery level.
• Lockout function avoids accidental activation.
• Intelligent overheat protection against high surface temperature.
• Intelligent memory circuit recalls the last used brightness level.
• Premium type HAIII hard-anodized anti-abrasive finish.

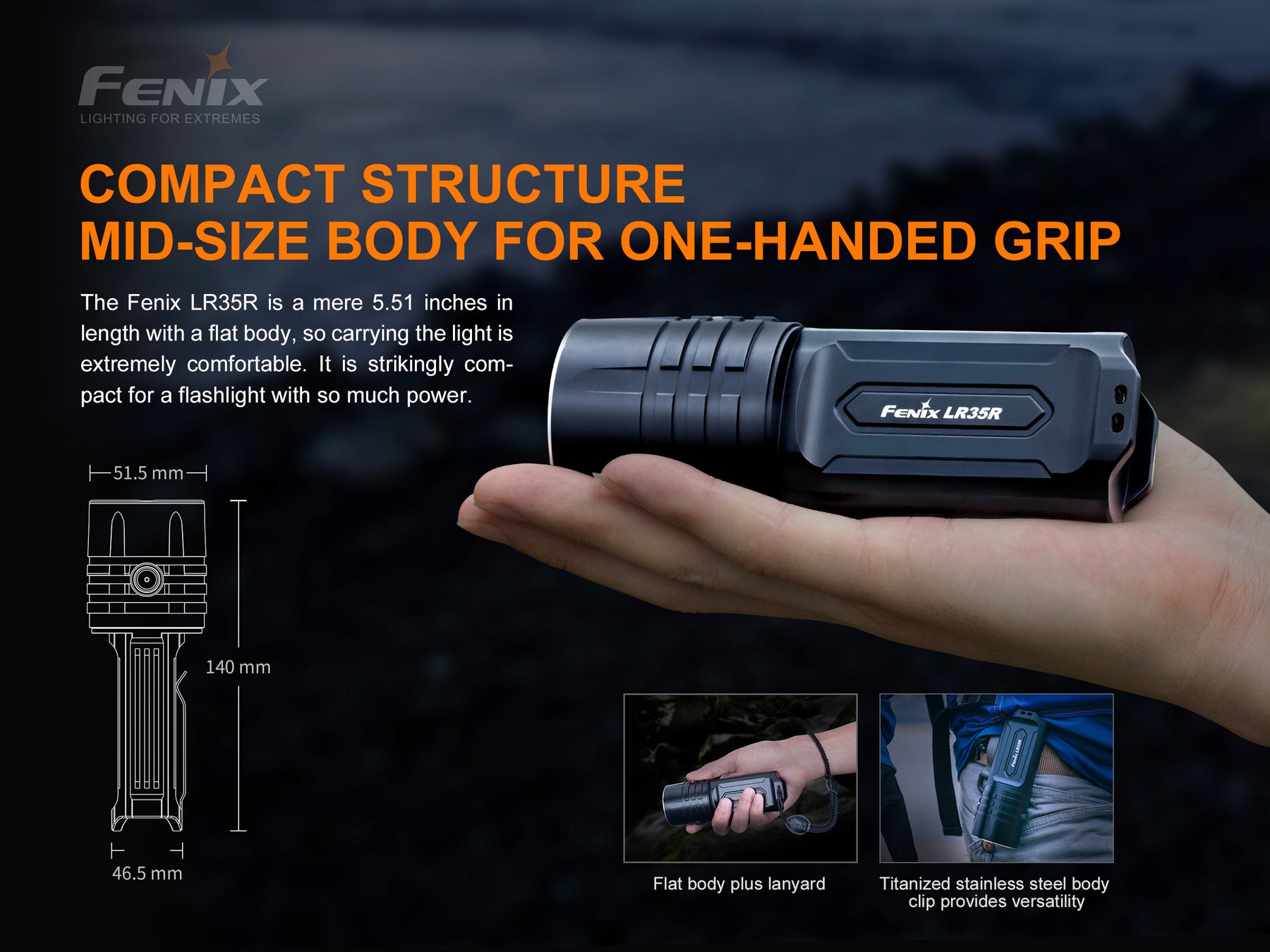

• Weight: 8.43 oz / 239 g (excluding battery). Size: 5.51" x 2.03" x 1.83" / 140 x 51.5 x 46.5 mm.

Operating Instructions

On/Off: With the light unlocked and switched off, press and hold the switch for 0.5 seconds to turn on the light. With the light switched on, press and hold the switch for 0.5 seconds to turn it off.

Output Selection: Single click the switch to cycle through Eco→Low→Med→High→Turbo.

Mode Switching: Press and hold the switch for 1.2 seconds to enter Strobe; single click the switch again to return to the last used output in general mode.

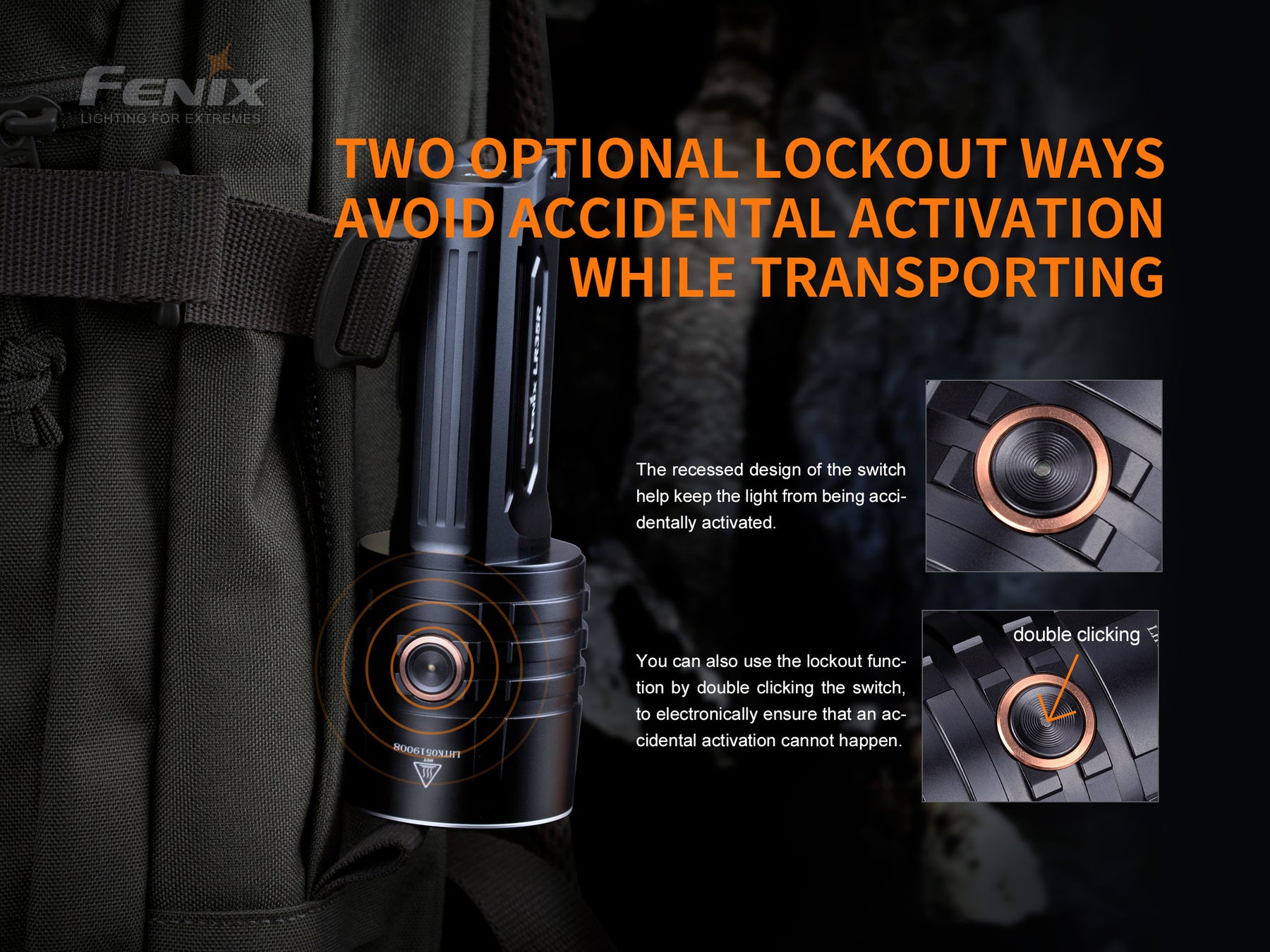

Lock/Unlock: With the light unlocked and switched off, double click the switch to lock it — the light will blink twice on Eco to indicate locked status. With the light locked and switched off, double click the switch to unlock it — the light will be unlocked and activated on Eco. In locked status, clicking or pressing the switch will activate two one-second blinks on Eco to indicate locked status.

Battery Specifications

• Rechargeable Li-ion battery (21700, 3.6V). It is recommended to use Fenix Li-ion power batteries, or the 10,000 lumens maximum output may not be reached.

21700 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Use only quality batteries with circuit protection to reduce the potential for combustion or explosion; cell damage or short circuiting are risks the user assumes.

Battery Replacement

Unscrew the tail cap to insert the battery with the anode side (+) towards the light head, then screw the tail cap back on.

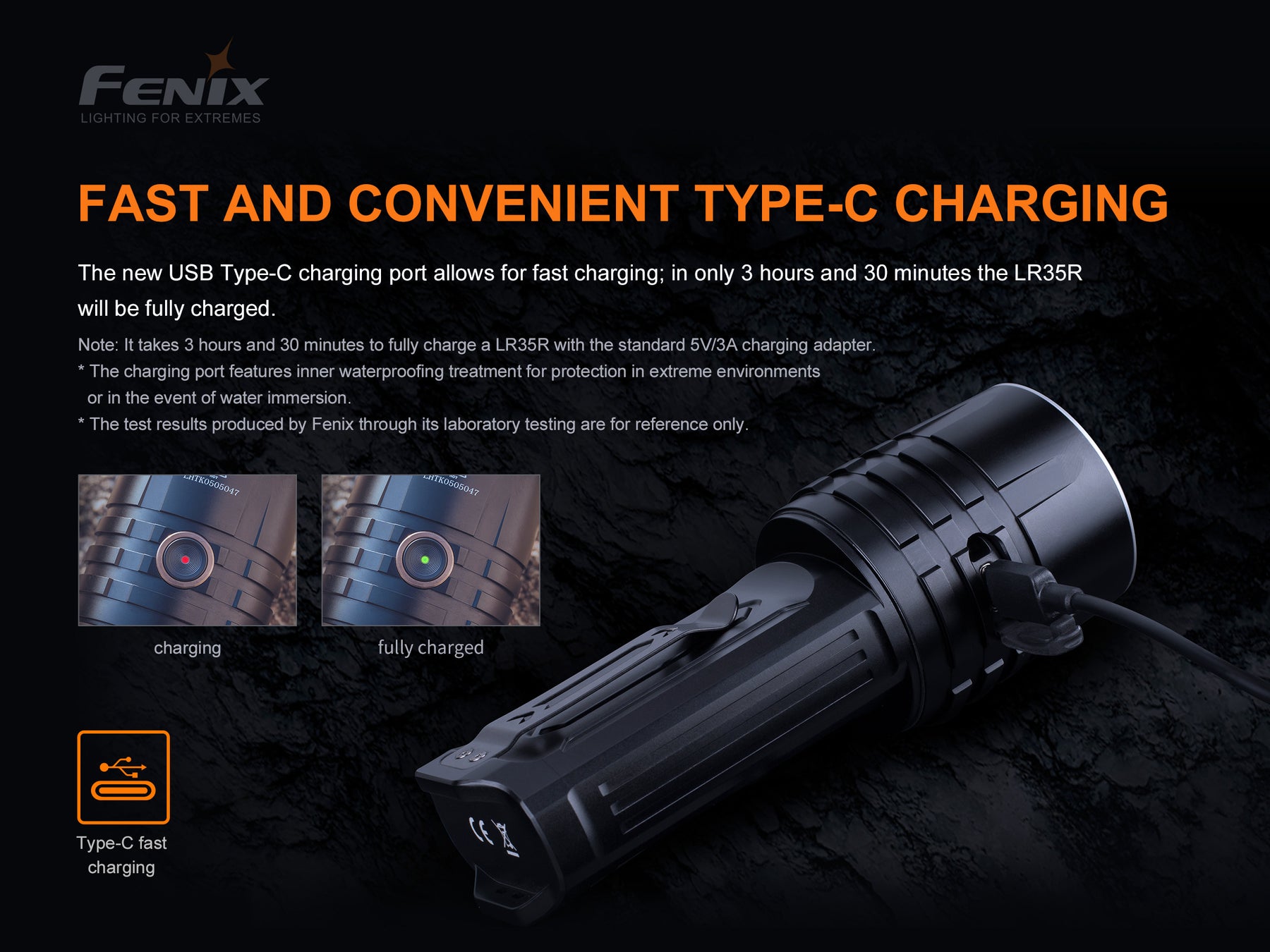

Charging

Switch off the light and plug the USB A end of the charging cable into an electrical outlet, then connect the USB Type-C socket of the charging cable to the light. The indicator displays red while charging and turns green once fully charged; be sure to close the anti-dust cover once charging is complete.

• Normal charging time is approximately 3 hours 30 minutes from depleted to fully charged.
• Only Eco output is available while charging.
• Recharge a stored light every four months to maintain optimum performance of the battery.

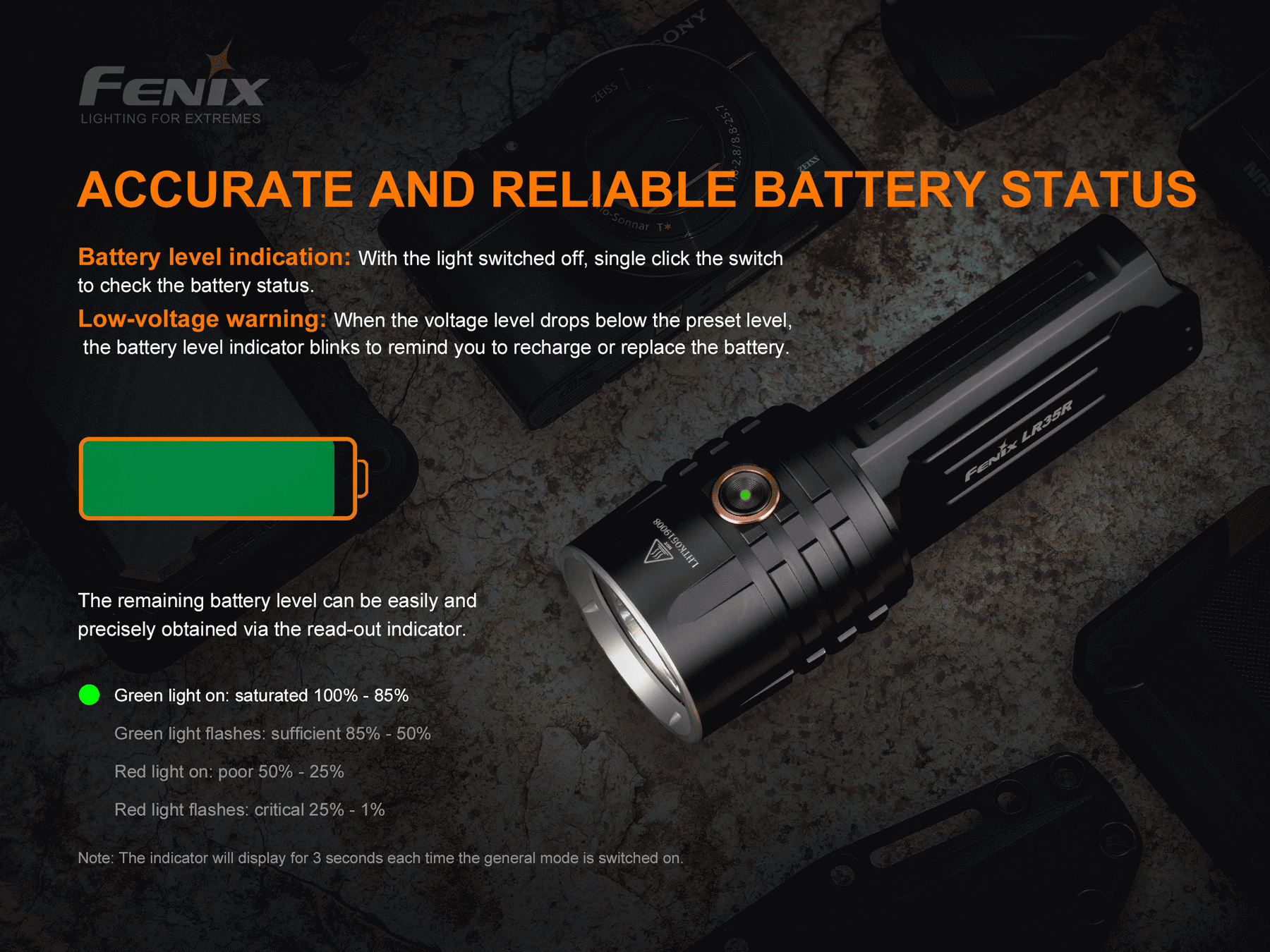

Battery Level Indication

With the light switched off, single click the switch to check the battery status; the indicator will last 3 seconds.

• Green light on: saturated, 100% - 85%.
• Green light flashes: sufficient, 85% - 50%.
• Red light on: poor, 50% - 25%.
• Red light flashes: critical, 25% - 1%.

Intelligent Memory Circuit

The light memorizes the last selected output of general mode. When turned on again, the previously used output of general mode will be recalled.

Intelligent Overheat Protection

The light will accumulate a lot of heat when used at Med, High, or Turbo output levels for extended periods. When the light reaches a temperature of 65°C or above, it will automatically step down a few lumens to reduce the temperature. When the temperature drops below 65°C, it will then allow the user to reselect the previous output.

Low-Voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Eco output is reached.

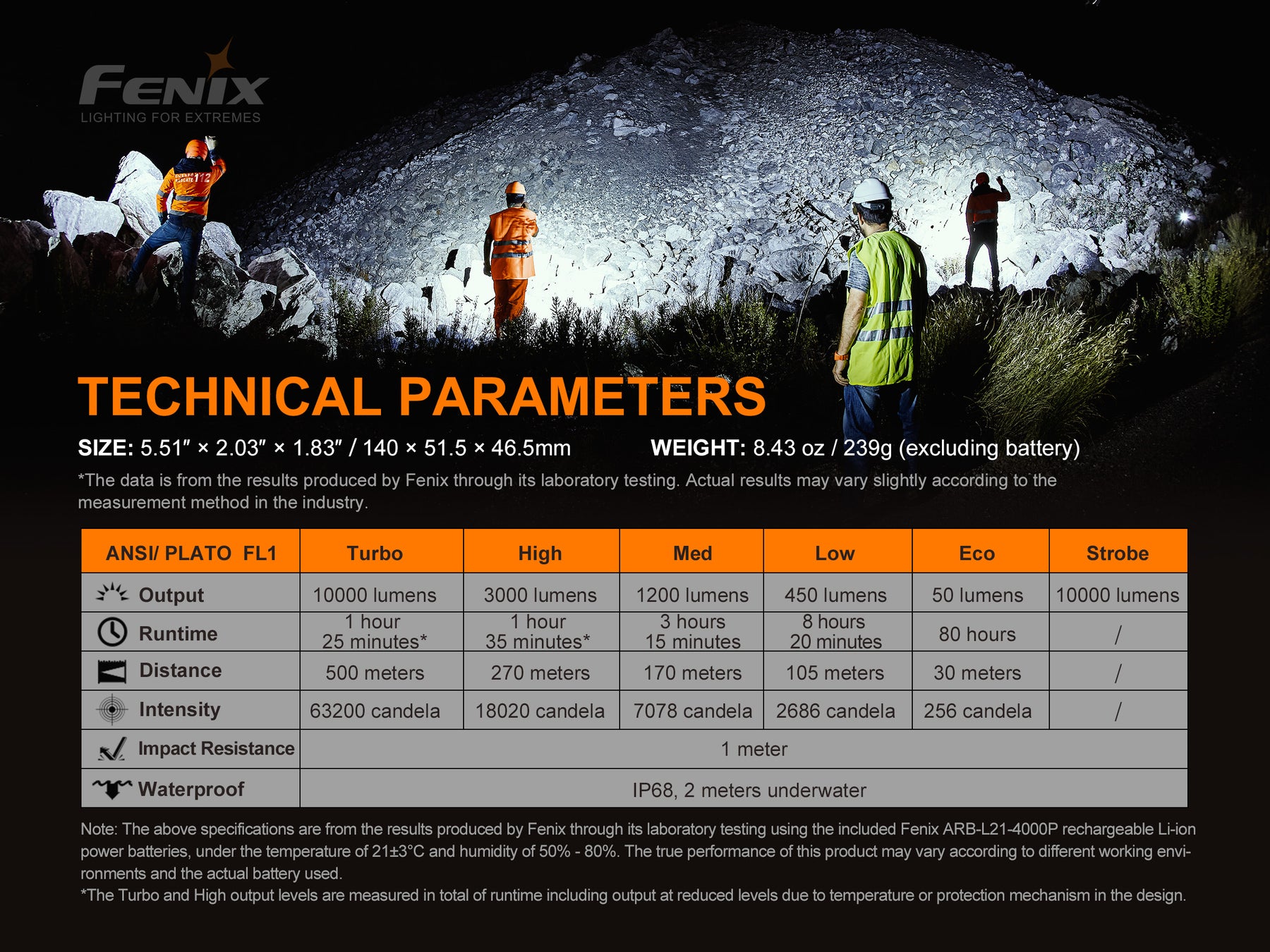

Technical Parameters

• Turbo: Output 10,000 lumens, Runtime 1 hour 25 minutes*, Distance 500 meters, Intensity 63,200 candela.
• High: Output 3,000 lumens, Runtime 1 hour 35 minutes, Distance 270 meters, Intensity 18,020 candela.
• Med: Output 1,200 lumens, Runtime 3 hours 15 minutes, Distance 170 meters, Intensity 7,078 candela.
• Low: Output 450 lumens, Runtime 8 hours 20 minutes, Distance 105 meters, Intensity 2,686 candela.
• Eco: Output 50 lumens, Runtime 80 hours, Distance 30 meters, Intensity 256 candela.
• Strobe: Output 10,000 lumens.
• Impact Resistance: 1 meter.

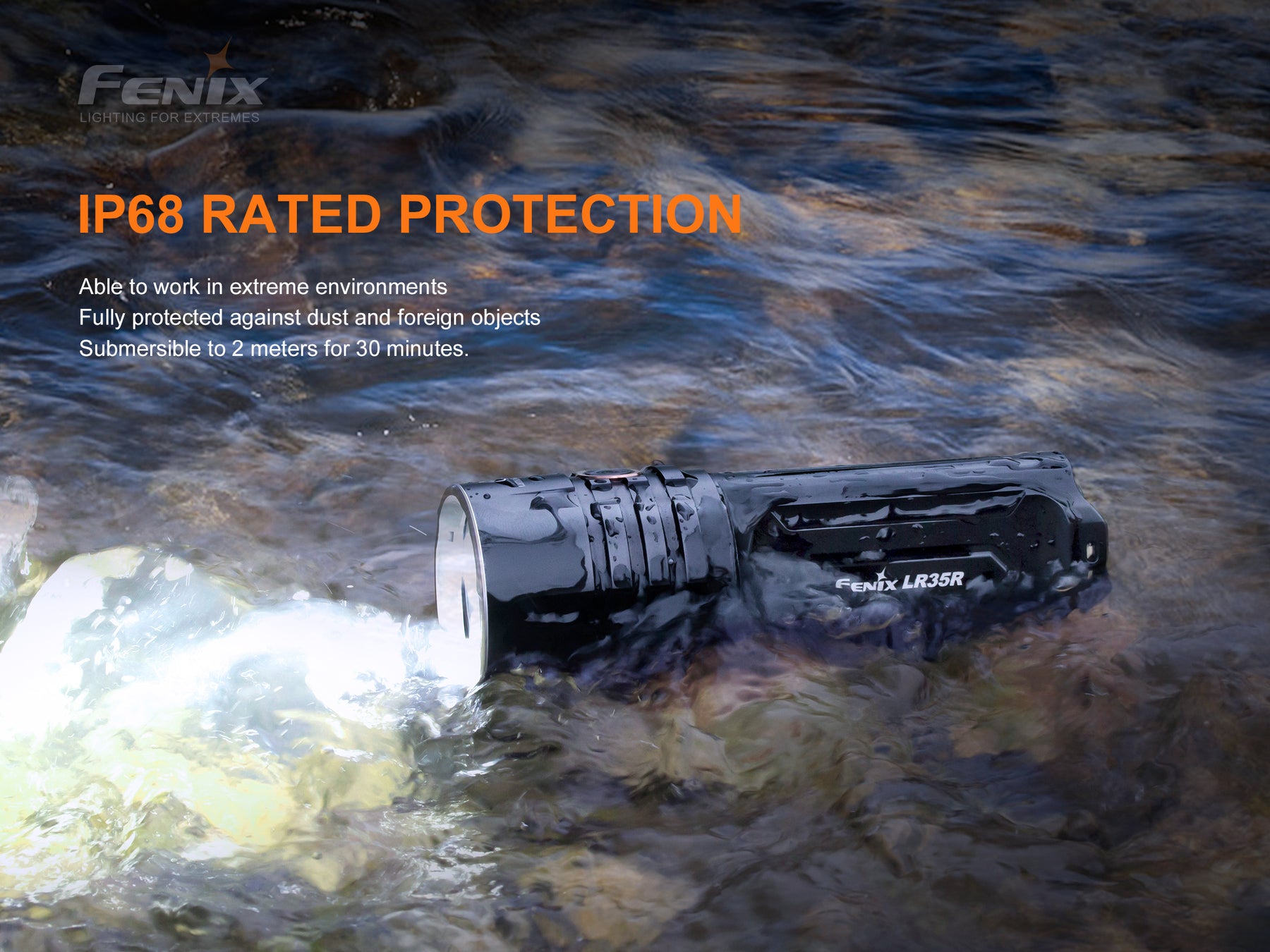

• Waterproof: IP68, 2 meters underwater.

Note: The above specifications are the test results produced by Fenix through its laboratory testing using the included Fenix ARB-L21-4000P rechargeable Li-ion power batteries, under the temperature of 21±3°C and humidity of 50% - 80%. The true performance of this product may vary according to different working environments and the actual battery used. *The Turbo output is measured in total of runtime including output at reduced levels due to temperature or protection mechanism in the design.

Usage and Maintenance

• Disassembling the sealed head can cause damage to the light and will void the warranty.
• Fenix recommends using an excellent quality battery.
• If the light will not be used for an extended period, remove the batteries, or the light could be damaged by electrolyte leakage or battery explosion.
• Lock the light or remove the battery to prevent accidental activation during storage or transportation.
• Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
• Periodic cleaning of the battery contacts improves the lamp's performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons: the battery needs replacing (recharge or replace the battery); or the threads, PCB board contact or other contacts are dirty (clean with a cotton swab soaked in rubbing alcohol).
• If the above methods don't work, please contact your authorized distributor.

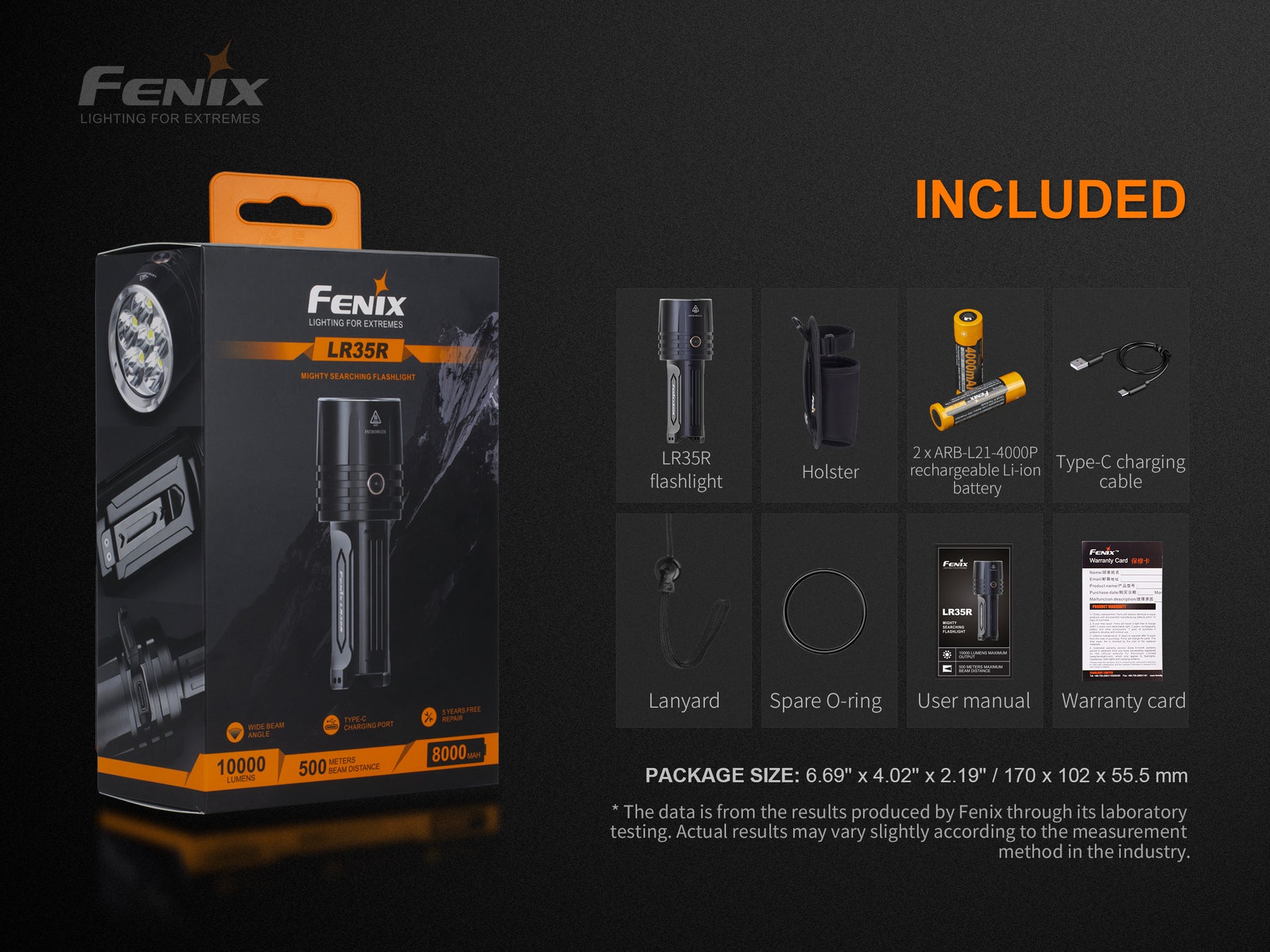

Included

Fenix LR35R flashlight, 2 x ARB-L21-4000P rechargeable Li-ion batteries, USB Type-C charging cable, Holster, Lanyard, Spare O-ring, Information leaflet, User manual, Warranty card.
