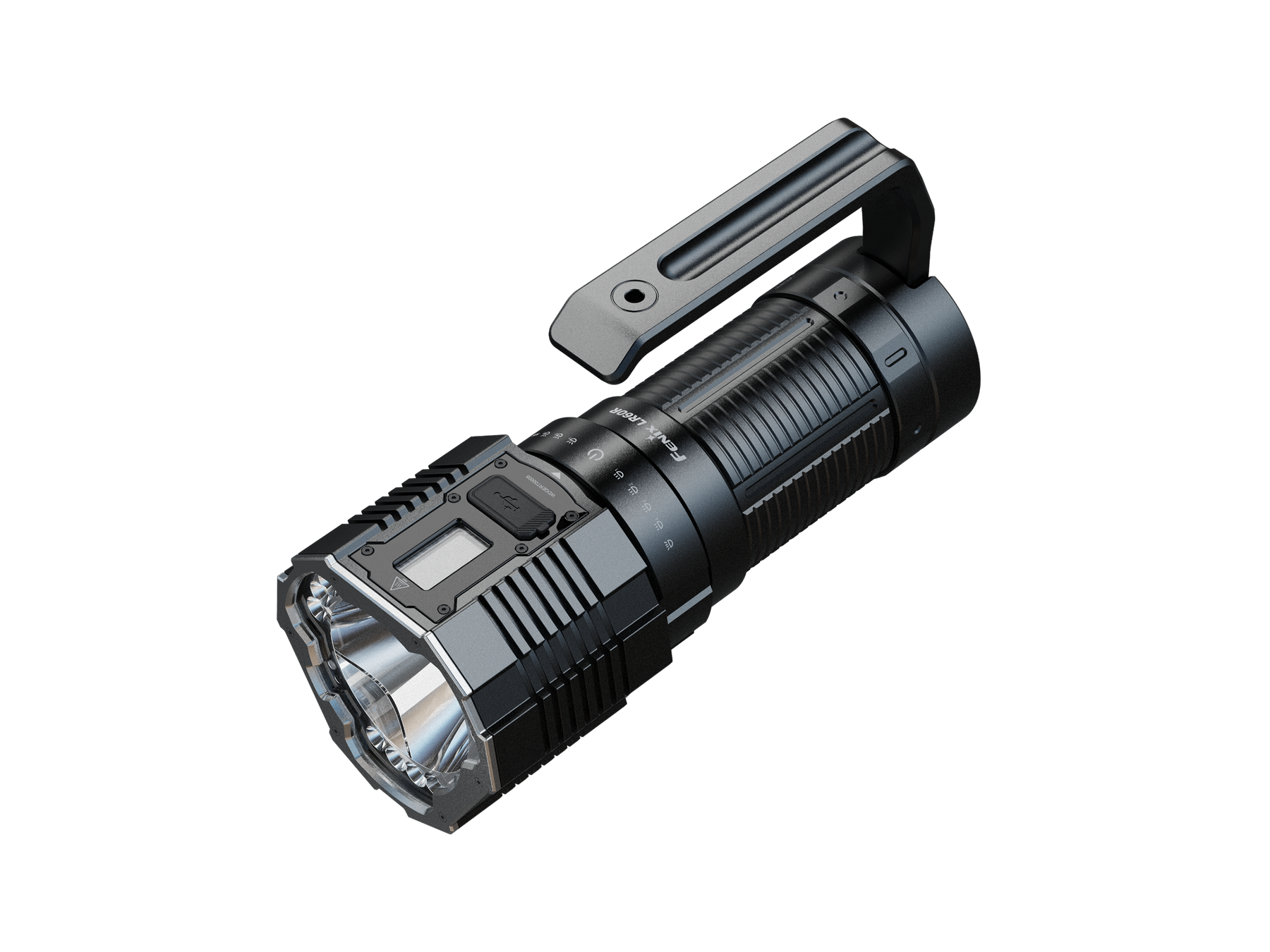

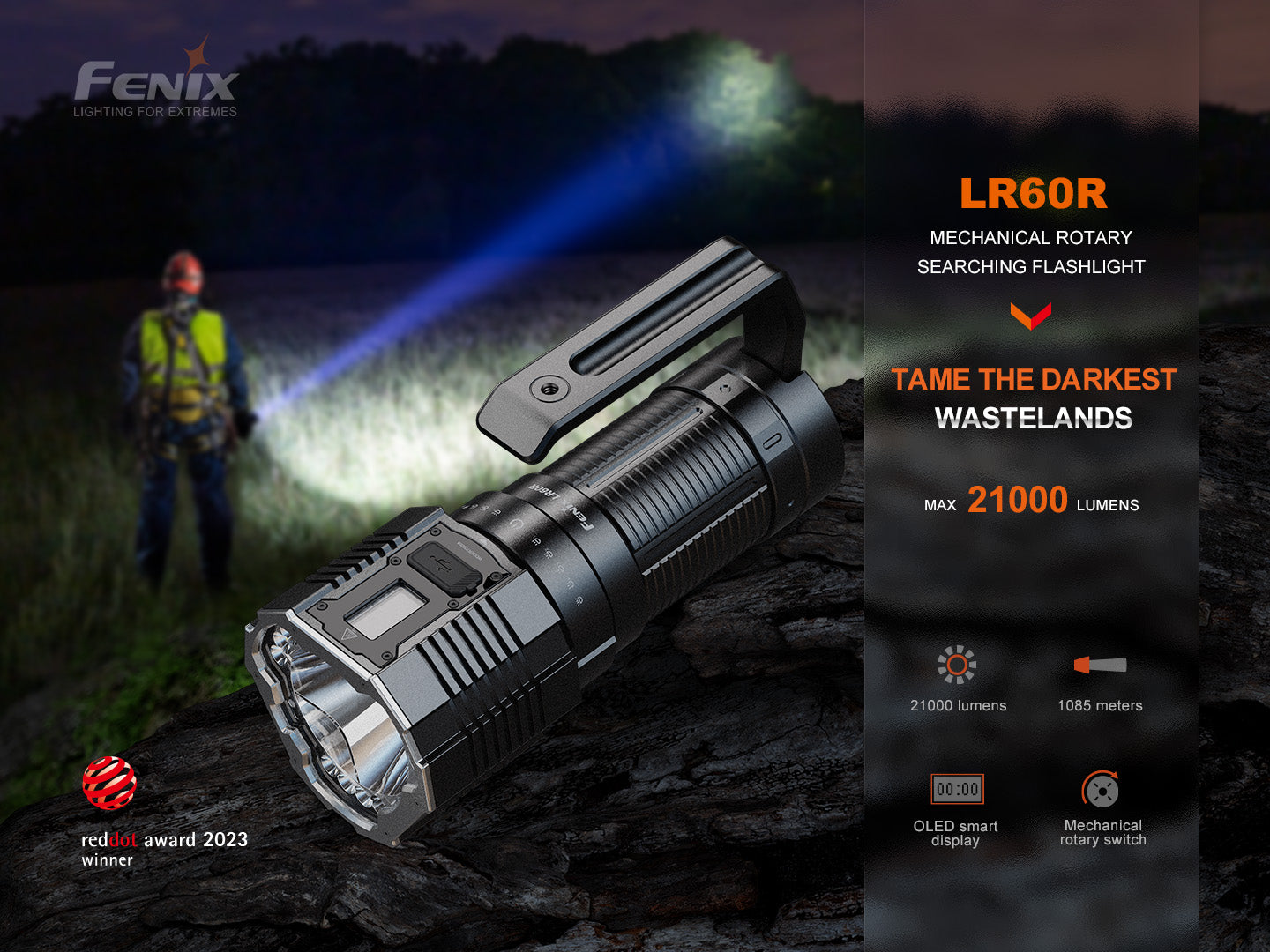

Fenix LR60R Rotary Switch Rechargeable Searchlight - 21000 Lumens

Outputs

• Searching Mode (Spotlight)
• Turbo: 21000 Lumens, 1.83 hours, 3560 feet, 294,267 candela (Spot and Floodlight)
• High: 3000 Lumens, 3.75 hours, 3281 feet, 249,717 candela
• Med: 1000 Lumens, 10.67 hours, 1992 feet, 92,184 candela
• Low: 300 Lumens, 24.33 hours, 1083 feet, 27,123 candela
• Eco: 50 Lumens, 113 hours, 433 feet, 4,271 candela
• Camp Mode (Floodlight)
• Turbo: 15000 Lumens, 2.17 hours, 1155 feet, 30,896 candela
• High: 6000 Lumens, 3 hours, 715 feet, 11,839 candela
• Med: 2000 Lumens, 5.42 hours, 413 feet, 3,949 candela
• SOS: 300 Lumens (Spotlight)
• Strobe: 9000 Lumens (Spot and Floodlight)

Details

• 21,000 Lumen maximum output
• 1085 meter beam throw
• OLED smart display shows runtime, output, and battery percentage.
• Mechanical rotary switch allows easy selection between spotlight Searching Mode and floodlight Camping mode.
• SOS and Strobe functions available in Camping Mode
• Detachable metal handle with tripod socket
• Included shoulder strap allows for longer use without fatigue
• 11-day runtime on eco mode
• USB-C rechargeable; charges to full in only 1.5 hours!
• Powerbank function charges other devices from the LR60R battery via USB-C or USB-A charging ports.
• Intelligent downshift sensor reduces brightness when in close proximity to a surface, reducing chances of overheating damage.

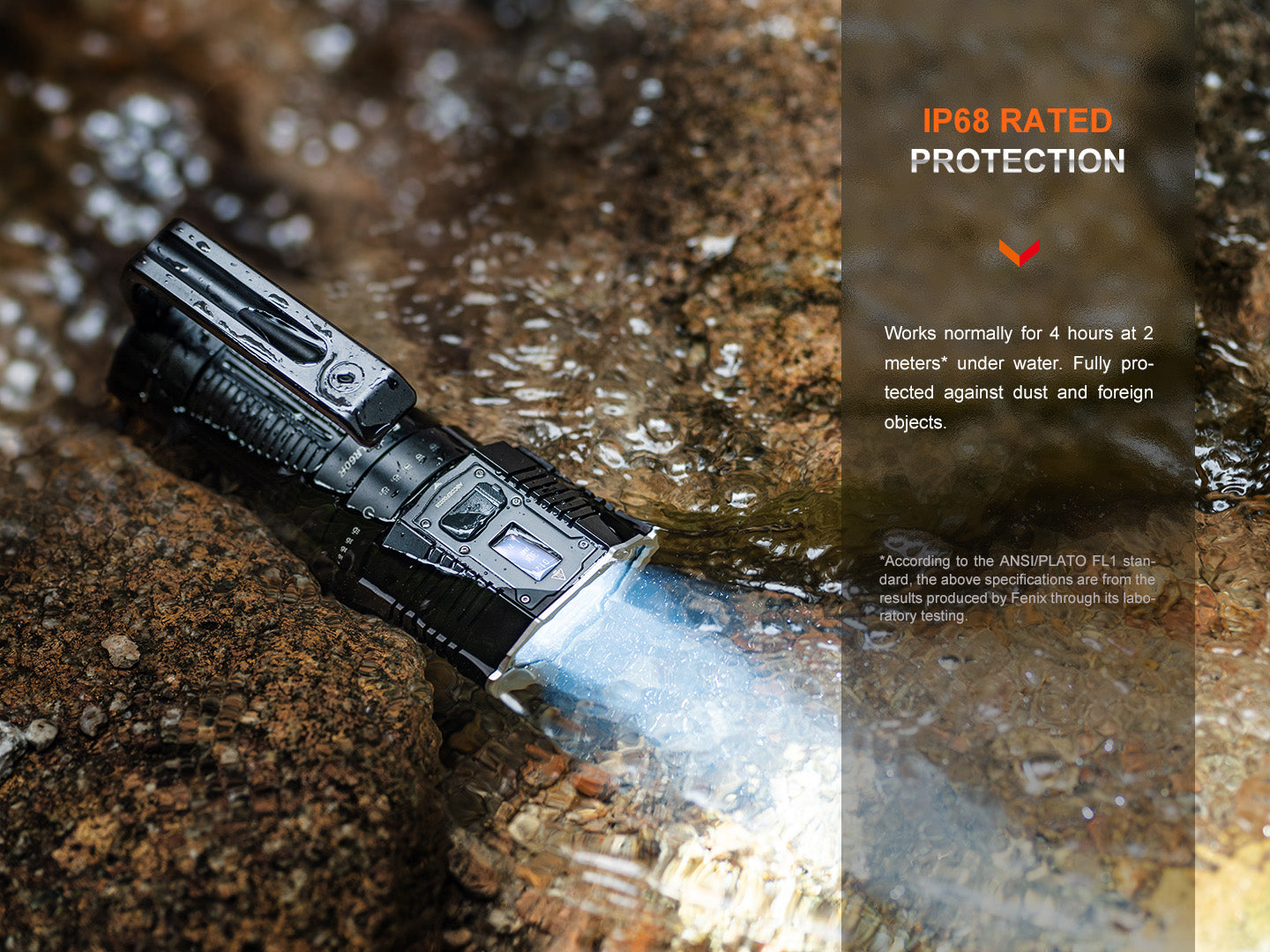

• Waterproof beyond IP68 standard; fully submersible to 2 meters for up to 4 hours

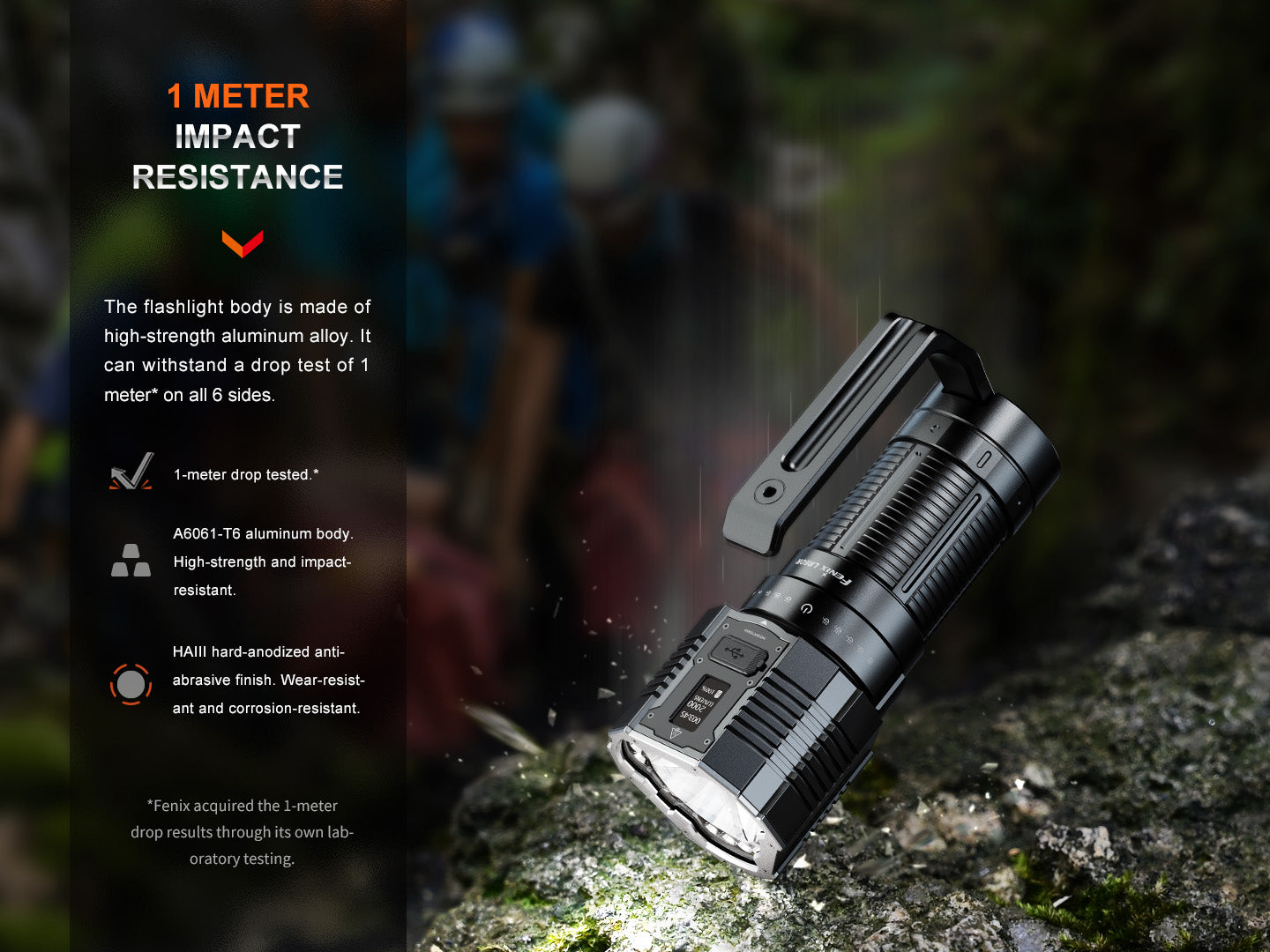

• 1 meter impact drop-tested
• Operable from temperatures between -35 to 45 degrees Celsius.

Batteries

• Included: Fenix ARB-L56-4000 rechargeable 4000mAh, 14.4V battery.

Size

• Length: 8.19 inches
• Width: 3.58 inches
• Height: 2.46 inches
• Weight: 52.91 ounces

Q: What kind of LED is used in LR60R?

A: A Luminus SFT70 LED and twelve Luminus SST40 LEDs; with a lifespan of 50,000
hours.

Q: What is the color temperature of LR60R?

A: Around 6000K.

Q: What is the operating voltage of LR60R?

A: The operating voltage is 14.4 V.

Q: Is LR60R rechargeable? How long is the charging time?

A: Yes. The Fenix LR60R features a USB Type-C fast charging port. When charging, the OLED display will automatically light up to show the battery level and charging status. The normal charging time is approximately 1.5 hours from depletion to fully charged with a 45 W or higher-power charging adapter.

Q: What kind of battery can be used in LR60R? Is the battery pack replaceable?

A: The LR60R is powered by a replaceable battery pack that consists of 4 x 4000mAh batteries. This type of battery is manufactured by Fenix and is only compatible with the Fenix LR60R. When there is no battery pack inserted or the battery pack is inserted backward, the OLED display will show a battery box image that flashes to notify the user to check the battery pack condition. Other Li-ion batteries are not recommended. As an unmatched battery may cause the flashlight to fail to work normally.

Q: How can you turn on/off the intelligent brightness downshifting sensor?

A: With the light switched off, switch the mechanical rotary switch in the order of Off→Eco→Off 3 times within 3 seconds. The OLED display will show "ON", and the light will blink twice in Eco mode, indicating that the sensor function is enabled. With the light switched off, switch the mechanical rotary switch in the order of
Off→Eco→Off 3 times within 3 seconds. The OLED display will show “OFF”, and the light will blink eight times in Eco mode, indicating that the sensor function is disabled.

Q: Why does the LR60R downshift to a lower mode after being used for a while and the higher mode cannot be selected?

A: There are two reasons:
1. Intelligent Overheat Protection
The flashlight will accumulate a lot of heat when used at high output levels for extended periods. When the light reaches a temperature of 60°C or above, the light
will automatically step down a few lumens to reduce the temperature.
2. Low-voltage Warning
When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until the Eco mode is reached.

Q: Why does the LR60R flicker?

A: The reasons that may cause the light to flicker, shine intermittently or even fail to illuminate:
1. Poor battery level.
Solution: Recharge or replace the battery pack.
2. The contact or contact point of the battery or flashlight is dirty.
Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

The Fenix LR60R is a rotary-switch rechargeable searchlight with 21,000 lumens maximum output and a 1,085-meter maximum beam distance, featuring Search and Camp modes and an OLED smart display. This summary is drawn from the manufacturer's official user manual — see the downloadable PDF reference manual on the product page for complete details.

Warning

• Keep this flashlight out of the reach of children.
• Do not shine the flashlight directly into the eyes of anyone.
• Do not place the light head near flammable objects — high temperatures can cause objects to overheat and become flammable/ignite.
• Do not use the flashlight in inappropriate ways; doing so could cause serious personal injury or death if the flashlight or internal battery fails.
• This flashlight will accumulate a significant amount of heat while operating, resulting in a high temperature of the flashlight shell. Pay close attention to avoid burns.
• If the light will not be used for an extended period, turn it off to prevent accidental activation during storage or transportation.
• The LED of this flashlight is not replaceable; the whole flashlight will need to be replaced when the LED reaches the end of its lifespan.

Overview

• 21,000 lumens maximum output and 1,085 meters maximum beam distance.
• Uses one Luminus SFT70 LED and twelve Luminus SST40 LEDs.
• Mechanical rotary switch for rapid brightness and mode selection.
• OLED smart display shows brightness level, remaining runtime, and remaining battery level.
• Search mode for long-range searching and Camp mode for large-area illumination.
• Powered by a replaceable battery pack that consists of 4 x 4000mAh batteries.

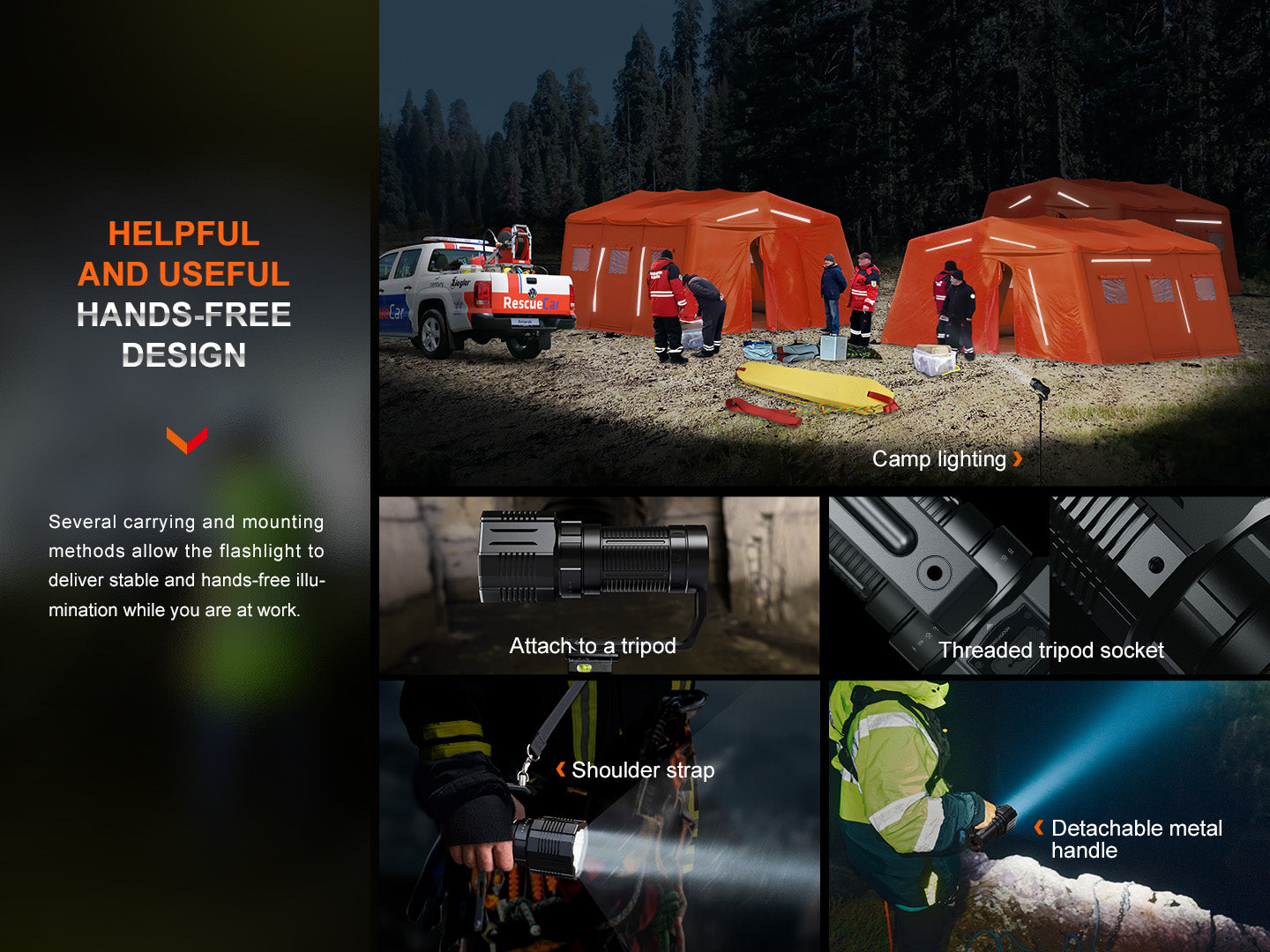

• Detachable metal handle, included shoulder strap, and threaded tripod socket assist light placement in various scenarios.
• USB Type-C fast charging/discharging port and USB-A discharging port.
• Size: 8.19" x 3.58" x 2.46" / 208 x 91 x 62.5 mm. Weight: 52.91 oz / 1500 g (including battery pack).

Operating Instructions

On/Off: With the flashlight off, rotate the mechanical rotary switch to any output to turn it on. With the flashlight on, rotate the switch back to off to turn it off.

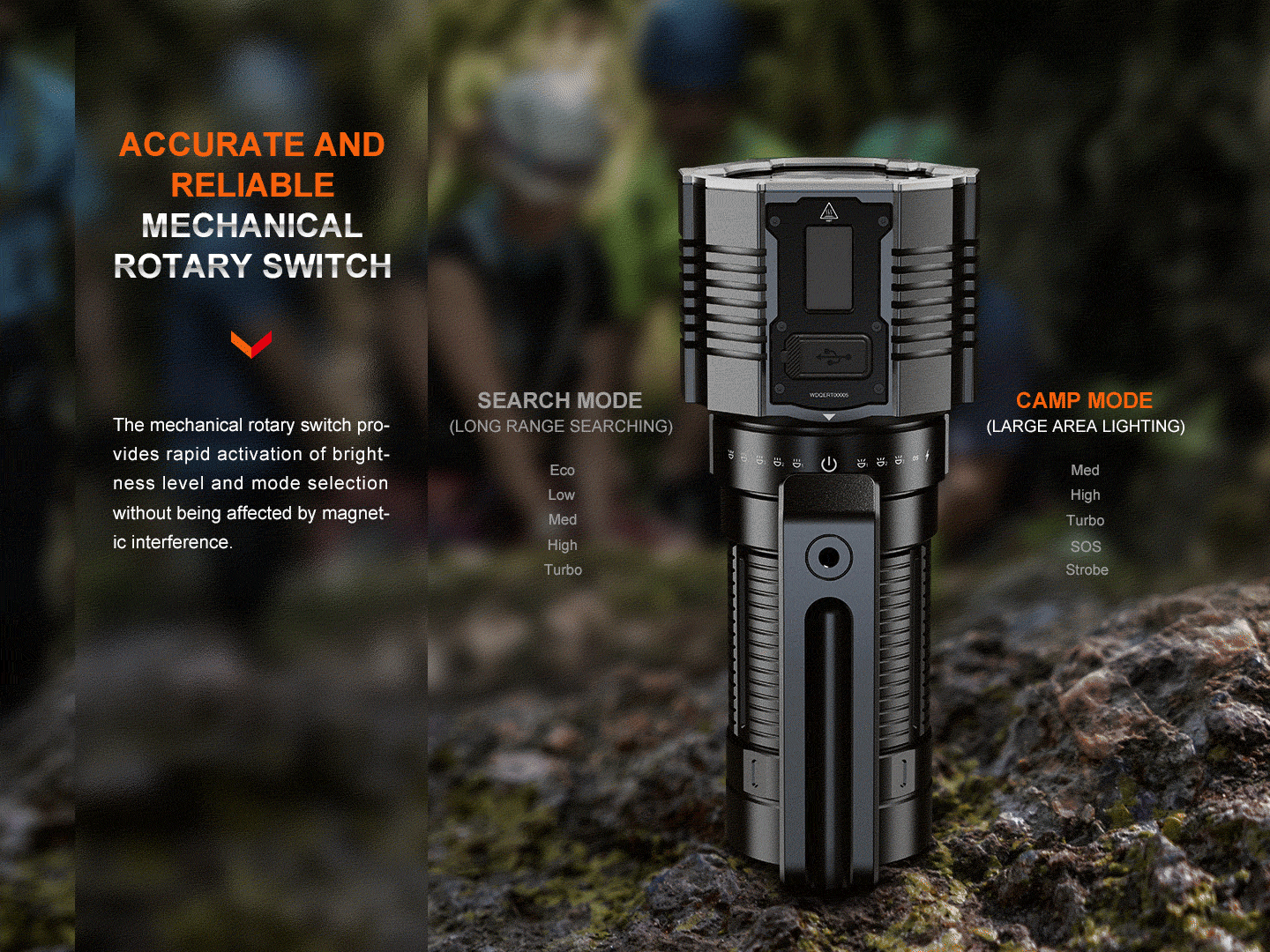

Mode Switching: With the light off, rotate the rotary switch clockwise to turn on the light and enter Search mode. Rotate the switch counterclockwise to turn on the light and enter Camp mode.

Output Selection: Rotating the switch clockwise in Search mode selects Eco→Low→Med→High→Turbo. Rotating the switch counterclockwise in Camp mode selects Med→High→Turbo→SOS→Strobe.

Intelligent Brightness Downshifting Sensor: With the light off, switch the rotary switch Off→Eco→Off three times within 3 seconds. The OLED display shows "ON" (sensor enabled, light blinks twice at Eco) or "OFF" (sensor disabled, light blinks eight times at Eco). When the light head is close to an illuminated object (about 60 mm) for more than 1 second, the flashlight automatically downshifts to Eco output; it recalls the previously used output once away from the object for more than 1.2 seconds.

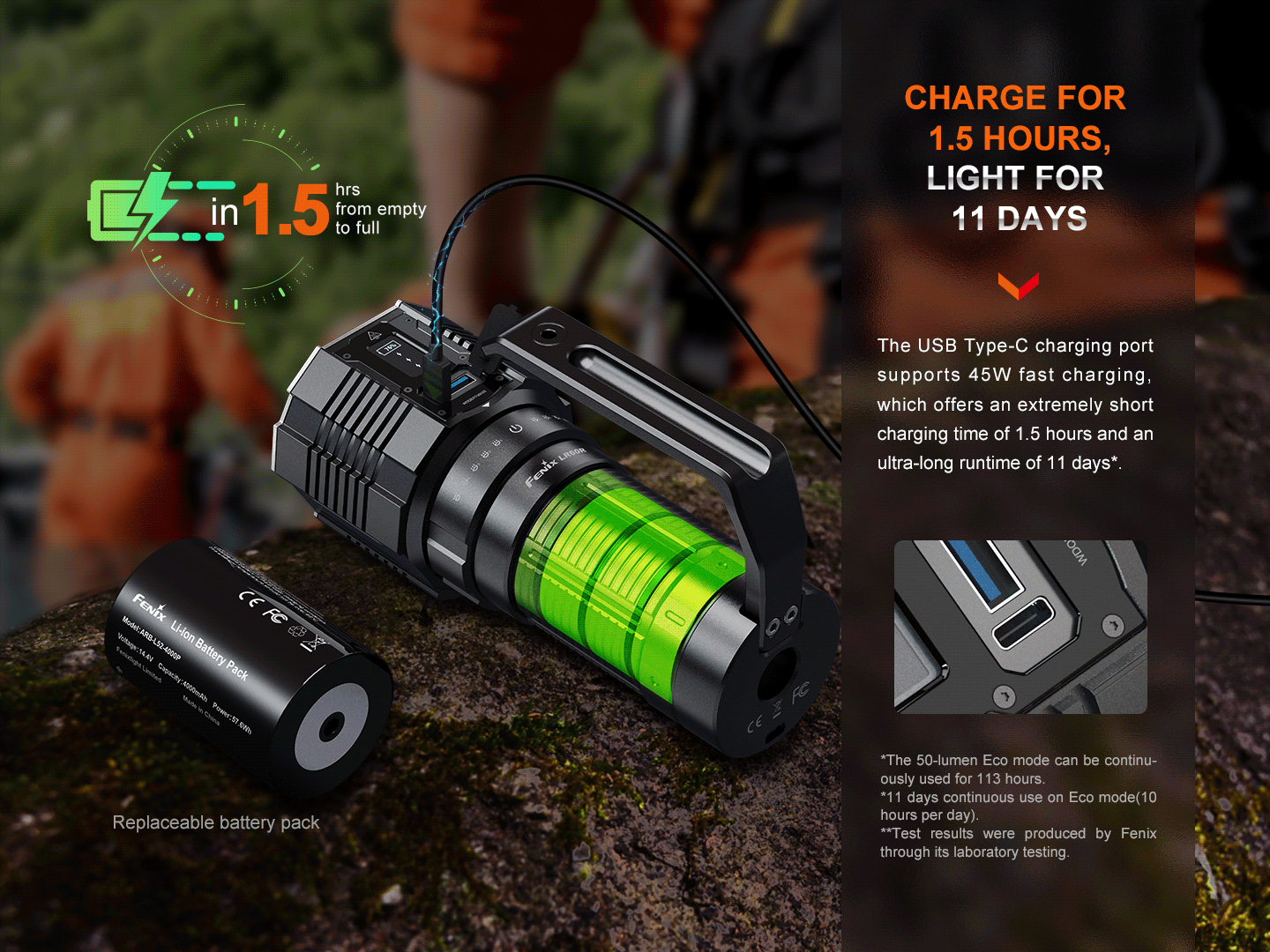

Charging

With the light off, open the anti-dust cap and plug the USB Type-C socket of the charging cable into the light, then connect the USB-A end to a charging adapter plugged into an outlet. The OLED display automatically lights up to show battery level and charging status. Normal charging time is approximately 1.5 hours from depleted to fully charged with a 45W or higher-power adapter. Do not charge the flashlight if there is no battery pack inserted; only Eco mode can be operated while charging.

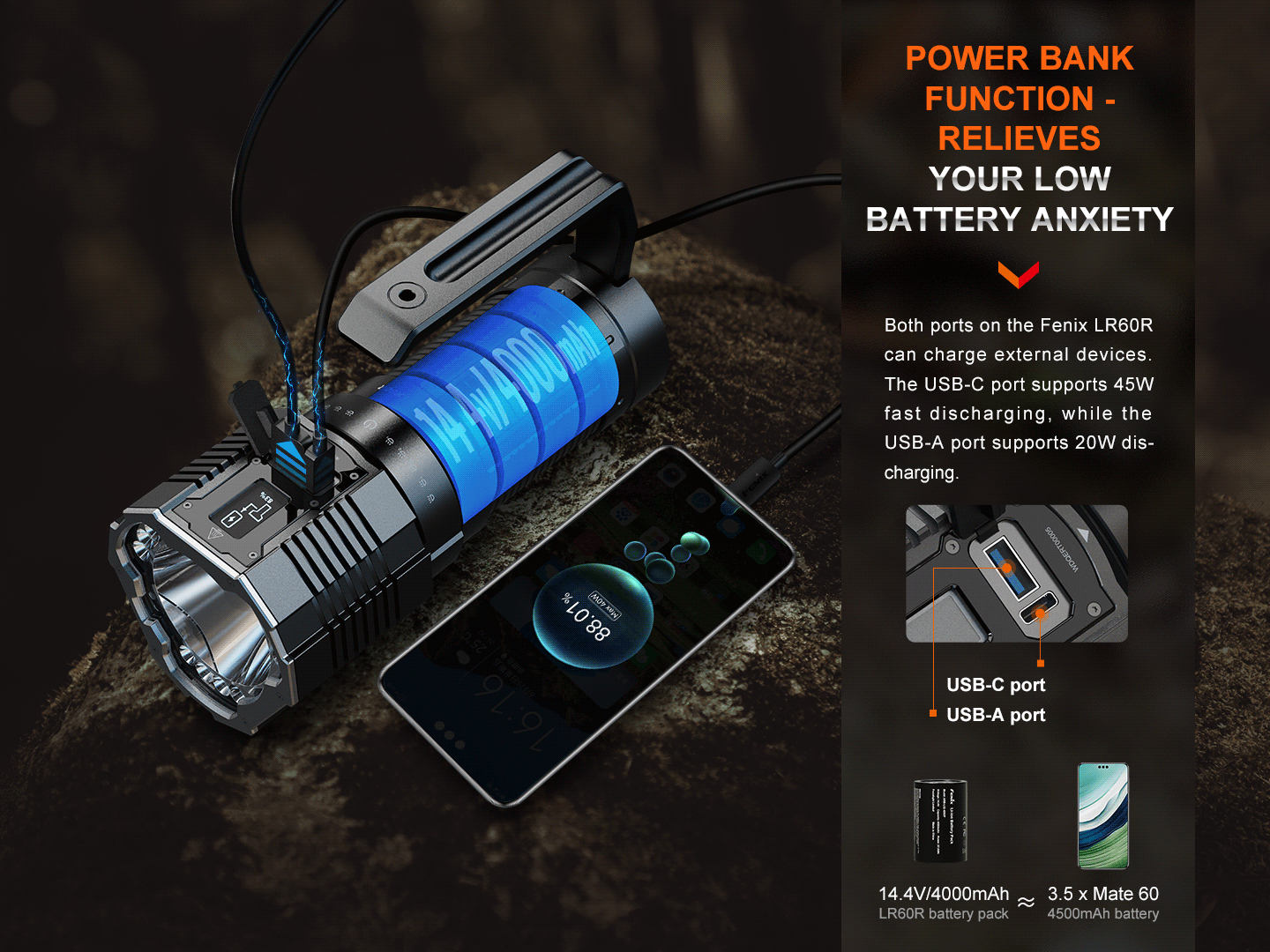

Power Bank Function

With the light off, open the anti-dust cover and plug the USB-A or USB-C socket of the charging cable into the flashlight, then connect the other socket to the digital device. The OLED display shows battery level and discharging status. All modes can be operated when discharging, and the flashlight will downshift based on actual battery level; if the battery level is too low, the light automatically stops discharging.

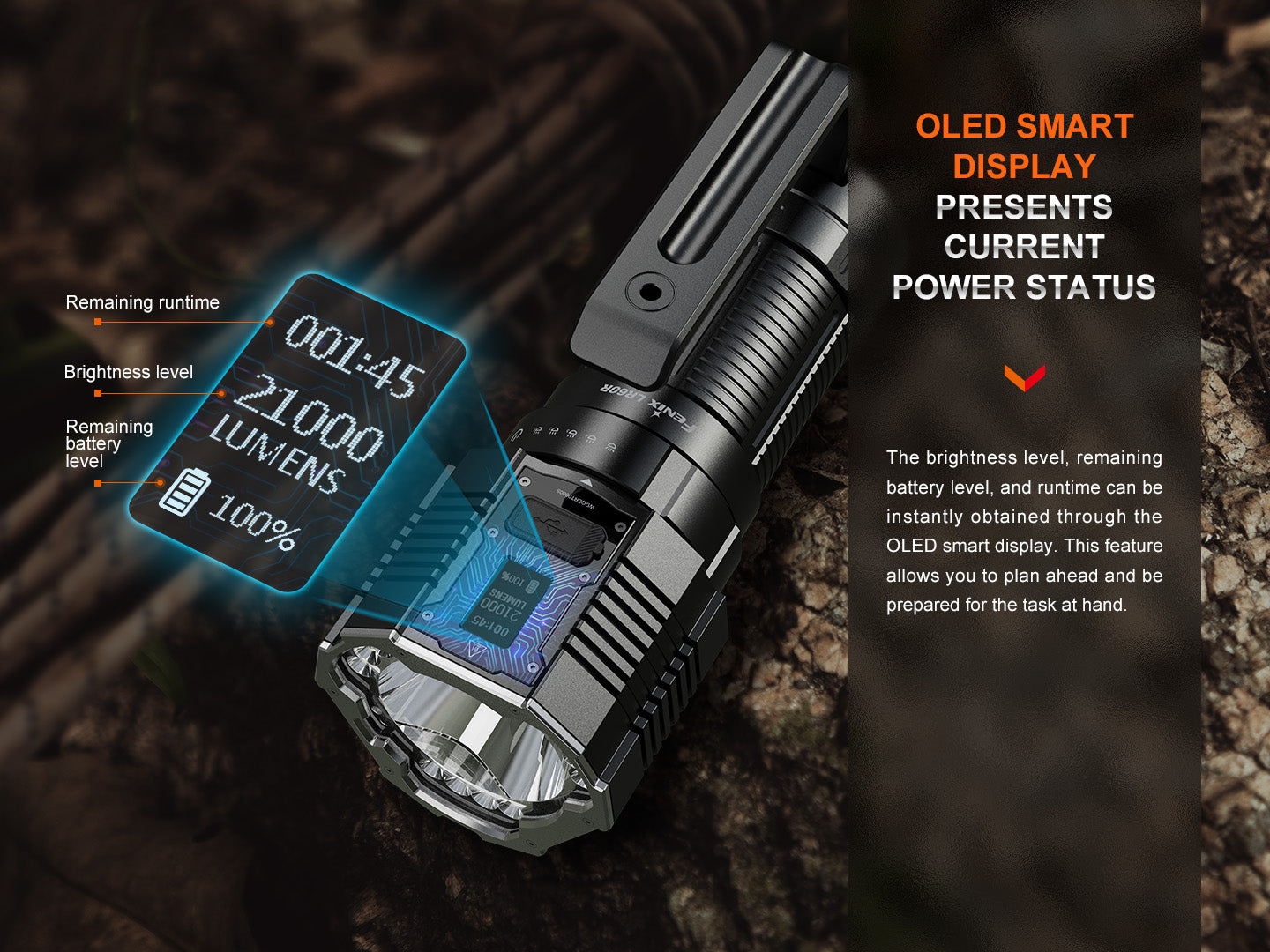

OLED Smart Display

When turned on, the OLED display automatically shows the brightness level, remaining runtime, and remaining battery level, staying on constantly. If the battery level is below 10%, the battery icon flashes to remind you to recharge or replace the battery pack. Below 5%, a low-battery image flashes and the flashlight automatically downshifts to Eco output; SOS will flash at Eco brightness only at this battery level.

Intelligent Overheat Protection

The flashlight will accumulate a lot of heat when used at high output levels for extended periods. When it reaches 60°C/140°F or above, it automatically steps down a few lumens to reduce the temperature, and gradually recalls the preset output level once the temperature drops below 60°C/140°F.

Low-Voltage Warning

When the battery pack voltage drops below the preset level, the flashlight downshifts to a lower brightness level until Eco output is reached. In Eco output, the battery icon on the OLED display flashes to remind you to replace or recharge the battery pack; the flashlight will not turn off automatically and will work until the battery level runs out completely.

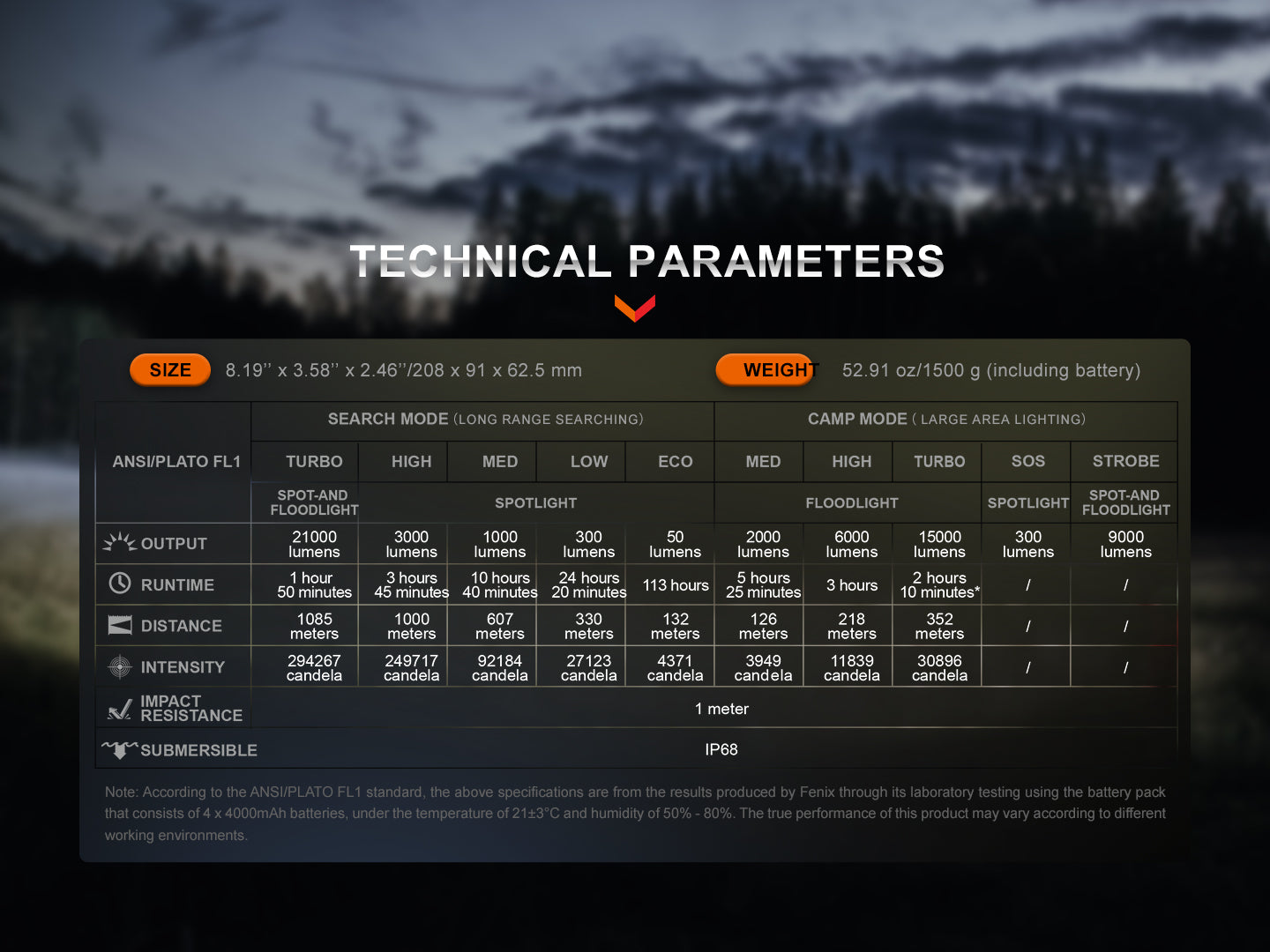

Technical Parameters

• Search Mode Turbo (spot-and floodlight): Output 21,000 lumens, Runtime 1h50min*, Distance 1,085 meters, Intensity 294,267 candela.
• Search Mode High (spotlight): Output 3,000 lumens, Runtime 3h45min, Distance 1,000 meters, Intensity 249,717 candela.
• Search Mode Med (spotlight): Output 1,000 lumens, Runtime 10h40min, Distance 607 meters, Intensity 92,184 candela.
• Search Mode Low (spotlight): Output 300 lumens, Runtime 24h20min, Distance 330 meters, Intensity 27,123 candela.
• Search Mode Eco (spotlight): Output 50 lumens, Runtime 113 hours, Distance 132 meters, Intensity 4,371 candela.
• Camp Mode Med (floodlight): Output 2,000 lumens, Runtime 5h25min, Distance 126 meters, Intensity 3,949 candela.
• Camp Mode High (floodlight): Output 6,000 lumens, Runtime 3 hours, Distance 218 meters, Intensity 11,839 candela.
• Camp Mode Turbo (floodlight): Output 15,000 lumens, Runtime 2h10min*, Distance 352 meters, Intensity 30,896 candela.
• Camp Mode SOS (spotlight): Output 300 lumens.
• Camp Mode Strobe (spot-and floodlight): Output 9,000 lumens.
• Impact Resistance: 1 meter.
• Waterproof: IP68.

Note: According to the ANSI/PLATO FL1 standard, the above specifications are from Fenix laboratory testing using the battery pack (4 x 4000mAh batteries) under a temperature of 21±3°C and humidity of 50% - 80%. The true performance of this product may vary according to different working environments. *The Turbo output is measured in total of runtime including output at reduced levels due to the built-in temperature protection mechanism.

Usage and Maintenance

• Disassembling the sealed head can cause damage to the light and will void the warranty.
• If the light will not be used for an extended period, turn it off to prevent accidental activation during storage or transportation.
• Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
• Periodic cleaning of the battery contacts improves the lamp's performance as dirty contacts may cause flickering or failure to illuminate: poor battery level (replace or recharge the battery pack); or the threads, PCB board contact or other contacts are dirty (clean with a cotton swab soaked in rubbing alcohol).
• If the above methods don't work, please contact your authorized distributor.

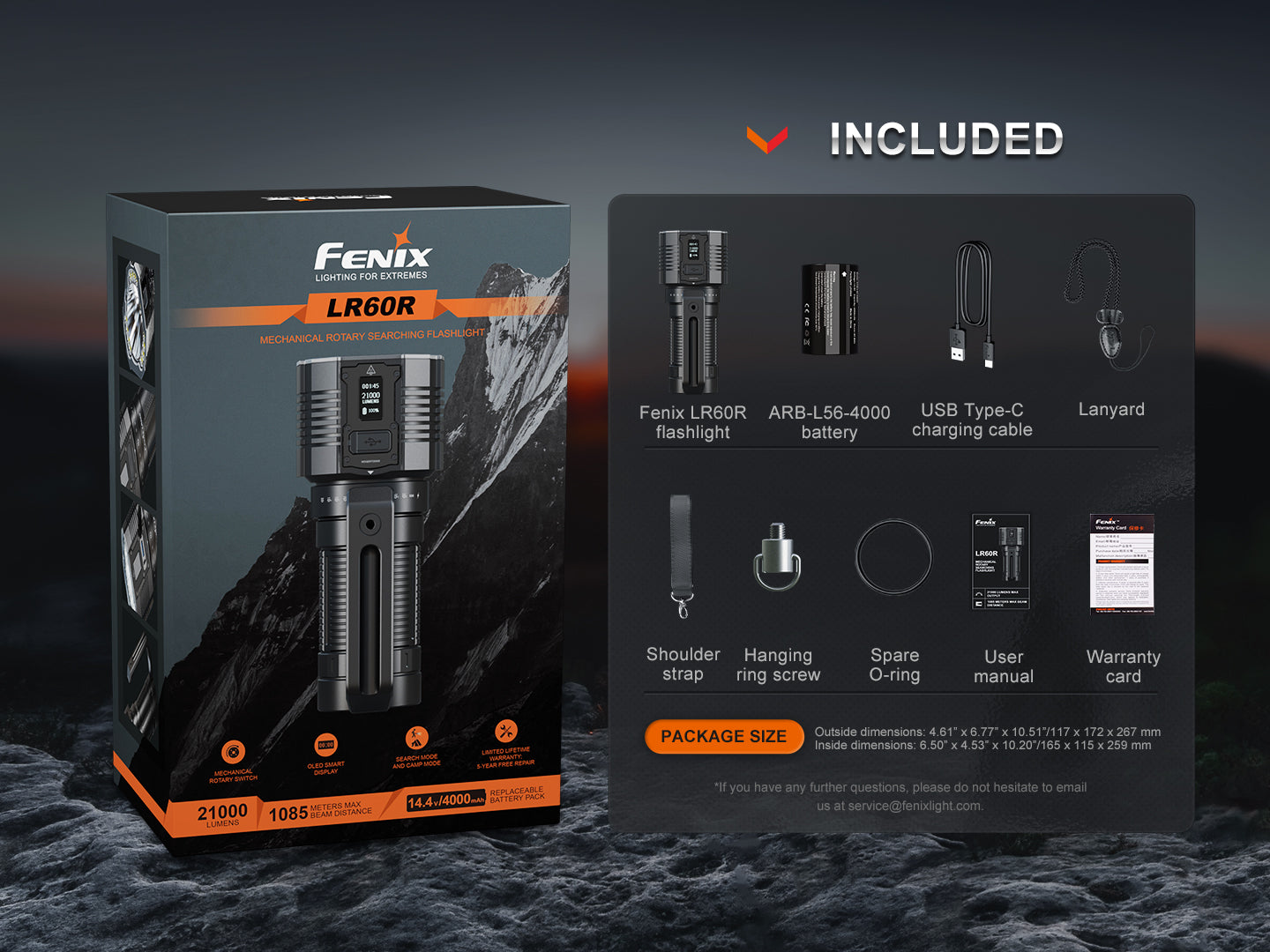

Included

Fenix LR60R flashlight, ARB-L56-4000 battery pack, Lanyard, USB Type-C charging cable, Hanging ring screw, Shoulder strap, Spare O-ring, User manual, Warranty card.
